ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid
(1312- )ASU6#,ZSU6#

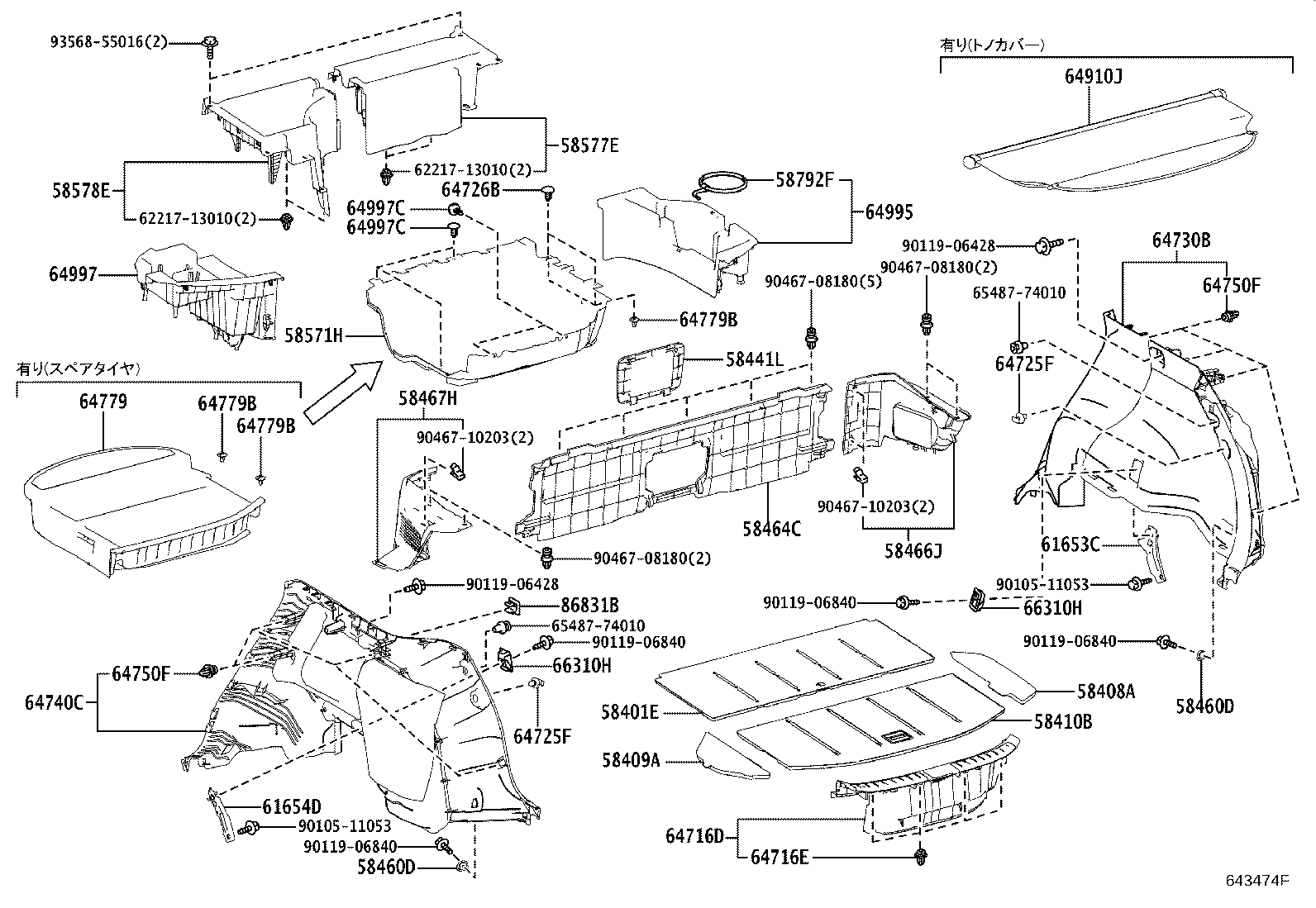

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58401E - BOARD SUB-ASSY, DECK | ||||
| 58401-48030C0 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM0#,2#,4# |
1 | ||
| 58401-48030C1 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 58408A - BOARD SUB-ASSY, DECK, NO.2 | ||||
| 58408-48090C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 58409A - BOARD SUB-ASSY, DECK, NO.3 | ||||
| 58409-48080C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-48120C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 58441L - COVER, BATTERY SERVICE HOLE | ||||
| 58441-48050C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
AVU65,ZSU6# |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
AVU65,ZSU6# |
2 | ||
| 58464C - BOARD, BATTERY SERVICE COVER, NO.1 | ||||
| 58464-48010C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 58466J - BOARD, BATTERY SERVICE COVER, NO.2 | ||||
| 58466-48020C0 |
ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 58467H - BOARD, BATTERY SERVICE COVER, NO.3 | ||||
| 58467-48020C0 |
ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 58571H - CARPET, REAR FLOOR | ||||
| 58571-48010 |
AVU65,ZSU6# |
1 | ||
| 58577E - PLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1 | ||||
| 58577-48010 |
ZSU6# |
1 | ||
| 58578E - PLATE, REAR FLOOR MAT SUPPORT SIDE, LH | ||||
| 58578-48020 |
ZSU6# |
1 | ||
| 58792F - SUPPORT, JACK CARRIER | ||||
| 58792-48020 |
AVU65,ZSU6# |
1 | ||
| 61653C - BRACKET, DECK SIDE TRIM, RH | ||||
| 61653-48050 |
AVU65,ZSU6# |
1 | ||
| 61654D - BRACKET, DECK SIDE TRIM, NO.2 | ||||
| 61654-48050 |
AVU65,ZSU6# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-48020C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-10161 |
AVU65,ZSU6# |
4 | ||
| 64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-21020C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-21020C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 64726-26010C1 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-48130C0 |
AVU65,ZSU6#..PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL,BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 64730-48130C0 |
ZSU6#..PREM ｱｸｾｻﾘｺﾈｸﾀ(NO.2)−有り(100W)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL,BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 64730-48120C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-48120C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 64740-48130C0 |
ZSU6#..PREM ｱｸｾｻﾘｺﾈｸﾀ(NO.2)−有り(100W)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL,BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 64740-48130C0 |
ZSU6#..PREM ｱｸｾｻﾘｺﾈｸﾀ(NO.2)−有り(100W),BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
AVU65,ZSU6# |
8 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
AVU65,ZSU6# |
8 | ||
| 64779 - TRAY, SPARE WHEEL COVER | ||||
| 64779-48060 |
AVU65,ZSU6# ｽﾍﾟｱﾀｲﾔ−応急用(165/80D17ST) |
1 | ||
| 64779B - STOPPER, SPARE WHEEL COVER | ||||
| 64779-26010 |
AVU65,ZSU6# |
2 | ||
| 64779B - STOPPER, SPARE WHEEL COVER | ||||
| 64779-26010 |
AVU65,ZSU6# |
2 | ||
| 64779B - STOPPER, SPARE WHEEL COVER | ||||
| 64779-26010 |
AVU65,ZSU6# |
2 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-48130C0 |
AVU65,ZSU6#..PREM ﾄﾉｶﾊﾞｰ−有り,BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 64995 - BOX, DECK FLOOR, RH | ||||
| 64995-48010 |
AVU65,ZSU6# |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-48010 |
ZSU6# |
1 | ||
| 64997C - CLIP(FOR DECK FLOOR BOX) | ||||
| 90467-05164C7 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
5 | ||
| 90467-05164C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
5 | ||
| 64997C - CLIP(FOR DECK FLOOR BOX) | ||||
| 90467-05164C7 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
5 | ||
| 90467-05164C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
5 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 66310-30011C1 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 66310-30011C1 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
2 | ||
| 86831B - COVER, ACCESSORY SOCKET | ||||
| 86831-48010C0 |
ZSU6#..PREM ｱｸｾｻﾘｺﾈｸﾀ(NO.2)−有り(100W),BLACK,TRIM0#,1#,2#,4# |
1 | ||
| Common parts | ||||
| 62217-13010 | ||||
| 65487-74010 | ||||
| 90105-11053 | ||||
| 90119-06428 | ||||
| 90119-06840 | ||||
| 90467-08180 | ||||
| 90467-10203 | ||||
| 93568-55016 | ||||
