ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

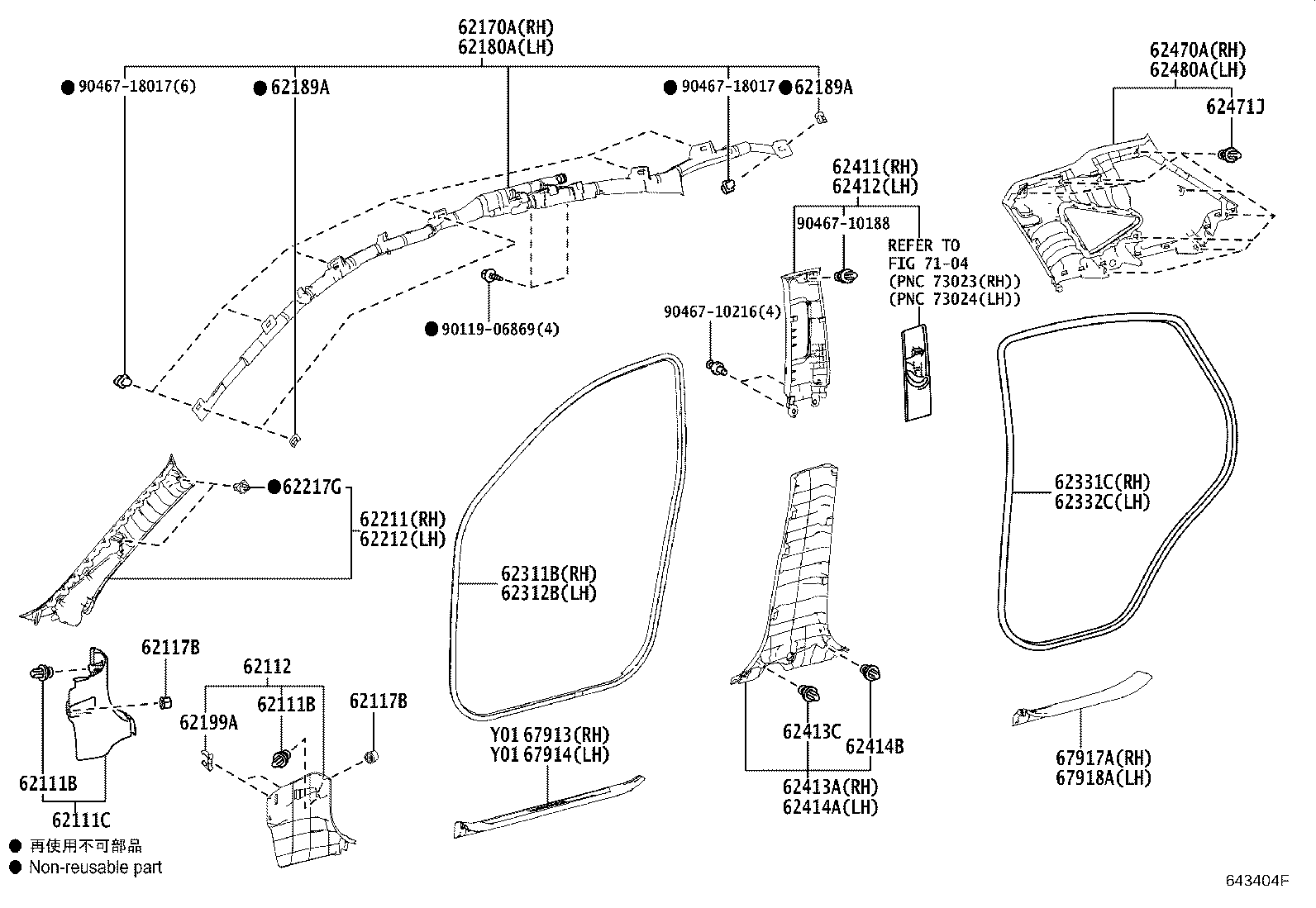

Click highlighted areas on diagram

diagram 62111B 62111B 62111C 62112 62117B 62117B 62170A 62180A 62189A 62189A 62199A 62211 62212 62217G 62311B 62312B 62331C 62332C 62411 62412 62413A 62413C 62414A 62414B 62470A 62471J 62480A 67913 67914 67917A 67918A 7104 9011906869 9046710188 9046710216 9046718017 9046718017
Part # Description Qty Price
62111B - CLIP(FOR COWL SIDE TRIM)
90467-10161

AVU65,ZSU6#

 2
62111B - CLIP(FOR COWL SIDE TRIM)
90467-10161

AVU65,ZSU6#

 2
62111C - BOARD, COWL SIDE TRIM, RH
62111-48060C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-48060C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-06147

AVU65,ZSU6#

 2
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-06147

AVU65,ZSU6#

 2
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-48070

AVU65,ZSU6#

 1
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-48070

AVU65,ZSU6#

 1
62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP
62189-42010

AVU65,ZSU6#

 6
62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP
62189-42010

AVU65,ZSU6#

 6
62199A - HOLDER, FUSEE
62199-48010

AVU65,ZSU6#

 2
90468-25003

AVU65,ZSU6#

 2
62211 - GARNISH, FRONT PILLAR, RH
62210-48160C1

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
62212 - GARNISH, FRONT PILLAR, LH
62220-48170C1

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
62217G - CLIP, FRONT PILLAR GARNISH
62217-52120

AVU65,ZSU6#

 4
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-48090

AVU65,ZSU6#

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-48090

AVU65,ZSU6#

 1
62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-48070

AVU65,ZSU6#

 1
62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-48070

AVU65,ZSU6#

 1
62411 - GARNISH, CENTER PILLAR, RH
62410-48080C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
62412 - GARNISH, CENTER PILLAR, LH
62420-48100C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-48050C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-10161

AVU65,ZSU6#

 2
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-48050C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
62414B - CLIP (FOR CENTER LOWER GARNISH)
90467-10167

AVU65,ZSU6#

 2
62470A - GARNISH ASSY, ROOF SIDE, INNER RH
62470-48120C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-10161

AVU65,ZSU6#

 18
62480A - GARNISH ASSY, ROOF SIDE, INNER LH
62480-48120C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-48080C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-48080C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-48080C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-48080C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
Common parts
90119-06869
90467-10188
90467-10216
90467-18017
Linked diagrams
7104
