ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid
ILLUST NO. 2 OF 2(1312- )
ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ(ﾑｰﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-48190 |
AVU65,ZSU6# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ,ﾑｰﾝﾙｰﾌ−有り,NO.2 |
1 | ||
| 63201-48180 |
AVU65,ZSU6# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ,ﾑｰﾝﾙｰﾌ−有り,NO.1 |
1 | ||
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-48190 |
AVU65,ZSU6# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ,ﾑｰﾝﾙｰﾌ−有り,NO.2 |
1 | ||
| 63201-48180 |
AVU65,ZSU6# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ,ﾑｰﾝﾙｰﾌ−有り,NO.1 |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-48160 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-48100 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-48050 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-48050 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-30010 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-30010 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-30010 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-30010 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-33030 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-33030 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-33030 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-33030 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-42010 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-42010 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-42010 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-42010 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-48080 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-48090 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
8 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-48090 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
8 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-48080 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-48070 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63243-48070 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-48050 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63245-48050 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63247-48110 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63248-48030 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-48070 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-48080 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-48060 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63251J - WEATHERSTRIP, SLIDING ROOF, NO.2 | ||||
| 63251-48090 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63260H - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-48180 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63260J - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-48170 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63260-48171 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63514A - WIRE, CONNECTOR | ||||
| 63514-48010 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| Common parts | ||||
| 90029-01006 | ||||
| 90029-01008 | ||||
| 90119-06897 | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| 90480-26020 | ||||
| Linked diagrams | ||||
| 6402 | ||||

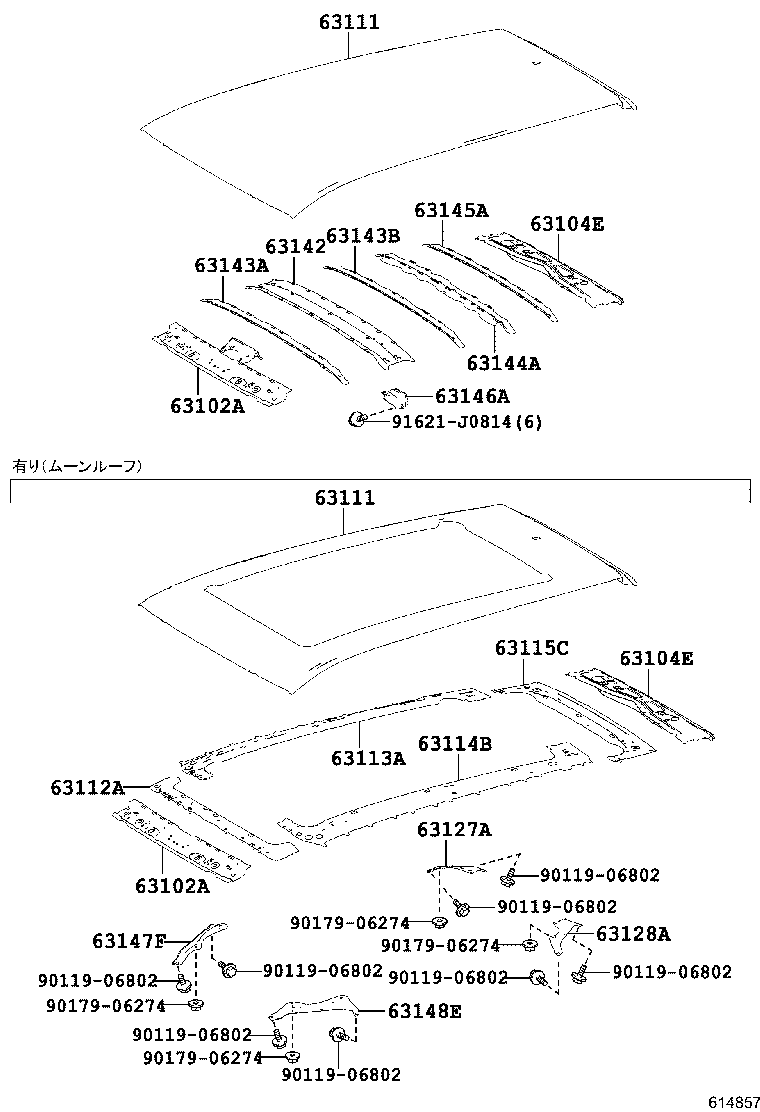

ILLUST NO. 1 OF 2(1312- )
ﾙｰﾌﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-48200 |
AVU65,ZSU6# |
1 | ||
| 63102-48210 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-48210 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63102-48200 |
AVU65,ZSU6# |
1 | ||
| 63104E - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR | ||||
| 63104-48030 |
AVU65,ZSU6# |
1 | ||
| 63104E - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR | ||||
| 63104-48030 |
AVU65,ZSU6# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-48190 |
AVU65,ZSU6# |
1 | ||
| 63111-48220 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-48190 |
AVU65,ZSU6# |
1 | ||
| 63111-48220 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63112A - PANEL, ROOF, NO.2 | ||||
| 63112-48020 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63113A - PANEL, ROOF, NO.3 | ||||
| 63113-48020 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63114B - PANEL, ROOF, NO.4 | ||||
| 63114-48010 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63115C - PANEL, ROOF, NO.4 | ||||
| 63115-48010 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63127A - EXTENSION, ROOF PANEL, REAR RH | ||||
| 63127-48040 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63128A - EXTENSION, ROOF PANEL, REAR LH | ||||
| 63128-48020 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63141-48070 |
AVU65,ZSU6# |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63143-48090 |
AVU65,ZSU6# |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63123-48050 |
AVU65,ZSU6# |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-48080 |
AVU65,ZSU6# |
1 | ||
| 63145A - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63149-48040 |
AVU65,ZSU6# |
1 | ||
| 63146A - BRACKET, ROOF PANEL REINFORCEMENT, NO.1 | ||||
| 63146-48010 |
AVU65,ZSU6# |
2 | ||
| 63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH | ||||
| 63147-48010 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH | ||||
| 63148-48040 |
AVU65,ZSU6# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| Common parts | ||||
| 90119-06802 | ||||
| 90179-06274 | ||||
| 91621-J0814 | ||||
