ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1312- )

Click highlighted areas on diagram

ｱｳﾀﾊﾟﾈﾙ

diagram 61131 61132 61211 61212 61311B 61312B 61611 61612
Part # Description Qty Price
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61101-48020

AVU65,ZSU6#

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61102-48020

AVU65,ZSU6#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61203-48030

AVU65,ZSU6#

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61204-48030

AVU65,ZSU6#

 1
61311B - PILLAR, CENTER BODY, OUTER RH
61311-48060

AVU65,ZSU6#

 1
61312B - PILLAR, CENTER BODY, OUTER LH
61312-48060

AVU65,ZSU6#

 1
61611 - PANEL, QUARTER, RH
61601-48030

AVU65,ZSU6#

 1
61612 - PANEL, QUARTER, LH
61602-48030

AVU65,ZSU6#

 1

ILLUST NO. 2 OF 2(1312- )

Click highlighted areas on diagram

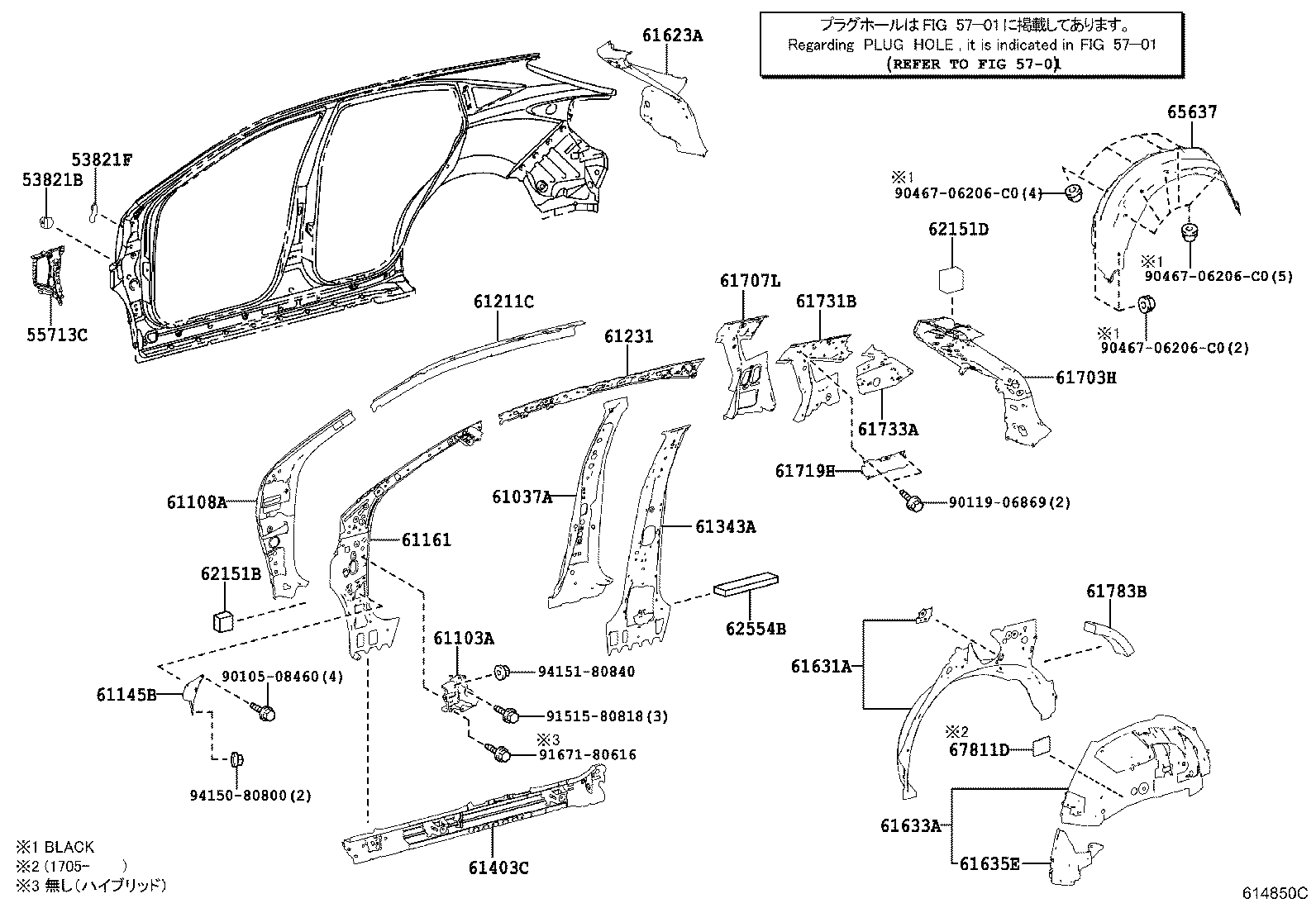

ｲﾝﾅﾊﾟﾈﾙ,RH

diagram 53821B 53821F 55713C 5701 61037A 61103A 61108A 61145B 61161 61211C 61231 61343A 61403C 61623A 61631A 61633A 61635E 61703H 61707L 61719H 61731B 61733A 61783B 62151B 62151D 62554B 65637 67811D 9010508460 9011906869 9046706206C0 9046706206C0 9046706206C0 9151580818 9167180616 9415080800 9415180840
Part # Description Qty Price
53821B - BRACKET, FRONT FENDER, REAR RH
53821-16010

AVU65,ZSU6#

 1
53821F - BRACKET, FRONT FENDER, REAR NO.2 RH
53821-48050

AVU65,ZSU6#

 1
55713C - PANEL, COWL TOP SIDE, RH
55713-42060

AVU65,ZSU6#

 1
61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61037-48090

AVU65,ZSU6#

 1
61103A - REINFORCEMENT SUB-ASSY, COWL SIDE, RH
61103-48030

AVU65,ZSU6#

 1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-42904

AVU65,ZSU6#

 1
61145B - GUSSET, FRONT BODY PILLAR, LOWER RH
61145-42020

AVU65,ZSU6#

 1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61023-48040

AVU65,ZSU6#

 1
61211C - RAIL, ROOF SIDE, RH
61211-48080

AVU65,ZSU6#

 1
61231 - RAIL, ROOF SIDE, INNER RH
61201-48030

AVU65,ZSU6#

 1
61343A - PILLAR, CENTER BODY, INNER RH
61035-48010

AVU65,ZSU6#

 1
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61403-42050

AVU65,ZSU6#

 1
61623A - EXTENSION, QUARTER PANEL, OUTER RH
61031-48010

AVU65,ZSU6#

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-48905

AVU65,ZSU6#

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-42081

AVU65,ZSU6#

 1
61635E - EXTENSION, QUARTER WHEEL HOUSE, RH
61065-42011

AVU65,ZSU6#

 1
61703H - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61703-48030

AVU65,ZSU6#

 1
61707L - PANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH
61707-48040

AVU65,ZSU6#

 1
61719H - BRACKET SUB-ASSY, ROOF SIDE RAIL, RH
61719-48050

AVU65,ZSU6#

 1
61731B - PANEL, ROOF SIDE, INNER RH
61731-48070

AVU65,ZSU6#

 1
61733A - PANEL, ROOF SIDE, INNER FRONT RH
61733-48070

AVU65,ZSU6#

 1
61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1
61783-48010

AVU65,ZSU6#

 2
62151B - PAD, COWL SIDE SILENCER
62151-42010

AVU65,ZSU6#

 2
62151D - PAD, COWL SIDE SILENCER
62151-68020

AVU65,ZSU6#

 1
62554B - PAD, PILLAR, NO.4
62554-42030

AVU65,ZSU6#

 2
65637 - LINER, REAR WHEEL HOUSE, RH
65637-48050

AVU65,ZSU6#

 1
Common parts
90105-08460
90119-06869
90467-06206C0
91515-80818
91671-80616
94150-80800
94151-80840
Linked diagrams
5701

ILLUST NO. 2 OF 2(1312- )

Click highlighted areas on diagram

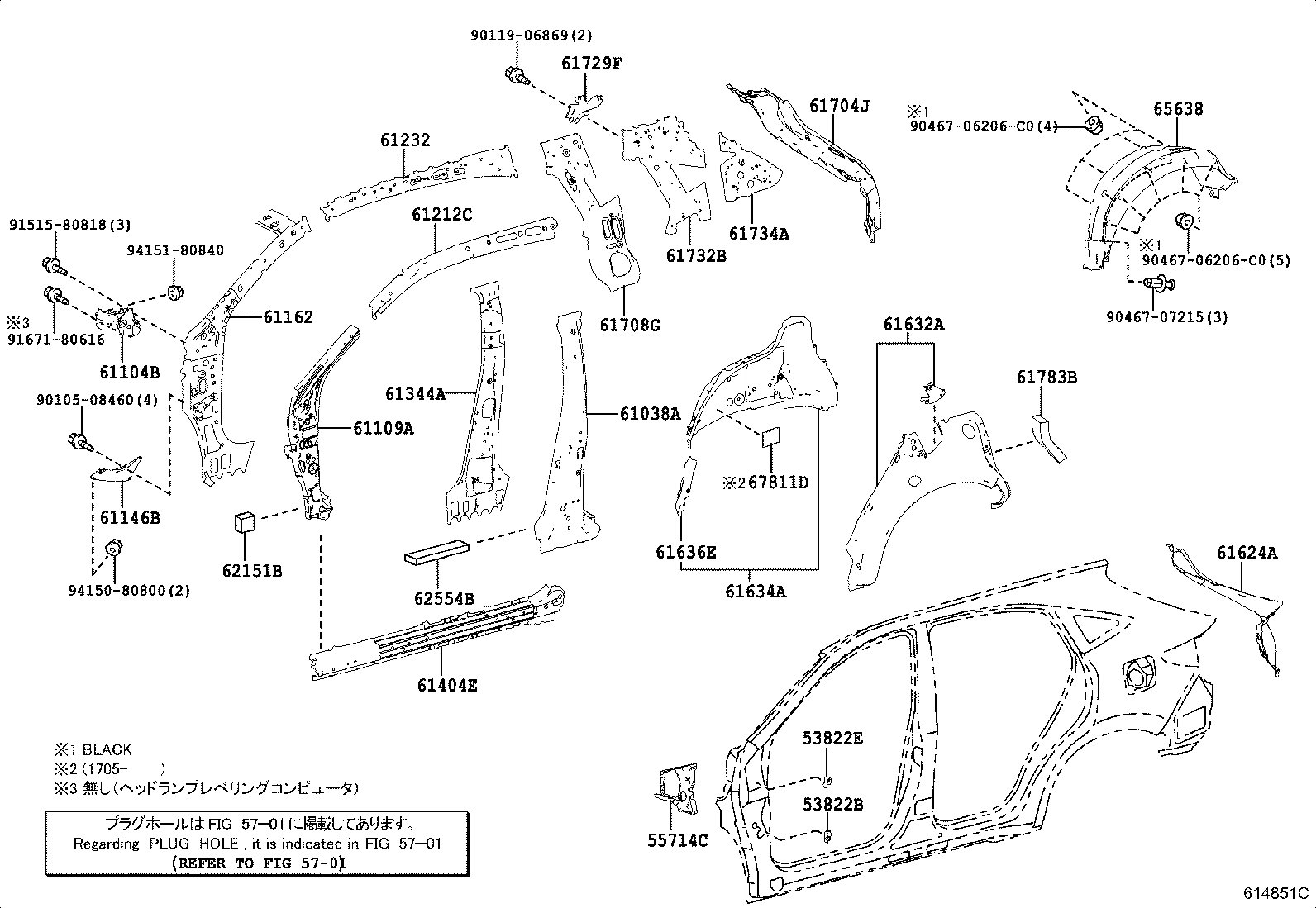

ｲﾝﾅﾊﾟﾈﾙ,LH

diagram 53822B 53822E 55714C 5701 61038A 61104B 61109A 61146B 61162 61212C 61232 61344A 61404E 61624A 61632A 61634A 61636E 61704J 61708G 61729F 61732B 61734A 61783B 62151B 62554B 65638 67811D 9010508460 9011906869 9046706206C0 9046706206C0 9046707215 9151580818 9167180616 9415080800 9415180840
Part # Description Qty Price
53822B - BRACKET, FRONT FENDER, REAR LH
53821-16010

AVU65,ZSU6#

 1
53822E - BRACKET, FRONT FENDER, REAR NO.2 LH
53822-48040

AVU65,ZSU6#

 1
55714C - PANEL, COWL TOP SIDE, LH
55714-42050

AVU65,ZSU6#

 1
55714-42060

AVU65,ZSU6#

 1
61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61038-48090

AVU65,ZSU6#

 1
61104B - REINFORCEMENT SUB-ASSY, COWL SIDE, LH
61104-48030

AVU65,ZSU6#

 1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-42904

AVU65,ZSU6#

 1
61146B - GUSSET, FRONT BODY PILLAR, LOWER LH
61146-42020

AVU65,ZSU6#

 1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61024-48040

AVU65,ZSU6#

 1
61212C - RAIL, ROOF SIDE, LH
61212-48080

AVU65,ZSU6#

 1
61232 - RAIL, ROOF SIDE, INNER LH
61202-48030

AVU65,ZSU6#

 1
61344A - PILLAR, CENTER BODY, INNER LH
61045-48020

AVU65,ZSU6#

 1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61404-42051

AVU65,ZSU6#

 1
61404-42050

AVU65,ZSU6#

 1
61624A - EXTENSION, QUARTER PANEL, OUTER LH
61032-48010

AVU65,ZSU6#

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-48905

AVU65,ZSU6#

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-42091

AVU65,ZSU6#

 1
61636E - EXTENSION, QUARTER WHEEL HOUSE, LH
61066-42010

AVU65,ZSU6#

 1
61704J - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH
61704-48030

AVU65,ZSU6#

 1
61708G - PANEL SUB-ASSY, ROOF SIDE, INNER FRONT LH
61708-48040

AVU65,ZSU6#

 1
61729F - BRACKET SUB-ASSY, ROOF SIDE RAIL, LH
61729-48050

AVU65,ZSU6#

 1
61732B - PANEL, ROOF SIDE, INNER LH
61732-48070

AVU65,ZSU6#

 1
61734A - PANEL, ROOF SIDE, INNER FRONT LH
61734-48070

AVU65,ZSU6#

 1
61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1
61783-48010

AVU65,ZSU6#

 2
62151B - PAD, COWL SIDE SILENCER
62151-42010

AVU65,ZSU6#

 2
62554B - PAD, PILLAR, NO.4
62554-42030

AVU65,ZSU6#

 2
65638 - LINER, REAR WHEEL HOUSE, LH
65638-48050

AVU65,ZSU6#

 1
Common parts
90105-08460
90119-06869
90467-06206C0
90467-07215
91515-80818
91671-80616
94150-80800
94151-80840
Linked diagrams
5701
