ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid
(1312-1708)

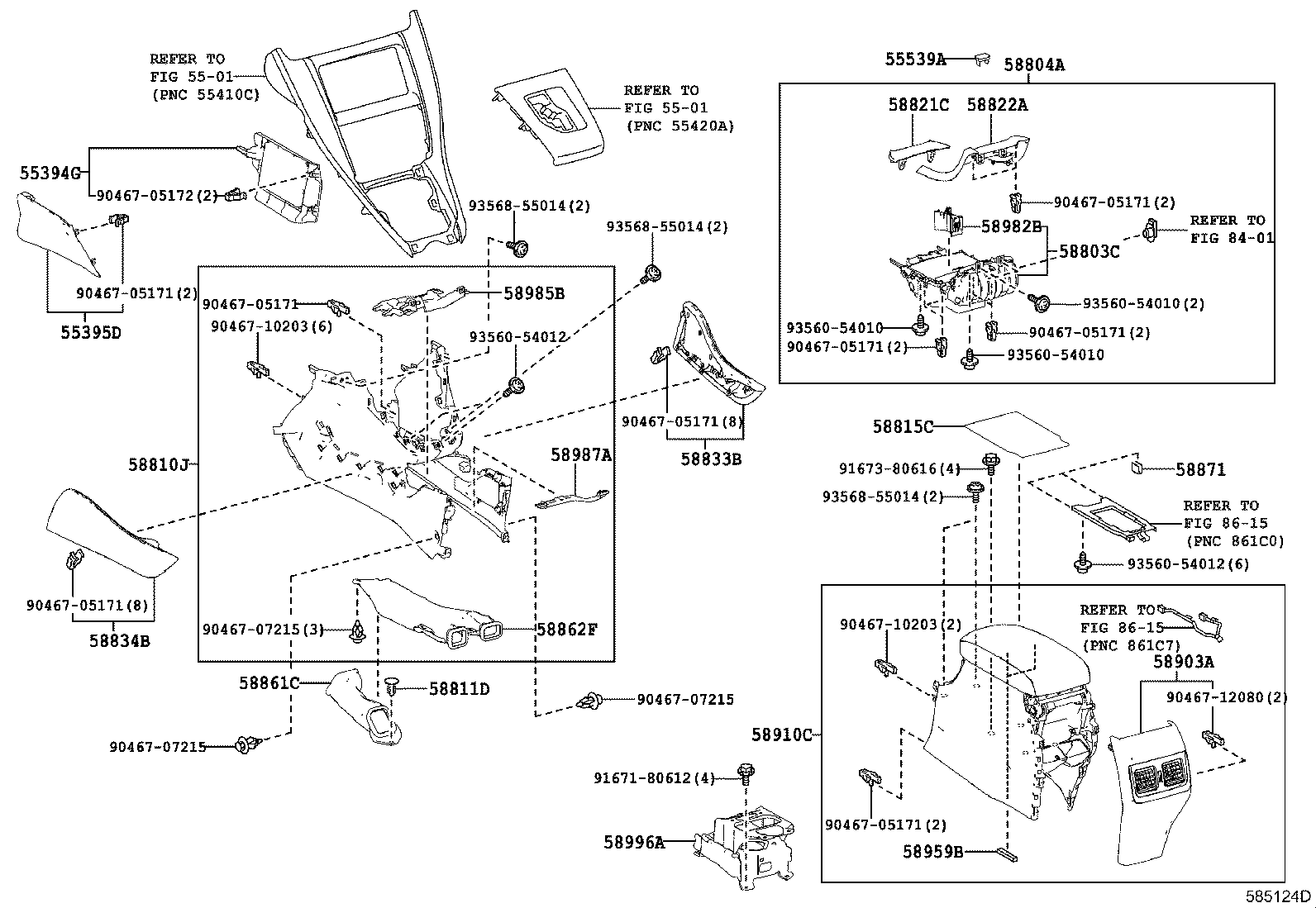

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55394G - COVER, INSTRUMENT PANEL BRACE, INNER NO.1 RH | ||||
| 55394-48020C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 55395D - COVER, INSTRUMENT PANEL BRACE, INNER NO.1 LH | ||||
| 55395-48010C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-22190 |
AVU65,ZSU6# |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-48120 |
AVU65,ZSU6# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-48490C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-48580C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-08186C3 |
AVU65,ZSU6# BLACK |
1 | ||
| 90467-08186C0 |
AVU65,ZSU6# BLACK |
1 | ||
| 58815C - CARPET, CONSOLE BOX | ||||
| 58815-48010 |
AVU65,ZSU6# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-48150 |
AVU65,ZSU6# |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-48060C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-48240E1 |
AVU65,ZSU6#..PREM DEEP BORDEAUX,TRIM4# |
1 | ||
| 58833-48240E1 |
AVU65,ZSU6#..PREM DEEP BORDEAUX,TRIM43 |
1 | ||
| 58833-48240C2 |
AVU65,ZSU6# BLACK,TRIM2# |
1 | ||
| 58833-48240A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 58833-48240B0 |
AVU65,ZSU6#..PREM WARM GRAY,TRIM1# |
1 | ||
| 58833-48240E1 |
AVU65,ZSU6#..PREM DEEP BORDEAUX,TRIM4# |
1 | ||
| 58833-48240K0 |
AVU65,ZSU6#..PREM STEEL MAUVE,TRIM44 |
1 | ||
| 58834B - GARNISH, CONSOLE UPPER PANEL, NO.2 | ||||
| 58834-48130E1 |
AVU65,ZSU6#..PREM DEEP BORDEAUX,TRIM43 |
1 | ||
| 58834-48130E1 |
AVU65,ZSU6#..PREM DEEP BORDEAUX,TRIM4# |
1 | ||
| 58834-48130K0 |
AVU65,ZSU6#..PREM STEEL MAUVE,TRIM44 |
1 | ||
| 58834-48130A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 58834-48130E1 |
AVU65,ZSU6#..PREM DEEP BORDEAUX,TRIM4# |
1 | ||
| 58834-48130C2 |
AVU65,ZSU6# BLACK,TRIM2# |
1 | ||
| 58834-48130B0 |
AVU65,ZSU6#..PREM WARM GRAY,TRIM1# |
1 | ||
| 58861C - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-48100 |
AVU65,ZSU6# |
1 | ||
| 58862F - DUCT, CONSOLE BOX, NO.2 | ||||
| 58862-48080 |
AVU65,ZSU6# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-48130C2 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58901-48020C2 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL,BLACK/LT.BROWN,TRIM0# |
1 | ||
| 58910-48380C7 |
AVU65,ZSU6#..PREM BLACK/DARK VIOLET,TRIM44 |
1 | ||
| 58910-48380C4 |
AVU65,ZSU6#..ELEGC,PREM BLACK/LT.BROWN,TRIM0# |
1 | ||
| 58901-48020C3 |
AVU65,ZSU6#..PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK/CREAM,TRIM2#,43 |
1 | ||
| 58901-48020C3 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL,BLACK/CREAM,TRIM2#,4# |
1 | ||
| 58901-48020C2 |
AVU65,ZSU6#..PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK/LT.BROWN,TRIM0# |
1 | ||
| 58910-48380C5 |
AVU65,ZSU6#..PREM BLACK/CREAM,TRIM2#,4# |
1 | ||
| 58901-48020C3 |
AVU65,ZSU6#..PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK/CREAM,TRIM2#,4# |
1 | ||
| 58901-48020C5 |
AVU65,ZSU6#..PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK/WARM GRAY,TRIM1# |
1 | ||
| 58910-48380C5 |
AVU65,ZSU6#..PREM BLACK/CREAM,TRIM2#,4# |
1 | ||
| 58901-48020C4 |
AVU65,ZSU6#..PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK/DARK VIOLET,TRIM44 |
1 | ||
| 58910-48380C8 |
AVU65,ZSU6#..PREM BLACK/WARM GRAY,TRIM1# |
1 | ||
| 58910-48380C5 |
AVU65,ZSU6#..PREM BLACK/CREAM,TRIM2#,43 |
1 | ||
| 58982B - RETAINER, CONSOLE BOX, NO.3 | ||||
| 58984-48020 |
AVU65,ZSU6# |
1 | ||
| 58985B - RETAINER, CONSOLE BOX, NO.1 | ||||
| 58985-48020 |
AVU65,ZSU6# |
1 | ||
| 58987A - RETAINER, CONSOLE BOX, NO.2 | ||||
| 58987-48020 |
AVU65,ZSU6# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-42050 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-07215 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91671-80612 | ||||
| 91673-80616 | ||||
| 91673-80822 | ||||
| 93560-54010 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8401 | ||||
(1312-1705)PREM
"ADVANCED PACKAGE"
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55394G - COVER, INSTRUMENT PANEL BRACE, INNER NO.1 RH | ||||
| 55394-48020C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 55395D - COVER, INSTRUMENT PANEL BRACE, INNER NO.1 LH | ||||
| 55395-48010C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-22190 |
AVU65,ZSU6# |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-48120 |
AVU65,ZSU6# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-48490C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-48580C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-08186C3 |
AVU65,ZSU6# BLACK |
1 | ||
| 90467-08186C0 |
AVU65,ZSU6# BLACK |
1 | ||
| 58815C - CARPET, CONSOLE BOX | ||||
| 58815-48010 |
AVU65,ZSU6# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-48150 |
AVU65,ZSU6# |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-48060C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-48240E1 |
AVU65,ZSU6#..PREM DEEP BORDEAUX,TRIM4# |
1 | ||
| 58833-48240E1 |
AVU65,ZSU6#..PREM DEEP BORDEAUX,TRIM43 |
1 | ||
| 58833-48240C2 |
AVU65,ZSU6# BLACK,TRIM2# |
1 | ||
| 58833-48240A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 58833-48240B0 |
AVU65,ZSU6#..PREM WARM GRAY,TRIM1# |
1 | ||
| 58833-48240E1 |
AVU65,ZSU6#..PREM DEEP BORDEAUX,TRIM4# |
1 | ||
| 58833-48240K0 |
AVU65,ZSU6#..PREM STEEL MAUVE,TRIM44 |
1 | ||
| 58834B - GARNISH, CONSOLE UPPER PANEL, NO.2 | ||||
| 58834-48130E1 |
AVU65,ZSU6#..PREM DEEP BORDEAUX,TRIM43 |
1 | ||
| 58834-48130E1 |
AVU65,ZSU6#..PREM DEEP BORDEAUX,TRIM4# |
1 | ||
| 58834-48130K0 |
AVU65,ZSU6#..PREM STEEL MAUVE,TRIM44 |
1 | ||
| 58834-48130A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 58834-48130E1 |
AVU65,ZSU6#..PREM DEEP BORDEAUX,TRIM4# |
1 | ||
| 58834-48130C2 |
AVU65,ZSU6# BLACK,TRIM2# |
1 | ||
| 58834-48130B0 |
AVU65,ZSU6#..PREM WARM GRAY,TRIM1# |
1 | ||
| 58861C - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-48100 |
AVU65,ZSU6# |
1 | ||
| 58862F - DUCT, CONSOLE BOX, NO.2 | ||||
| 58862-48080 |
AVU65,ZSU6# |
1 | ||
| 58871 - CUSHION, CONSOLE BOX | ||||
| 58871-48020 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
2 | ||
| 58871-48020 |
AVU65,ZSU6#..PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
2 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-48130C2 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58901-48020C2 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL,BLACK/LT.BROWN,TRIM0# |
1 | ||
| 58910-48380C7 |
AVU65,ZSU6#..PREM BLACK/DARK VIOLET,TRIM44 |
1 | ||
| 58910-48380C4 |
AVU65,ZSU6#..ELEGC,PREM BLACK/LT.BROWN,TRIM0# |
1 | ||
| 58901-48020C3 |
AVU65,ZSU6#..PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK/CREAM,TRIM2#,43 |
1 | ||
| 58901-48020C3 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL,BLACK/CREAM,TRIM2#,4# |
1 | ||
| 58901-48020C2 |
AVU65,ZSU6#..PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK/LT.BROWN,TRIM0# |
1 | ||
| 58910-48380C5 |
AVU65,ZSU6#..PREM BLACK/CREAM,TRIM2#,4# |
1 | ||
| 58901-48020C3 |
AVU65,ZSU6#..PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK/CREAM,TRIM2#,4# |
1 | ||
| 58901-48020C5 |
AVU65,ZSU6#..PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK/WARM GRAY,TRIM1# |
1 | ||
| 58910-48380C5 |
AVU65,ZSU6#..PREM BLACK/CREAM,TRIM2#,4# |
1 | ||
| 58901-48020C4 |
AVU65,ZSU6#..PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK/DARK VIOLET,TRIM44 |
1 | ||
| 58910-48380C8 |
AVU65,ZSU6#..PREM BLACK/WARM GRAY,TRIM1# |
1 | ||
| 58910-48380C5 |
AVU65,ZSU6#..PREM BLACK/CREAM,TRIM2#,43 |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-48050 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
2 | ||
| 58959-48050 |
AVU65,ZSU6#..PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
2 | ||
| 58982B - RETAINER, CONSOLE BOX, NO.3 | ||||
| 58984-48020 |
AVU65,ZSU6# |
1 | ||
| 58985B - RETAINER, CONSOLE BOX, NO.1 | ||||
| 58985-48020 |
AVU65,ZSU6# |
1 | ||
| 58987A - RETAINER, CONSOLE BOX, NO.2 | ||||
| 58987-48020 |
AVU65,ZSU6# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-42050 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-07215 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91671-80612 | ||||
| 91673-80616 | ||||
| 93560-54010 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8401 | ||||
| 8615 | ||||
