ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid
Production
Dec 2013
-
May 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1312- )

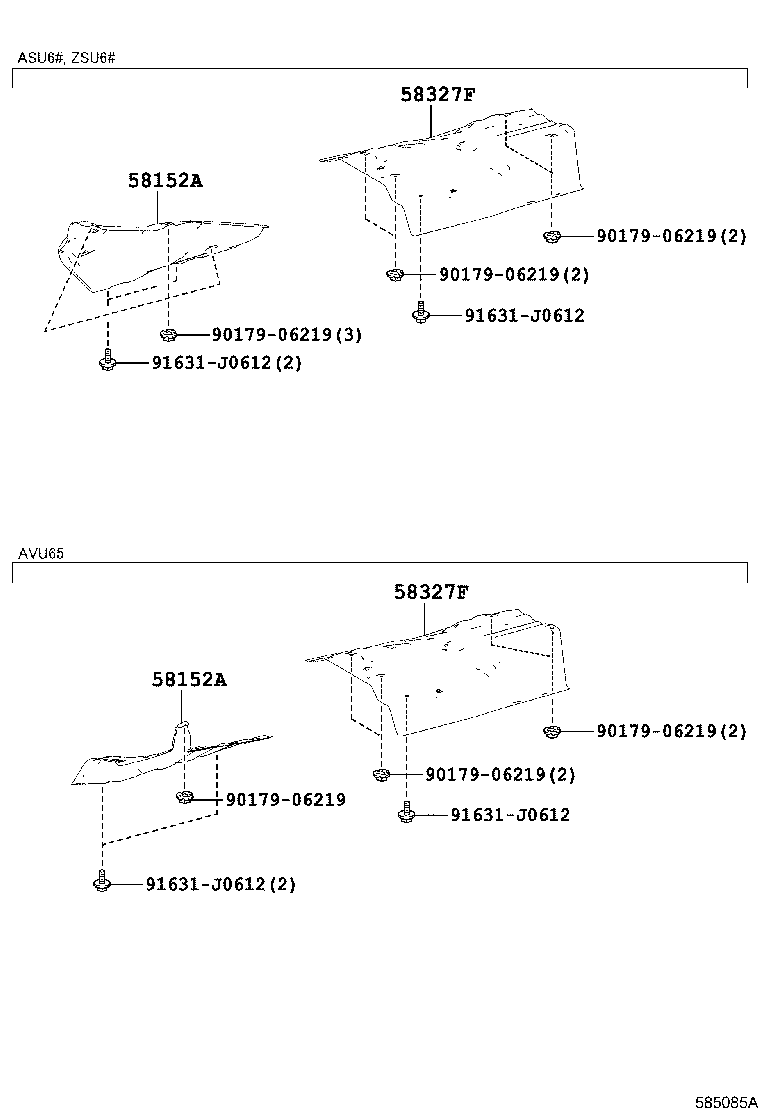

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58152A - INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER | ||||
| 58152-42030 |
ZSU6# |
1 | ||
| 58152A - INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER | ||||
| 58152-42030 |
ZSU6# |
1 | ||
| 58327F - INSULATOR, MAIN MUFFLER HEAT, RH | ||||
| 58327-42020 |
ZSU6# |
1 | ||
| 58327F - INSULATOR, MAIN MUFFLER HEAT, RH | ||||
| 58327-42020 |
ZSU6# |
1 | ||
| Common parts | ||||
| 90179-06219 | ||||
| 91631-J0612 | ||||
