ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

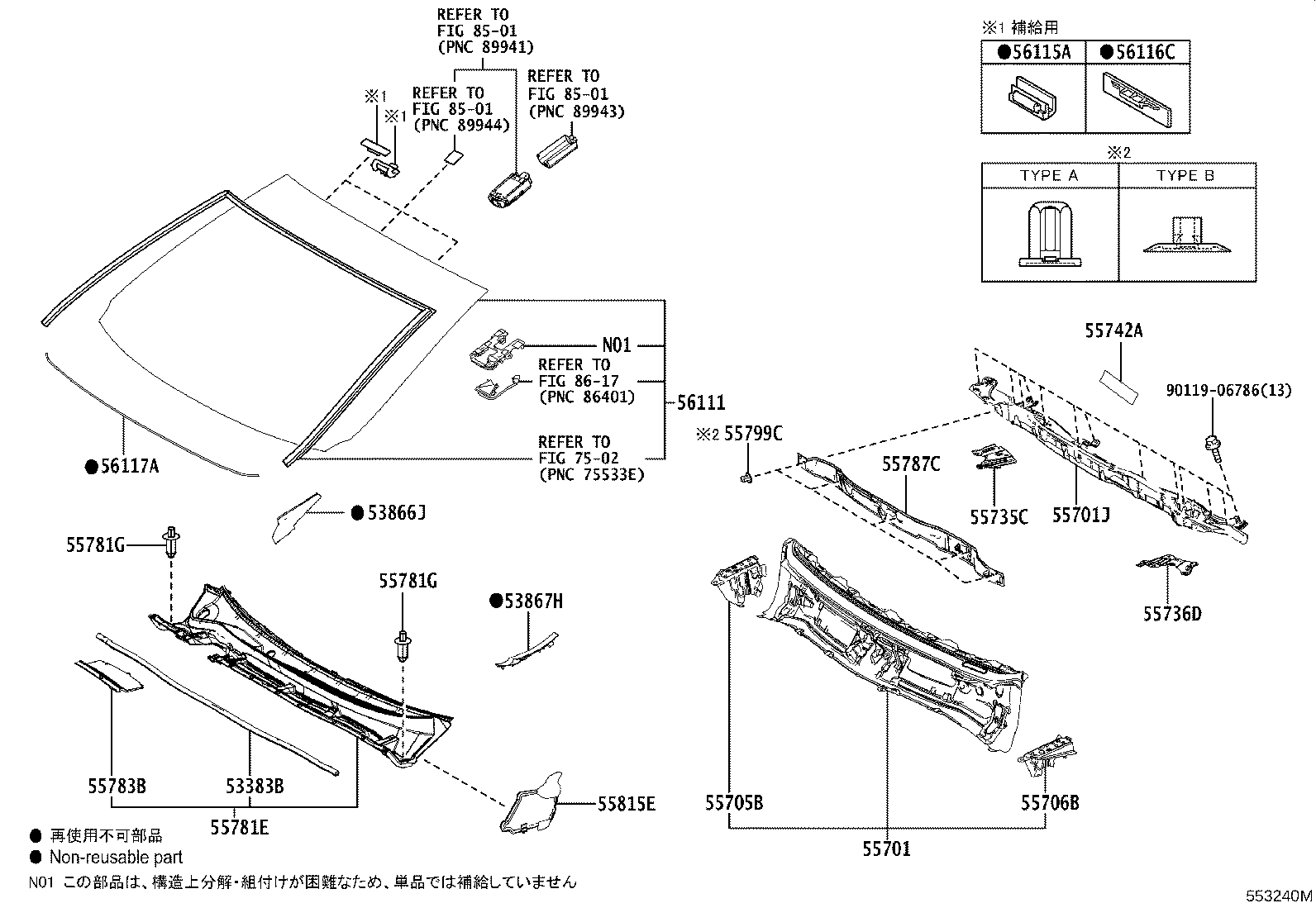

Click highlighted areas on diagram

diagram 53383B 53866J 53867H 55701 55701J 55705B 55706B 55735C 55736D 55742A 55781E 55781G 55781G 55783B 55787C 55799C 55815E 56111 56115A 56116C 56117A 7502 8501 8501 8501 8617 9011906786
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-48060

AVU65,ZSU6#

 1
53866J - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-48070

AVU65,ZSU6#

 1
53866-48080

AVU65,ZSU6#

 1
53867H - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-48090

AVU65,ZSU6#

 1
53867-48080

AVU65,ZSU6#

 1
55701 - PANEL SUB-ASSY, COWL
55700-42490

AVU65,ZSU6#

 1
55701J - PANEL SUB-ASSY, COWL TOP, OUTER
55701-42400

AVU65,ZSU6#

 1
55701-42410

AVU65,ZSU6#

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-42070

AVU65,ZSU6#

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-42050

AVU65,ZSU6#

 1
55735C - REINFORCEMENT, COWL BODY MOUNTING, RH
55735-42020

AVU65,ZSU6#

 1
55736D - REINFORCEMENT, COWL BODY MOUNTING, LH
55736-42040

AVU65,ZSU6#

 1
55742A - SHEET, COWL TOP INSULATOR
55742-42050

AVU65,ZSU6#

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-48160

AVU65,ZSU6#

寒冷地仕様

 1
55708-48150

AVU65,ZSU6#

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-07076C0

AVU65,ZSU6#

BLACK

 2
90467-07076C7

AVU65,ZSU6#

BLACK

 2
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-07076C0

AVU65,ZSU6#

BLACK

 2
90467-07076C7

AVU65,ZSU6#

BLACK

 2
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-48030

AVU65,ZSU6#

 1
55787C - INSULATOR, COWL TOP PANEL, NO.1
55787-48050

AVU65,ZSU6#

 1
55799C - CLIP, COWL TOP VENTILATOR LOUVER
90467-06158C0

AVU65,ZSU6#

BLACK,TYPE A:ｲﾗｽﾄ参照

 5
90467-06188

AVU65,ZSU6#

TYPE B:ｲﾗｽﾄ参照

 5
55815E - SEAL, FRONT VENTILATOR, NO.1
55815-42030

AVU65,ZSU6#

 1
56111 - GLASS, WINDSHIELD
56101-48760

AVU65,ZSU6#..PREM

*EHL,厚さ=4.76,ｸﾞﾘｰﾝ,寒冷地仕様

 1
56101-48750

AVU65,ZSU6#..PREM

*LAM,厚さ=4.76,ｸﾞﾘｰﾝ

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

AVU65,ZSU6#

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

AVU65,ZSU6#

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-50140

AVU65,ZSU6#

*D,L=1307

 1
56117-50140

AVU65,ZSU6#

*D,L=1307,寒冷地仕様

 1
Common parts
90119-06786
Linked diagrams
7502
8501
8617
