ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid

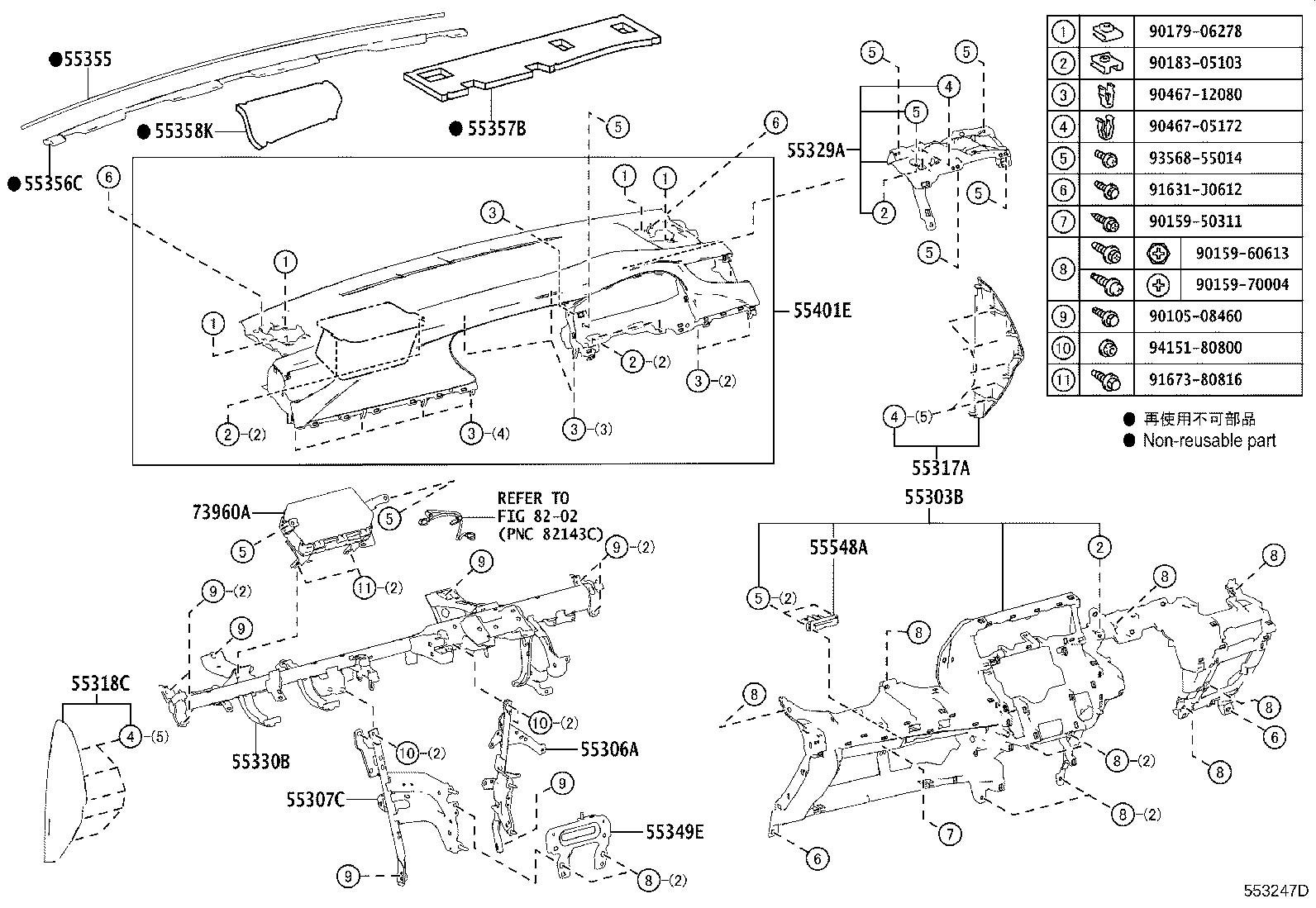

ILLUST NO. 1 OF 3(1312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-48170C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 55303-48171C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-48150 |
AVU65,ZSU6# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-48150 |
AVU65,ZSU6# |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-48150C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-48120C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 55329A - BRACKET, INSTRUMENT PANEL METER | ||||
| 55329-48100 |
AVU65,ZSU6# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-48210 |
AVU65,ZSU6# |
1 | ||
| 55349E - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, LOWER | ||||
| 55349-48020 |
AVU65,ZSU6# |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-42030 |
AVU65,ZSU6# |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-48060 |
AVU65,ZSU6# |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-48140 |
AVU65,ZSU6# |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-48090 |
AVU65,ZSU6# |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-48150E0 |
AVU65,ZSU6#..PREM DEEP BORDEAUX,TRIM43 |
1 | ||
| 55401-48150E0 |
AVU65,ZSU6#..PREM DEEP BORDEAUX,TRIM4# |
1 | ||
| 55401-48150E0 |
AVU65,ZSU6#..PREM DEEP BORDEAUX,TRIM4# |
1 | ||
| 55401-48150K0 |
AVU65,ZSU6#..PREM STEEL MAUVE,TRIM44 |
1 | ||
| 55401-48150B0 |
AVU65,ZSU6#..PREM WARM GRAY,TRIM1# |
1 | ||
| 55401-48150C0 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM0#,2# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-52030C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-48080 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90159-50311 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-05172 | ||||
| 90467-12080 | ||||
| 91631-J0612 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

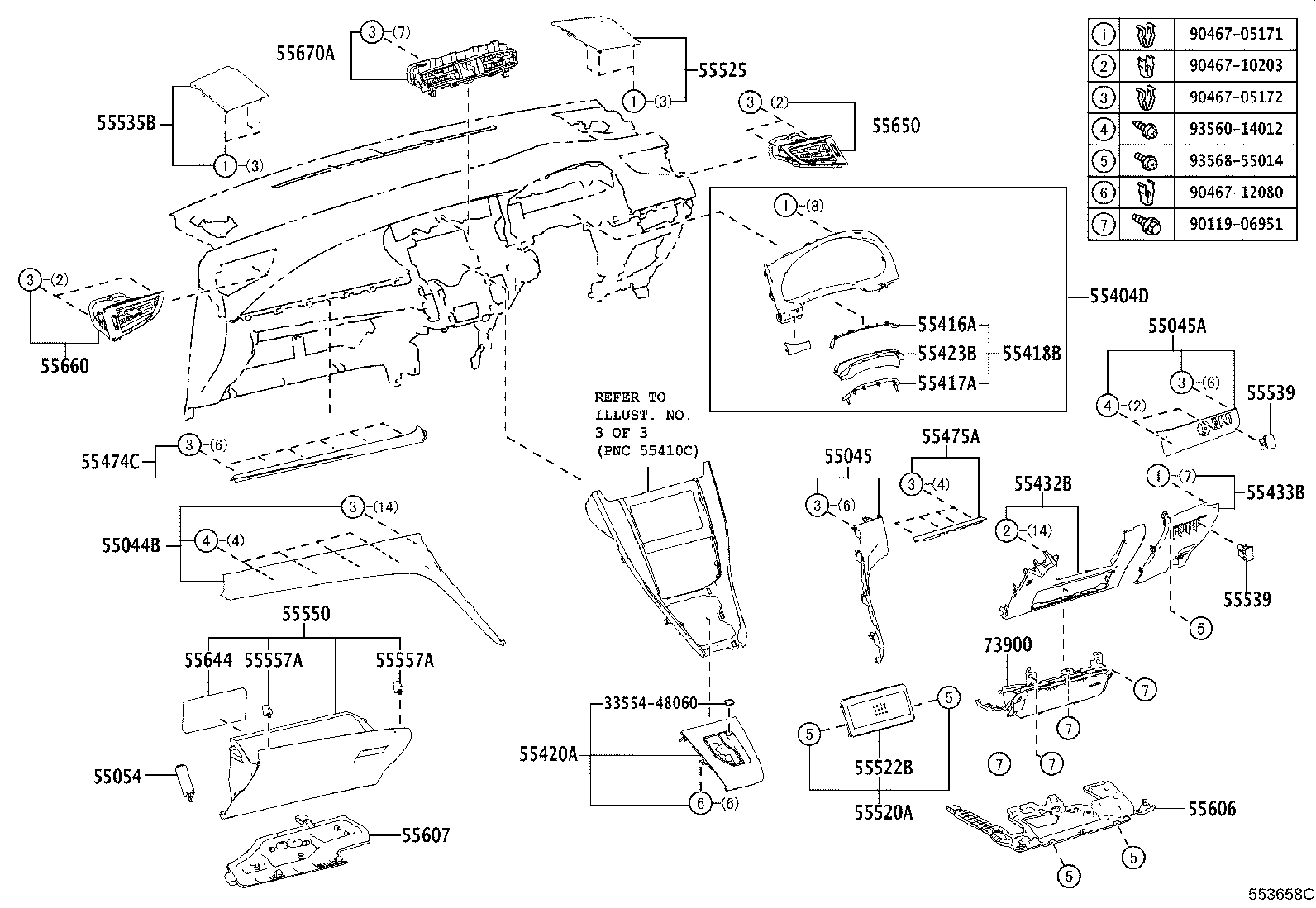

ILLUST NO. 2 OF 3(1312-1705)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55044B - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55044-48010C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55046-48010C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-48170C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
AVU65,ZSU6# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-48070C0 |
AVU65,ZSU6#..PREM 21BK02,TRIM0#,1#,2#,4# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-48040 |
AVU65,ZSU6# |
1 | ||
| 55417A - RETAINER, METER HOOD, NO.2 | ||||
| 55417-48010 |
AVU65,ZSU6# |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-48130 |
AVU65,ZSU6# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-48290C2 |
ZSU6#..PREM AURORA,TRIM44 |
1 | ||
| 55420-48290C3 |
ZSU6#..PREM BLACK AND BLUE,TRIM1# |
1 | ||
| 55420-48290E0 |
ZSU6#..PREM DARK RED,TRIM0#,2#,4# |
1 | ||
| 55420-48290E0 |
ZSU6#..PREM DARK RED,TRIM0#,2#,4# |
1 | ||
| 55420-48290E0 |
ZSU6#..PREM DARK RED,TRIM0#,2#,43 |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-48030 |
AVU65,ZSU6# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-48310C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-48171C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 55433-48170C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-48060 |
AVU65,ZSU6# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-48080 |
AVU65,ZSU6# |
1 | ||
| 55520A - COVER ASSY, STEREO OPENING | ||||
| 55520-47020 |
AVU65,ZSU6# ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ 有り(ｶﾊﾞｰ) |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
AVU65,ZSU6# ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ 有り(ｶﾊﾞｰ) |
1 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55525-48030C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 55535B - COVER, SPEAKER HOLE, NO.2 | ||||
| 55535-48010C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-22190 |
AVU65,ZSU6# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-22190 |
AVU65,ZSU6# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-48070C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
AVU65,ZSU6# |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
AVU65,ZSU6# |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-48030 |
AVU65,ZSU6# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-48110 |
AVU65,ZSU6# |
1 | ||
| 55644 - PAD, INSTRUMENT PANEL UNDER SILENCER, NO.2 | ||||
| 55644-42050 |
AVU65,ZSU6# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-48090 |
AVU65,ZSU6# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-48090 |
AVU65,ZSU6# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-48120 |
AVU65,ZSU6# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-48070C0 |
AVU65,ZSU6#..PREM BLACK,TRIM0#,1#,2#,4# |
1 | ||
| Common parts | ||||
| 33554-48060 | ||||
| 90119-06951 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 93560-14012 | ||||
| 93568-55014 | ||||

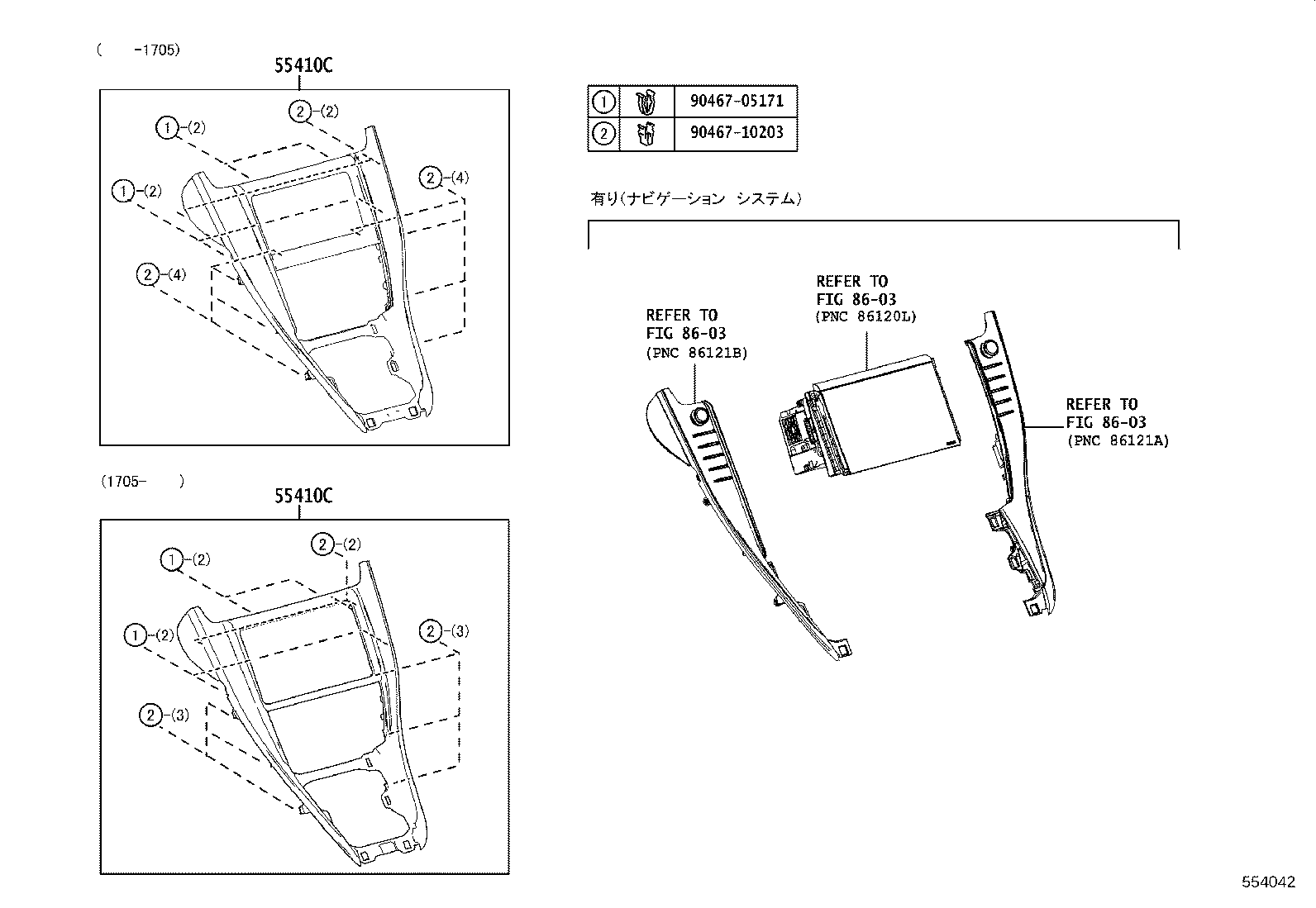

ILLUST NO. 3 OF 3(1312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-48110 |
AVU65,ZSU6# |
1 | ||
| 55410-48110 |
AVU65,ZSU6#..ELEGC,PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-48110 |
AVU65,ZSU6# |
1 | ||
| 55410-48110 |
AVU65,ZSU6#..ELEGC,PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 8603 | ||||
