ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid
(1312-1705)

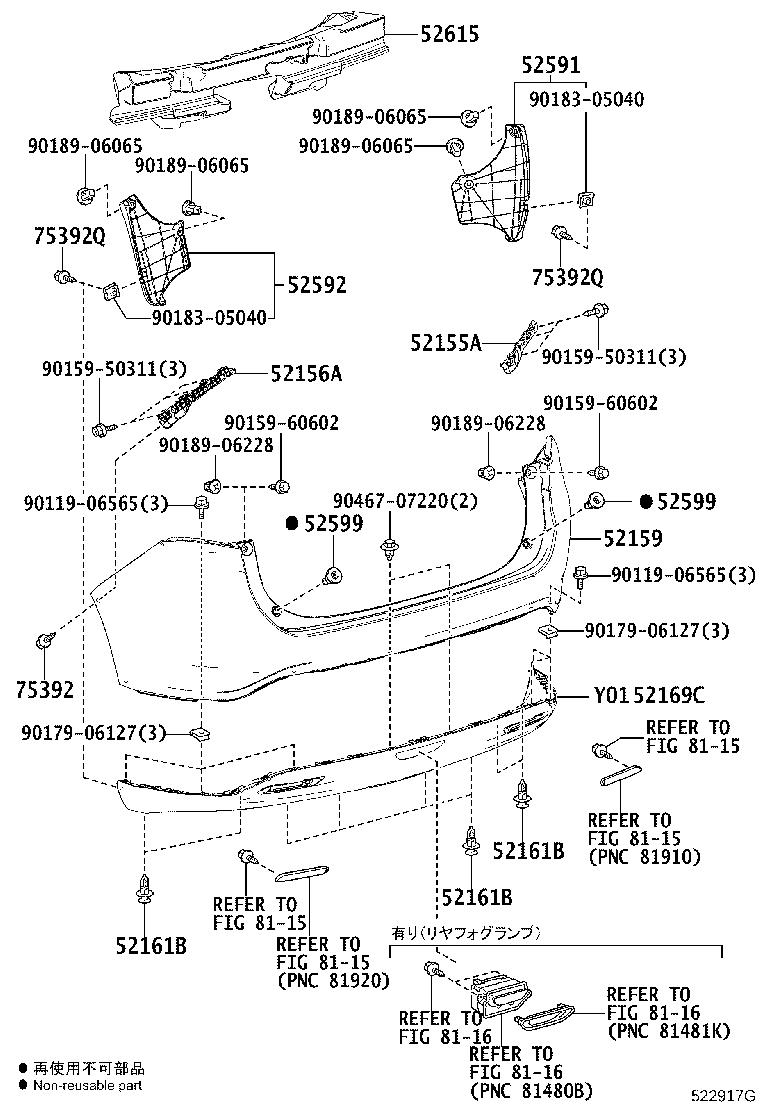

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-48050 |
AVU65,ZSU6# |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-48050 |
AVU65,ZSU6# |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-48120A0 |
AVU65,ZSU6# WHITE PEARL CS.,070 |
1 | ||
| 52159-48120B0 |
AVU65,ZSU6# SILVER ME.,1F7 |
1 | ||
| 52159-48120B1 |
AVU65,ZSU6# DK. STEEL MC.,1H2 |
1 | ||
| 52159-48120C0 |
AVU65,ZSU6# BLACK,202 |
1 | ||
| 52159-48130A0 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
1 | ||
| 52159-48130B0 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
1 | ||
| 52159-48120E0 |
AVU65,ZSU6# DK.BROWN ME.,4U5 |
1 | ||
| 52159-48120D0 |
AVU65,ZSU6# BLACKISH RED MC.,3R0 |
1 | ||
| 52159-48130A0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
1 | ||
| 52159-48130B0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
1 | ||
| 52159-48130B1 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. STEEL MC.,1H2 |
1 | ||
| 52159-48130B1 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. STEEL MC.,1H2 |
1 | ||
| 52159-48130C1 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52159-48130C0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
1 | ||
| 52159-48130C0 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
1 | ||
| 52159-48130C1 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52159-48120C1 |
AVU65,ZSU6# SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52159-48130D0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACKISH RED MC.,3R0 |
1 | ||
| 52159-48130E0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BROWN ME.,4U5 |
1 | ||
| 52159-48130E0 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BROWN ME.,4U5 |
1 | ||
| 52159-48130B1 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. STEEL MC.,1H2 |
1 | ||
| 52159-48120B0 |
AVU65,ZSU6# SILVER ME.,1F7 |
1 | ||
| 52159-48120C0 |
AVU65,ZSU6# BLACK,202 |
1 | ||
| 52159-48120B1 |
AVU65,ZSU6# DK. STEEL MC.,1H2 |
1 | ||
| 52159-48120D1 |
AVU65,ZSU6#..PREM RED M.M.,3R3 |
1 | ||
| 52159-48130B1 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. STEEL MC.,1H2 |
1 | ||
| 52159-48130D1 |
AVU65,ZSU6#..PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),RED M.M.,3R3 |
1 | ||
| 52159-48130D0 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACKISH RED MC.,3R0 |
1 | ||
| 52159-48130D1 |
AVU65,ZSU6#..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),RED M.M.,3R3 |
1 | ||
| 52159-48130B0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
1 | ||
| 52159-48120D0 |
AVU65,ZSU6# BLACKISH RED MC.,3R0 |
1 | ||
| 52159-48120E0 |
AVU65,ZSU6# DK.BROWN ME.,4U5 |
1 | ||
| 52159-48130B0 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
1 | ||
| 52159-48120C1 |
AVU65,ZSU6# SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52159-48130D0 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACKISH RED MC.,3R0 |
1 | ||
| 52159-48130C0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
1 | ||
| 52159-48130C1 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52159-48130D0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACKISH RED MC.,3R0 |
1 | ||
| 52159-48130E0 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BROWN ME.,4U5 |
1 | ||
| 52159-48130E0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BROWN ME.,4U5 |
1 | ||
| 52159-48130C1 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52159-48230A0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
1 | ||
| 52159-48130C0 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
1 | ||
| 52159-48230A0 |
AVU65,ZSU6#..ELEGC,PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
1 | ||
| 52159-48220A0 |
AVU65,ZSU6# WHITE PEARL CS.,070 |
1 | ||
| 52159-48130C2 |
AVU65,ZSU6# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACKISH AGEHA GF.,221 |
1 | ||
| 52159-48120C2 |
AVU65,ZSU6# BLACKISH AGEHA GF.,221 |
1 | ||
| 52159-48120J0 |
AVU65,ZSU6#..PREM BLUE ME.,8T7 |
1 | ||
| 52159-48130J0 |
AVU65,ZSU6#..PREM 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLUE ME.,8T7 |
1 | ||
| 52159-48130J0 |
AVU65,ZSU6#..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLUE ME.,8T7 |
1 | ||
| 52159-48130C2 |
AVU65,ZSU6# 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACKISH AGEHA GF.,221 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AVU65,ZSU6# |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AVU65,ZSU6# |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AVU65,ZSU6# |
8 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-48060 |
AVU65,ZSU6# 塗装不要 |
1 | ||
| 52169-48070 |
AVU65,ZSU6#..ELEGC,PREM 塗装不要,寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝXｿﾅ―) |
1 | ||
| 52169-48070 |
AVU65,ZSU6# 塗装不要,寒冷地仕様 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-48100 |
AVU65,ZSU6# |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-48030 |
AVU65,ZSU6# |
1 | ||
| 52599 - STOPPER, REAR BUMPER, UPPER | ||||
| 52599-48020 |
AVU65,ZSU6# |
2 | ||
| 52599 - STOPPER, REAR BUMPER, UPPER | ||||
| 52599-48020 |
AVU65,ZSU6# |
2 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-48170 |
AVU65,ZSU6# |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-42030 |
AVU65,ZSU6# |
2 | ||
| 75392Q - RETAINER, OUTSIDE MOULDING, NO.2 | ||||
| 75392-42030 |
AVU65,ZSU6# |
2 | ||
| 75392Q - RETAINER, OUTSIDE MOULDING, NO.2 | ||||
| 75392-42030 |
AVU65,ZSU6# |
2 | ||
| Common parts | ||||
| 90119-06565 | ||||
| 90159-50311 | ||||
| 90159-60602 | ||||
| 90179-06127 | ||||
| 90183-05040 | ||||
| 90189-06065 | ||||
| 90189-06228 | ||||
| 90467-07220 | ||||
| Linked diagrams | ||||
| 8115 | ||||
| 8116 | ||||
