ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid

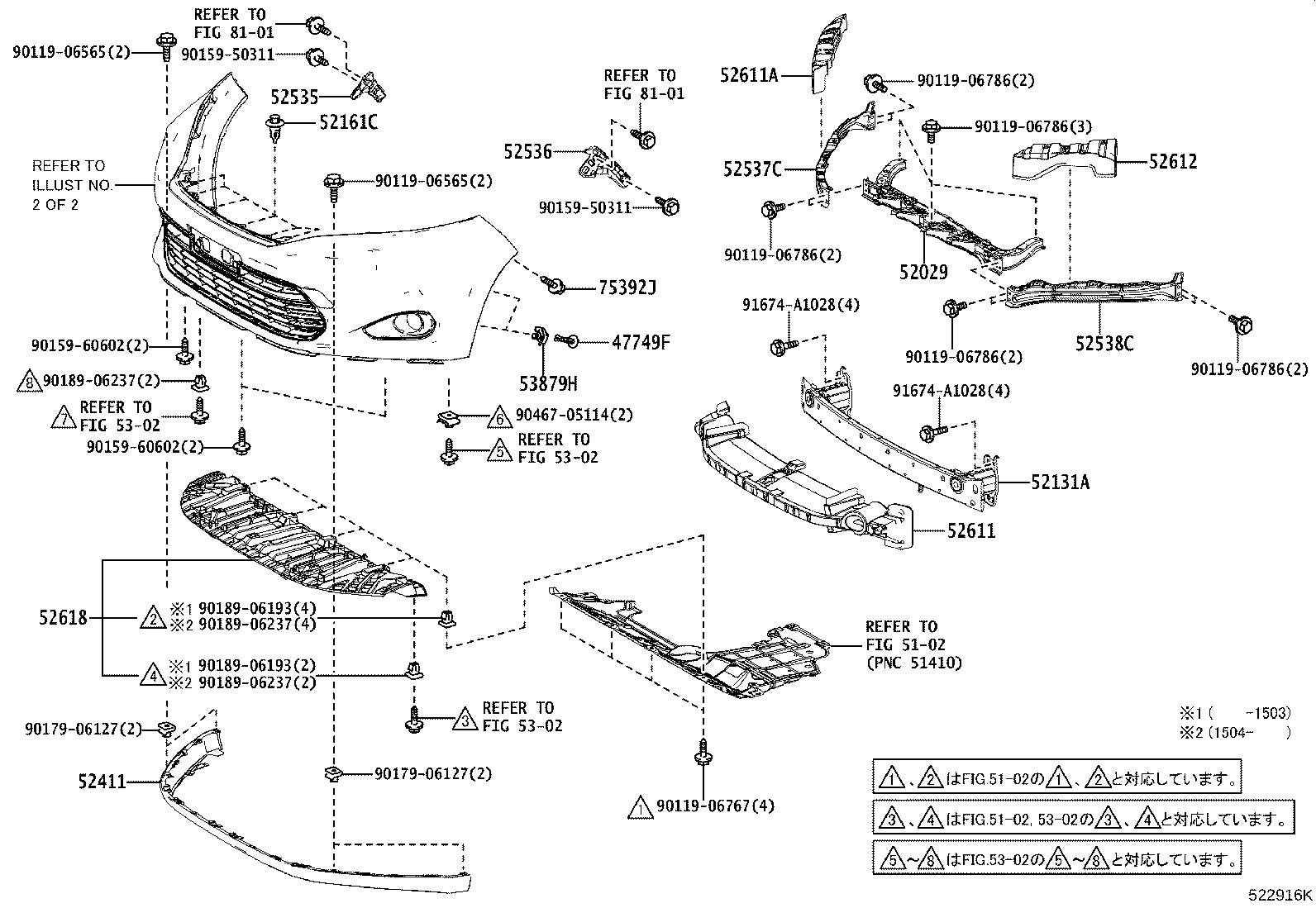

ILLUST NO. 1 OF 2(1312-1705)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749F - CLIP, PIN HOLD | ||||
| 47749-50090 |
AVU65,ZSU6# |
4 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-48010 |
AVU65,ZSU6# |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-48040 |
AVU65,ZSU6# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AVU65,ZSU6# |
6 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52411-48020 |
AVU65,ZSU6# |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-48040 |
AVU65,ZSU6# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-48030 |
AVU65,ZSU6# |
1 | ||
| 52537C - RETAINER, FRONT BUMPER SIDE, NO.2 RH | ||||
| 52537-48020 |
AVU65,ZSU6# |
1 | ||
| 52537-48010 |
AVU65,ZSU6# |
1 | ||
| 52538C - RETAINER, FRONT BUMPER SIDE, NO.2 LH | ||||
| 52538-48020 |
AVU65,ZSU6# |
1 | ||
| 52538-48010 |
AVU65,ZSU6# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52614-48040 |
AVU65,ZSU6# |
1 | ||
| 52611A - ABSORBER, FRONT BUMPER ENERGY, RH | ||||
| 52611-48170 |
AVU65,ZSU6# |
1 | ||
| 52612 - ABSORBER, FRONT BUMPER ENERGY, LH | ||||
| 52612-48030 |
AVU65,ZSU6# |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-48010 |
AVU65,ZSU6# |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30050 |
AVU65,ZSU6# |
4 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-42030 |
AVU65,ZSU6# |
2 | ||
| Common parts | ||||
| 90119-06565 | ||||
| 90119-06767 | ||||
| 90119-06786 | ||||
| 90159-50311 | ||||
| 90159-60602 | ||||
| 90179-06127 | ||||
| 90189-06193 | ||||
| 90189-06237 | ||||
| 90467-05114 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8101 | ||||
ILLUST NO. 2 OF 2(1312-1705)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-48C70B0 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
1 | ||
| 52119-48C60B0 |
AVU65,ZSU6# SILVER ME.,1F7 |
1 | ||
| 52119-48C60E0 |
AVU65,ZSU6# DK.BROWN ME.,4U5 |
1 | ||
| 52119-48C70A0 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
1 | ||
| 52119-48C60A0 |
AVU65,ZSU6# WHITE PEARL CS.,070 |
1 | ||
| 52119-48C60B1 |
AVU65,ZSU6# DK. STEEL MC.,1H2 |
1 | ||
| 52119-48C70B0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
1 | ||
| 52119-48C60C1 |
AVU65,ZSU6# SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48C60C0 |
AVU65,ZSU6# BLACK,202 |
1 | ||
| 52119-48C70C0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
1 | ||
| 52119-48C70E0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BROWN ME.,4U5 |
1 | ||
| 52119-48C70A0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
1 | ||
| 52119-48C70B1 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. STEEL MC.,1H2 |
1 | ||
| 52119-48C70D0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACKISH RED MC.,3R0 |
1 | ||
| 52119-48C70B1 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. STEEL MC.,1H2 |
1 | ||
| 52119-48C70C0 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
1 | ||
| 52119-48C60D0 |
AVU65,ZSU6# BLACKISH RED MC.,3R0 |
1 | ||
| 52119-48C70C1 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48C70E0 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BROWN ME.,4U5 |
1 | ||
| 52119-48C70D0 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACKISH RED MC.,3R0 |
1 | ||
| 52119-48C70C1 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48C70B1 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. STEEL MC.,1H2 |
1 | ||
| 52119-48C70D1 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),RED M.M.,3R3 |
1 | ||
| 52119-48C70D1 |
AVU65,ZSU6#..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),RED M.M.,3R3 |
1 | ||
| 52119-48870A0 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
1 | ||
| 52119-48860A0 |
AVU65,ZSU6# WHITE PEARL CS.,070 |
1 | ||
| 52119-48C70B1 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. STEEL MC.,1H2 |
1 | ||
| 52119-48C60B0 |
AVU65,ZSU6# SILVER ME.,1F7 |
1 | ||
| 52119-48C60B1 |
AVU65,ZSU6# DK. STEEL MC.,1H2 |
1 | ||
| 52119-48C60D0 |
AVU65,ZSU6# BLACKISH RED MC.,3R0 |
1 | ||
| 52119-48C60D1 |
AVU65,ZSU6#..PREM RED M.M.,3R3 |
1 | ||
| 52119-48C60C1 |
AVU65,ZSU6# SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48C70B0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
1 | ||
| 52119-48C70B0 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
1 | ||
| 52119-48870A0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
1 | ||
| 52119-48C70D0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACKISH RED MC.,3R0 |
1 | ||
| 52119-48C60C0 |
AVU65,ZSU6# BLACK,202 |
1 | ||
| 52119-48C70C1 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48C60E0 |
AVU65,ZSU6# DK.BROWN ME.,4U5 |
1 | ||
| 52119-48C70C0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
1 | ||
| 52119-48C70E0 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BROWN ME.,4U5 |
1 | ||
| 52119-48C70E0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BROWN ME.,4U5 |
1 | ||
| 52119-48C70D0 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACKISH RED MC.,3R0 |
1 | ||
| 52119-48C70C0 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
1 | ||
| 52119-48C70C1 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48C60J0 |
AVU65,ZSU6#..PREM BLUE ME.,8T7 |
1 | ||
| 52119-48C70J0 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLUE ME.,8T7 |
1 | ||
| 52119-48C70C2 |
AVU65,ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACKISH AGEHA GF.,221 |
1 | ||
| 52119-48C70J0 |
AVU65,ZSU6#..PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLUE ME.,8T7 |
1 | ||
| 52119-48C60C2 |
AVU65,ZSU6# BLACKISH AGEHA GF.,221 |
1 | ||
| 52119-48C70C2 |
AVU65,ZSU6# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACKISH AGEHA GF.,221 |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-48010 |
AVU65,ZSU6# |
2 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-48150 |
AVU65,ZSU6# 塗装不要 |
1 | ||
| 53285J - COVER, FRONT BUMPER ARM HOLE, RH | ||||
| 53285-48020B0 |
AVU65,ZSU6# SILVER ME.,1F7 |
1 | ||
| 53285-48020A0 |
AVU65,ZSU6# WHITE PEARL CS.,070 |
1 | ||
| 53285-48020D1 |
AVU65,ZSU6#..PREM RED M.M.,3R3 |
1 | ||
| 53285-48020B1 |
AVU65,ZSU6# DK. STEEL MC.,1H2 |
1 | ||
| 53285-48020C0 |
AVU65,ZSU6# BLACK,202 |
1 | ||
| 53285-48020B1 |
AVU65,ZSU6# DK. STEEL MC.,1H2 |
1 | ||
| 53285-48020D0 |
AVU65,ZSU6# BLACKISH RED MC.,3R0 |
1 | ||
| 53285-48060A0 |
AVU65,ZSU6# WHITE PEARL CS.,070 |
1 | ||
| 53285-48020J0 |
AVU65,ZSU6#..PREM BLUE ME.,8T7 |
1 | ||
| 53285-48020C2 |
AVU65,ZSU6# BLACKISH AGEHA GF.,221 |
1 | ||
| 53285-48020C0 |
AVU65,ZSU6# BLACK,202 |
1 | ||
| 53285-48020B0 |
AVU65,ZSU6# SILVER ME.,1F7 |
1 | ||
| 53285-48020E0 |
AVU65,ZSU6# DK.BROWN ME.,4U5 |
1 | ||
| 53285-48020D0 |
AVU65,ZSU6# BLACKISH RED MC.,3R0 |
1 | ||
| 53285-48020E0 |
AVU65,ZSU6# DK.BROWN ME.,4U5 |
1 | ||
| 53285-48020C1 |
AVU65,ZSU6# SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53285-48020C1 |
AVU65,ZSU6# SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53286C - COVER, FRONT BUMPER ARM HOLE, LH | ||||
| 53286-48010B0 |
AVU65,ZSU6# SILVER ME.,1F7 |
1 | ||
| 53286-48010C0 |
AVU65,ZSU6# BLACK,202 |
1 | ||
| 53286-48010A0 |
AVU65,ZSU6# WHITE PEARL CS.,070 |
1 | ||
| 53286-48010D0 |
AVU65,ZSU6# BLACKISH RED MC.,3R0 |
1 | ||
| 53286-48010E0 |
AVU65,ZSU6# DK.BROWN ME.,4U5 |
1 | ||
| 53286-48010B1 |
AVU65,ZSU6# DK. STEEL MC.,1H2 |
1 | ||
| 53286-48010C1 |
AVU65,ZSU6# SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53286-48010D0 |
AVU65,ZSU6# BLACKISH RED MC.,3R0 |
1 | ||
| 53286-48010B1 |
AVU65,ZSU6# DK. STEEL MC.,1H2 |
1 | ||
| 53286-48010D1 |
AVU65,ZSU6#..PREM RED M.M.,3R3 |
1 | ||
| 53286-48010C1 |
AVU65,ZSU6# SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53286-48010C0 |
AVU65,ZSU6# BLACK,202 |
1 | ||
| 53286-48010B0 |
AVU65,ZSU6# SILVER ME.,1F7 |
1 | ||
| 53286-48010C2 |
AVU65,ZSU6# BLACKISH AGEHA GF.,221 |
1 | ||
| 53286-48070A0 |
AVU65,ZSU6# WHITE PEARL CS.,070 |
1 | ||
| 53286-48010E0 |
AVU65,ZSU6# DK.BROWN ME.,4U5 |
1 | ||
| 53286-48010J0 |
AVU65,ZSU6#..PREM BLUE ME.,8T7 |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-48190 |
AVU65,ZSU6# |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-48190 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90467-07220 | ||||
