ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid
Production
Dec 2013
-
May 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

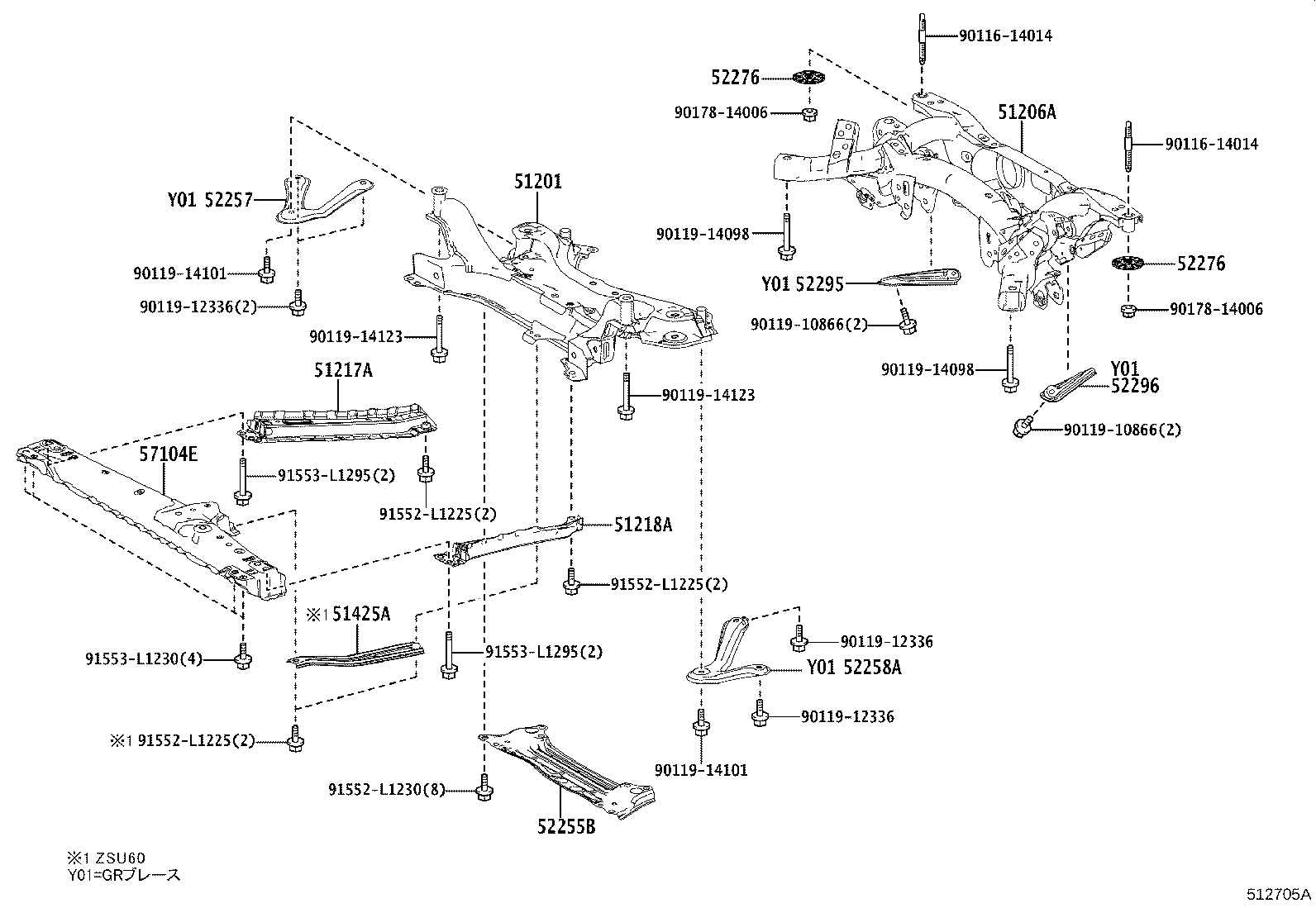

ILLUST NO. 1 OF 2(1312- )ASU6#,ZSU6#
Click highlighted areas on diagram
ｻｽﾍﾟﾝｼｮﾝｸﾛｽﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-12442 |
ZSU6# |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-78010 |
ZSU6# |
1 | ||
| 51206-42063 |
ZSU6# |
1 | ||
| 51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH | ||||
| 51107-42020 |
ZSU6# |
1 | ||
| 51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH | ||||
| 51108-42020 |
ZSU6# |
1 | ||
| 52255B - BRACE, FRONT SUSPENSION MEMBER | ||||
| 52255-76010 |
AVU65,ZSU6# |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-42010 |
ZSU6# |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-42010 |
ZSU6# |
1 | ||
| 52276 - CUSHION, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| 52203-42020 |
AVU65,ZSU6# |
2 | ||
| 52276 - CUSHION, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| 52203-42020 |
AVU65,ZSU6# |
2 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-42010 |
ZSU6# |
1 | ||
| 52296 - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52296-42010 |
ZSU6# |
1 | ||
| 57104E - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-42070 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90116-14014 | ||||
| 90119-10866 | ||||
| 90119-12336 | ||||
| 90119-14098 | ||||
| 90119-14101 | ||||
| 90119-14123 | ||||
| 90178-14006 | ||||
| 91552-L1225 | ||||
| 91552-L1230 | ||||
| 91553-L1230 | ||||
| 91553-L1295 | ||||

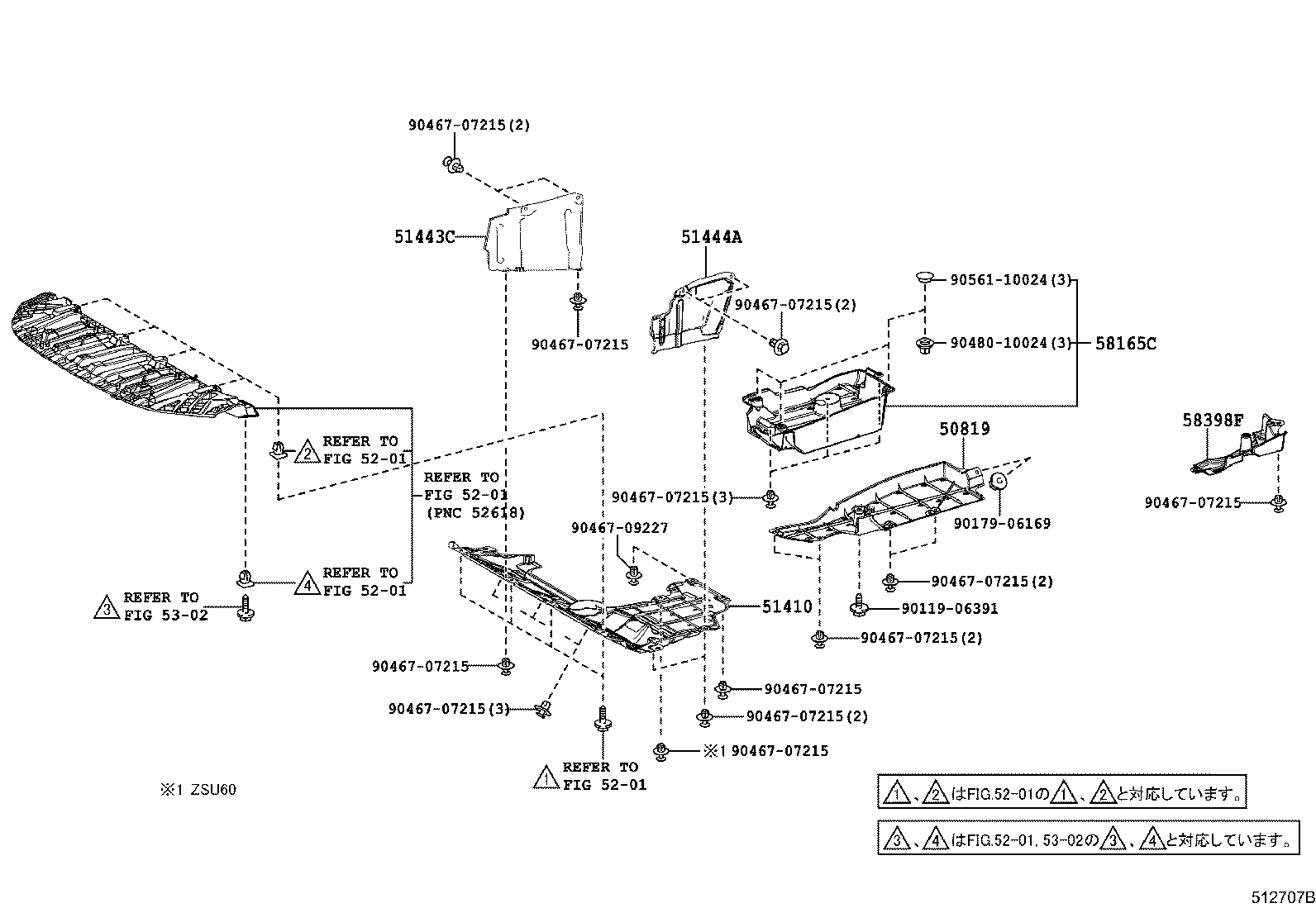

ILLUST NO. 2 OF 2(1312- )
Click highlighted areas on diagram
ｱﾝﾀﾞｶﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 50819 - COVER, FRONT FLOOR | ||||
| 50819-42030 |
ZSU6# |
1 | ||
| 50819-42031 |
ZSU6# |
1 | ||
| 51410 - COVER ASSY, ENGINE UNDER, NO.1 | ||||
| 51410-42100 |
ZSU6# |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-42010 |
ZSU6# |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-42040 |
ZSU6# |
1 | ||
| 58165C - COVER, FRONT FLOOR, RH | ||||
| 58165-42021 |
AVU65,ZSU6# |
1 | ||
| 58398F - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-42022 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90119-06391 | ||||
| 90179-06169 | ||||
| 90467-07215 | ||||
| 90467-09227 | ||||
| 90480-10024 | ||||
| 90561-10024 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5302 | ||||
