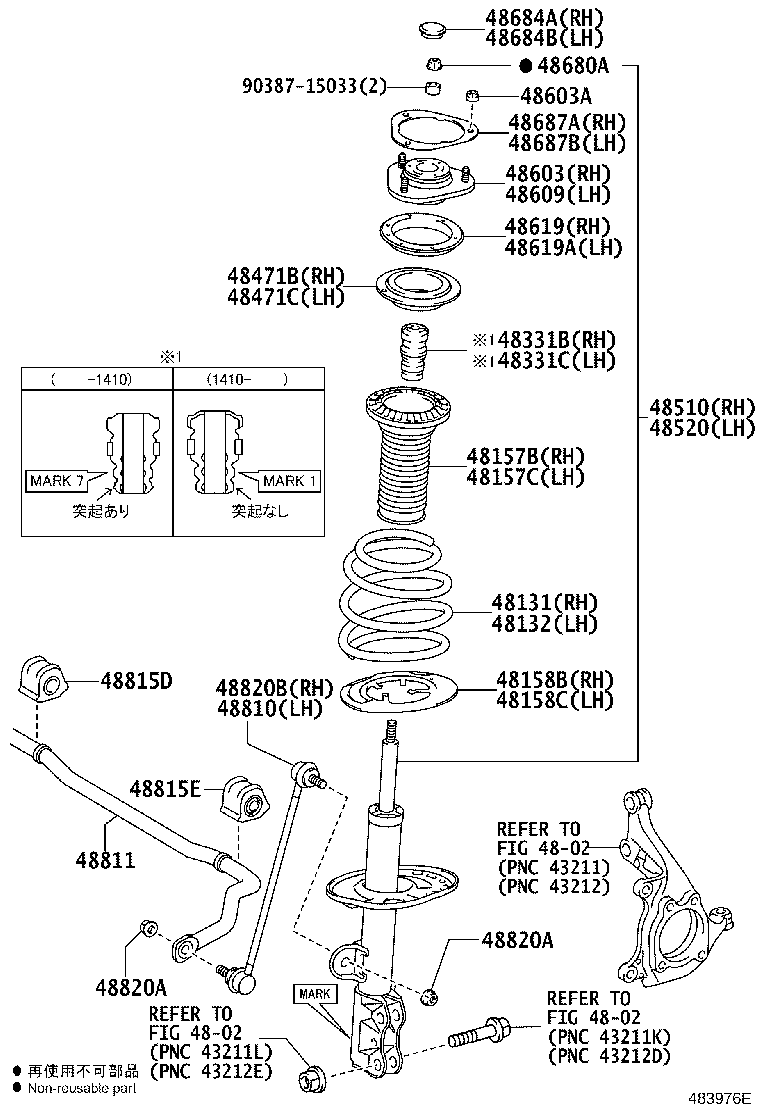

ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid
(1312-1411)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-48780 |
ZSU65 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-48780 |
ZSU65 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-58010 |
AVU65,ZSU6# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-58010 |
AVU65,ZSU6# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-48050 |
AVU65,ZSU6# |
1 | ||
| 48158-78010 |
AVU65,ZSU6# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-78010 |
AVU65,ZSU6# |
1 | ||
| 48158-48050 |
AVU65,ZSU6# |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-42120 |
AVU65,ZSU6# ﾏｰｸ 1 |
1 | ||
| 48331-42080 |
AVU65,ZSU6# ﾏｰｸ 7 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-42120 |
AVU65,ZSU6# ﾏｰｸ 1 |
1 | ||
| 48331-42080 |
AVU65,ZSU6# ﾏｰｸ 7 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-42010 |
AVU65,ZSU6# |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-42010 |
AVU65,ZSU6# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80771 |
ZSU65 ﾏｰｸ 48510−48470 |
1 | ||
| 48510-80805 |
ZSU65 ﾏｰｸ 48510−48500 |
1 | ||
| 48510-80651 |
ZSU65 ﾏｰｸ 48510−48370 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80352 |
ZSU65 ﾏｰｸ 48520−48370 |
1 | ||
| 48520-80447 |
ZSU65 ﾏｰｸ 48520−48470 |
1 | ||
| 48520-80481 |
ZSU65 ﾏｰｸ 48520−48500 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-42040 |
AVU65,ZSU6# |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10030 |
AVU65,ZSU6# |
6 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-42040 |
AVU65,ZSU6# |
1 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-28010 |
AVU65,ZSU6# |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-28010 |
AVU65,ZSU6# |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90177-14007 |
AVU65,ZSU6# |
2 | ||
| 90177-14005 |
AVU65,ZSU6# |
2 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-42020 |
AVU65,ZSU6# |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-42020 |
AVU65,ZSU6# |
1 | ||
| 48687A - PLATE, FRONT SUSPENSION SUPPORT, RH | ||||
| 48687-28010 |
AVU65,ZSU6# |
1 | ||
| 48687B - PLATE, FRONT SUSPENSION SUPPORT, LH | ||||
| 48687-28010 |
AVU65,ZSU6# |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-42030 |
AVU65,ZSU6# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-42071 |
AVU65,ZSU6# |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-48080 |
AVU65,ZSU6# |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-48090 |
AVU65,ZSU6# |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
AVU65,ZSU6# |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
AVU65,ZSU6# |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-42030 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90387-15033 | ||||
| Linked diagrams | ||||
| 4802 | ||||

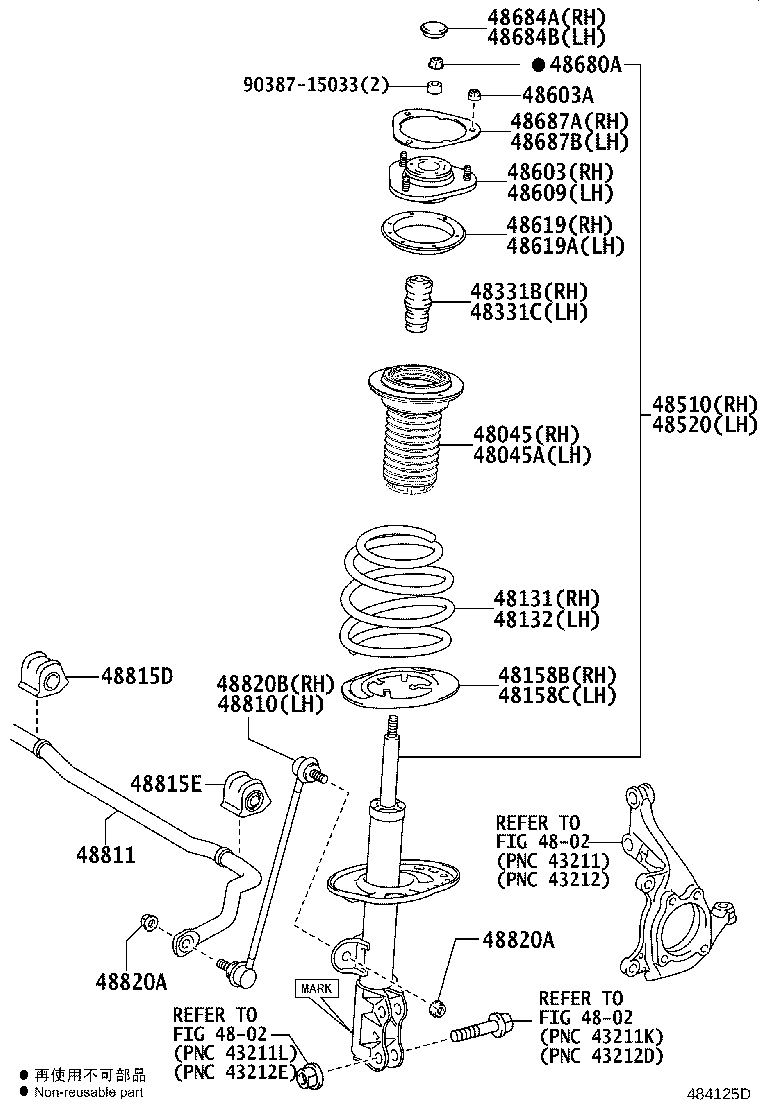

(1411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48045 - SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR | ||||
| 48045-42010 |
AVU65,ZSU6# |
1 | ||
| 48045A - SEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR | ||||
| 48045-42010 |
AVU65,ZSU6# |
1 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-48780 |
ZSU65 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-48780 |
ZSU65 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-48050 |
AVU65,ZSU6# |
1 | ||
| 48158-78010 |
AVU65,ZSU6# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-78010 |
AVU65,ZSU6# |
1 | ||
| 48158-48050 |
AVU65,ZSU6# |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-42120 |
AVU65,ZSU6# ﾏｰｸ 1 |
1 | ||
| 48331-42080 |
AVU65,ZSU6# ﾏｰｸ 7 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-42120 |
AVU65,ZSU6# ﾏｰｸ 1 |
1 | ||
| 48331-42080 |
AVU65,ZSU6# ﾏｰｸ 7 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80771 |
ZSU65 ﾏｰｸ 48510−48470 |
1 | ||
| 48510-80805 |
ZSU65 ﾏｰｸ 48510−48500 |
1 | ||
| 48510-80651 |
ZSU65 ﾏｰｸ 48510−48370 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80352 |
ZSU65 ﾏｰｸ 48520−48370 |
1 | ||
| 48520-80447 |
ZSU65 ﾏｰｸ 48520−48470 |
1 | ||
| 48520-80481 |
ZSU65 ﾏｰｸ 48520−48500 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-42040 |
AVU65,ZSU6# |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10030 |
AVU65,ZSU6# |
6 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-42040 |
AVU65,ZSU6# |
1 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-28010 |
AVU65,ZSU6# |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-28010 |
AVU65,ZSU6# |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90177-14007 |
AVU65,ZSU6# |
2 | ||
| 90177-14005 |
AVU65,ZSU6# |
2 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-42020 |
AVU65,ZSU6# |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-42020 |
AVU65,ZSU6# |
1 | ||
| 48687A - PLATE, FRONT SUSPENSION SUPPORT, RH | ||||
| 48687-28010 |
AVU65,ZSU6# |
1 | ||
| 48687B - PLATE, FRONT SUSPENSION SUPPORT, LH | ||||
| 48687-28010 |
AVU65,ZSU6# |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-42030 |
AVU65,ZSU6# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-42071 |
AVU65,ZSU6# |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-48080 |
AVU65,ZSU6# |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-48090 |
AVU65,ZSU6# |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
AVU65,ZSU6# |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
AVU65,ZSU6# |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-42030 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90387-15033 | ||||
| Linked diagrams | ||||
| 4802 | ||||
