ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

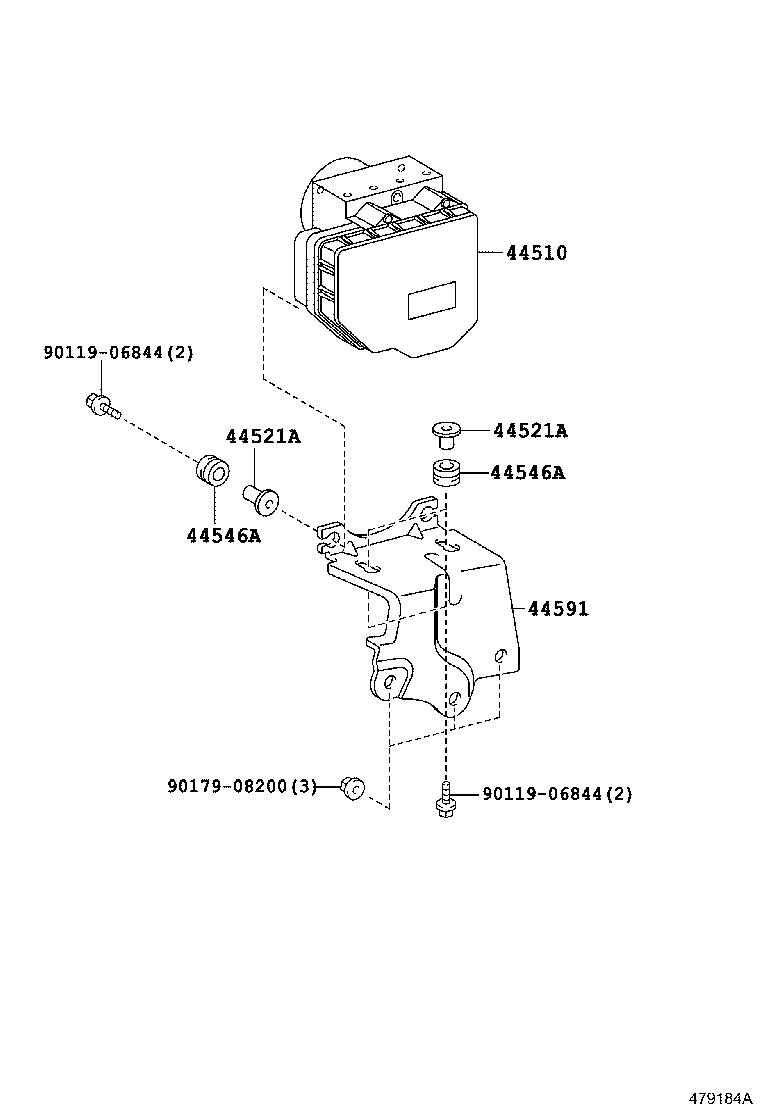

ILLUST NO. 2 OF 2(1312-1705)ZSU6#

Click highlighted areas on diagram

diagram 44510 44521A 44521A 44546A 44546A 44591 9011906844 9011906844 9017908200
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-48570

ZSU65

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

ZSU6#

 4
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

ZSU6#

 4
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

ZSU6#

 4
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

ZSU6#

 4
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-42060

ZSU6#

 1
Common parts
90119-06844
90179-08200

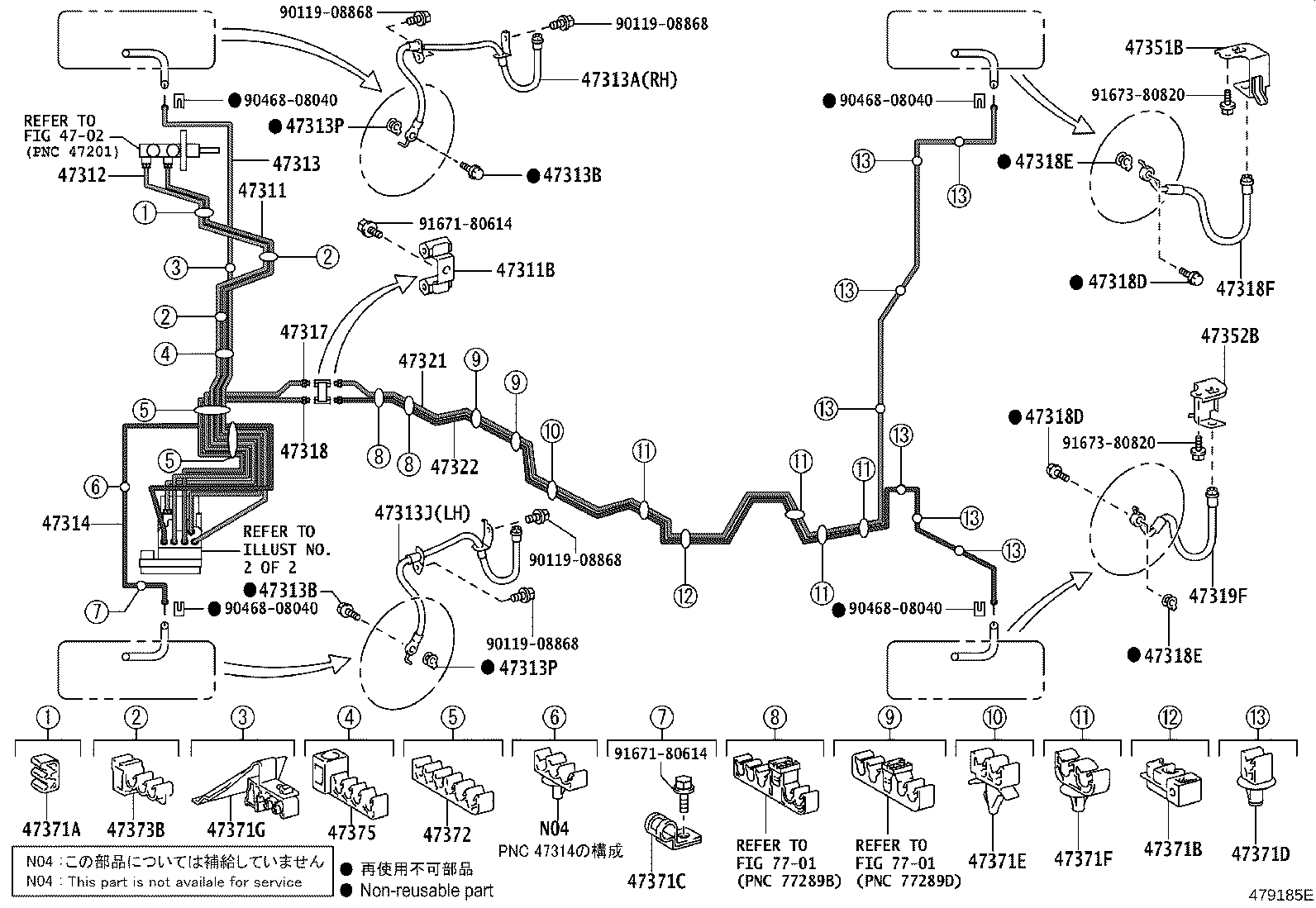

ILLUST NO. 1 OF 2(1312-1705)ZSU6#

Click highlighted areas on diagram

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47351B 47352B 47371A 47371B 47371C 47371D 47371E 47371F 47371G 47372 47373B 47375 7701 7701 9011908868 9011908868 9011908868 9011908868 9046808040 9046808040 9046808040 9046808040 9167180614 9167180614 9167380820 9167380820
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-48080

ZSU6#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10285

AVU65,ZSU6#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-48020

ZSU6#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-48040

ZSU6#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F47

AVU65,ZSU6#

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

AVU65,ZSU6#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

AVU65,ZSU6#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02F48

AVU65,ZSU6#

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

AVU65,ZSU6#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

AVU65,ZSU6#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-48030

ZSU6#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-48330

ZSU6#

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-48200

ZSU6#

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

AVU65,ZSU6#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

AVU65,ZSU6#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

AVU65,ZSU6#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

AVU65,ZSU6#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02G79

AVU65,ZSU6#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02G80

AVU65,ZSU6#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-48140

ZSU6#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-48150

ZSU6#

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-42071

AVU65,ZSU6#

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-42071

AVU65,ZSU6#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00903

ZSU6#

 1
47371B - CLAMP, BRAKE TUBE, NO.6
77299-32030

ZSU6#

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90461-10781

ZSU6#

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90949-01D29

ZSU6#

 7
47371E - CLAMP, BRAKE TUBE, NO.9
90469-07019

ZSU6#

 1
47371F - CLAMP, BRAKE TUBE, NO.10
90469-07020

ZSU6#

 4
47371G - CLAMP, BRAKE TUBE, NO.11
47371-42110

ZSU6#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01E06

ZSU6#

 2
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D05

ZSU6#

 2
47375 - CLAMP, BRAKE TUBE, NO.5
90464-00953

ZSU6#

 1
Common parts
90119-08868
90468-08040
91671-80614
91673-80820
Linked diagrams
4702
7701
