ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid
Production
Dec 2013
-
May 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

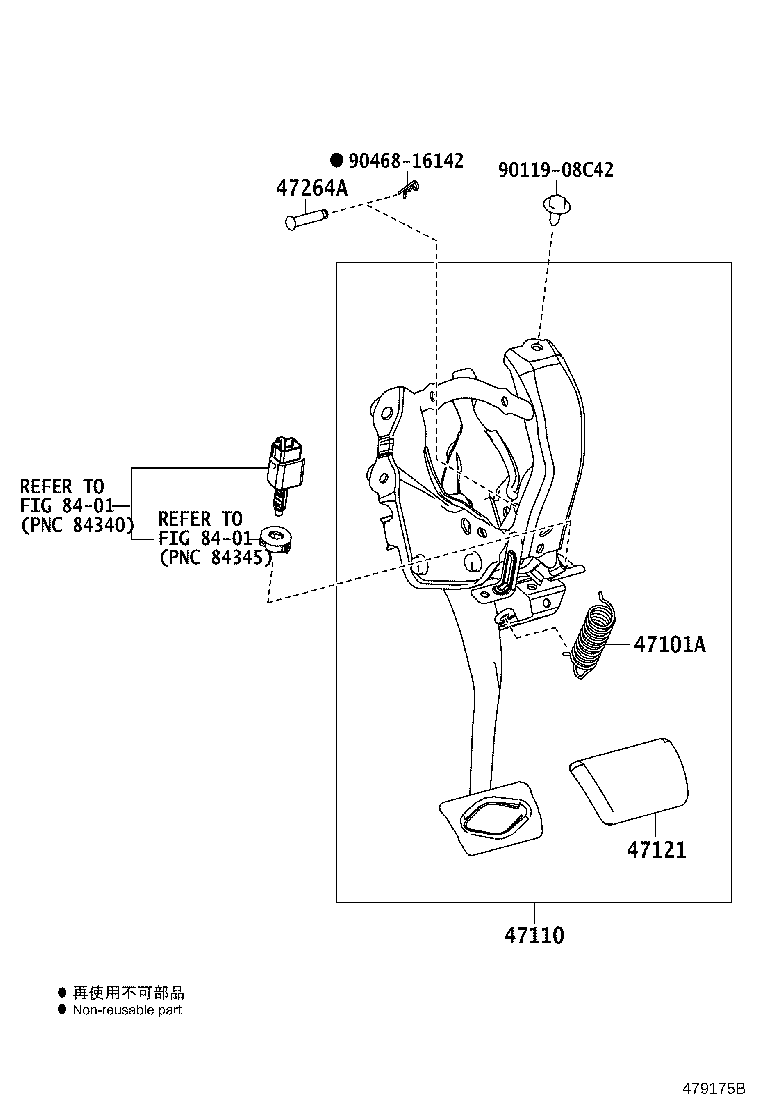

(1312- )ASU6#,ZSU6#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 47146-42030 |
AVU65,ZSU6# |
1 | ||
| 47146-78010 |
AVU65,ZSU6# |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-42210 |
ZSU6# |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-42020 |
AVU65,ZSU6# |
1 | ||
| 47121-42010 |
AVU65,ZSU6# |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08256 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90468-16142 | ||||
| Linked diagrams | ||||
| 8401 | ||||

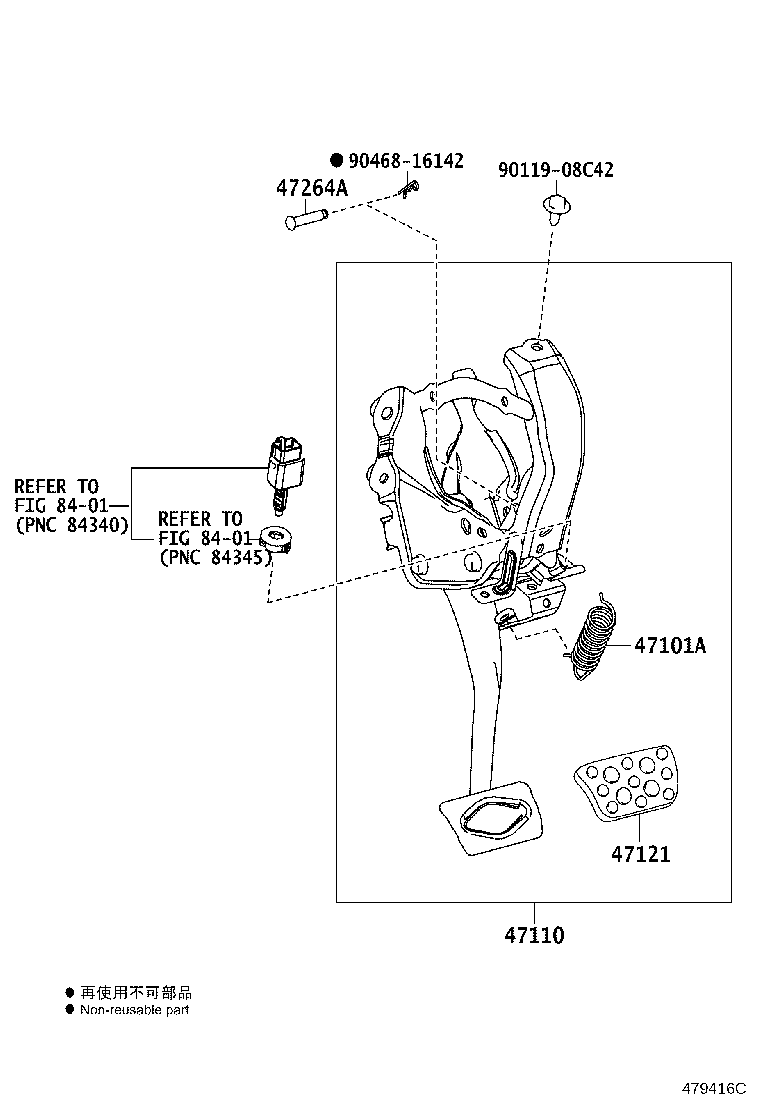

(1501- )ASU65,ZSU6#
Click highlighted areas on diagram
G'S, GR-SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 47146-42030 |
AVU65,ZSU6# |
1 | ||
| 47146-78010 |
AVU65,ZSU6# |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-42210 |
ZSU6# |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-42020 |
AVU65,ZSU6# |
1 | ||
| 47121-42010 |
AVU65,ZSU6# |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08256 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90468-16142 | ||||
| Linked diagrams | ||||
| 8401 | ||||
