ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

Click highlighted areas on diagram

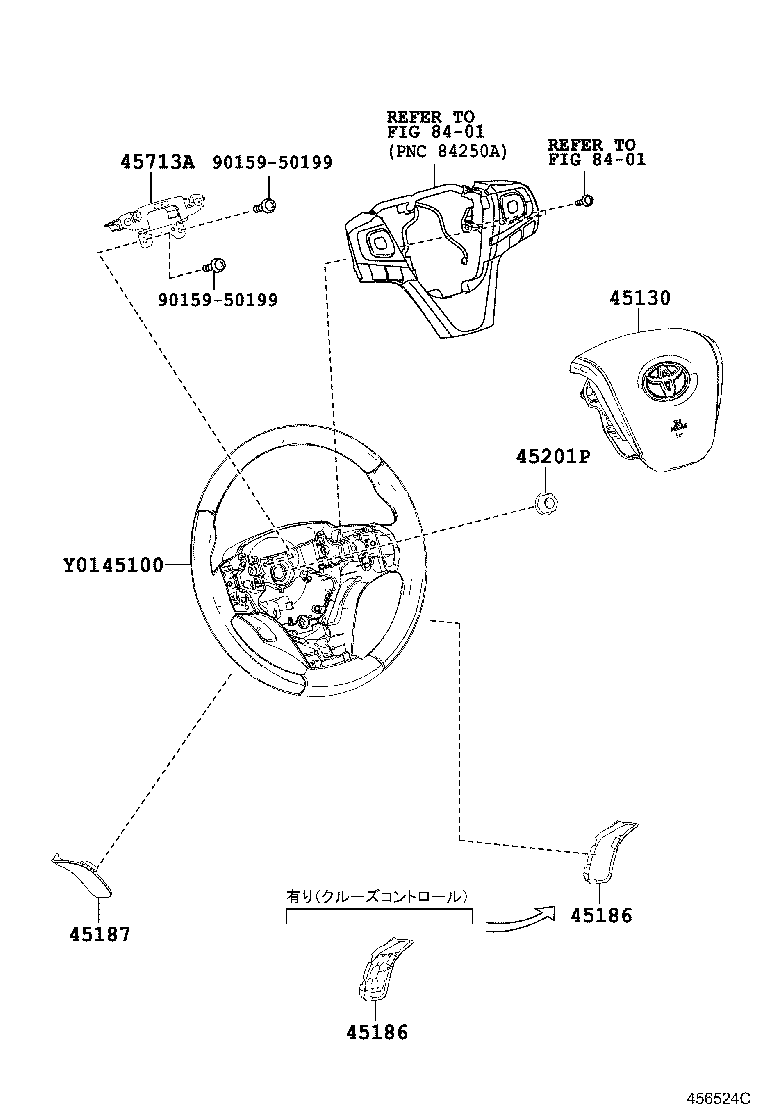

diagram 45100 45130 45186 45186 45187 45201P 45713A 8401 8401 9015950199 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-48540C0

AVU65,ZSU6#..PREM

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK/DARK RED/BLACK,TRIM0#,2#,4#

 1
45100-48540C5

AVU65,ZSU6#..PREM

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,*577,BLACK/PURE BLACK/SILVER,TRIM1#

 1
45100-48540C6

AVU65,ZSU6#..PREM

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK/DARK RED/BLACK,TRIM0#,2#,4#

 1
45100-48540C2

AVU65,ZSU6#..PREM

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,*576,BLACK/PURE BLACK,TRIM1#,4#

 1
45130 - BUTTON ASSY, HORN
45130-48270C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-48040C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-48040C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-48040C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

AVU65,ZSU6#

 1
45713A - DAMPER, STEERING SHAKE
45713-12160

AVU65,ZSU6#

 1
Common parts
90159-50199
Linked diagrams
8401
