ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

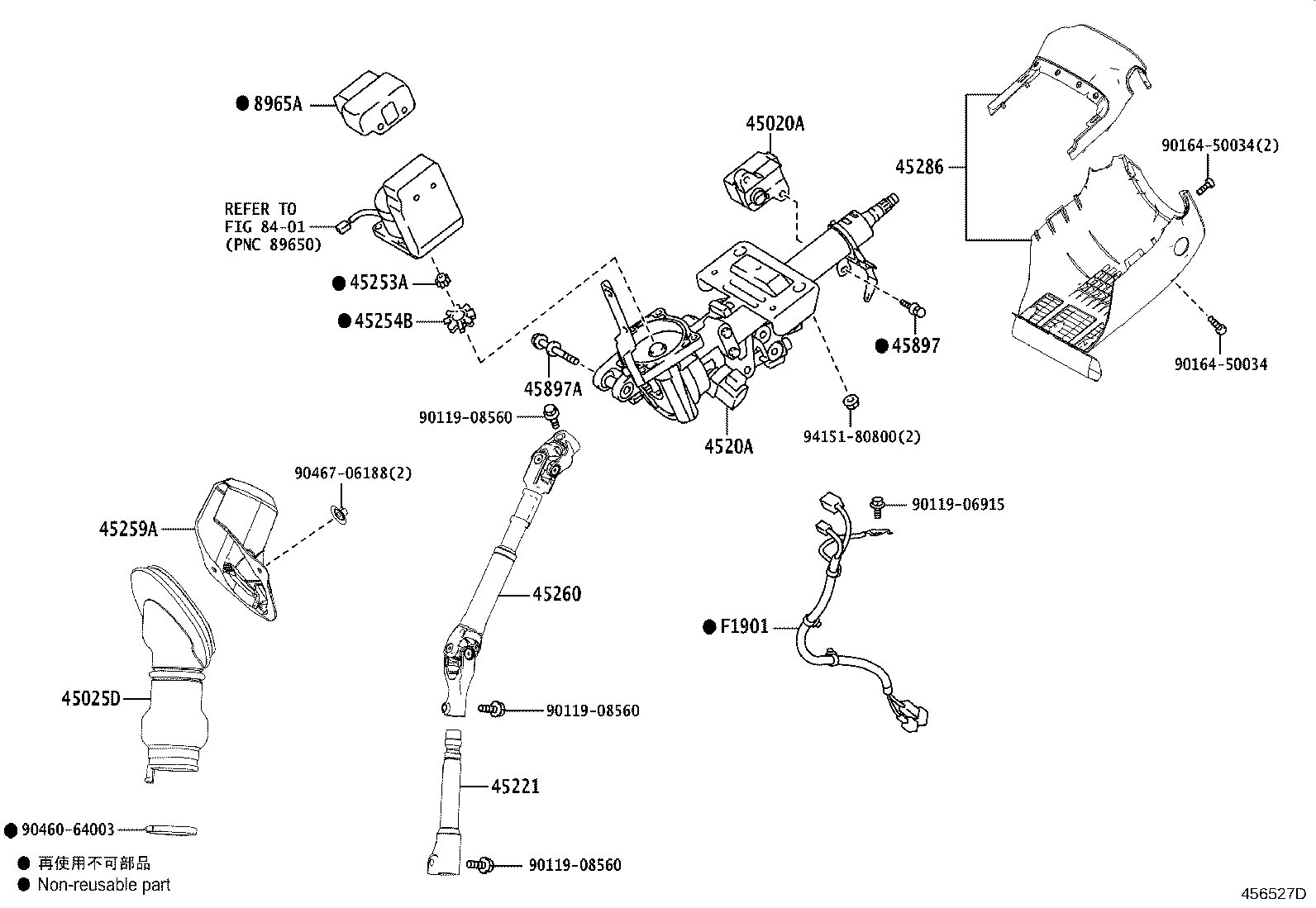

ILLUST NO. 2 OF 2(1312- )AVU65,ZSU6#..PREM,PROGR ; (1705- )ASU6#

Click highlighted areas on diagram

diagram 45020A 45025D 4520A 45221 45253A 45254B 45259A 45260 45286 45897 45897A 8401 8965A 9011906915 9011908560 9011908560 9011908560 9016450034 9016450034 9046064003 9046706188 9415180800 F1901
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-48090

AVU65,ZSU6#..PREM

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-42070

AVU65,ZSU6#

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-48020

AVU65,ZSU6#..PREM

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-42090

AVU65,ZSU6#

 1
45253A - SPACER, ELECTRIC POWER STEERING MOTOR SHAFT
45253-28130

AVU65,ZSU6#..PREM

 1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040

AVU65,ZSU6#..PREM

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-42010

AVU65,ZSU6#

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-42100

AVU65,ZSU6#

 1
45286 - COVER, STEERING COLUMN
45286-48913C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

AVU65,ZSU6#..PREM

 2
45897A - BOLT, TILT STEERING PAWL SET
90119-10981

AVU65,ZSU6#

 1
8965A - PROTECTOR, POWER STEERING COMPUTER
8965A-33011

AVU65,ZSU6#..PREM

 1
F1901 - WIRE SUB-ASSY, COMPUTER
F1901-48080

AVU65,ZSU6#..PREM

 1
Common parts
90119-06915
90119-08560
90164-50034
90460-64003
90467-06188
94151-80800
Linked diagrams
8401
