ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

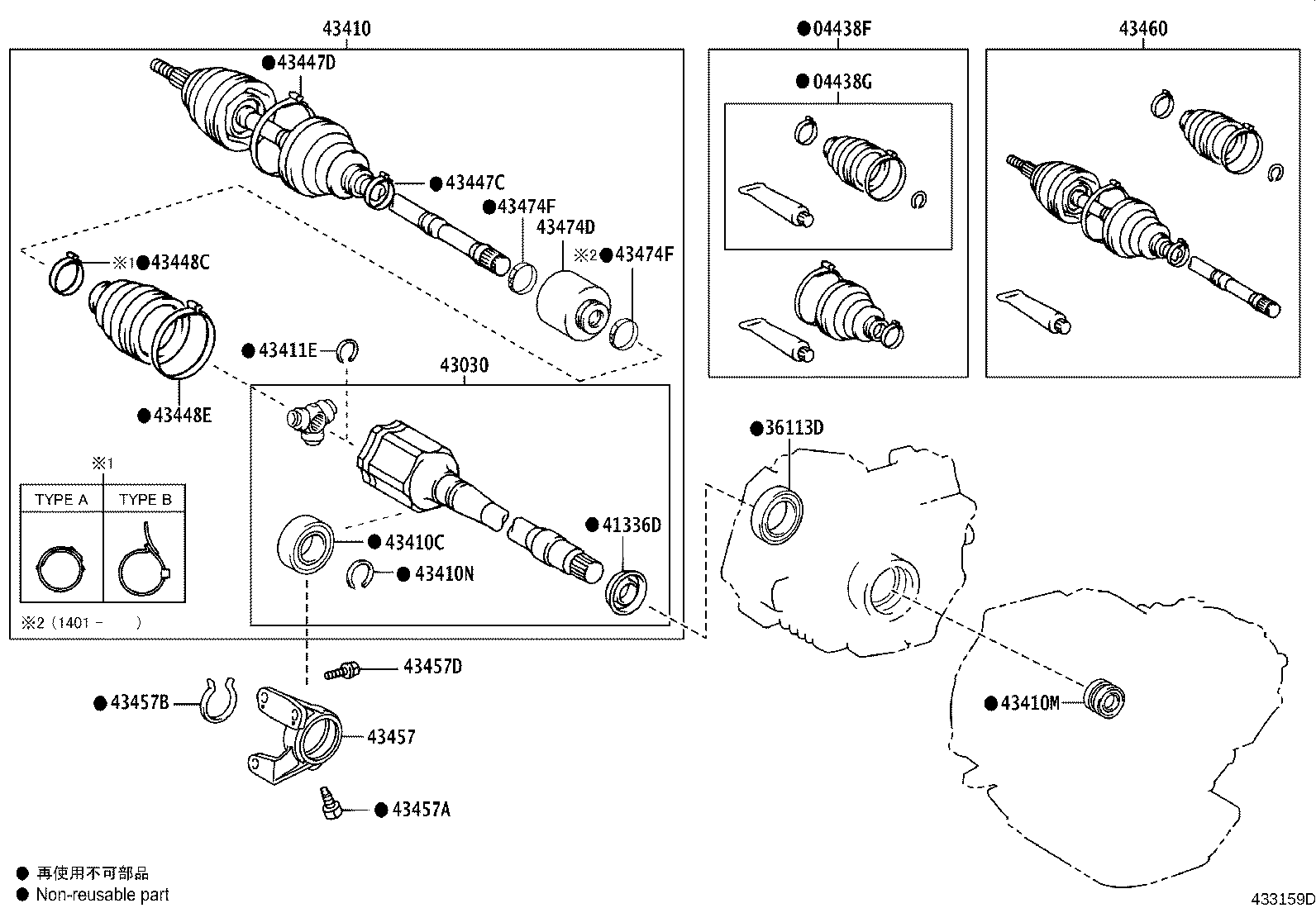

ILLUST NO. 1 OF 3(1312- )ZSU65

Click highlighted areas on diagram

RH

diagram 04438F 04438G 36113D 41336D 43030 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457 43457A 43457B 43457D 43460 43474D 43474F 43474F
Part # Description Qty Price

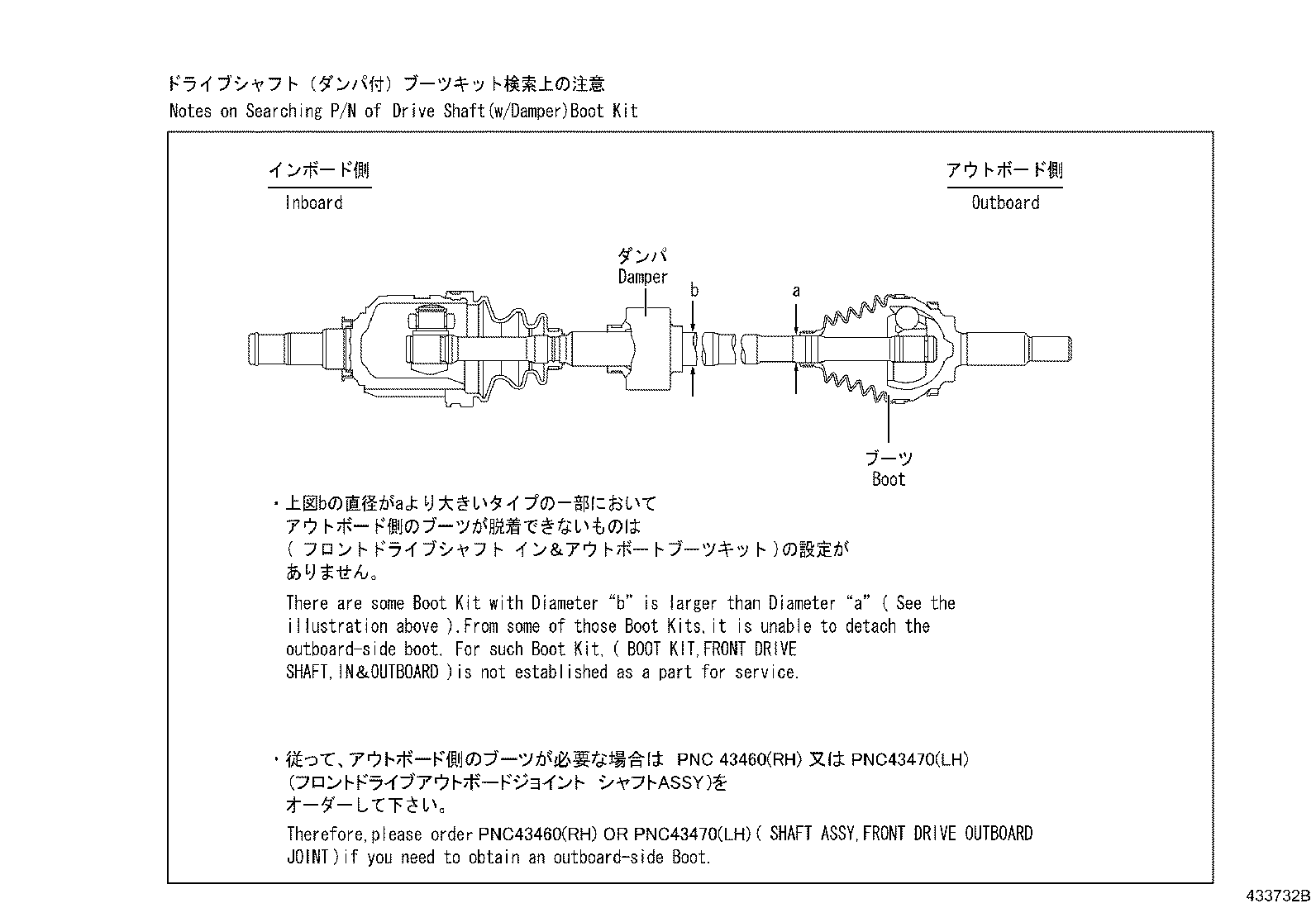

04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-48190

ZSU65

 1
04427-48191

ZSU65

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-48150

ZSU65

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-35056

ZSU65

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-52020

ZSU65

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-42060

ZSU65

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-48100

ZSU65

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36006

ZSU65

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-34001

ZSU65

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008

ZSU65

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-28010

AVU65,ZSU6#

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42100

ZSU6#

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42090

ZSU6#

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01559

AVU65,ZSU6#

TYPE B:ｲﾗｽﾄ参照

 1
42345-42010

AVU65,ZSU6#

TYPE A:ｲﾗｽﾄ参照

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160

AVU65,ZSU6#

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-42120

ZSU65

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

AVU65,ZSU65

*10−1.25PX19.8−8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

ZSU65

 1
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381

AVU65,ZSU6#

 3
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-49836

ZSU65

 1
43470-80341

ZSU65

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-48090

AVU65,ZSU65

 1
43474-48030

AVU65,ZSU65

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

AVU65,ZSU65

 1
42345-14010

AVU65,ZSU65

 2
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

AVU65,ZSU65

 1
42345-14010

AVU65,ZSU65

 2

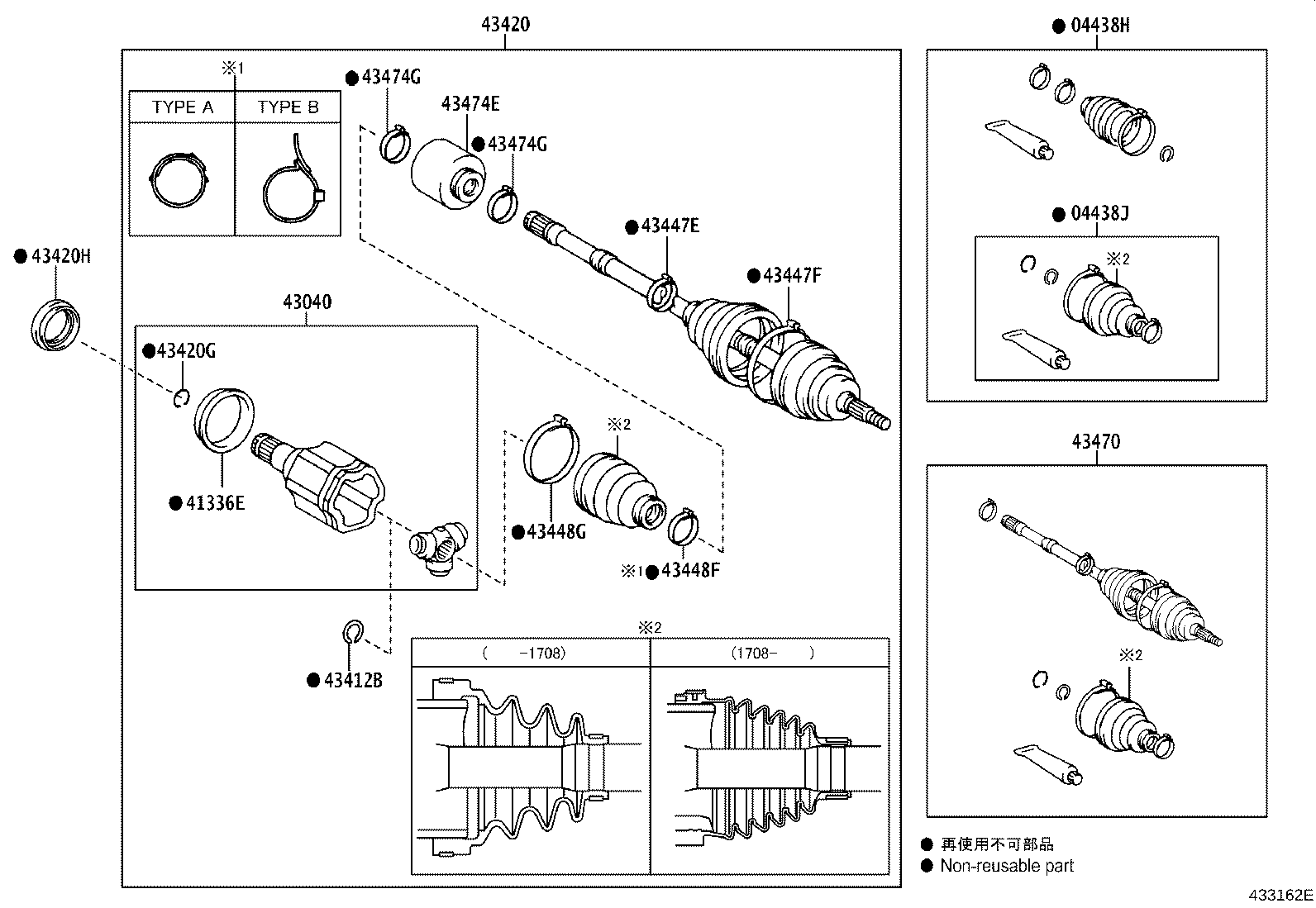

ILLUST NO. 2 OF 3(1312- )

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470 43474E 43474G 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-42110

ZSU6#

 1
04428-42111

ZSU6#

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-42180

AVU65,ZSU6#

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-28020

ZSU6#

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-28011

ZSU6#

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010

AVU65,ZSU6#

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-42220

ZSU6#

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-33002

AVU65,ZSU6#

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50050

ZSU6#

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42100

ZSU6#

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42090

ZSU6#

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-42010

AVU65,ZSU6#

TYPE A:ｲﾗｽﾄ参照

 1
90949-01559

AVU65,ZSU6#

TYPE B:ｲﾗｽﾄ参照

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160

AVU65,ZSU6#

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-49856

ZSU6#

 1
43470-49855

ZSU6#

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-42060

ZSU6#

 1
43474-42020

ZSU6#

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

AVU65,ZSU6#

 1
42345-14010

AVU65,ZSU6#

 2
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

AVU65,ZSU6#

 1
42345-14010

AVU65,ZSU6#

 2
