Toyota Harrier/hybrid ZSU65 DISC WHEEL & WHEEL CAP

ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017

Engine 3ZRFAE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

Part #	Description	Period	Qty

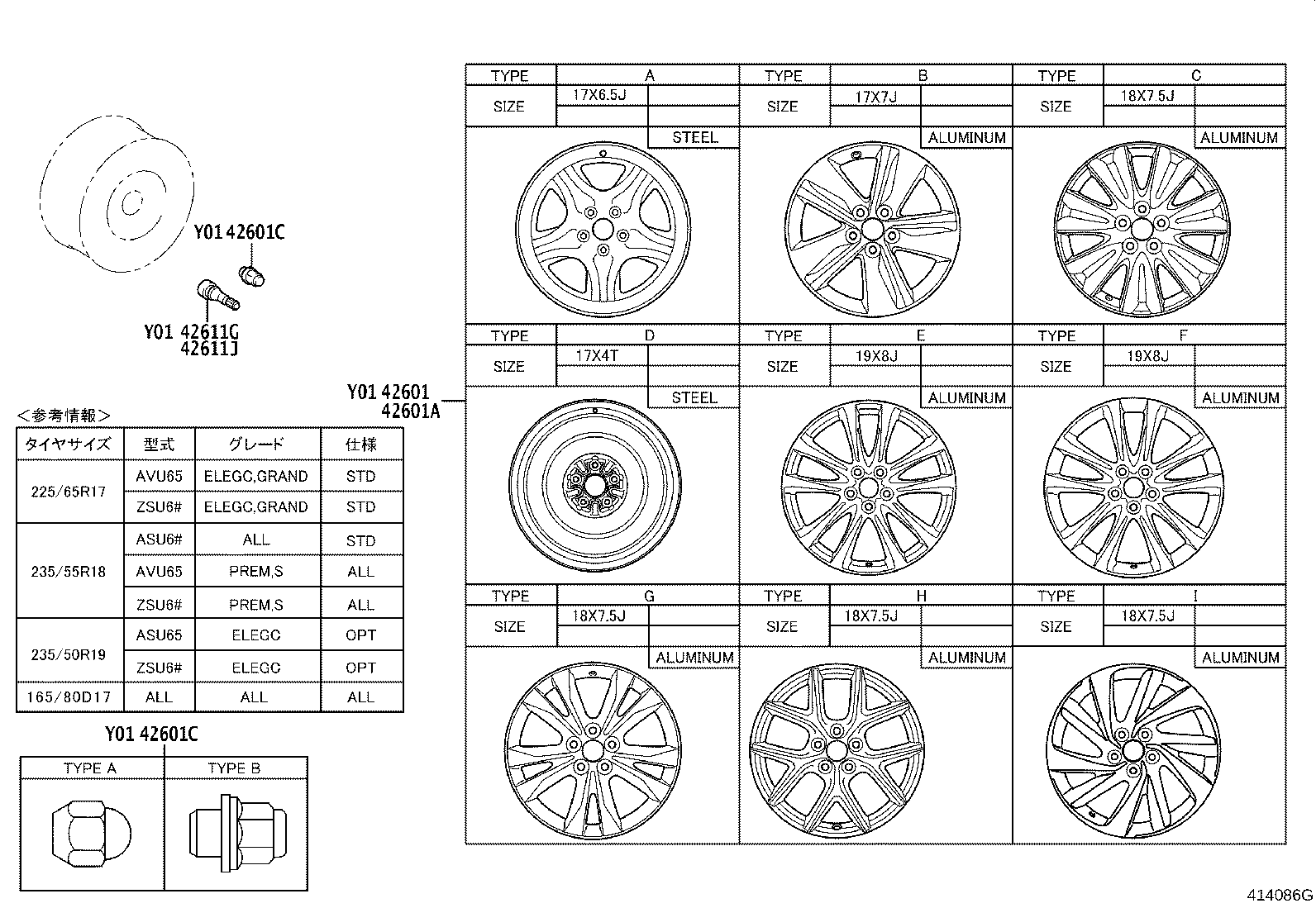

42601 - WHEEL, DISC
4261A-48150	AVU65,ZSU6#..PREM 18X7.5J,*SCHM,TYPE C:ｲﾗｽﾄ参照	12/2013 - 05/2017	4
42611-42561	AVU65,ZSU6#..PREM 18X7.5J,#,*576,TYPE G:ｲﾗｽﾄ参照	06/2015 - 06/2016	4
42611-42700	AVU65,ZSU6#..PREM 18X7.5J,#,*577,TYPE H:ｲﾗｽﾄ参照	06/2016 - 05/2017	4
42601A - WHEEL, DISC (FOR SPARE)
42611-48770	AVU65,ZSU6# 17X4T,ｽﾍﾟｱﾀｲﾔ−応急用(165/80D17ST),TYPE D:ｲﾗｽﾄ参照	12/2013 - 05/2017	1
42601C - NUT, HUB (FOR AXLE)
90942-01033	AVU65;ZSU6#..ELEGC,PREM TYPE B:ｲﾗｽﾄ参照	12/2013 - 05/2017	20
42601C - NUT, HUB (FOR AXLE)
90942-01033	AVU65;ZSU6#..ELEGC,PREM TYPE B:ｲﾗｽﾄ参照	12/2013 - 05/2017	20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	AVU65,ZSU6#	12/2013 - 05/2017	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	AVU65,ZSU6# ｽﾍﾟｱﾀｲﾔ−応急用(165/80D17ST)	12/2013 - 05/2017	1

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

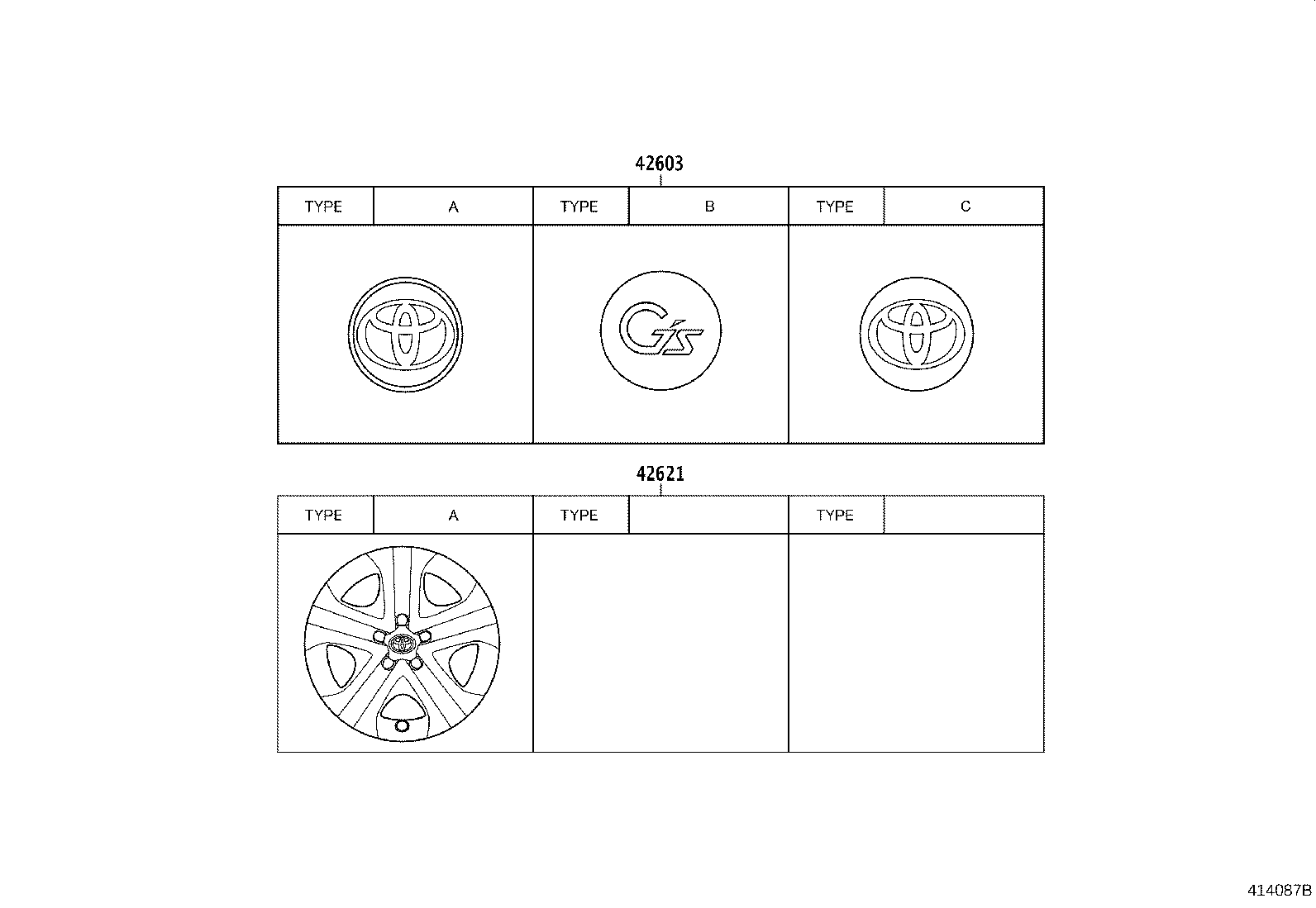

42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-48140	AVU65;ZSU6#..ELEGC,PREM *ALU,TYPE A:ｲﾗｽﾄ参照	12/2013 - 05/2017	4

Part #

Description

Qty

Price

42603 - ORNAMENT SUB-ASSY, WHEEL HUB

42603-48140

AVU65;ZSU6#..ELEGC,PREM

*ALU,TYPE A:ｲﾗｽﾄ参照

Click highlighted areas on diagram
