ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid

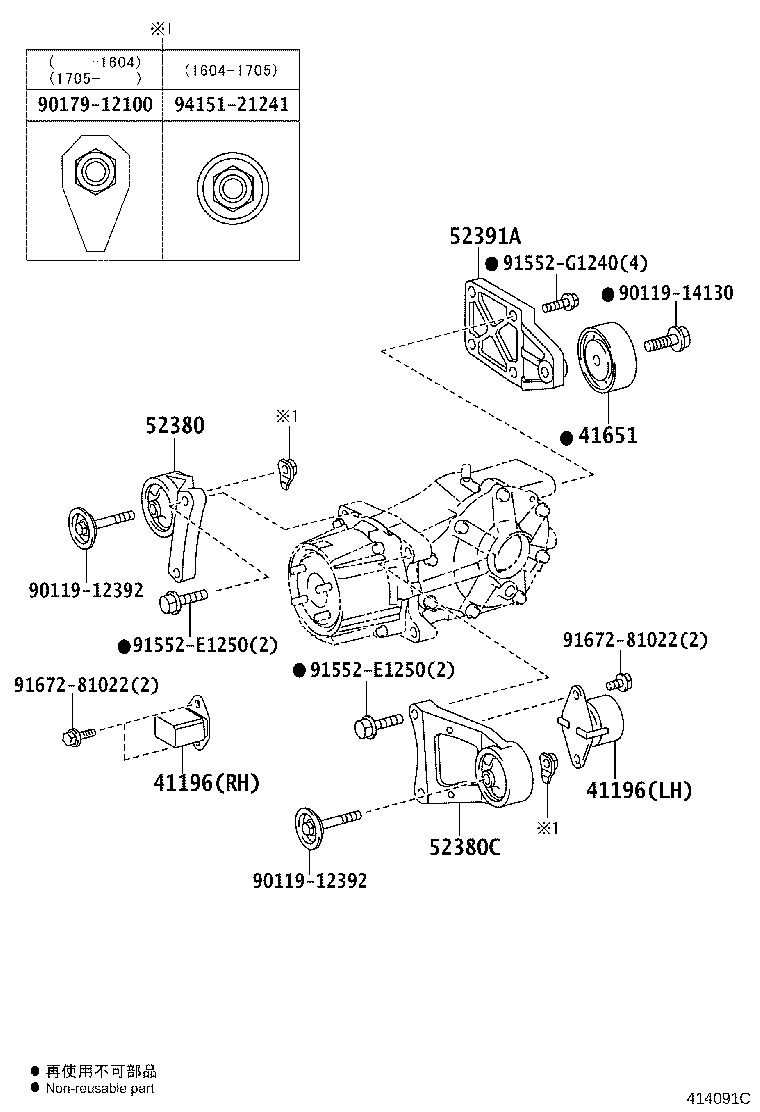

ILLUST NO. 3 OF 3(1312- )ZSU65
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41196 - DAMPER, REAR DIFFERENTIAL DYNAMIC | ||||
| 41196-42060 |
ZSU65 左側 |
1 | ||
| 41196-42070 |
ZSU65 右側 |
1 | ||
| 41196 - DAMPER, REAR DIFFERENTIAL DYNAMIC | ||||
| 41196-42060 |
ZSU65 左側 |
1 | ||
| 41196-42070 |
ZSU65 右側 |
1 | ||
| 41651 - CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-42130 |
ZSU65 |
1 | ||
| 52380 - SUPPORT, REAR DIFFERENTIAL, NO.1 | ||||
| 52380-42090 |
ZSU65 |
1 | ||
| 52380C - SUPPORT, REAR DIFFERENTIAL, NO.2 | ||||
| 52380-42120 |
ZSU65 |
1 | ||
| 52391A - SUPPORT, REAR DIFFERENTIAL | ||||
| 52391-42140 |
ZSU65 |
1 | ||
| Common parts | ||||
| 90119-12392 | ||||
| 90119-14130 | ||||
| 90179-12100 | ||||
| 91552-E1250 | ||||
| 91552-G1240 | ||||
| 91672-81022 | ||||
| 94151-21241 | ||||
ILLUST NO. 1 OF 3(1312- )ASU65,ZSU65
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-52010 |
ZSU65 |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-42021 |
ZSU65 |
1 | ||
| 41101-42022 |
ZSU65 |
1 | ||
| 41101E - BOLT (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 91551-C0835 |
ZSU65 |
8 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90344-53006 |
ZSU65 |
1 | ||
| 41108C - PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03235 |
ZSU65 |
1 | ||
| 90930-03170 |
ZSU65 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-42060 |
ZSU65 *FGR=41:18=2.277 |
1 | ||
| 41110-42041 |
ZSU65 *FGR=41:18=2.277 |
1 | ||
| 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) | ||||
| 90341-18051 |
ZSU65 |
1 | ||
| 41110E - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) | ||||
| 12157-10010 |
ZSU65 |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-18023 |
ZSU65 |
1 | ||
| 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
ZSU65 |
1 | ||
| 41183 - DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL | ||||
| 41183-52010 |
ZSU65 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-59115 |
ZSU65 *FGR=41:18=2.277 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35130 |
ZSU65 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30090 |
ZSU65 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-35042 |
ZSU65 厚さ=1.71,ﾏｰｸ 42 |
1 | ||
| 90564-35048 |
ZSU65 厚さ=1.77,ﾏｰｸ 48 |
1 | ||
| 90564-35046 |
ZSU65 厚さ=1.75,ﾏｰｸ 46 |
1 | ||
| 90564-35050 |
ZSU65 厚さ=1.79,ﾏｰｸ 50 |
1 | ||
| 90564-35044 |
ZSU65 厚さ=1.73,ﾏｰｸ 44 |
1 | ||
| 90564-35054 |
ZSU65 厚さ=1.83,ﾏｰｸ 54 |
1 | ||
| 90564-35064 |
ZSU65 厚さ=1.93,ﾏｰｸ 64 |
1 | ||
| 90564-35070 |
ZSU65 厚さ=1.95,ﾏｰｸ 70 |
1 | ||
| 90564-35052 |
ZSU65 厚さ=1.81,ﾏｰｸ 52 |
1 | ||
| 90564-35072 |
ZSU65 厚さ=1.97,ﾏｰｸ 72 |
1 | ||
| 90564-35082 |
ZSU65 厚さ=2.07,ﾏｰｸ 82 |
1 | ||
| 90564-35080 |
ZSU65 厚さ=2.05,ﾏｰｸ 80 |
1 | ||
| 90564-35058 |
ZSU65 厚さ=1.87,ﾏｰｸ 58 |
1 | ||
| 90564-35060 |
ZSU65 厚さ=1.89,ﾏｰｸ 60 |
1 | ||
| 90564-35086 |
ZSU65 厚さ=2.11,ﾏｰｸ 86 |
1 | ||
| 90564-35084 |
ZSU65 厚さ=2.09,ﾏｰｸ 84 |
1 | ||
| 90564-35062 |
ZSU65 厚さ=1.91,ﾏｰｸ 62 |
1 | ||
| 90564-35078 |
ZSU65 厚さ=2.03,ﾏｰｸ 78 |
1 | ||
| 90564-35043 |
ZSU65 厚さ=1.72,ﾏｰｸ 43 |
1 | ||
| 90564-35049 |
ZSU65 厚さ=1.78,ﾏｰｸ 49 |
1 | ||
| 90564-35074 |
ZSU65 厚さ=1.99,ﾏｰｸ 74 |
1 | ||
| 90564-35045 |
ZSU65 厚さ=1.74,ﾏｰｸ 45 |
1 | ||
| 90564-35047 |
ZSU65 厚さ=1.76,ﾏｰｸ 47 |
1 | ||
| 90564-35090 |
ZSU65 厚さ=2.15,ﾏｰｸ 90 |
1 | ||
| 90564-35051 |
ZSU65 厚さ=1.80,ﾏｰｸ 51 |
1 | ||
| 90564-35088 |
ZSU65 厚さ=2.13,ﾏｰｸ 88 |
1 | ||
| 90564-35059 |
ZSU65 厚さ=1.88,ﾏｰｸ 59 |
1 | ||
| 90564-35041 |
ZSU65 厚さ=1.70,ﾏｰｸ 41 |
1 | ||
| 90564-35061 |
ZSU65 厚さ=1.90,ﾏｰｸ 61 |
1 | ||
| 90564-35094 |
ZSU65 厚さ=2.19,ﾏｰｸ 94 |
1 | ||
| 90564-35071 |
ZSU65 厚さ=1.96,ﾏｰｸ 71 |
1 | ||
| 90564-35063 |
ZSU65 厚さ=1.92,ﾏｰｸ 63 |
1 | ||
| 90564-35057 |
ZSU65 厚さ=1.86,ﾏｰｸ 57 |
1 | ||
| 90564-35055 |
ZSU65 厚さ=1.84,ﾏｰｸ 55 |
1 | ||
| 90564-35073 |
ZSU65 厚さ=1.98,ﾏｰｸ 73 |
1 | ||
| 90564-35056 |
ZSU65 厚さ=1.85,ﾏｰｸ 56 |
1 | ||
| 90564-35053 |
ZSU65 厚さ=1.82,ﾏｰｸ 53 |
1 | ||
| 90564-35092 |
ZSU65 厚さ=2.17,ﾏｰｸ 92 |
1 | ||
| 90564-35076 |
ZSU65 厚さ=2.01,ﾏｰｸ 76 |
1 | ||
| 90564-35075 |
ZSU65 厚さ=2.00,ﾏｰｸ 75 |
1 | ||
| 90564-35081 |
ZSU65 厚さ=2.06,ﾏｰｸ 81 |
1 | ||
| 90564-35077 |
ZSU65 厚さ=2.02,ﾏｰｸ 77 |
1 | ||
| 90564-35065 |
ZSU65 厚さ=1.94,ﾏｰｸ 65 |
1 | ||
| 90564-35093 |
ZSU65 厚さ=2.18,ﾏｰｸ 93 |
1 | ||
| 90564-35079 |
ZSU65 厚さ=2.04,ﾏｰｸ 79 |
1 | ||
| 90564-35085 |
ZSU65 厚さ=2.10,ﾏｰｸ 85 |
1 | ||
| 90564-35089 |
ZSU65 厚さ=2.14,ﾏｰｸ 89 |
1 | ||
| 90564-35091 |
ZSU65 厚さ=2.16,ﾏｰｸ 91 |
1 | ||
| 90564-35087 |
ZSU65 厚さ=2.12,ﾏｰｸ 87 |
1 | ||
| 90564-35083 |
ZSU65 厚さ=2.08,ﾏｰｸ 83 |
1 | ||
| 90564-35095 |
ZSU65 厚さ=2.20,ﾏｰｸ 95 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90178-30001 |
ZSU65 外径=41.6 |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-52010 |
ZSU65 |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-52100 |
ZSU65 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-33003 |
ZSU65 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-33003 |
ZSU65 |
2 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-11034 |
ZSU65 |
10 | ||

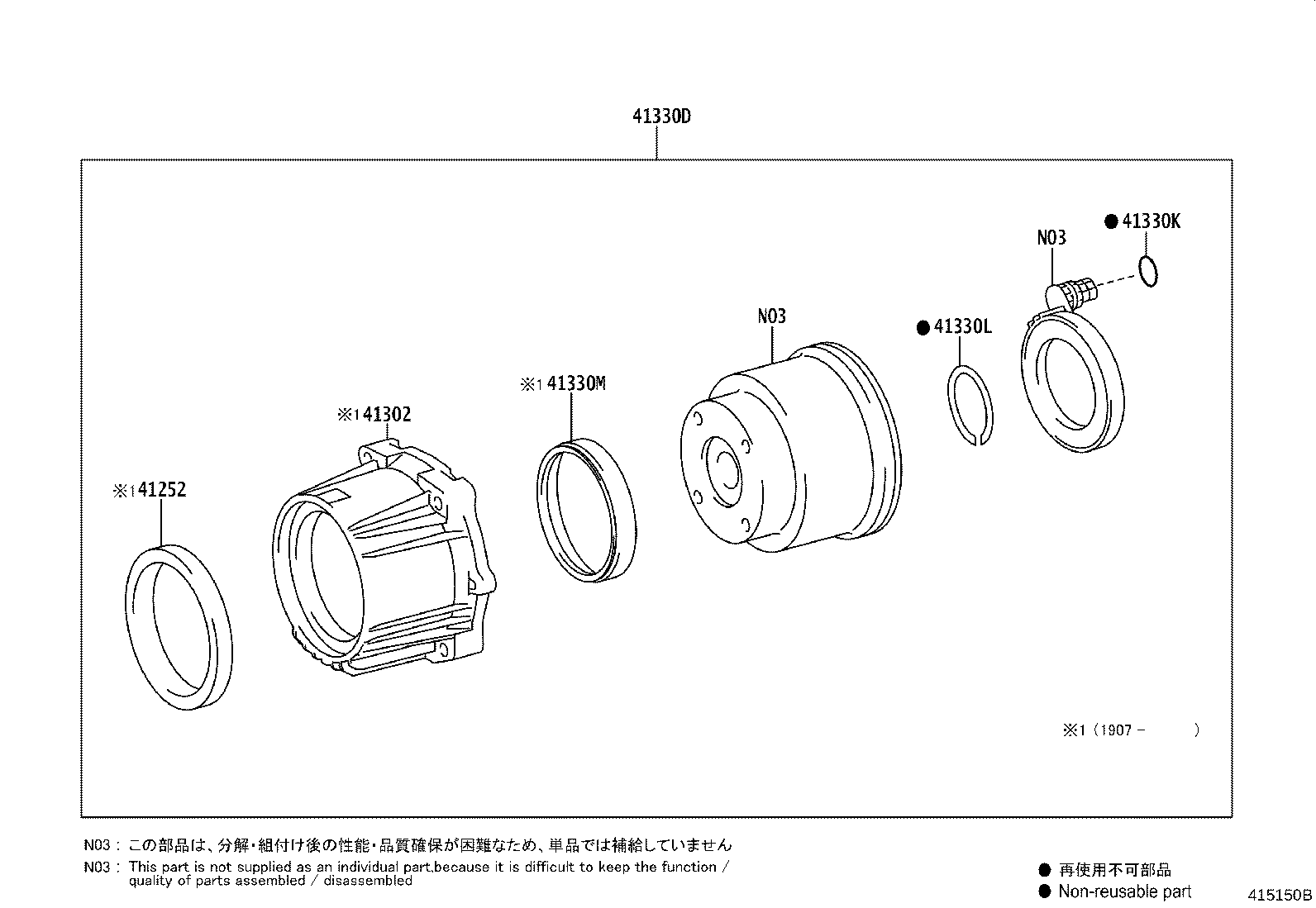

| 41330E - WASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING) | ||||
| 90208-25001 |
ZSU65 |
1 | ||
| 41330J - SHIM (FOR TRANSMISSION COUPLING) | ||||
| 90564-25024 |
ZSU65 厚さ=2.00,ﾏｰｸ 1 |
1 | ||
| 90564-25026 |
ZSU65 厚さ=2.60,ﾏｰｸ 3 |
1 | ||
| 90564-25025 |
ZSU65 厚さ=2.30,ﾏｰｸ 2 |
1 | ||
| 90564-25031 |
ZSU65 厚さ=1.75,ﾏｰｸ 8 |
1 | ||
| 90564-25033 |
ZSU65 厚さ=1.90,ﾏｰｸ 10 |
1 | ||
| 90564-25029 |
ZSU65 厚さ=2.45,ﾏｰｸ 6 |
1 | ||
| 90564-25027 |
ZSU65 厚さ=1.85,ﾏｰｸ 4 |
1 | ||
| 90564-25039 |
ZSU65 厚さ=2.35,ﾏｰｸ 16 |
1 | ||
| 90564-25032 |
ZSU65 厚さ=1.80,ﾏｰｸ 9 |
1 | ||
| 90564-25038 |
ZSU65 厚さ=2.25,ﾏｰｸ 15 |
1 | ||
| 90564-25044 |
ZSU65 厚さ=2.70,ﾏｰｸ 21 |
1 | ||
| 90564-25036 |
ZSU65 厚さ=2.10,ﾏｰｸ 13 |
1 | ||
| 90564-25035 |
ZSU65 厚さ=2.05,ﾏｰｸ 12 |
1 | ||
| 90564-25028 |
ZSU65 厚さ=2.15,ﾏｰｸ 5 |
1 | ||
| 90564-25040 |
ZSU65 厚さ=2.40,ﾏｰｸ 17 |
1 | ||
| 90564-25042 |
ZSU65 厚さ=2.55,ﾏｰｸ 19 |
1 | ||
| 90564-25034 |
ZSU65 厚さ=1.95,ﾏｰｸ 11 |
1 | ||
| 90564-25037 |
ZSU65 厚さ=2.20,ﾏｰｸ 14 |
1 | ||
| 90564-25043 |
ZSU65 厚さ=2.65,ﾏｰｸ 20 |
1 | ||
| 90564-25041 |
ZSU65 厚さ=2.50,ﾏｰｸ 18 |
1 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90564-37029 |
ZSU65 厚さ=1.81 |
1 | ||
| 90564-37022 |
ZSU65 厚さ=1.60 |
1 | ||
| 90564-37032 |
ZSU65 厚さ=1.90 |
1 | ||
| 90564-37024 |
ZSU65 厚さ=1.66 |
1 | ||
| 90564-37031 |
ZSU65 厚さ=1.87 |
1 | ||
| 90564-37026 |
ZSU65 厚さ=1.72 |
1 | ||
| 90564-37034 |
ZSU65 厚さ=1.96 |
1 | ||
| 90564-37028 |
ZSU65 厚さ=1.78 |
1 | ||
| 90564-37023 |
ZSU65 厚さ=1.63 |
1 | ||
| 90564-37033 |
ZSU65 厚さ=1.93 |
1 | ||
| 90564-37025 |
ZSU65 厚さ=1.69 |
1 | ||
| 90564-37030 |
ZSU65 厚さ=1.84 |
1 | ||
| 90564-37036 |
ZSU65 厚さ=2.02 |
1 | ||
| 90564-37043 |
ZSU65 厚さ=2.23 |
1 | ||
| 90564-37035 |
ZSU65 厚さ=1.99 |
1 | ||
| 90564-37046 |
ZSU65 厚さ=2.32 |
1 | ||
| 90564-37040 |
ZSU65 厚さ=2.14 |
1 | ||
| 90564-37041 |
ZSU65 厚さ=2.17 |
1 | ||
| 90564-37037 |
ZSU65 厚さ=2.05 |
1 | ||
| 90564-37044 |
ZSU65 厚さ=2.26 |
1 | ||
| 90564-37039 |
ZSU65 厚さ=2.11 |
1 | ||
| 90564-37047 |
ZSU65 厚さ=2.35 |
1 | ||
| 90564-37054 |
ZSU65 厚さ=2.56 |
1 | ||
| 90564-37048 |
ZSU65 厚さ=2.38 |
1 | ||
| 90564-37052 |
ZSU65 厚さ=2.50 |
1 | ||
| 90564-37042 |
ZSU65 厚さ=2.20 |
1 | ||
| 90564-37050 |
ZSU65 厚さ=2.44 |
1 | ||
| 90564-37049 |
ZSU65 厚さ=2.41 |
1 | ||
| 90564-37045 |
ZSU65 厚さ=2.29 |
1 | ||
| 90564-37051 |
ZSU65 厚さ=2.47 |
1 | ||
| 90564-37038 |
ZSU65 厚さ=2.08 |
1 | ||
| 90564-37057 |
ZSU65 厚さ=2.65 |
1 | ||
| 90564-37053 |
ZSU65 厚さ=2.53 |
1 | ||
| 90564-37055 |
ZSU65 厚さ=2.59 |
1 | ||
| 90564-37027 |
ZSU65 厚さ=1.75 |
1 | ||
| 90564-37056 |
ZSU65 厚さ=2.62 |
1 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90564-37029 |
ZSU65 厚さ=1.81 |
1 | ||
| 90564-37022 |
ZSU65 厚さ=1.60 |
1 | ||
| 90564-37032 |
ZSU65 厚さ=1.90 |
1 | ||
| 90564-37024 |
ZSU65 厚さ=1.66 |
1 | ||
| 90564-37031 |
ZSU65 厚さ=1.87 |
1 | ||
| 90564-37026 |
ZSU65 厚さ=1.72 |
1 | ||
| 90564-37034 |
ZSU65 厚さ=1.96 |
1 | ||
| 90564-37028 |
ZSU65 厚さ=1.78 |
1 | ||
| 90564-37023 |
ZSU65 厚さ=1.63 |
1 | ||
| 90564-37033 |
ZSU65 厚さ=1.93 |
1 | ||
| 90564-37025 |
ZSU65 厚さ=1.69 |
1 | ||
| 90564-37030 |
ZSU65 厚さ=1.84 |
1 | ||
| 90564-37036 |
ZSU65 厚さ=2.02 |
1 | ||
| 90564-37043 |
ZSU65 厚さ=2.23 |
1 | ||
| 90564-37035 |
ZSU65 厚さ=1.99 |
1 | ||
| 90564-37046 |
ZSU65 厚さ=2.32 |
1 | ||
| 90564-37040 |
ZSU65 厚さ=2.14 |
1 | ||
| 90564-37041 |
ZSU65 厚さ=2.17 |
1 | ||
| 90564-37037 |
ZSU65 厚さ=2.05 |
1 | ||
| 90564-37044 |
ZSU65 厚さ=2.26 |
1 | ||
| 90564-37039 |
ZSU65 厚さ=2.11 |
1 | ||
| 90564-37047 |
ZSU65 厚さ=2.35 |
1 | ||
| 90564-37054 |
ZSU65 厚さ=2.56 |
1 | ||
| 90564-37048 |
ZSU65 厚さ=2.38 |
1 | ||
| 90564-37052 |
ZSU65 厚さ=2.50 |
1 | ||
| 90564-37042 |
ZSU65 厚さ=2.20 |
1 | ||
| 90564-37050 |
ZSU65 厚さ=2.44 |
1 | ||
| 90564-37049 |
ZSU65 厚さ=2.41 |
1 | ||
| 90564-37045 |
ZSU65 厚さ=2.29 |
1 | ||
| 90564-37051 |
ZSU65 厚さ=2.47 |
1 | ||
| 90564-37038 |
ZSU65 厚さ=2.08 |
1 | ||
| 90564-37057 |
ZSU65 厚さ=2.65 |
1 | ||
| 90564-37053 |
ZSU65 厚さ=2.53 |
1 | ||
| 90564-37055 |
ZSU65 厚さ=2.59 |
1 | ||
| 90564-37027 |
ZSU65 厚さ=1.75 |
1 | ||
| 90564-37056 |
ZSU65 厚さ=2.62 |
1 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-52040 |
ZSU65 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-03110 |
ZSU65 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-52050 |
ZSU65 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-52050 |
ZSU65 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-52190 |
ZSU65 厚さ=1.55 |
1 | ||
| 41361-52180 |
ZSU65 厚さ=1.50 |
1 | ||
| 41361-52230 |
ZSU65 厚さ=1.75 |
1 | ||
| 41361-52220 |
ZSU65 厚さ=1.70 |
1 | ||
| 41361-52250 |
ZSU65 厚さ=1.45 |
1 | ||
| 41361-52210 |
ZSU65 厚さ=1.65 |
1 | ||
| 41361-52200 |
ZSU65 厚さ=1.60 |
1 | ||
| 41361-52240 |
ZSU65 厚さ=1.40 |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-52190 |
ZSU65 厚さ=1.55 |
1 | ||
| 41361-52180 |
ZSU65 厚さ=1.50 |
1 | ||
| 41361-52230 |
ZSU65 厚さ=1.75 |
1 | ||
| 41361-52220 |
ZSU65 厚さ=1.70 |
1 | ||
| 41361-52250 |
ZSU65 厚さ=1.45 |
1 | ||
| 41361-52210 |
ZSU65 厚さ=1.65 |
1 | ||
| 41361-52200 |
ZSU65 厚さ=1.60 |
1 | ||
| 41361-52240 |
ZSU65 厚さ=1.40 |
1 | ||
| 41410D - SEAL, OIL DIAPHRAGM | ||||
| 90311-54006 |
ZSU65 |
1 | ||
| 41531P - HOSE, REAR DIFFERENTIAL VACUUM | ||||
| 41533-42010 |
ZSU65 |
1 | ||
| Common parts | ||||
| 82715-42C10 | ||||
| 90105-08086 | ||||
| 90110-05006 | ||||
| 90116-08409 | ||||
| 90250-08014 | ||||
| 90466-07002 | ||||
| 90999-92002 | ||||
| 91551-80814 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 3(1312- )ASU65,ZSU65
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41330D - COUPLING ASSY, TRANSMISSION | ||||
| 41303-42022 |
ZSU65 |
1 | ||
| 41303-42023 |
ZSU65 |
1 | ||
| 41330K - RING, O (FOR TRANSMISSION COUPLING) | ||||
| 90301-16015 |
ZSU65 |
1 | ||
| 41330L - RING, SNAP (FOR TRANSMISSION COUPLING) | ||||
| 90520-59004 |
ZSU65 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
