ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )ZSU65..ELEGC,GRAND,PREM ; (1705- )ASU65,ZSU65

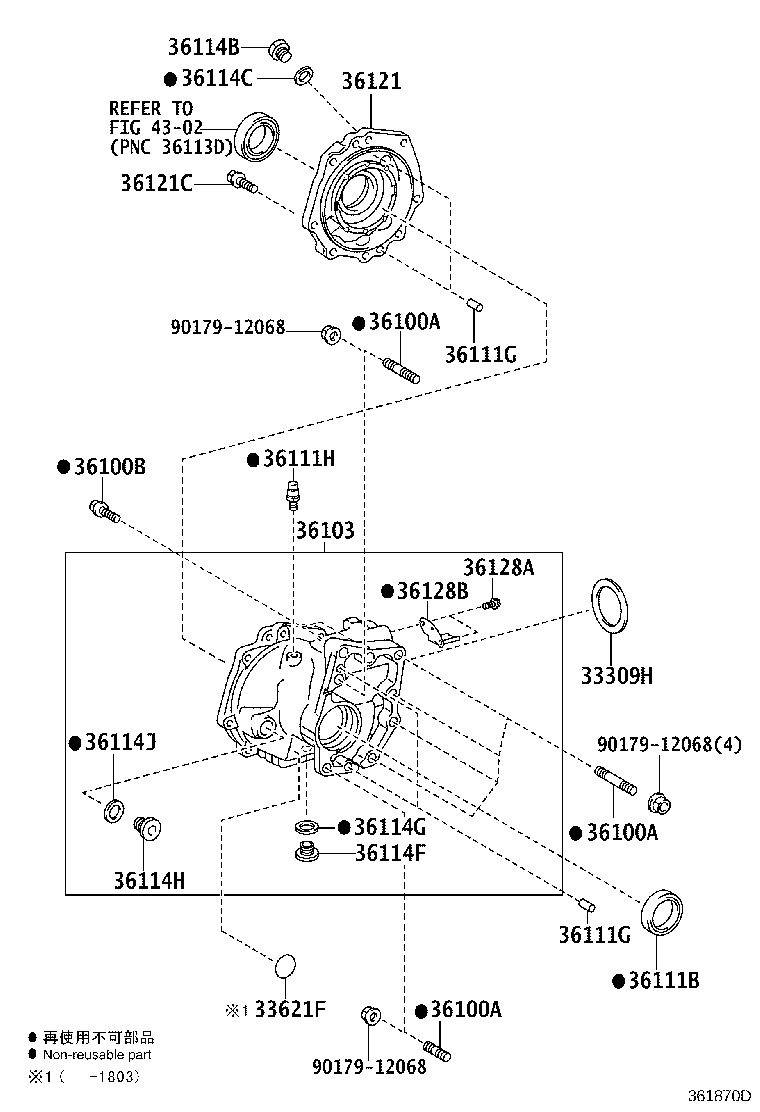

Click highlighted areas on diagram

diagram 33309H 33621F 36100A 36100A 36100A 36100B 36103 36111B 36111G 36111G 36111H 36114B 36114C 36114F 36114G 36114H 36114J 36121 36121C 36128A 36128B 4302 9017912068 9017912068 9017912068
Part # Description Qty Price
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-52010

ZSU65

厚さ=1.02,ﾏｰｸ 01

 1
36275-52020

ZSU65

厚さ=1.04,ﾏｰｸ 02

 1
36275-52100

ZSU65

厚さ=1.20,ﾏｰｸ 10

 1
36275-52040

ZSU65

厚さ=1.08,ﾏｰｸ 04

 1
36275-52090

ZSU65

厚さ=1.18,ﾏｰｸ 09

 1
36275-52080

ZSU65

厚さ=1.16,ﾏｰｸ 08

 1
36275-52060

ZSU65

厚さ=1.12,ﾏｰｸ 06

 1
36275-52120

ZSU65

厚さ=1.24,ﾏｰｸ 12

 1
36275-52050

ZSU65

厚さ=1.10,ﾏｰｸ 05

 1
36275-52070

ZSU65

厚さ=1.14,ﾏｰｸ 07

 1
36275-52190

ZSU65

厚さ=1.38,ﾏｰｸ 19

 1
36275-52030

ZSU65

厚さ=1.06,ﾏｰｸ 03

 1
36275-52160

ZSU65

厚さ=1.32,ﾏｰｸ 16

 1
36275-52220

ZSU65

厚さ=1.44,ﾏｰｸ 22

 1
36275-52170

ZSU65

厚さ=1.34,ﾏｰｸ 17

 1
36275-52140

ZSU65

厚さ=1.28,ﾏｰｸ 14

 1
36275-52150

ZSU65

厚さ=1.30,ﾏｰｸ 15

 1
36275-52110

ZSU65

厚さ=1.22,ﾏｰｸ 11

 1
36275-52210

ZSU65

厚さ=1.42,ﾏｰｸ 21

 1
36275-52230

ZSU65

厚さ=1.46,ﾏｰｸ 23

 1
36275-52180

ZSU65

厚さ=1.36,ﾏｰｸ 18

 1
36275-52130

ZSU65

厚さ=1.26,ﾏｰｸ 13

 1
36275-52240

ZSU65

厚さ=1.48,ﾏｰｸ 24

 1
36275-52200

ZSU65

厚さ=1.40,ﾏｰｸ 20

 1
36275-52270

ZSU65

厚さ=1.54,ﾏｰｸ 27

 1
36275-52280

ZSU65

厚さ=1.56,ﾏｰｸ 28

 1
36275-52260

ZSU65

厚さ=1.52,ﾏｰｸ 26

 1
36275-52250

ZSU65

厚さ=1.50,ﾏｰｸ 25

 1
33621F - LABEL, TRANSAXLE OIL INFORMATION
33621-42030

ZSU65

 1
33621-48020

ZSU65

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12028

ZSU65

ﾈｼﾞ部長さ=22 & 22,長さ=69

 1
90116-12041

ZSU65

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
90116-12034

ZSU65

ﾈｼﾞ部長さ=19 & 19,長さ=47

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12028

ZSU65

ﾈｼﾞ部長さ=22 & 22,長さ=69

 1
90116-12041

ZSU65

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
90116-12034

ZSU65

ﾈｼﾞ部長さ=19 & 19,長さ=47

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12028

ZSU65

ﾈｼﾞ部長さ=22 & 22,長さ=69

 1
90116-12041

ZSU65

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
90116-12034

ZSU65

ﾈｼﾞ部長さ=19 & 19,長さ=47

 1
36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING)
90105-12298

ZSU65

*12−1.25PX53−35

 2
36103 - CASE SUB-ASSY, TRANSFER
36103-42040

ZSU65

 1
36103-42041

ZSU65

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-55002

ZSU65

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

ZSU65

長さ=20,外径=10

 4
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

ZSU65

長さ=20,外径=10

 4
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90930-03133

ZSU65

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

ZSU65

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
12157-10010

ZSU65

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18051

ZSU65

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
12157-10010

ZSU65

 1
36114H - PLUG, NO.2 (FOR TRANSFER CASE)
90341-18023

ZSU65

 1
36114J - GASKET, NO.2 (FOR TRANSFER CASE)
12157-10010

ZSU65

 1
36121 - COVER, TRANSFER CASE, NO.1
36121-52020

ZSU65

 1
36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE
91552-81030

ZSU65

 8
36128A - BOLT (FOR BREATHER OIL DEFLECTOR)
91621-60614

ZSU65

 2
36128B - DEFLECTOR, BREATHER OIL
36128-42010

ZSU65

 1
Common parts
90179-12068
Linked diagrams
4302
