ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )ZSU6#..ELEGC,GRAND,PREM ; (1705- )ZSU6#

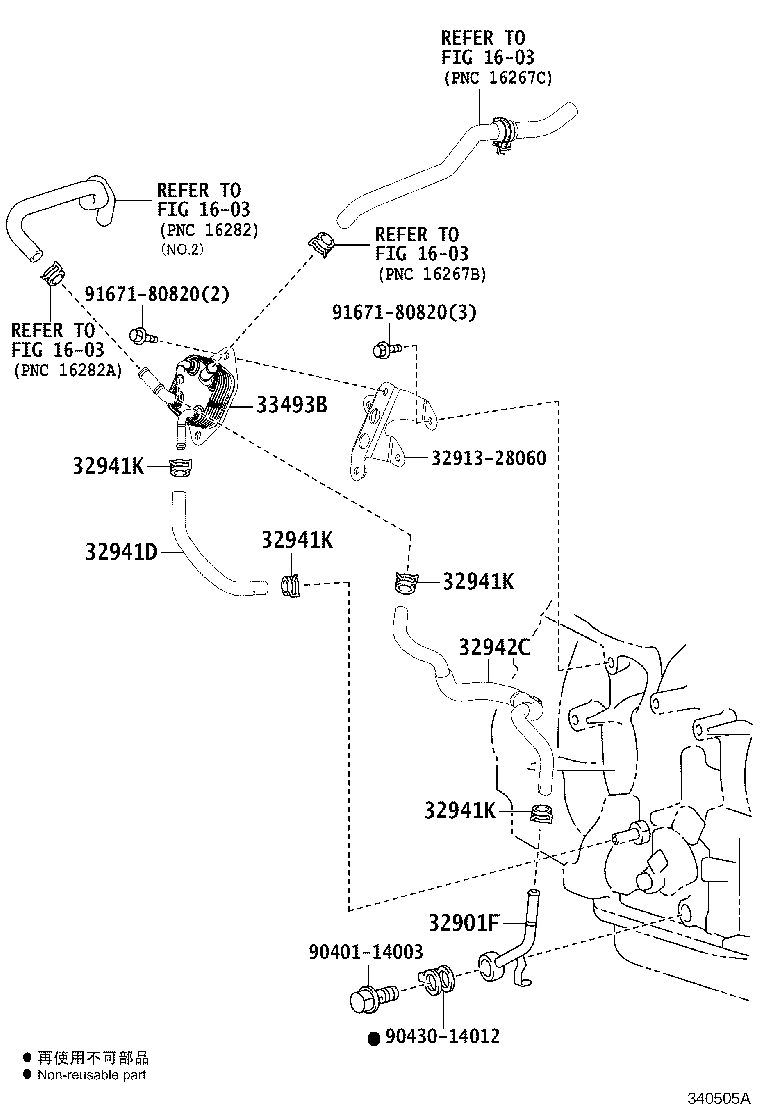

Click highlighted areas on diagram

K114,K114F

diagram 1603 1603 1603 1603 32901F 3291328060 32941D 32941K 32941K 32941K 32941K 32942C 33493B 9040114003 9043014012 9167180820 9167180820
Part # Description Qty Price
32901F - ELBOW SUB-ASSY, OIL COOLER
32901-28010

ZSU6#

 1
32941D - HOSE, OIL COOLER INLET
32943-28100

ZSU6#

 1
32943-28101

ZSU6#

 1
32941K - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

ZSU6#

 4
32941K - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

ZSU6#

 4
32941K - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

ZSU6#

 4
32941K - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

ZSU6#

 4
32942C - HOSE, OIL COOLER OUTLET, NO.1
32943-28110

ZSU6#

 1
33493B - COOLER, OIL
33493-28050

ZSU6#

 1
Common parts
32913-28060
90401-14003
90430-14012
91671-80820
Linked diagrams
1603
