ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )ZSU65

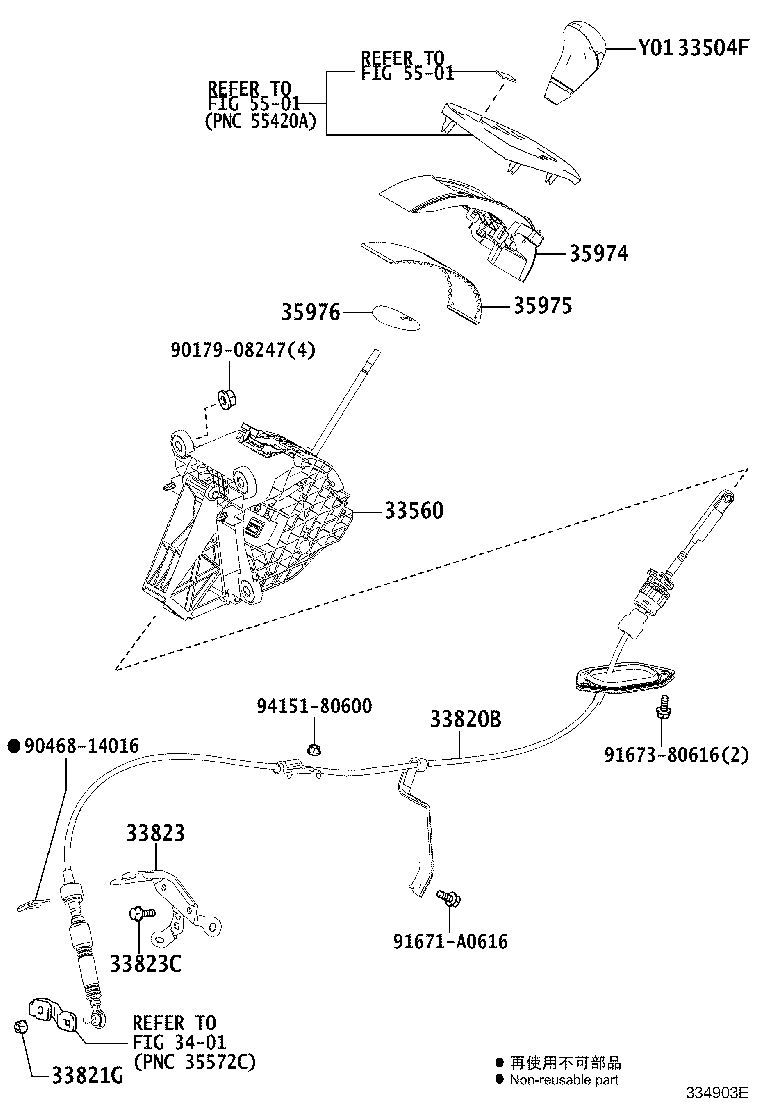

Click highlighted areas on diagram

diagram 33504F 33560 33820B 33821G 33823 33823C 3401 35974 35975 35976 5501 5501 9017908247 9046814016 91671A0616 9167380616 9415180600
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-48090C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-48520

AVU65,ZSU6#

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-48410

ZSU65

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

AVU65,ZSU6#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-28300

ZSU6#

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-60814

AVU65,ZSU6#

 2
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-48520

AVU65,ZSU6#

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-48070

AVU65,ZSU6#

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-48050

AVU65,ZSU6#

 1
Common parts
90179-08247
90468-14016
91671-A0616
91673-80616
94151-80600
Linked diagrams
3401
5501
