ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )3ZRFAE

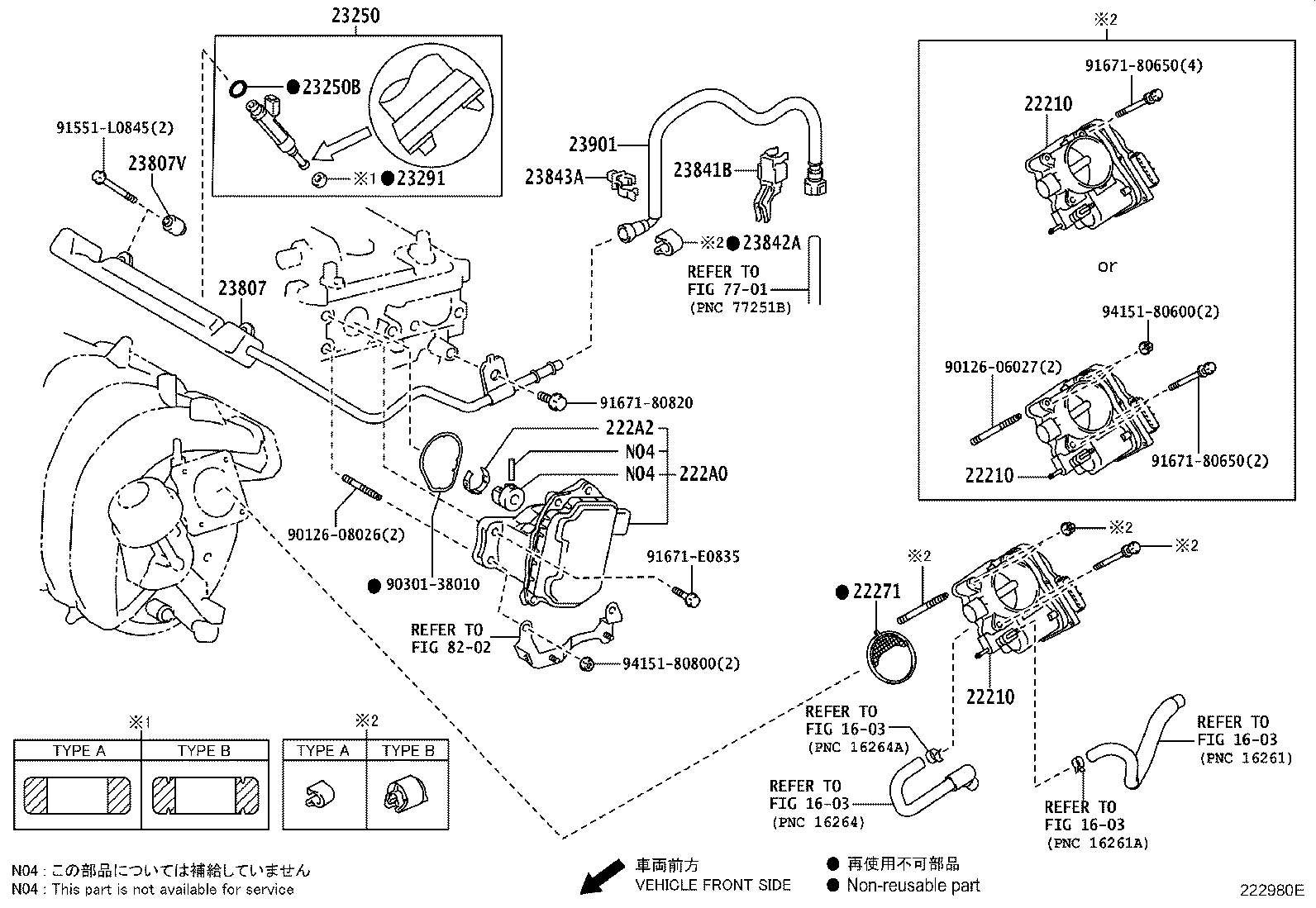

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 22210 22210 22210 22271 222A0 222A2 23250 23250B 23291 23807 23807V 23841B 23842A 23843A 23901 7701 8202 9012606027 9012608026 9030138010 91551L0845 9167180650 9167180650 9167180820 91671E0835 9415180600 9415180800
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22030-37050

3ZRFAE..ZSU6#

 1
22210 - BODY ASSY, THROTTLE
22030-37050

3ZRFAE..ZSU6#

 1
22210 - BODY ASSY, THROTTLE
22030-37050

3ZRFAE..ZSU6#

 1
22271 - GASKET, THROTTLE BODY
22271-75031

3ZRFAE..ZSU6#

 1
222A0 - CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT
222A0-37021

3ZRFAE..ZSU6#

 1
222A0-37020

3ZRFAE..ZSU6#

 1
222A0-37022

3ZRFAE..ZSU6#

 1
222A2 - CLIP, VALVE LIFT CONTROL ACTUATOR CONNECTOR
222A2-37011

3ZRFAE..ZSU6#

 1
23250 - INJECTOR ASSY, FUEL
23209-39235

3ZRFAE..ZSU6#

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

3ZRFAE..ZSU6#

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-23010

3ZRFAE..ZSU6#

TYPE A:ｲﾗｽﾄ参照

 4
23291-28020

3ZRFAE..ZSU6#

TYPE B:ｲﾗｽﾄ参照

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-37051

3ZRFAE..ZSU6#

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-37010

3ZRFAE..ZSU6#

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-37100

3ZRFAE..ZSU6#

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020

3ZRFAE..ZSU6#

TYPE A:ｲﾗｽﾄ参照

 1
23842-28010

3ZRFAE..ZSU6#

TYPE B:ｲﾗｽﾄ参照

 1
23843A - CLAMP,FUEL PIPE, NO.3(FOR EFI)
23847-28010

3ZRFAE..ZSU6#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-37220

3ZRFAE..ZSU6#

 1
Common parts
90126-06027
90126-08026
90301-38010
91551-L0845
91671-80650
91671-80820
91671-E0835
94151-80600
94151-80800
Linked diagrams
1603
7701
8202
