ZSU65W-ANXGP (2013)
Toyota Harrier/Hybrid
Production
Dec 2013
-
May 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1312- )3ZRFAE

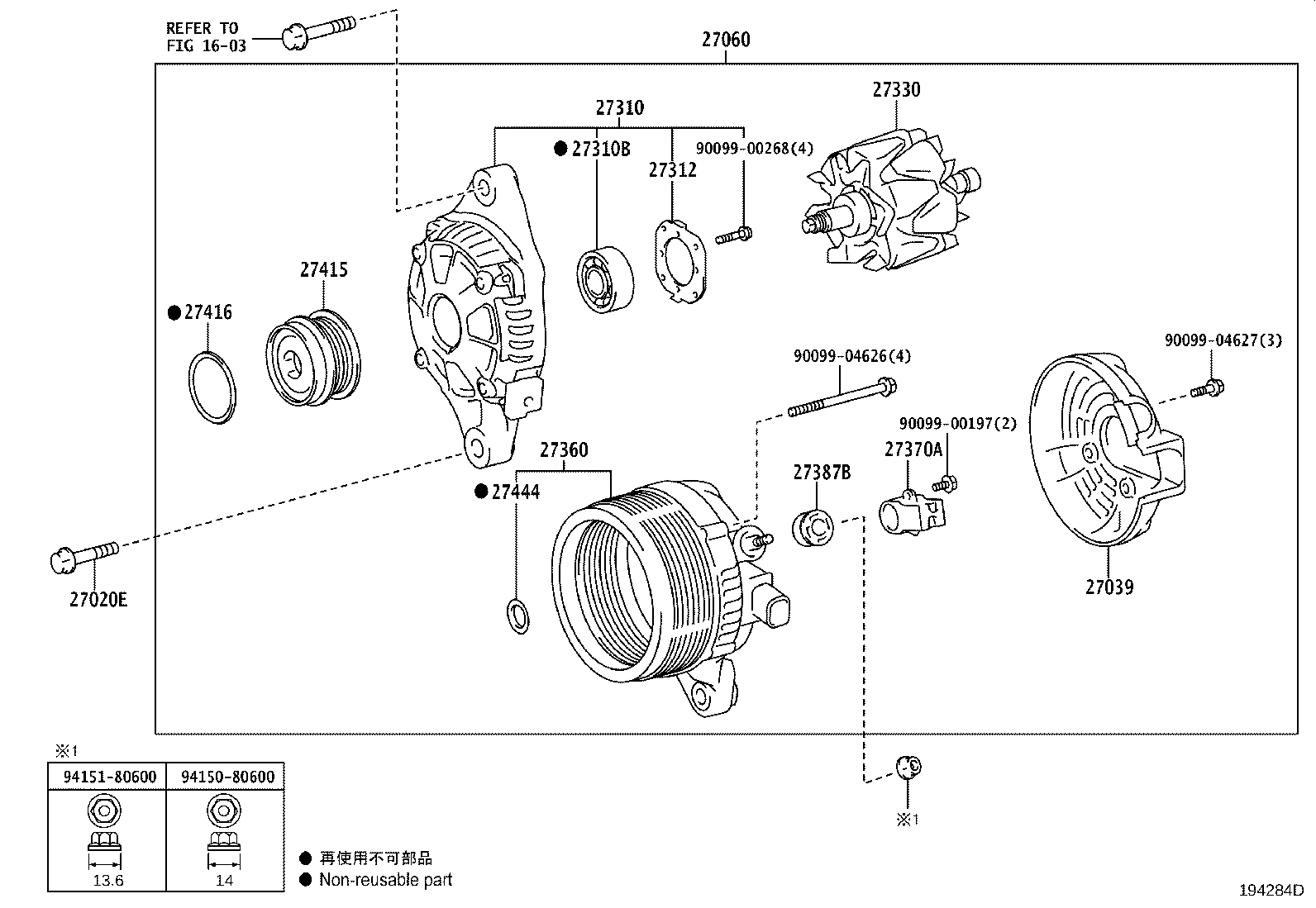

Click highlighted areas on diagram
12V 100A 130A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10307 |
3ZRFAE..ZSU6# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-47330 |
3ZRFAE..ZSU6# |
1 | ||
| 27039-37220 |
3ZRFAE..ZSU6# 寒冷地仕様 |
1 | ||
| 27060 - ALTERNATOR ASSY, W/REGULATOR | ||||
| 27060-37190 |
3ZRFAE..ZSU6# 寒冷地仕様 |
1 | ||
| 27060-37180 |
3ZRFAE..ZSU6# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-37220 |
3ZRFAE..ZSU6# 寒冷地仕様 |
1 | ||
| 27310-37130 |
3ZRFAE..ZSU6# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
3ZRFAE..ZSU6# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
3ZRFAE..ZSU6# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-37220 |
3ZRFAE..ZSU6# 寒冷地仕様 |
1 | ||
| 27330-47330 |
3ZRFAE..ZSU6# |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-37220 |
3ZRFAE..ZSU6# 寒冷地仕様 |
1 | ||
| 27360-37211 |
3ZRFAE..ZSU6# |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
3ZRFAE..ZSU6# |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-20130 |
3ZRFAE..ZSU6# |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0T060 |
3ZRFAE..ZSU6# |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
3ZRFAE..ZSU6# |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-21190 |
3ZRFAE..ZSU6# |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04626 | ||||
| 90099-04627 | ||||
| 94150-80600 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1603 | ||||
