ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )3ZRFAE..ELEGC,GRAND,PREM ; (1705-)3ZRFAE

Click highlighted areas on diagram

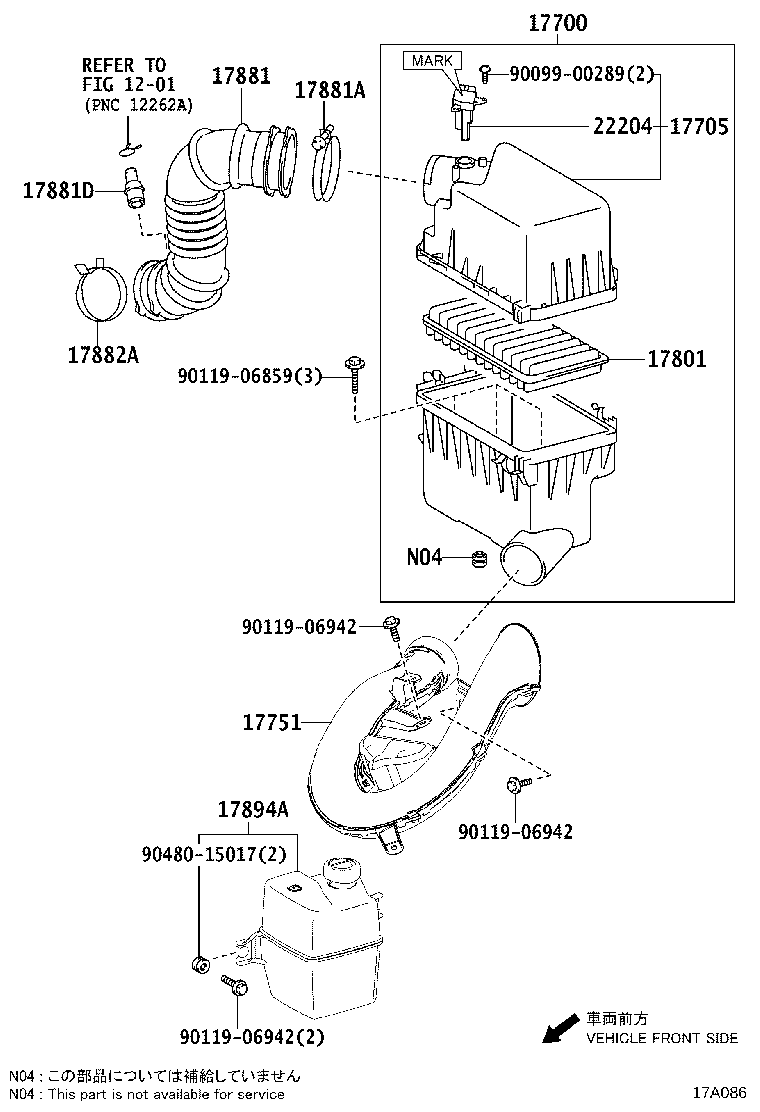

diagram 1201 17700 17705 17751 17801 17881 17881A 17881D 17882A 17894A 22204 9009900289 9011906859 9011906942 9011906942 9011906942 9048015017
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-37241

3ZRFAE..ZSU6#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-37141

3ZRFAE..ZSU6#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-37130

3ZRFAE..ZSU6#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-21050

3ZRFAE..ZSU6#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-37280

3ZRFAE..ZSU6#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

3ZRFAE..ZSU6#

 1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
90904-06008

3ZRFAE..ZSU6#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90466-62002

3ZRFAE..ZSU6#

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-37020

3ZRFAE..ZSU6#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0V020

3ZRFAE..ZSU6#

ﾏｰｸ 22204−0V020

 1
22204-0T040

3ZRFAE..ZSU6#

ﾏｰｸ 22204−0T040

 1
22204-0V010

3ZRFAE..ZSU6#

ﾏｰｸ 22204−0V010

 1
22204-28010

3ZRFAE..ZSU6#

ﾏｰｸ 22204−28010

 1
Common parts
90099-00289
90119-06859
90119-06942
90480-15017
Linked diagrams
1201
