ZSU65W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )3ZRFAE

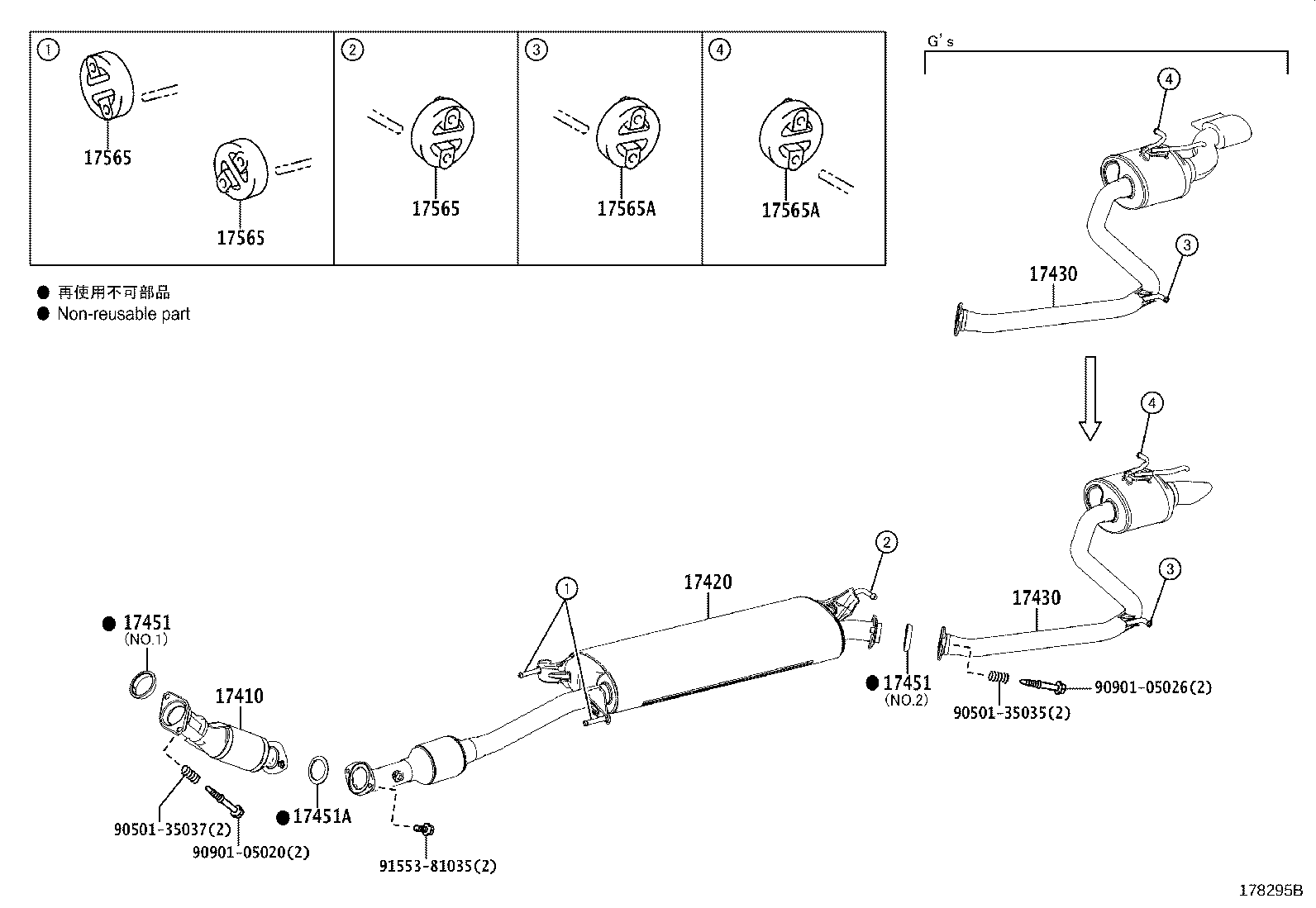

Click highlighted areas on diagram

diagram 17410 17420 17430 17430 17451 17451 17451A 17565 17565 17565 17565A 17565A 9050135035 9050135037 9090105020 9090105026 9155381035
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-37820

3ZRFAE..ZSU6#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-37200

3ZRFAE..ZSU6#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-37560

3ZRFAE..ZSU6#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-37560

3ZRFAE..ZSU6#

 1
17451 - GASKET, EXHAUST PIPE
17451-28022

2ARFXE,3ZRFAE..AVU65,ZSU6#

NO.2

 1
17451-28040

2ARFXE,3ZRFAE..AVU65,ZSU6#

NO.1

 1
17451 - GASKET, EXHAUST PIPE
17451-28022

2ARFXE,3ZRFAE..AVU65,ZSU6#

NO.2

 1
17451-28040

2ARFXE,3ZRFAE..AVU65,ZSU6#

NO.1

 1
17451A - GASKET, EXHAUST PIPE, NO.2
90917-06078

3ZRFAE..ZSU6#

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ARFXE,3ZRFAE..AVU65,ZSU6#

 3
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ARFXE,3ZRFAE..AVU65,ZSU6#

 3
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2ARFXE,3ZRFAE..AVU65,ZSU6#

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22030

2ARFXE,3ZRFAE..AVU65,ZSU6#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22030

2ARFXE,3ZRFAE..AVU65,ZSU6#

 2
Common parts
90501-35035
90501-35037
90901-05020
90901-05026
91553-81035
