ZSU60W-ANXXP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1705)

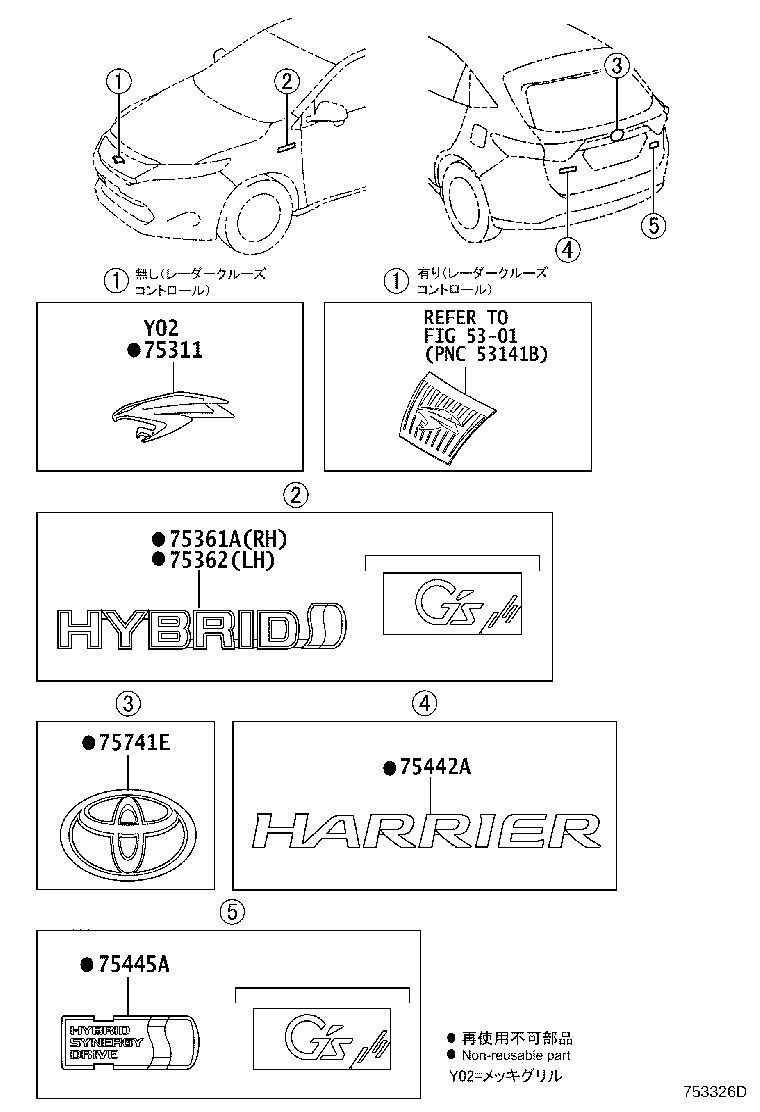

Click highlighted areas on diagram

diagram 5301 75311 75361A 75362 75442A 75445A 75741E
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-48180

AVU65,ZSU6#

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-48140

AVU65,ZSU6#

HARRIER

 1
75741E - EMBLEM, SYMBOL
90975-02071

ZSU6#

 1
Linked diagrams
5301
