ZSU60W-ANXXP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1705)

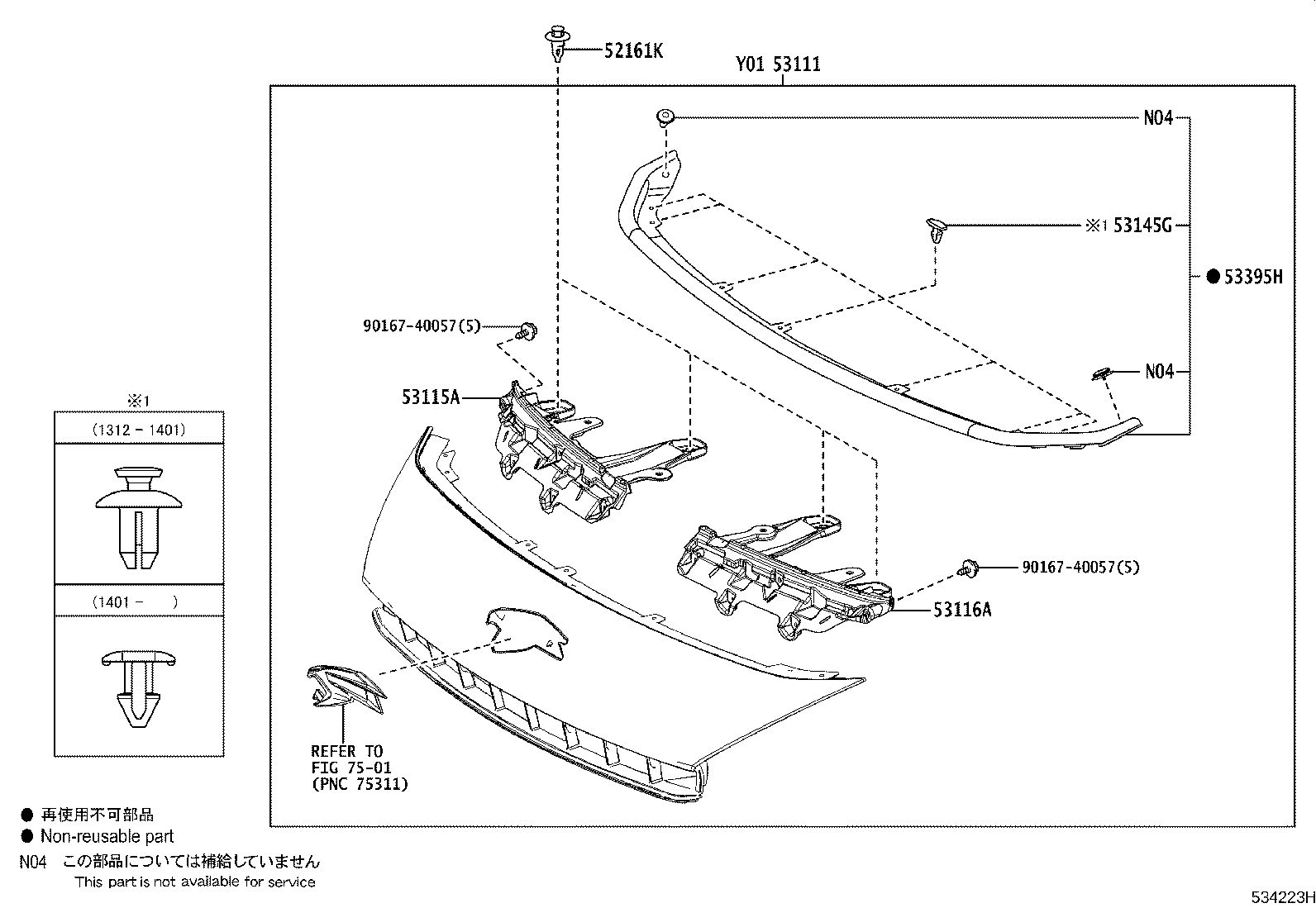

Click highlighted areas on diagram

ﾅｼ(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)

diagram 52161K 53111 53115A 53116A 53145G 53395H 7501 9016740057 9016740057
Part # Description Qty Price
52161K - PIECE, FRONT BUMPER
52161-16010

AVU65,ZSU6#

 4
53111 - GRILLE, RADIATOR
53101-48721

AVU65,ZSU6#

塗装不要

 1
53101-48720

AVU65,ZSU6#

塗装不要

 1
53101-48917

AVU65,ZSU6#..GRAND

塗装不要,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ｸﾘｱﾗﾝｽ父oｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―)

 1
53101-48722

AVU65,ZSU6#

塗装不要

 1
53115A - BRACKET, RADIATOR GRILLE, RH
53115-48020

AVU65,ZSU6#

 1
53116A - BRACKET, RADIATOR GRILLE, LH
53116-48010

AVU65,ZSU6#

 1
53145G - CLIP, RADIATOR GRILLE
53145-60030

AVU65,ZSU6#

 7
90467-05063C0

ZSU6#

BLACK

 7
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-48070

AVU65,ZSU6#

 1
Common parts
90167-40057
Linked diagrams
7501

(1312-1705)

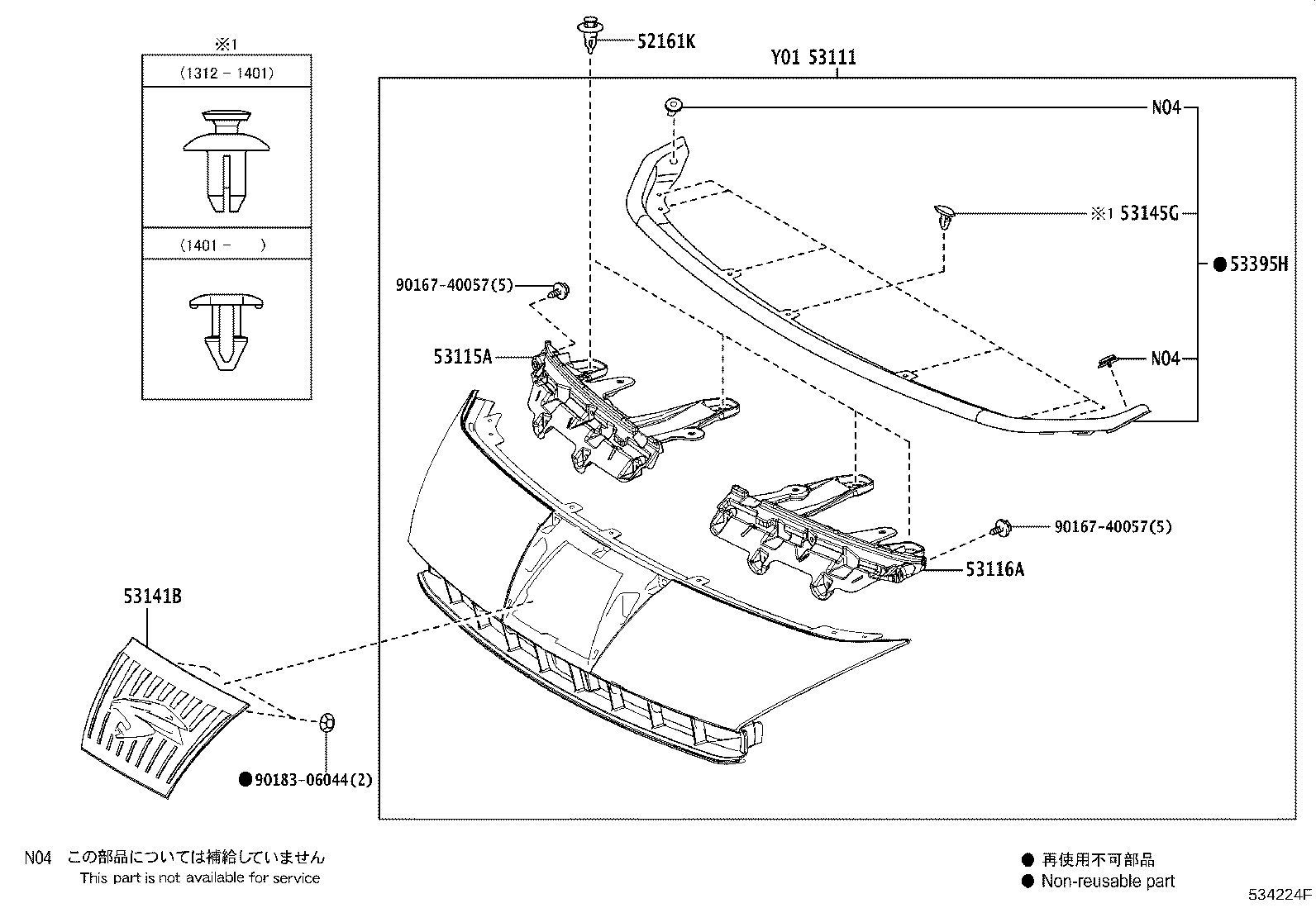

Click highlighted areas on diagram

ｱﾘ(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)

diagram 52161K 53111 53115A 53116A 53141B 53145G 53395H 9016740057 9016740057 9018306044
Part # Description Qty Price
52161K - PIECE, FRONT BUMPER
52161-16010

AVU65,ZSU6#

 4
53111 - GRILLE, RADIATOR
53101-48721

AVU65,ZSU6#

塗装不要

 1
53101-48720

AVU65,ZSU6#

塗装不要

 1
53101-48917

AVU65,ZSU6#..GRAND

塗装不要,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ｸﾘｱﾗﾝｽ父oｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―)

 1
53101-48722

AVU65,ZSU6#

塗装不要

 1
53115A - BRACKET, RADIATOR GRILLE, RH
53115-48020

AVU65,ZSU6#

 1
53116A - BRACKET, RADIATOR GRILLE, LH
53116-48010

AVU65,ZSU6#

 1
53141B - GARNISH, RADIATOR GRILLE, NO.1
53141-48040

AVU65,ZSU6#..GRAND

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―)

 1
53145G - CLIP, RADIATOR GRILLE
53145-60030

AVU65,ZSU6#

 7
90467-05063C0

ZSU6#

BLACK

 7
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-48070

AVU65,ZSU6#

 1
Common parts
90167-40057
90183-06044
