ZSU60W-ANXMP (2017)
Toyota Harrier/Hybrid
(1705- )
ｳﾝﾃﾝｾｷ

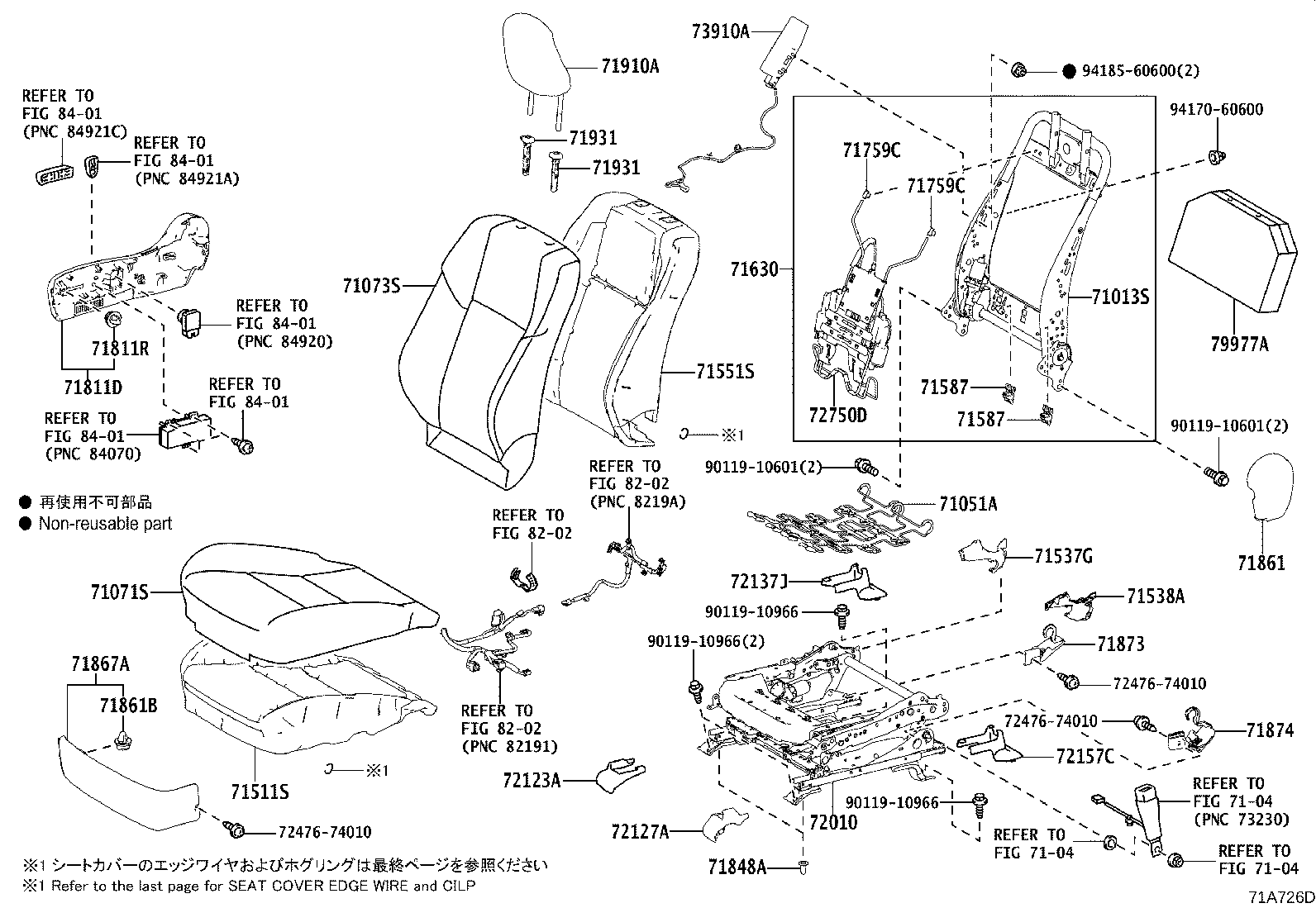

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-48100 |
ZSU6#..ELEGC,PREM |
1 | ||
| 71013-48120 |
ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 71013-48160 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 71013-48100 |
ASU6#,ZSU6# |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47060 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 71051-21050 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 71051-47060 |
AVU65,ZSU6# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-48890A1 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71071-48A00C2 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71071-48890C1 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71071-48C00C1 |
AVU65,ZSU6# BLACK,TRIM2#,43 |
1 | ||
| 71071-48C00E1 |
AVU65,ZSU6# DK.SADDLE TAN,TRIM45 |
1 | ||
| 71071-48C01C0 |
AVU65;ZSU6#..ELEGC,PROGR BLACK,TRIM2#,43 |
1 | ||
| 71071-48B60C0 |
ASU65,ZSU6#..ELEGC GR SPORT,BLACK,TRIM2# |
1 | ||
| 71071-48C01E0 |
AVU65,ZSU6# DK.SADDLE TAN,TRIM45 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-48C30C1 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71073-48C40C2 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
1 | ||
| 71073-48C30A1 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
1 | ||
| 71073-48E30C0 |
AVU65,ZSU6# BLACK/CREAM,TRIM2#,43 |
1 | ||
| 71073-48C90C0 |
ASU65,ZSU6#..ELEGC GR SPORT,BLACK,TRIM2# |
1 | ||
| 71073-48E30E0 |
AVU65,ZSU6# DK.SADDLE TAN/CREAM,TRIM45 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-S0260 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 71511-48370 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 71511-S0260 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-42010C0 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71537-42010C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-42010C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 71538-42010C0 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-48240 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 71551-S0370 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 71551-S0370 |
AVU65,ZSU6# |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 71587-52030 |
AVU65,ZSU6# |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 71587-52030 |
AVU65,ZSU6# |
2 | ||
| 71630 - SPRING ASSY, FRONT SEAT BACK, RH | ||||
| 71630-48190 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 71630-48100 |
ZSU6#..ELEGC,PREM |
1 | ||
| 71630-48120 |
ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 71630-48100 |
ASU6#,ZSU6# |
1 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-47011 |
AVU65,ZSU6# |
2 | ||
| 71759-47011 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-47011 |
AVU65,ZSU6# |
2 | ||
| 71759-47011 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42160C0 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71811-42160C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 71769-47020 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 71769-47020 |
AVU65,ZSU6# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-48050 |
AVU65,ZSU6# |
2 | ||
| 71848-48050 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-42110C0 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71861-42110C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-47020 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 71769-47020 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-42030C0 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 71867-42030C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-60030 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 71873-60030 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-60110 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 71874-60110 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48690A2 |
AVU65,ZSU6#..ELEGC,PREM IVORY,TRIM0# |
2 | ||
| 71910-48690C3 |
ZSU6#..ELEGC BLACK/GRAY,TRIM20 |
2 | ||
| 71910-48700C3 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革,PURE BLACK,TRIM2#,4# |
2 | ||
| 71910-48690C2 |
ZSU6#..ELEGC BLACK,TRIM20,43 |
2 | ||
| 71910-48690C2 |
ZSU6#..ELEGC BLACK,TRIM2#,43 |
2 | ||
| 71910-48690E1 |
AVU65,ZSU6# DK.SADDLE TAN/CREAM,TRIM45 |
2 | ||
| 71910-48691C2 |
AVU65;ZSU6#..ELEGC,PROGR BLACK,TRIM2#,43 |
2 | ||
| 71910-48691E1 |
AVU65,ZSU6# DK.SADDLE TAN/CREAM,TRIM45 |
2 | ||
| 71910-48690C2 |
AVU65,ZSU6#..ELEGC BLACK,TRIM2#,4# |
2 | ||
| 71910-48B70C0 |
ASU65,ZSU6#..ELEGC GR SPORT,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AVU65,ZSU6#..ELEGC ﾛｯｸ付,BLACK,TRIM0#,2#,4# |
2 | ||
| 71931-47020C0 |
AVU65,ZSU6#..ELEGC ﾛｯｸ無,BLACK,TRIM0#,2#,4# |
2 | ||
| 71930-47020C0 |
AVU65,ZSU6# ﾛｯｸ付,BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
ZSU6#..ELEGC ﾛｯｸ無,GR SPORT,BLACK,TRIM2# |
2 | ||
| 71930-47020C4 |
AVU65,ZSU6#..ELEGC,PREM ﾛｯｸ付,BLACK,TRIM2#,4# |
2 | ||
| 71930-47020 |
ASU6#,AVU65,ZSU6# ﾛｯｸ付 |
2 | ||
| 71931-47020C0 |
AVU65,ZSU6# ﾛｯｸ無,BLACK,TRIM2#,4# |
2 | ||
| 71930-47020C0 |
ZSU6#..ELEGC ﾛｯｸ付,GR SPORT,BLACK,TRIM2# |
2 | ||
| 71931-47020 |
ASU6#,AVU65,ZSU6# ﾛｯｸ無 |
2 | ||
| 71931-47020C4 |
ZSU6#..ELEGC ﾛｯｸ無,GR SPORT,BLACK,TRIM2# |
2 | ||
| 71931-47020C4 |
AVU65,ZSU6#..ELEGC,PREM ﾛｯｸ無,BLACK,TRIM2#,4# |
2 | ||
| 71930-47020C4 |
ZSU6#..ELEGC ﾛｯｸ付,GR SPORT,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AVU65,ZSU6#..ELEGC ﾛｯｸ付,BLACK,TRIM0#,2#,4# |
2 | ||
| 71931-47020C0 |
AVU65,ZSU6#..ELEGC ﾛｯｸ無,BLACK,TRIM0#,2#,4# |
2 | ||
| 71930-47020C0 |
AVU65,ZSU6# ﾛｯｸ付,BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
ZSU6#..ELEGC ﾛｯｸ無,GR SPORT,BLACK,TRIM2# |
2 | ||
| 71930-47020C4 |
AVU65,ZSU6#..ELEGC,PREM ﾛｯｸ付,BLACK,TRIM2#,4# |
2 | ||
| 71930-47020 |
ASU6#,AVU65,ZSU6# ﾛｯｸ付 |
2 | ||
| 71931-47020C0 |
AVU65,ZSU6# ﾛｯｸ無,BLACK,TRIM2#,4# |
2 | ||
| 71930-47020C0 |
ZSU6#..ELEGC ﾛｯｸ付,GR SPORT,BLACK,TRIM2# |
2 | ||
| 71931-47020 |
ASU6#,AVU65,ZSU6# ﾛｯｸ無 |
2 | ||
| 71931-47020C4 |
ZSU6#..ELEGC ﾛｯｸ無,GR SPORT,BLACK,TRIM2# |
2 | ||
| 71931-47020C4 |
AVU65,ZSU6#..ELEGC,PREM ﾛｯｸ無,BLACK,TRIM2#,4# |
2 | ||
| 71930-47020C4 |
ZSU6#..ELEGC ﾛｯｸ付,GR SPORT,BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-48250 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 72010-48071 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 72010-42201 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-42030C0 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 72123-42030C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-42030C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 72127-42030C0 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-42050C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 72137-42050C0 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 72157C - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72158-42020C0 |
AVU65,ZSU6#..ELEGC,PREM BLACK,TRIM2#,4# |
1 | ||
| 72158-42020C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-48040 |
AVU65,ZSU6#..ELEGC,PREM |
1 | ||
| 72750-48030 |
AVU65,ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 72750-48040 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42040 |
AVU65,ZSU6# |
1 | ||
| 73910-42040 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-48090 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 79977-52120 |
AVU65,ZSU6# |
2 | ||
| Common parts | ||||
| 72476-74010 | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
