ZSU60W-ANXMP (2017)
Toyota Harrier/Hybrid

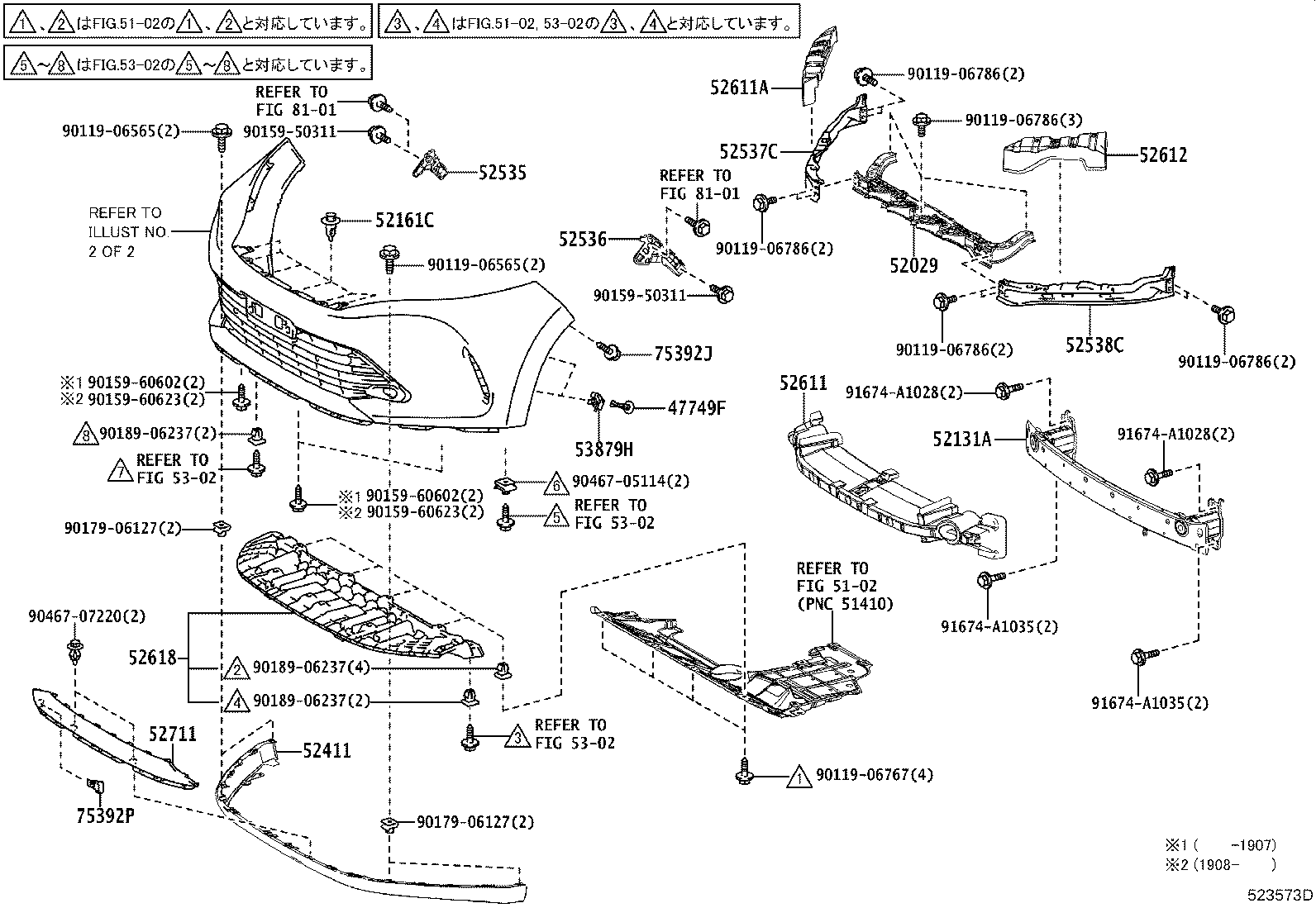

ILLUST NO. 1 OF 2(1705- )AVU65,ZSU6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749F - CLIP, PIN HOLD | ||||
| 47749-50090 |
AVU65,ZSU6# |
4 | ||
| 47749-50090 |
ASU6#,AVU65,ZSU6# |
4 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-48010 |
AVU65,ZSU6# |
1 | ||
| 52029-48010 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-48040 |
AVU65,ZSU6# |
1 | ||
| 52021-48090 |
ASU6#,ZSU6# ﾊﾟﾌｫｰﾏﾝｽ ﾛｯﾄﾞ−FR ﾌﾞﾚｰｽ GRS用 (DOP) |
1 | ||
| 52021-48090 |
ASU6#,ZSU6# ﾊﾟﾌｫｰﾏﾝｽ ﾛｯﾄﾞ−RR ﾌﾞﾚｰｽ GRS用 (DOP) |
1 | ||
| 52021-48090 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AVU65,ZSU6# |
6 | ||
| 52161-16010 |
ASU6#,AVU65,ZSU6# |
6 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52411-48020 |
AVU65,ZSU6# |
1 | ||
| 52411-48050 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52411-48050 |
ZSU6#..ELEGC GR SPORT |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-48040 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52535-48080 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52535-48070 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52535-48040 |
AVU65,ZSU6# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-48030 |
AVU65,ZSU6# |
1 | ||
| 52536-48070 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52536-48030 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52536-48060 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52537C - RETAINER, FRONT BUMPER SIDE, NO.2 RH | ||||
| 52537-48020 |
AVU65,ZSU6# |
1 | ||
| 52537-48040 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52538C - RETAINER, FRONT BUMPER SIDE, NO.2 LH | ||||
| 52538-48020 |
AVU65,ZSU6# |
1 | ||
| 52538-48040 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52614-48041 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52614-48050 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52614-48050 |
ZSU6#..ELEGC GR SPORT |
1 | ||
| 52614-48040 |
AVU65,ZSU6# |
1 | ||
| 52611A - ABSORBER, FRONT BUMPER ENERGY, RH | ||||
| 52611-48210 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52611-48170 |
AVU65,ZSU6# |
1 | ||
| 52611-48210 |
ZSU6#..ELEGC GR SPORT |
1 | ||
| 52611-48220 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52612 - ABSORBER, FRONT BUMPER ENERGY, LH | ||||
| 52612-48060 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52612-48050 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52612-48050 |
ZSU6#..ELEGC GR SPORT |
1 | ||
| 52612-48030 |
AVU65,ZSU6# |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-48010 |
AVU65,ZSU6# |
1 | ||
| 52618-48030 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-48080 |
AVU65,ZSU6# 塗装不要 |
1 | ||
| 52711-48080 |
ZSU6#..ELEGC GR SPORT |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30050 |
ASU6#,AVU65,ZSU6# |
4 | ||
| 53879-30050 |
AVU65,ZSU6# |
4 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-42030 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 75392-42030 |
AVU65,ZSU6# |
2 | ||
| 75392P - RETAINER, OUTSIDE MOULDING, NO.3 | ||||
| 75392-35220 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 75392-35220 |
ZSU6#..ELEGC GR SPORT |
2 | ||
| Common parts | ||||
| 90119-06565 | ||||
| 90119-06767 | ||||
| 90119-06786 | ||||
| 90159-50311 | ||||
| 90159-60602 | ||||
| 90159-60623 | ||||
| 90179-06127 | ||||
| 90189-06237 | ||||
| 90467-05114 | ||||
| 90467-07220 | ||||
| 91674-A1028 | ||||
| 91674-A1035 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8101 | ||||

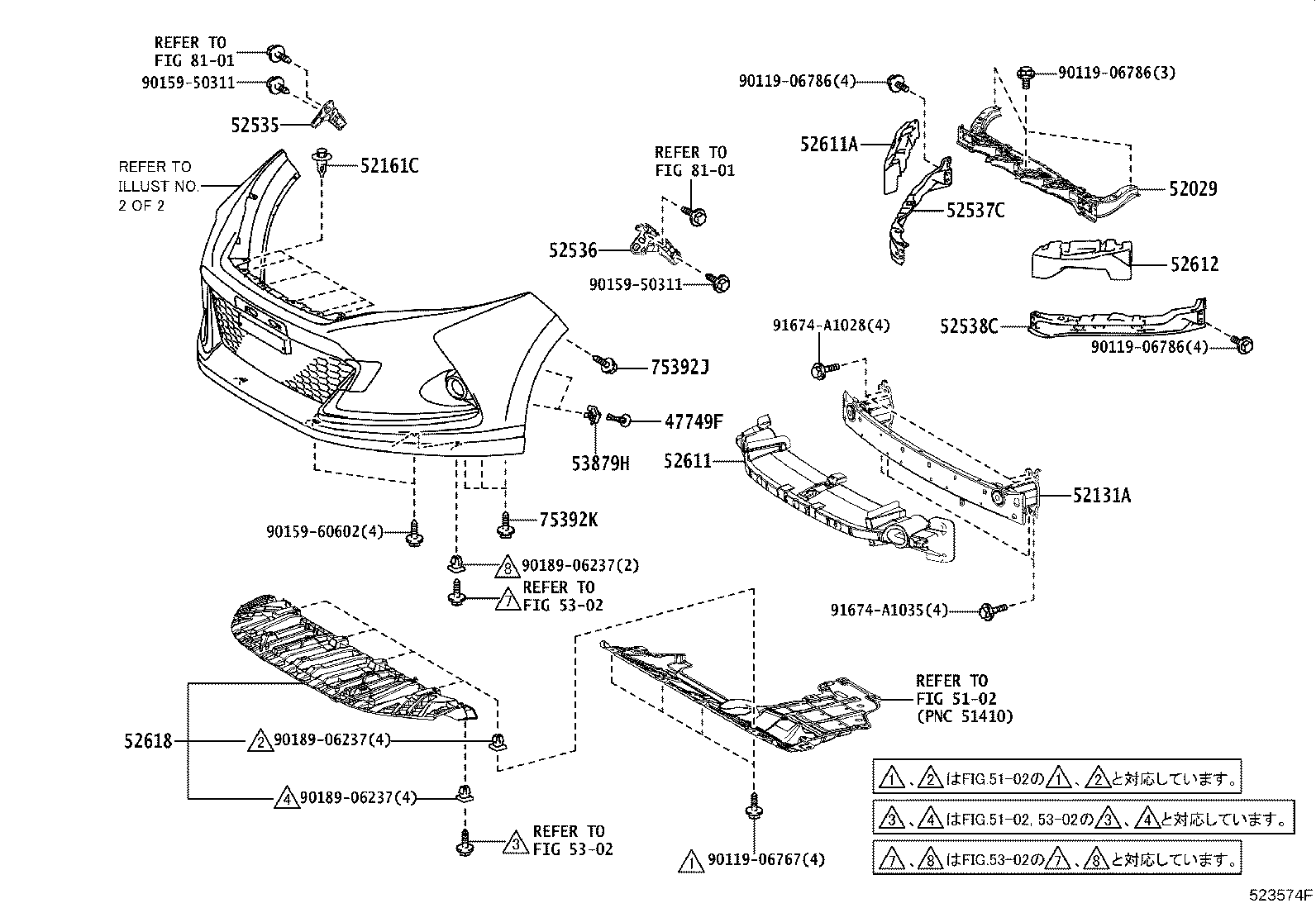

ILLUST NO. 1 OF 2(1708- )ASU65,ZSU6#..ELEGC
GR SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749F - CLIP, PIN HOLD | ||||
| 47749-50090 |
AVU65,ZSU6# |
4 | ||
| 47749-50090 |
ASU6#,AVU65,ZSU6# |
4 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-48010 |
AVU65,ZSU6# |
1 | ||
| 52029-48010 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-48040 |
AVU65,ZSU6# |
1 | ||
| 52021-48090 |
ASU6#,ZSU6# ﾊﾟﾌｫｰﾏﾝｽ ﾛｯﾄﾞ−FR ﾌﾞﾚｰｽ GRS用 (DOP) |
1 | ||
| 52021-48090 |
ASU6#,ZSU6# ﾊﾟﾌｫｰﾏﾝｽ ﾛｯﾄﾞ−RR ﾌﾞﾚｰｽ GRS用 (DOP) |
1 | ||
| 52021-48090 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ASU6#,AVU65,ZSU6# |
6 | ||
| 52161-16010 |
AVU65,ZSU6# |
6 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-48040 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52535-48080 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52535-48070 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52535-48040 |
AVU65,ZSU6# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-48030 |
AVU65,ZSU6# |
1 | ||
| 52536-48070 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52536-48030 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52536-48060 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52537C - RETAINER, FRONT BUMPER SIDE, NO.2 RH | ||||
| 52537-48020 |
AVU65,ZSU6# |
1 | ||
| 52537-48040 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52538C - RETAINER, FRONT BUMPER SIDE, NO.2 LH | ||||
| 52538-48020 |
AVU65,ZSU6# |
1 | ||
| 52538-48040 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52614-48041 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52614-48050 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52614-48050 |
ZSU6#..ELEGC GR SPORT |
1 | ||
| 52614-48040 |
AVU65,ZSU6# |
1 | ||
| 52611A - ABSORBER, FRONT BUMPER ENERGY, RH | ||||
| 52611-48210 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52611-48170 |
AVU65,ZSU6# |
1 | ||
| 52611-48210 |
ZSU6#..ELEGC GR SPORT |
1 | ||
| 52611-48220 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52612 - ABSORBER, FRONT BUMPER ENERGY, LH | ||||
| 52612-48060 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52612-48050 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52612-48050 |
ZSU6#..ELEGC GR SPORT |
1 | ||
| 52612-48030 |
AVU65,ZSU6# |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-48010 |
AVU65,ZSU6# |
1 | ||
| 52618-48030 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30050 |
ASU6#,AVU65,ZSU6# |
4 | ||
| 53879-30050 |
AVU65,ZSU6# |
4 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-42030 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 75392-42030 |
AVU65,ZSU6# |
2 | ||
| 75392K - RETAINER, OUTSIDE MOULDING, NO.2 | ||||
| 75392-35220 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 75392-42030 |
ASU65,ZSU6#..ELEGC GR SPORT |
6 | ||
| 75392-35220 |
ZSU6#..ELEGC GR SPORT |
2 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90119-06786 | ||||
| 90159-50311 | ||||
| 90159-60602 | ||||
| 90189-06237 | ||||
| 91674-A1028 | ||||
| 91674-A1035 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8101 | ||||

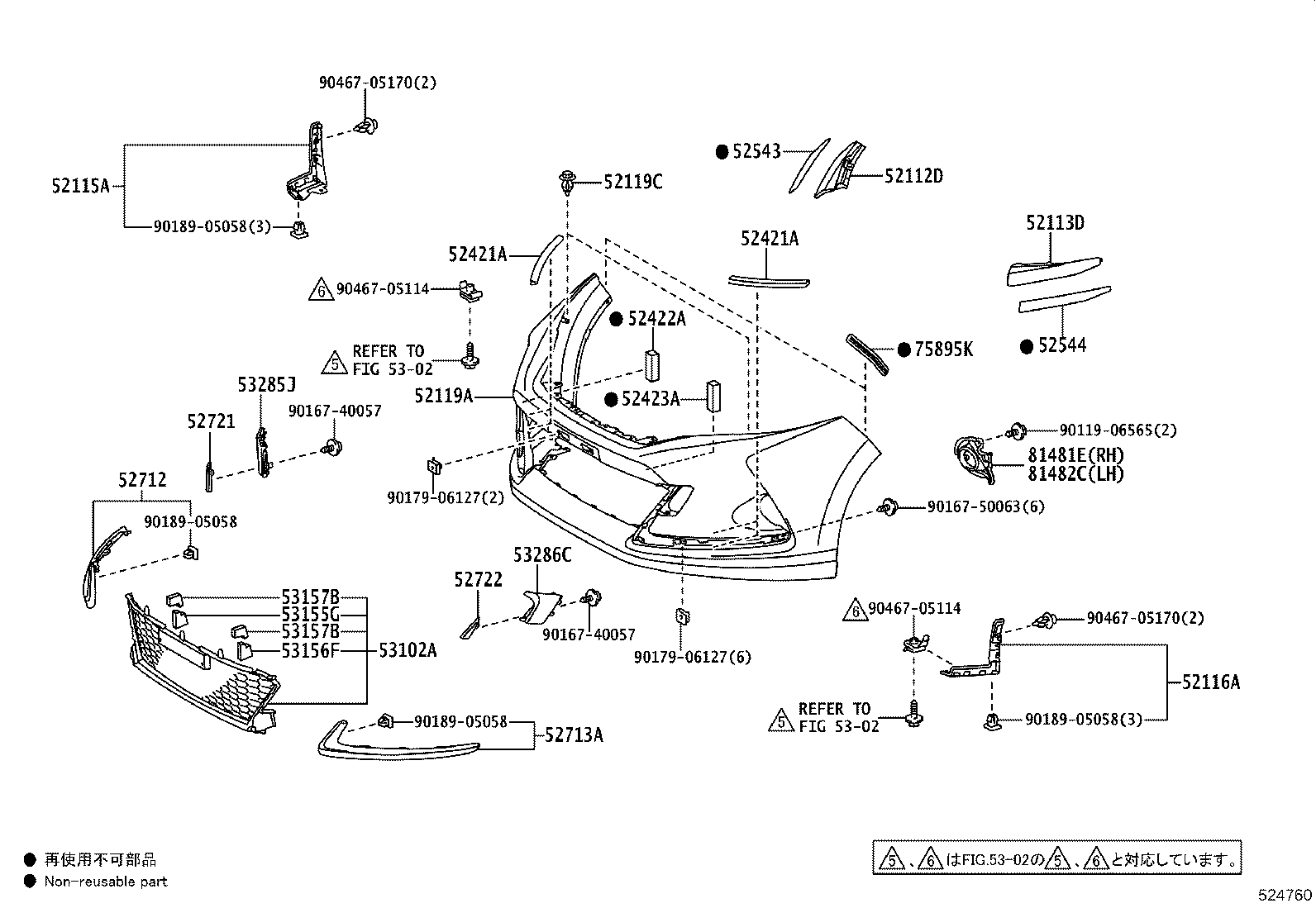

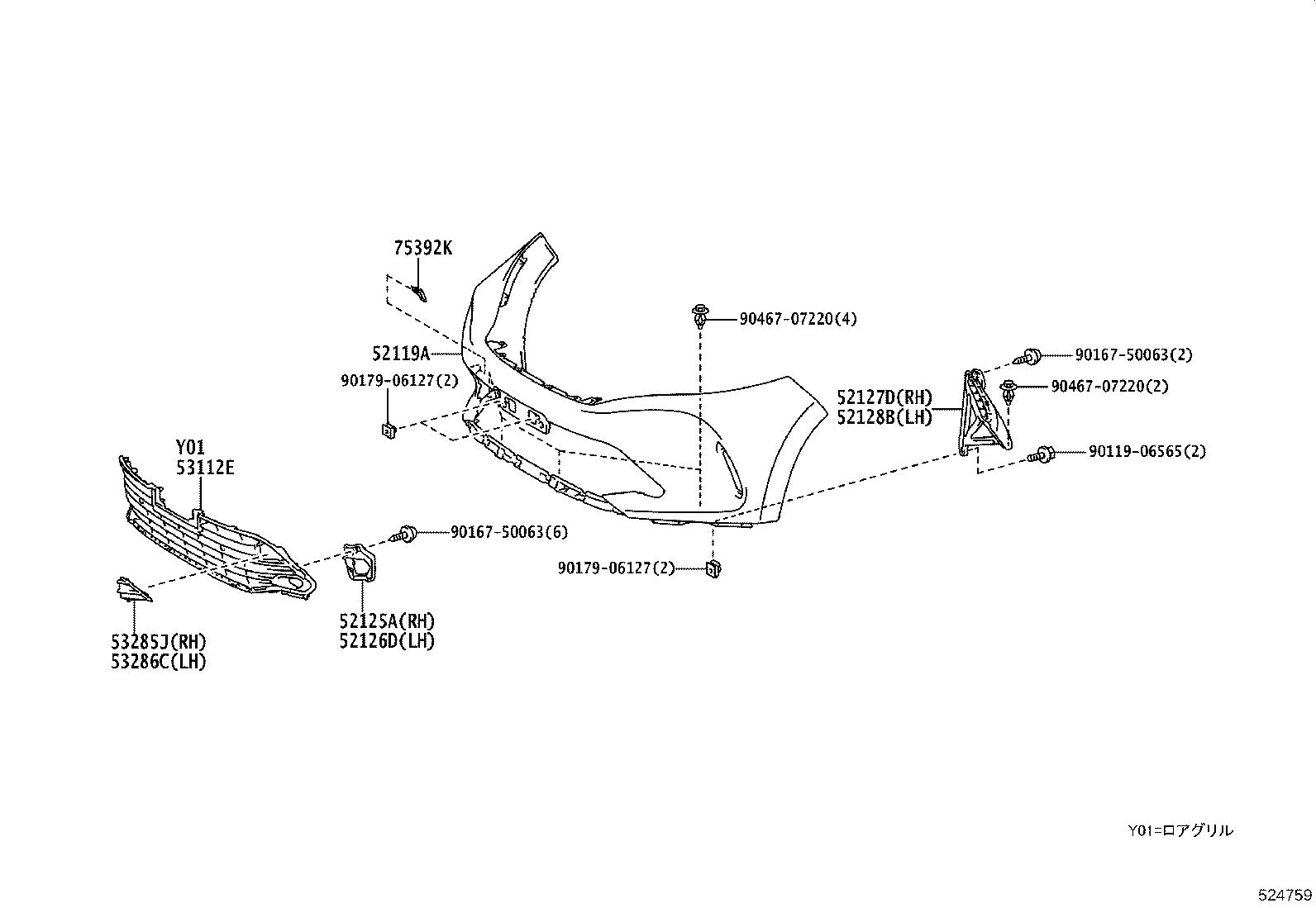

ILLUST NO. 2 OF 2(1705- )AVU65,ZSU6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-48570J0 |
ZSU6#..ELEGC GR SPORT,DK.BLUE M.M.,8W7 |
1 | ||
| 52119-48C70A0 |
AVU65,ZSU6#..ELEGC,GRAND ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-48C60B0 |
AVU65,ZSU6# SILVER ME.,1F7 |
1 | ||
| 52119-48C70B0 |
AVU65,ZSU6#..ELEGC,GRAND ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-48C60E0 |
AVU65,ZSU6# DK.BROWN ME.,4U5 |
1 | ||
| 52119-48C60A0 |
AVU65,ZSU6# WHITE PEARL CS.,070 |
1 | ||
| 52119-48C60B1 |
AVU65,ZSU6# DK. STEEL MC.,1H2 |
1 | ||
| 52119-48C70B0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
1 | ||
| 52119-48C60C1 |
AVU65,ZSU6# SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48C70B1 |
AVU65,ZSU6#..ELEGC,GRAND ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK. STEEL MC.,1H2 |
1 | ||
| 52119-48C60C0 |
AVU65,ZSU6# BLACK,202 |
1 | ||
| 52119-48C70C0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
1 | ||
| 52119-48C70E0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BROWN ME.,4U5 |
1 | ||
| 52119-48C70A0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
1 | ||
| 52119-48C70D0 |
AVU65,ZSU6#..ELEGC,GRAND ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACKISH RED MC.,3R0 |
1 | ||
| 52119-48C70B1 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. STEEL MC.,1H2 |
1 | ||
| 52119-48C70D0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACKISH RED MC.,3R0 |
1 | ||
| 52119-48C70C0 |
AVU65,ZSU6#..ELEGC,GRAND ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,202 |
1 | ||
| 52119-48C60D0 |
AVU65,ZSU6# BLACKISH RED MC.,3R0 |
1 | ||
| 52119-48C70C1 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48570C0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM BLACK,202 |
1 | ||
| 52119-48C70C1 |
AVU65,ZSU6#..ELEGC,GRAND ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48C70E0 |
AVU65,ZSU6#..ELEGC,GRAND ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BROWN ME.,4U5 |
1 | ||
| 52119-48560C1 |
ASU65,ZSU6#..ELEGC GR SPORT,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48570A0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM WHITE PEARL CS.,070 |
1 | ||
| 52119-48560B0 |
ASU65,ZSU6#..ELEGC GR SPORT,SILVER ME.,1F7 |
1 | ||
| 52119-48560D1 |
ASU65,ZSU6#..ELEGC GR SPORT,DK. RED M.M.,3Q3 |
1 | ||
| 52119-48560C0 |
ASU65,ZSU6#..ELEGC GR SPORT,BLACK,202 |
1 | ||
| 52119-48570B0 |
ZSU6#..ELEGC GR SPORT,SILVER ME.,1F7 |
1 | ||
| 52119-48570A0 |
ZSU6#..ELEGC GR SPORT,WHITE PEARL CS.,070 |
1 | ||
| 52119-48570D0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM DK. RED M.M.,3Q3 |
1 | ||
| 52119-48570B0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM SILVER ME.,1F7 |
1 | ||
| 52119-48570C0 |
ZSU6#..ELEGC GR SPORT,BLACK,202 |
1 | ||
| 52119-48560J0 |
ASU65,ZSU6#..ELEGC GR SPORT,DK.BLUE M.M.,8W7 |
1 | ||
| 52119-48560A0 |
ASU65,ZSU6#..ELEGC GR SPORT,WHITE PEARL CS.,070 |
1 | ||
| 52119-48580C0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
1 | ||
| 52119-48580B0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
1 | ||
| 52119-48580A0 |
ASU6#,AVU65,ZSU6#..ELEGC ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-48580C0 |
ASU6#,AVU65,ZSU6#..ELEGC ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,202 |
1 | ||
| 52119-48570C1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48570J0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM DK.BLUE M.M.,8W7 |
1 | ||
| 52119-48570C1 |
ZSU6#..ELEGC GR SPORT,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48580C1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48580B0 |
ASU6#,AVU65,ZSU6#..ELEGC ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-48570D0 |
ZSU6#..ELEGC GR SPORT,DK. RED M.M.,3Q3 |
1 | ||
| 52119-48580A0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
1 | ||
| 52119-48580C1 |
ASU6#,AVU65,ZSU6#..ELEGC ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48580D0 |
ASU6#,AVU65,ZSU6#..ELEGC ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK. RED M.M.,3Q3 |
1 | ||
| 52119-48561A0 |
ASU65,ZSU6#..ELEGC GR SPORT,WHITE PEARL CS.,070 |
1 | ||
| 52119-48561C1 |
ASU65,ZSU6#..ELEGC GR SPORT,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48580J0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BLUE M.M.,8W7 |
1 | ||
| 52119-48580D0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. RED M.M.,3Q3 |
1 | ||
| 52119-48561D1 |
ASU65,ZSU6#..ELEGC GR SPORT,DK. RED M.M.,3Q3 |
1 | ||
| 52119-48561J0 |
ASU65,ZSU6#..ELEGC GR SPORT,DK.BLUE M.M.,8W7 |
1 | ||
| 52119-48561C0 |
ASU65,ZSU6#..ELEGC GR SPORT,BLACK,202 |
1 | ||
| 52119-48561B0 |
ASU65,ZSU6#..ELEGC GR SPORT,SILVER ME.,1F7 |
1 | ||
| 52119-48580J0 |
ASU6#,AVU65,ZSU6#..ELEGC ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,8W7 |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-48100 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52125-48100 |
ZSU6#..ELEGC GR SPORT |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-48100 |
ZSU6#..ELEGC GR SPORT |
1 | ||
| 52126-48100 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-48160 |
AVU65,ZSU6#..ELEGC |
1 | ||
| 52127-48160 |
ZSU6#..ELEGC GR SPORT |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-48130 |
ZSU6#..ELEGC GR SPORT |
1 | ||
| 52128-48130 |
AVU65,ZSU6#..ELEGC |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53102-48070 |
AVU65,ZSU6#..ELEGC 塗装不要,ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 53102-48050 |
AVU65,ZSU6#..ELEGC,PREM 塗装不要 |
1 | ||
| 53112-48150 |
AVU65,ZSU6# 塗装不要 |
1 | ||
| 53102-48070 |
AVU65,ZSU6#..ELEGC,PREM 塗装不要,ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 53102-48050 |
ZSU6#..ELEGC GR SPORT |
1 | ||
| 53102-48071 |
AVU65,ZSU6#..ELEGC 塗装不要,ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 53102-48071 |
AVU65,ZSU6#..ELEGC,PREM 塗装不要,ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―) |
1 | ||
| 53285J - COVER, FRONT BUMPER ARM HOLE, RH | ||||
| 53285-48020B0 |
AVU65,ZSU6# SILVER ME.,1F7 |
1 | ||
| 53285-48020A0 |
AVU65,ZSU6# WHITE PEARL CS.,070 |
1 | ||
| 53285-48020B1 |
AVU65,ZSU6# DK. STEEL MC.,1H2 |
1 | ||
| 53285-48020C0 |
AVU65,ZSU6# BLACK,202 |
1 | ||
| 53285-48020D0 |
AVU65,ZSU6# BLACKISH RED MC.,3R0 |
1 | ||
| 53285-48050 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 53285-48070 |
ZSU6#..ELEGC GR SPORT |
1 | ||
| 53285-48020E0 |
AVU65,ZSU6# DK.BROWN ME.,4U5 |
1 | ||
| 53285-48070 |
AVU65,ZSU6# |
1 | ||
| 53285-48020C1 |
AVU65,ZSU6# SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53286C - COVER, FRONT BUMPER ARM HOLE, LH | ||||
| 53286-48010B0 |
AVU65,ZSU6# SILVER ME.,1F7 |
1 | ||
| 53286-48010C0 |
AVU65,ZSU6# BLACK,202 |
1 | ||
| 53286-48010A0 |
AVU65,ZSU6# WHITE PEARL CS.,070 |
1 | ||
| 53286-48010D0 |
AVU65,ZSU6# BLACKISH RED MC.,3R0 |
1 | ||
| 53286-48010E0 |
AVU65,ZSU6# DK.BROWN ME.,4U5 |
1 | ||
| 53286-48010C1 |
AVU65,ZSU6# SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53286-48010B1 |
AVU65,ZSU6# DK. STEEL MC.,1H2 |
1 | ||
| 53286-48080 |
ZSU6#..ELEGC GR SPORT |
1 | ||
| 53286-48080 |
AVU65,ZSU6# |
1 | ||
| 53286-48060 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 75392K - RETAINER, OUTSIDE MOULDING, NO.2 | ||||
| 75392-35220 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 75392-42030 |
ASU65,ZSU6#..ELEGC GR SPORT |
6 | ||
| 75392-35220 |
ZSU6#..ELEGC GR SPORT |
2 | ||
| Common parts | ||||
| 90119-06565 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90467-07220 | ||||
ILLUST NO. 2 OF 2(1708- )ASU65,ZSU6#..ELEGC
GR SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-48021 |
ASU65,ZSU6#..ELEGC 塗装不要,GR SPORT |
1 | ||
| 52112-48020 |
ASU65,ZSU6#..ELEGC 塗装不要,GR SPORT |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-48011 |
ASU65,ZSU6#..ELEGC 塗装不要,GR SPORT |
1 | ||
| 52113-48010 |
ASU65,ZSU6#..ELEGC 塗装不要,GR SPORT |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-48110 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-48090 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-48C70A0 |
AVU65,ZSU6#..ELEGC,GRAND ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-48C60B0 |
AVU65,ZSU6# SILVER ME.,1F7 |
1 | ||
| 52119-48C70B0 |
AVU65,ZSU6#..ELEGC,GRAND ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-48C60E0 |
AVU65,ZSU6# DK.BROWN ME.,4U5 |
1 | ||
| 52119-48570J0 |
ZSU6#..ELEGC GR SPORT,DK.BLUE M.M.,8W7 |
1 | ||
| 52119-48C60A0 |
AVU65,ZSU6# WHITE PEARL CS.,070 |
1 | ||
| 52119-48C60B1 |
AVU65,ZSU6# DK. STEEL MC.,1H2 |
1 | ||
| 52119-48C70B0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
1 | ||
| 52119-48C60C1 |
AVU65,ZSU6# SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48C70B1 |
AVU65,ZSU6#..ELEGC,GRAND ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK. STEEL MC.,1H2 |
1 | ||
| 52119-48C60C0 |
AVU65,ZSU6# BLACK,202 |
1 | ||
| 52119-48C70C0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
1 | ||
| 52119-48C70E0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BROWN ME.,4U5 |
1 | ||
| 52119-48C70A0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
1 | ||
| 52119-48C70D0 |
AVU65,ZSU6#..ELEGC,GRAND ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACKISH RED MC.,3R0 |
1 | ||
| 52119-48C70B1 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. STEEL MC.,1H2 |
1 | ||
| 52119-48C70D0 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACKISH RED MC.,3R0 |
1 | ||
| 52119-48C70C0 |
AVU65,ZSU6#..ELEGC,GRAND ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,202 |
1 | ||
| 52119-48C60D0 |
AVU65,ZSU6# BLACKISH RED MC.,3R0 |
1 | ||
| 52119-48C70C1 |
AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48570C0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM BLACK,202 |
1 | ||
| 52119-48C70C1 |
AVU65,ZSU6#..ELEGC,GRAND ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48C70E0 |
AVU65,ZSU6#..ELEGC,GRAND ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BROWN ME.,4U5 |
1 | ||
| 52119-48560C1 |
ASU65,ZSU6#..ELEGC GR SPORT,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48570A0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM WHITE PEARL CS.,070 |
1 | ||
| 52119-48560B0 |
ASU65,ZSU6#..ELEGC GR SPORT,SILVER ME.,1F7 |
1 | ||
| 52119-48560D1 |
ASU65,ZSU6#..ELEGC GR SPORT,DK. RED M.M.,3Q3 |
1 | ||
| 52119-48560C0 |
ASU65,ZSU6#..ELEGC GR SPORT,BLACK,202 |
1 | ||
| 52119-48570B0 |
ZSU6#..ELEGC GR SPORT,SILVER ME.,1F7 |
1 | ||
| 52119-48570A0 |
ZSU6#..ELEGC GR SPORT,WHITE PEARL CS.,070 |
1 | ||
| 52119-48570D0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM DK. RED M.M.,3Q3 |
1 | ||
| 52119-48570B0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM SILVER ME.,1F7 |
1 | ||
| 52119-48570C0 |
ZSU6#..ELEGC GR SPORT,BLACK,202 |
1 | ||
| 52119-48560J0 |
ASU65,ZSU6#..ELEGC GR SPORT,DK.BLUE M.M.,8W7 |
1 | ||
| 52119-48560A0 |
ASU65,ZSU6#..ELEGC GR SPORT,WHITE PEARL CS.,070 |
1 | ||
| 52119-48580C0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),BLACK,202 |
1 | ||
| 52119-48580B0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SILVER ME.,1F7 |
1 | ||
| 52119-48580A0 |
ASU6#,AVU65,ZSU6#..ELEGC ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-48580C0 |
ASU6#,AVU65,ZSU6#..ELEGC ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,202 |
1 | ||
| 52119-48570C1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48570J0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM DK.BLUE M.M.,8W7 |
1 | ||
| 52119-48570C1 |
ZSU6#..ELEGC GR SPORT,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48580C1 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48580B0 |
ASU6#,AVU65,ZSU6#..ELEGC ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-48570D0 |
ZSU6#..ELEGC GR SPORT,DK. RED M.M.,3Q3 |
1 | ||
| 52119-48580A0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),WHITE PEARL CS.,070 |
1 | ||
| 52119-48580C1 |
ASU6#,AVU65,ZSU6#..ELEGC ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48580D0 |
ASU6#,AVU65,ZSU6#..ELEGC ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK. RED M.M.,3Q3 |
1 | ||
| 52119-48561A0 |
ASU65,ZSU6#..ELEGC GR SPORT,WHITE PEARL CS.,070 |
1 | ||
| 52119-48561C1 |
ASU65,ZSU6#..ELEGC GR SPORT,SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-48580J0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK.BLUE M.M.,8W7 |
1 | ||
| 52119-48580D0 |
ASU6#,AVU65,ZSU6#..ELEGC,PREM ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅ―),DK. RED M.M.,3Q3 |
1 | ||
| 52119-48561D1 |
ASU65,ZSU6#..ELEGC GR SPORT,DK. RED M.M.,3Q3 |
1 | ||
| 52119-48561J0 |
ASU65,ZSU6#..ELEGC GR SPORT,DK.BLUE M.M.,8W7 |
1 | ||
| 52119-48561C0 |
ASU65,ZSU6#..ELEGC GR SPORT,BLACK,202 |
1 | ||
| 52119-48561B0 |
ASU65,ZSU6#..ELEGC GR SPORT,SILVER ME.,1F7 |
1 | ||
| 52119-48580J0 |
ASU6#,AVU65,ZSU6#..ELEGC ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,8W7 |
1 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05063C0 |
ASU65,ZSU6#..ELEGC GR SPORT,BLACK |
2 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-48010 |
AVU65,ZSU6# |
2 | ||
| 52421-48030 |
ASU65,ZSU6#..ELEGC GR SPORT |
4 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-48010 |
AVU65,ZSU6# |
2 | ||
| 52421-48030 |
ASU65,ZSU6#..ELEGC GR SPORT |
4 | ||
| 52422A - PAD, FRONT BUMPER, RH | ||||
| 52421-48020 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52423A - PAD, FRONT BUMPER, LH | ||||
| 52421-48020 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52543 - SEAL, FRONT BUMPER SIDE, RH | ||||
| 52543-48030 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52544 - SEAL, FRONT BUMPER SIDE, LH | ||||
| 52544-48020 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-48050 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52713A - MOULDING, FRONT BUMPER SIDE, LH | ||||
| 52713-48020 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52721 - MOULDING, FRONT BUMPER EXTENSION, RH | ||||
| 52721-48010 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 52722 - MOULDING, FRONT BUMPER EXTENSION, LH | ||||
| 52722-48010 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 53102A - GRILLE SUB-ASSY, RADIATOR, LWR | ||||
| 53102-48090 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 53155G - SEAL, RADIATOR GRILLE | ||||
| 53155-48100 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 53156F - SEAL, RADIATOR GRILLE, NO.2 | ||||
| 53156-48030 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 53157B - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-48020 |
ASU65,ZSU6#..ELEGC GR SPORT |
2 | ||
| 53157B - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-48020 |
ASU65,ZSU6#..ELEGC GR SPORT |
2 | ||
| 53285J - COVER, FRONT BUMPER ARM HOLE, RH | ||||
| 53285-48020B0 |
AVU65,ZSU6# SILVER ME.,1F7 |
1 | ||
| 53285-48020A0 |
AVU65,ZSU6# WHITE PEARL CS.,070 |
1 | ||
| 53285-48020B1 |
AVU65,ZSU6# DK. STEEL MC.,1H2 |
1 | ||
| 53285-48020C0 |
AVU65,ZSU6# BLACK,202 |
1 | ||
| 53285-48020D0 |
AVU65,ZSU6# BLACKISH RED MC.,3R0 |
1 | ||
| 53285-48050 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 53285-48070 |
ZSU6#..ELEGC GR SPORT |
1 | ||
| 53285-48020E0 |
AVU65,ZSU6# DK.BROWN ME.,4U5 |
1 | ||
| 53285-48070 |
AVU65,ZSU6# |
1 | ||
| 53285-48020C1 |
AVU65,ZSU6# SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53286C - COVER, FRONT BUMPER ARM HOLE, LH | ||||
| 53286-48010B0 |
AVU65,ZSU6# SILVER ME.,1F7 |
1 | ||
| 53286-48010C0 |
AVU65,ZSU6# BLACK,202 |
1 | ||
| 53286-48010A0 |
AVU65,ZSU6# WHITE PEARL CS.,070 |
1 | ||
| 53286-48010D0 |
AVU65,ZSU6# BLACKISH RED MC.,3R0 |
1 | ||
| 53286-48010E0 |
AVU65,ZSU6# DK.BROWN ME.,4U5 |
1 | ||
| 53286-48010C1 |
AVU65,ZSU6# SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 53286-48010B1 |
AVU65,ZSU6# DK. STEEL MC.,1H2 |
1 | ||
| 53286-48080 |
ZSU6#..ELEGC GR SPORT |
1 | ||
| 53286-48080 |
AVU65,ZSU6# |
1 | ||
| 53286-48060 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-28010 |
ASU65,ZSU6#..ELEGC GR SPORT |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-48250 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| 81481-48190 |
AVU65,ZSU6# |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-48190 |
AVU65,ZSU6# |
1 | ||
| 81482-48220 |
ASU65,ZSU6#..ELEGC GR SPORT |
1 | ||
| Common parts | ||||
| 90119-06565 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90189-05058 | ||||
| 90467-05114 | ||||
| 90467-05170 | ||||
| Linked diagrams | ||||
| 5302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
