ZSU60W-ANXMP (2013)
Toyota Harrier/Hybrid
Production
Dec 2013
-
May 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1312- )

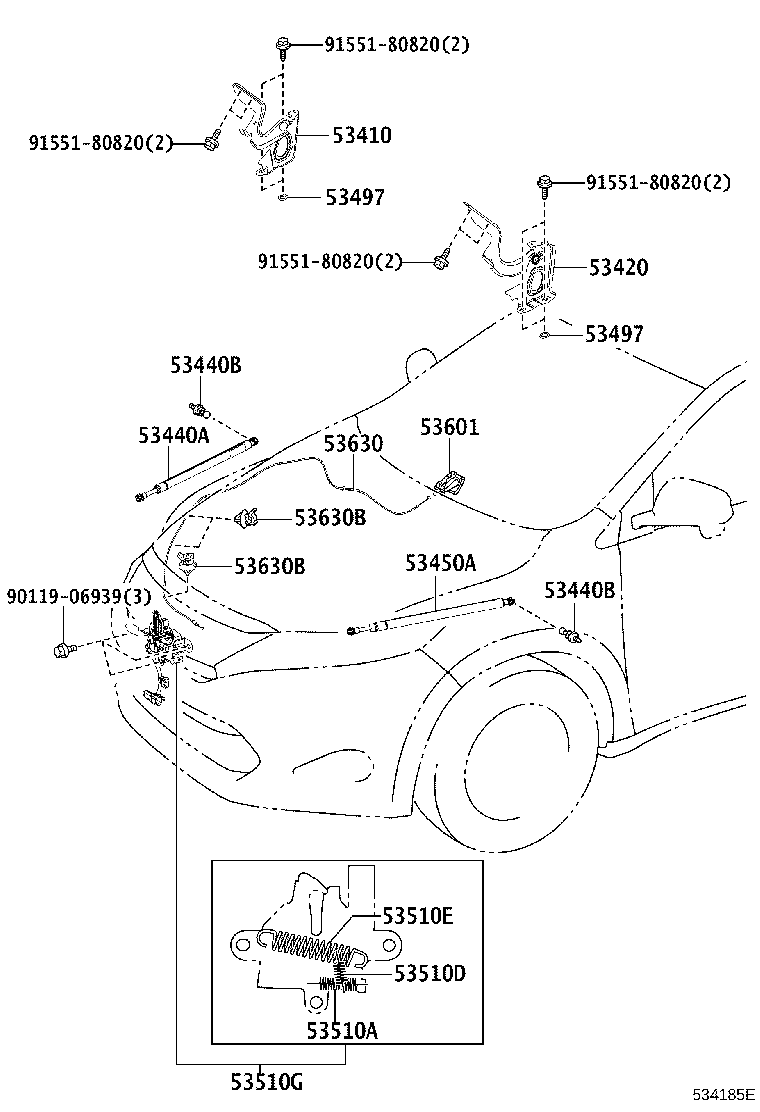

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-48140 |
AVU65,ZSU6# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-48140 |
AVU65,ZSU6# |
1 | ||
| 53440A - SUPPORT ASSY, HOOD, RH | ||||
| 53440-0W260 |
AVU65,ZSU6# |
1 | ||
| 53440B - BOLT, HOOD SUPPORT, NO.1 | ||||
| 68961-20051 |
AVU65,ZSU6# |
2 | ||
| 53440B - BOLT, HOOD SUPPORT, NO.1 | ||||
| 68961-20051 |
AVU65,ZSU6# |
2 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53450-0W260 |
AVU65,ZSU6# |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
AVU65,ZSU6# 厚さ=0.5 |
4 | ||
| 53497-20070 |
AVU65,ZSU6# 厚さ=2.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
AVU65,ZSU6# 厚さ=0.5 |
4 | ||
| 53497-20070 |
AVU65,ZSU6# 厚さ=2.0 |
4 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
AVU65,ZSU6# 線径=0.9,ｺｲﾙ巻数=21 |
1 | ||
| 53510D - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12063 |
AVU65,ZSU6# 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 53510E - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-16077 |
AVU65,ZSU6# 線径=1.6,ｺｲﾙ巻数=12 |
1 | ||
| 53510G - LOCK ASSY, HOOD, W/COURTESY LAMP SWITCH | ||||
| 53510-48230 |
AVU65,ZSU6# |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-52010C0 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 53601-52010C1 |
AVU65,ZSU6#..ELEGC BLACK,TRIM0#,2#,4# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-48080 |
AVU65,ZSU6# |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-06005 |
AVU65,ZSU6# |
3 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-06005 |
AVU65,ZSU6# |
3 | ||
| Common parts | ||||
| 90119-06939 | ||||
| 91551-80820 | ||||
