ZSU60W-ANXMP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

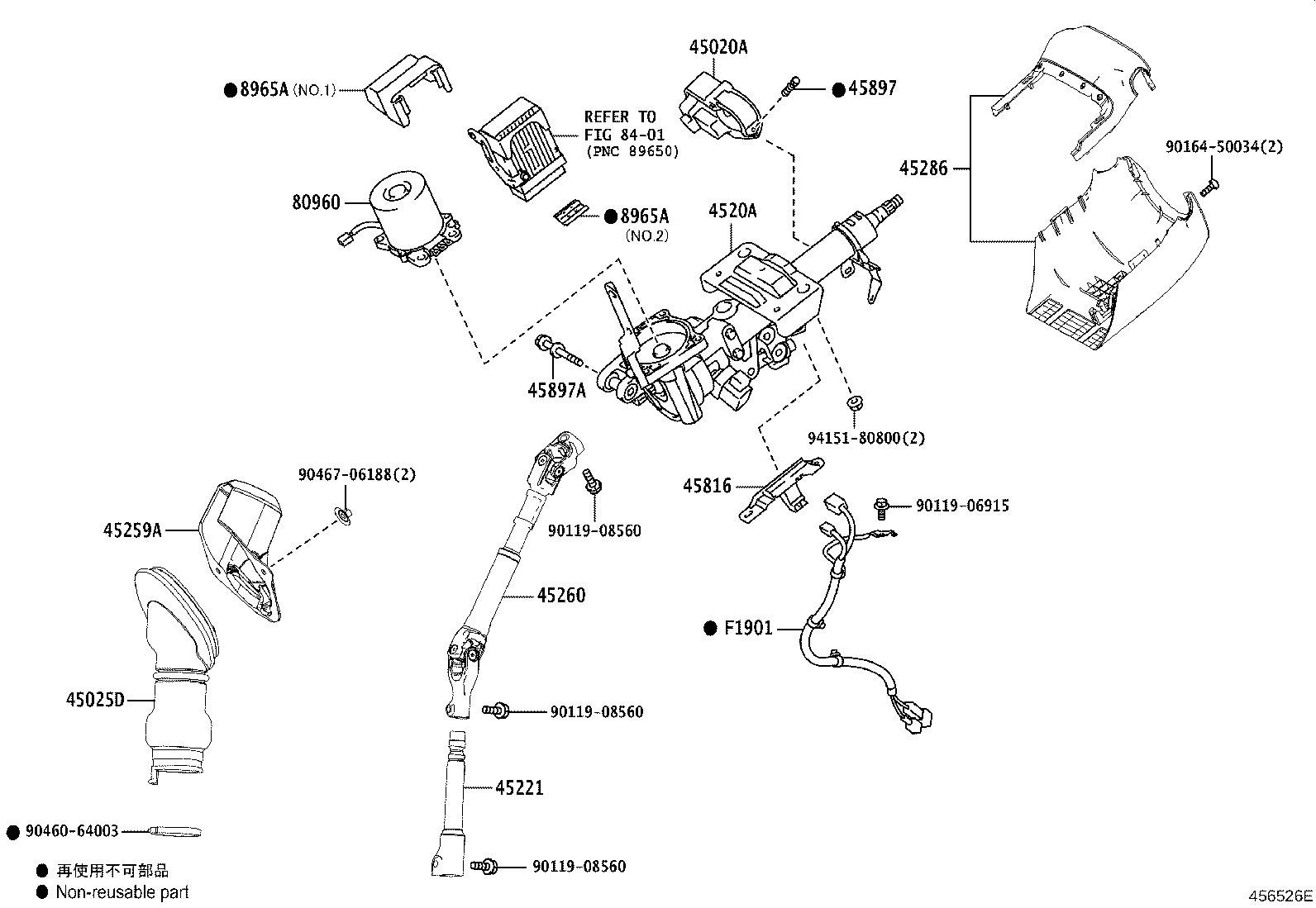

ILLUST NO. 1 OF 2(1312- )AVU65,ZSU6#..ELEGC,GRAND

Click highlighted areas on diagram

diagram 45020A 45025D 4520A 45221 45259A 45260 45286 45816 45897 45897A 80960 8401 8965A 8965A 9011906915 9011908560 9011908560 9011908560 9016450034 9046064003 9046706188 9415180800 F1901
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-30B20

AVU65,ZSU6#..ELEGC,GRAND

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-42070

AVU65,ZSU6#

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-48030

AVU65,ZSU6#..ELEGC,GRAND

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-42090

AVU65,ZSU6#

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-42010

AVU65,ZSU6#

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-42100

AVU65,ZSU6#

 1
45286 - COVER, STEERING COLUMN
45286-48912C0

AVU65,ZSU6#..ELEGC

BLACK,TRIM0#,2#,4#

 1
45816 - BRACKET, WIRE HARNESS
45816-48010

AVU65,ZSU6#..ELEGC

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

AVU65,ZSU6#..ELEGC,GRAND

 1
45897A - BOLT, TILT STEERING PAWL SET
90119-10981

AVU65,ZSU6#

 1
80960 - MOTOR ASSY, POWER STEERING
80960-42060

AVU65,ZSU6#..ELEGC,GRAND

 1
8965A - PROTECTOR, POWER STEERING COMPUTER
8965A-33030

AVU65,ZSU6#..ELEGC,GRAND

NO.1

 1
8965A-33040

AVU65,ZSU6#..ELEGC,GRAND

NO.2

 1
8965A - PROTECTOR, POWER STEERING COMPUTER
8965A-33030

AVU65,ZSU6#..ELEGC,GRAND

NO.1

 1
8965A-33040

AVU65,ZSU6#..ELEGC,GRAND

NO.2

 1
F1901 - WIRE SUB-ASSY, COMPUTER
F1901-78040

AVU65,ZSU6#..ELEGC,GRAND

 1
Common parts
90119-06915
90119-08560
90164-50034
90460-64003
90467-06188
94151-80800
Linked diagrams
8401
