ZSU60W-ANXGP (2013)
Toyota Harrier/Hybrid
Production
Dec 2013
-
May 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1312- )

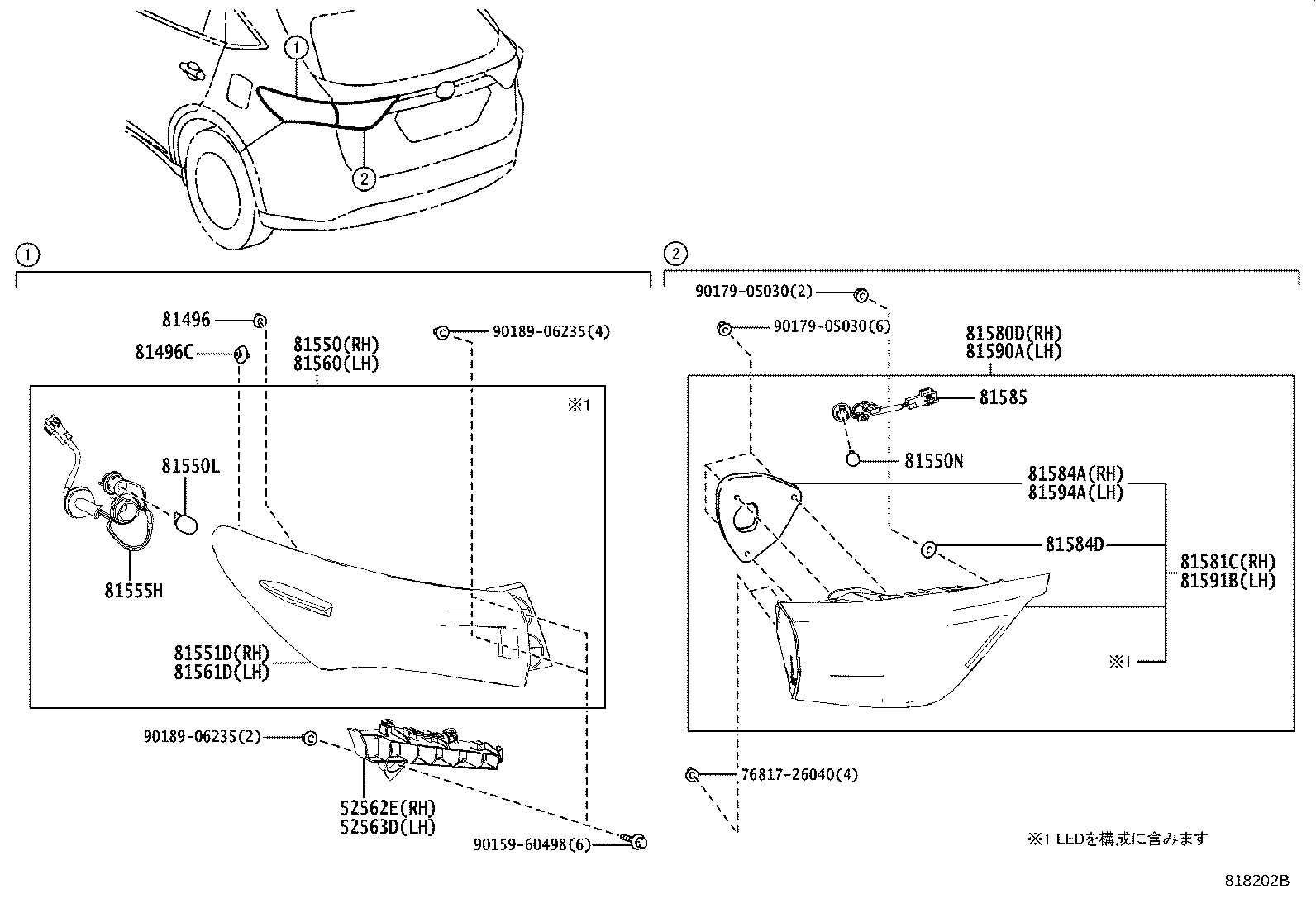

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52562E - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-48010 |
AVU65,ZSU6# |
1 | ||
| 52563D - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-48010 |
AVU65,ZSU6# |
1 | ||
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
AVU65,ZSU6# |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-60010 |
AVU65,ZSU6# |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-48330 |
AVU65,ZSU6# |
1 | ||
| 81550-48332 |
AVU65,ZSU6# |
1 | ||
| 81550-48331 |
AVU65,ZSU6# |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15011 |
AVU65,ZSU6# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
AVU65,ZSU6# 12V 16W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-48330 |
AVU65,ZSU6# |
1 | ||
| 81551-48332 |
AVU65,ZSU6# |
1 | ||
| 81551-48331 |
AVU65,ZSU6# |
1 | ||
| 81555H - SOCKET & WIRE, REAR COMBINATION LAMP | ||||
| 81555-48330 |
AVU65,ZSU6# |
2 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-48331 |
AVU65,ZSU6# |
1 | ||
| 81560-48330 |
AVU65,ZSU6# |
1 | ||
| 81560-48332 |
AVU65,ZSU6# |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-48332 |
AVU65,ZSU6# |
1 | ||
| 81561-48331 |
AVU65,ZSU6# |
1 | ||
| 81561-48330 |
AVU65,ZSU6# |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-48140 |
AVU65,ZSU6# |
1 | ||
| 81580-48141 |
AVU65,ZSU6# |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-48141 |
AVU65,ZSU6# |
1 | ||
| 81581-48140 |
AVU65,ZSU6# |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-48140 |
AVU65,ZSU6# |
1 | ||
| 81584D - GASKET, REAR LAMP | ||||
| 81584-22040 |
AVU65,ZSU6# |
2 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81585-48140 |
AVU65,ZSU6# |
2 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-48151 |
AVU65,ZSU6# |
1 | ||
| 81590-48150 |
AVU65,ZSU6# |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-48150 |
AVU65,ZSU6# |
1 | ||
| 81591-48151 |
AVU65,ZSU6# |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-48150 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 76817-26040 | ||||
| 90159-60498 | ||||
| 90179-05030 | ||||
| 90189-06235 | ||||
