ZSU60W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

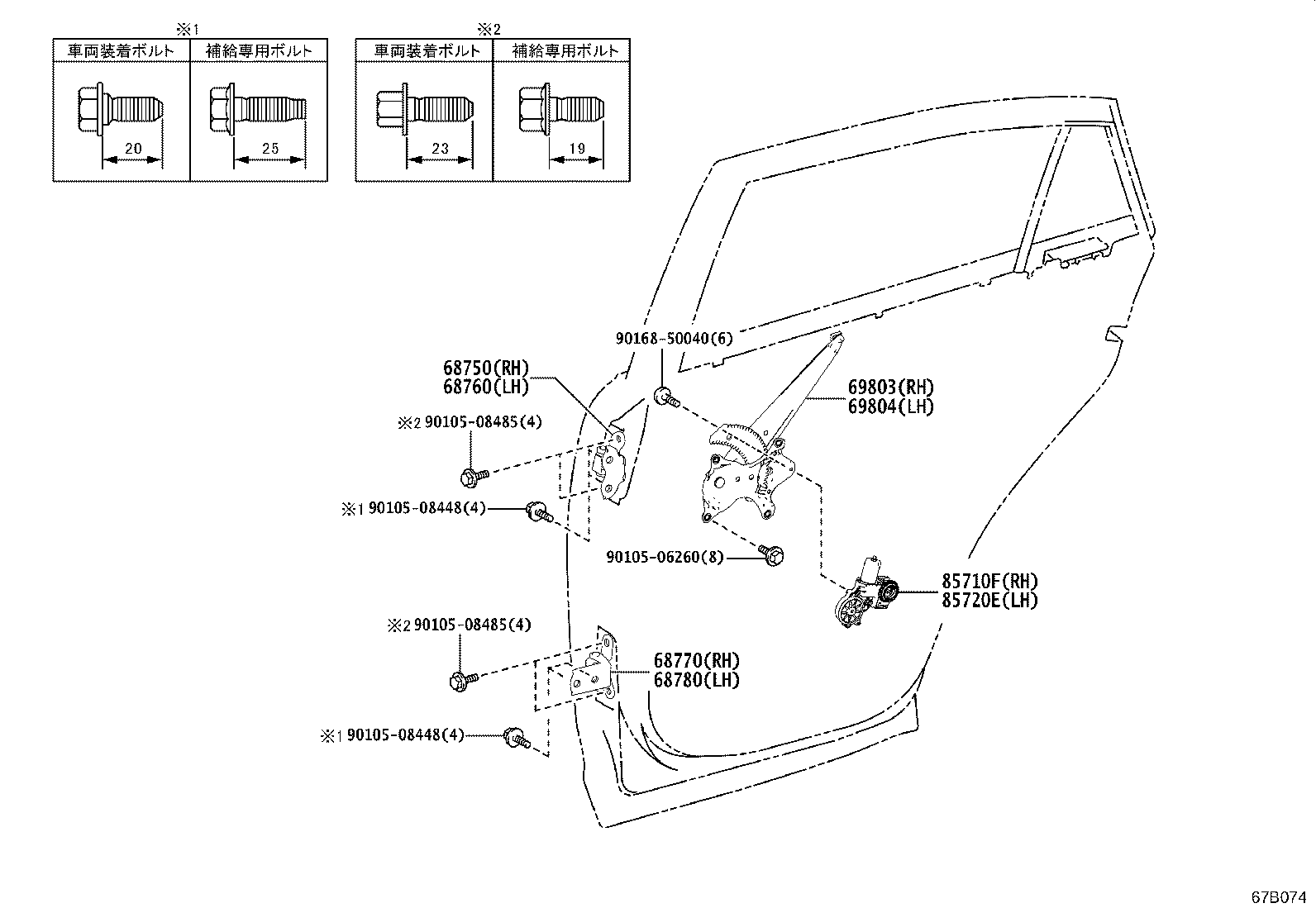

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69803 69804 85710F 85720E 9010506260 9010508448 9010508448 9010508485 9010508485 9016850040
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-20122

AVU65,ZSU6#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-20122

AVU65,ZSU6#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-52031

AVU65,ZSU6#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-52031

AVU65,ZSU6#

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-42050

AVU65,ZSU6#

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-42050

AVU65,ZSU6#

 1
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85720-48120

AVU65,ZSU6#

 1
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85710-48110

AVU65,ZSU6#

 1
Common parts
90105-06260
90105-08448
90105-08485
90168-50040
