ZSU60W-ANXGP (2013)
Toyota Harrier/Hybrid

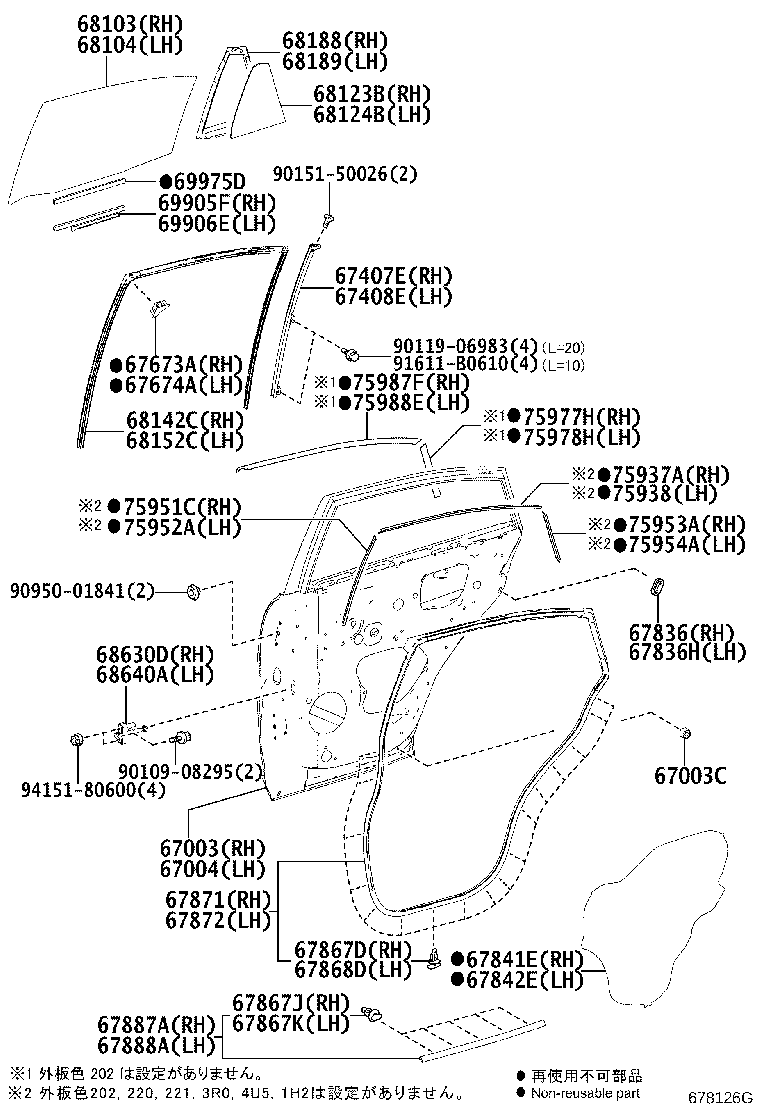

ILLUST NO. 1 OF 2(1312-1705)
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-48170 |
AVU65,ZSU6# |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09137 |
AVU65,ZSU6# |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-48170 |
AVU65,ZSU6# |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-48060 |
AVU65,ZSU6# |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-48060 |
AVU65,ZSU6# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-48010 |
AVU65,ZSU6# |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-48010 |
AVU65,ZSU6# |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-33030 |
AVU65,ZSU6# |
1 | ||
| 67836-14010 |
AVU65,ZSU6# |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-14010 |
AVU65,ZSU6# |
1 | ||
| 67836-33030 |
AVU65,ZSU6# |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-48060 |
AVU65,ZSU6# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-48060 |
AVU65,ZSU6# |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AVU65,ZSU6# |
18 | ||
| 67867J - CLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR) | ||||
| 67867-52040 |
AVU65,ZSU6# |
5 | ||
| 67867K - CLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR) | ||||
| 67867-52010 |
AVU65,ZSU6# |
5 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AVU65,ZSU6# |
18 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-48070 |
AVU65,ZSU6# |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-48070 |
AVU65,ZSU6# |
1 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-48040 |
AVU65,ZSU6# |
1 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-48040 |
AVU65,ZSU6# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-48171 |
AVU65,ZSU6# |
1 | ||
| 68113-48172 |
AVU65,ZSU6# |
1 | ||
| 68113-48170 |
AVU65,ZSU6# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-48170 |
AVU65,ZSU6# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68114-48171 |
AVU65,ZSU6# |
1 | ||
| 68114-48172 |
AVU65,ZSU6# |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-48151 |
AVU65,ZSU6# |
1 | ||
| 68123-48150 |
AVU65,ZSU6# *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-48151 |
AVU65,ZSU6# |
1 | ||
| 68124-48150 |
AVU65,ZSU6# *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-48060 |
AVU65,ZSU6# |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-48060 |
AVU65,ZSU6# |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-48050 |
AVU65,ZSU6# |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-48050 |
AVU65,ZSU6# |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-48070 |
AVU65,ZSU6# |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-48070 |
AVU65,ZSU6# |
1 | ||
| 69905F - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-48050 |
AVU65,ZSU6# |
1 | ||
| 69906E - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-48050 |
AVU65,ZSU6# |
1 | ||
| 69975D - FILLER, REAR DOOR GLASS CHANNAL | ||||
| 69975-48040 |
AVU65,ZSU6# |
2 | ||
| 75937A - TAPE, BLACK OUT, INNER UPPER RH | ||||
| 75937-48020 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75938 - TAPE, BLACK OUT, INNER UPPER LH | ||||
| 75938-48020 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75951C - TAPE, BLACK OUT, INNER FRONT RH | ||||
| 75951-48020 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75952A - TAPE, BLACK OUT, INNER FRONT LH | ||||
| 75952-48020 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75953A - TAPE, BLACK OUT, INNER REAR RH | ||||
| 75953-48020 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75954A - TAPE, BLACK OUT, INNER REAR LH | ||||
| 75954-48020 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH | ||||
| 75977-48040 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH | ||||
| 75978-48040 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75987F - STRIPE, REAR DOOR, OUTSIDE, RH | ||||
| 75987-48060 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75988E - STRIPE, REAR DOOR, OUTSIDE LH | ||||
| 75988-48050 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90950-01841 | ||||
| 91611-B0610 | ||||
| 94151-80600 | ||||

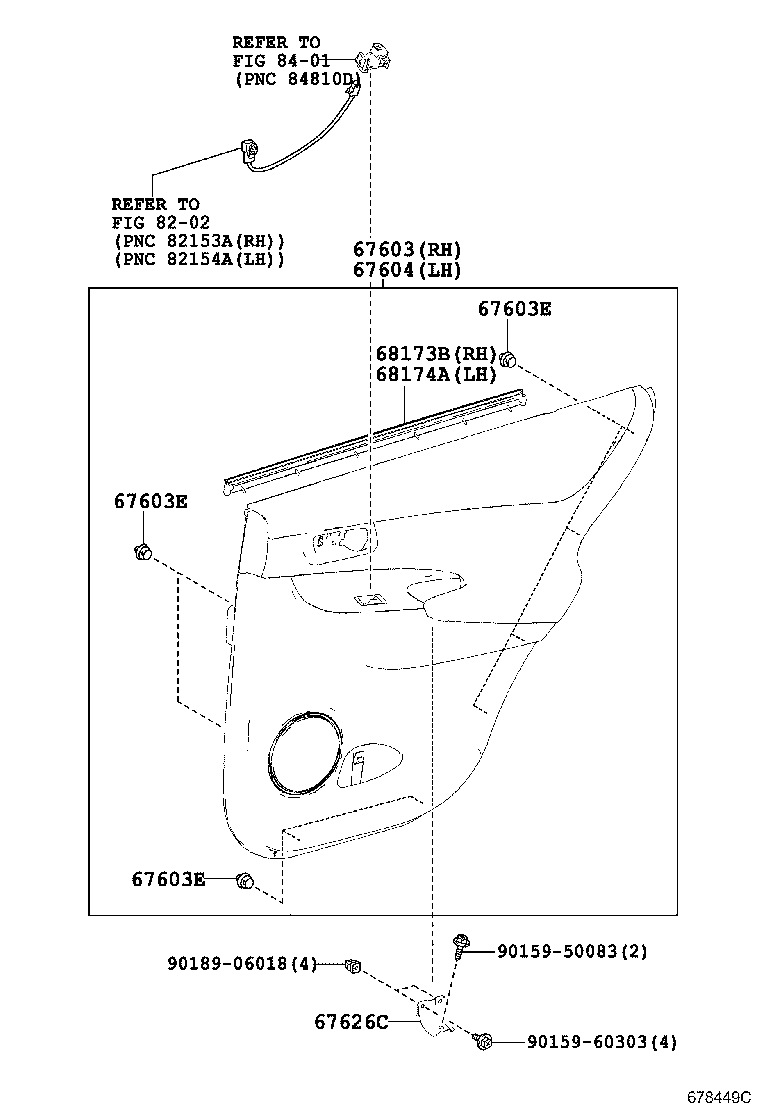

ILLUST NO. 2 OF 2(1312- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-48720C1 |
AVU65,ZSU6#..PREM BLACK/DK.RED/BLACK,TRIM0#,2# |
1 | ||
| 67630-48720C1 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK/DK.RED/BLACK,TRIM2# |
1 | ||
| 67630-4872021 |
AVU65,ZSU6#..PREM BLACK/DK.RED/BLACK,TRIM0#,2# |
1 | ||
| 67630-48720C1 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK/DK.RED/BLACK,TRIM2# |
1 | ||
| 67630-48720C4 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,STEEL MAUVE/AURORA/BLACK,TRIM44 |
1 | ||
| 67630-4872023 |
AVU65,ZSU6#..PREM DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67630-48720C4 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,STEEL MAUVE/AURORA/BLACK,TRIM44 |
1 | ||
| 67630-4872024 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY/BLACK&BLUE/BLAC,TRIM1# |
1 | ||
| 67630-48720C3 |
AVU65,ZSU6#..PREM DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67630-4872024 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,WARM GRAY/BLACK&BLUE/BLAC,TRIM1# |
1 | ||
| 67630-4872046 |
AVU65,ZSU6#..PREM BLACK/DK.RED/BLACK,TRIM0#,2# |
1 | ||
| 67630-48720N0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,WARM GRAY/BLACK&BLUE/BLAC,TRIM1# |
1 | ||
| 67630-4872049 |
AVU65,ZSU6#..PREM DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67630-48720N0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY/BLACK&BLUE/BLAC,TRIM1# |
1 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
AVU65,ZSU6# |
16 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
AVU65,ZSU6# |
16 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
AVU65,ZSU6# |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-48D00C3 |
AVU65,ZSU6#..PREM DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67640-48D00C1 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,BLACK/DK.RED/BLACK,TRIM2# |
1 | ||
| 67640-48D00C1 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,BLACK/DK.RED/BLACK,TRIM2# |
1 | ||
| 67640-48D00C1 |
AVU65,ZSU6#..PREM BLACK/DK.RED/BLACK,TRIM0#,2# |
1 | ||
| 67640-48D00C4 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,STEEL MAUVE/AURORA/BLACK,TRIM44 |
1 | ||
| 67640-48D0024 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,WARM GRAY/BLACK&BLUE/BLAC,TRIM1# |
1 | ||
| 67640-48D0021 |
AVU65,ZSU6#..PREM BLACK/DK.RED/BLACK,TRIM0#,2# |
1 | ||
| 67640-48D0049 |
AVU65,ZSU6#..PREM DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67640-48D00C4 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,STEEL MAUVE/AURORA/BLACK,TRIM44 |
1 | ||
| 67640-48D00N0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−本革,WARM GRAY/BLACK&BLUE/BLAC,TRIM1# |
1 | ||
| 67640-48D0023 |
AVU65,ZSU6#..PREM DP.BORDEAUX/DK.RED/BLACK,TRIM4# |
1 | ||
| 67640-48D0046 |
AVU65,ZSU6#..PREM BLACK/DK.RED/BLACK,TRIM0#,2# |
1 | ||
| 67640-48D0024 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY/BLACK&BLUE/BLAC,TRIM1# |
1 | ||
| 67640-48D00N0 |
AVU65,ZSU6#..PREM ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,WARM GRAY/BLACK&BLUE/BLAC,TRIM1# |
1 | ||
| 67626C - BRACKET, REAR DOOR TRIM, NO.2 | ||||
| 67645-48030 |
AVU65,ZSU6# |
2 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-48060 |
AVU65,ZSU6# |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-48060 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90159-50083 | ||||
| 90159-60303 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
