ZSU60W-ANXGP (2013)

Toyota Harrier/Hybrid

Production Dec 2013 - May 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

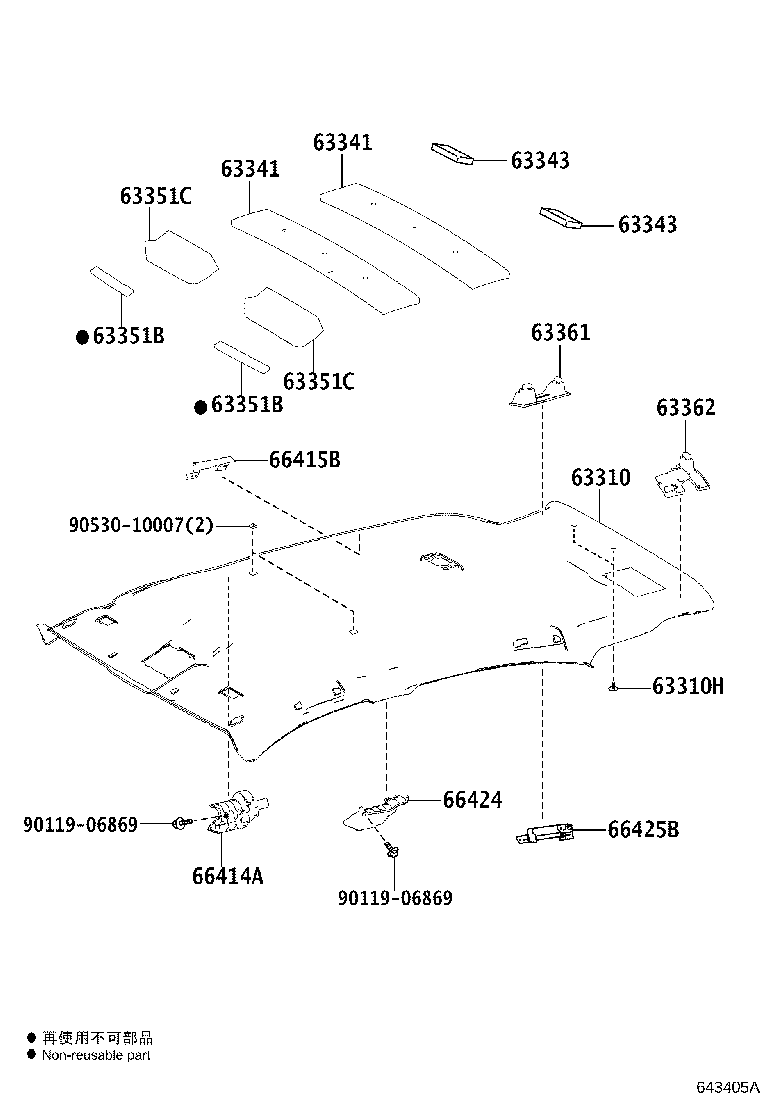

Click highlighted areas on diagram

diagram 63310 63310H 63341 63341 63343 63343 63351B 63351B 63351C 63351C 63361 63362 66414A 66415B 66424 66425B 9011906869 9011906869 9053010007
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-48521C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
63310-48540C0

AVU65,ZSU6#..PREM

ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM0#,1#,2#,4#

 1
63310-48520C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
63310-48541C0

AVU65,ZSU6#..PREM

ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM0#,1#,2#,4#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
90467-05164C7

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-48060

AVU65,ZSU6#

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-48060

AVU65,ZSU6#

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-48090

AVU65,ZSU6#

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-48090

AVU65,ZSU6#

 2
63351B - PAD, ROOF HEADLINING
63351-48080

AVU65,ZSU6#

 2
63351B - PAD, ROOF HEADLINING
63351-48080

AVU65,ZSU6#

 2
63351C - PAD, ROOF HEADLINING
63351-48090

AVU65,ZSU6#

 2
63351C - PAD, ROOF HEADLINING
63351-48090

AVU65,ZSU6#

 2
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-48080

AVU65,ZSU6#

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-48070

AVU65,ZSU6#

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-48100

AVU65,ZSU6#

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-48050

AVU65,ZSU6#

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-48100

AVU65,ZSU6#

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-48030

AVU65,ZSU6#

 1
Common parts
90119-06869
90530-10007

(1312- )

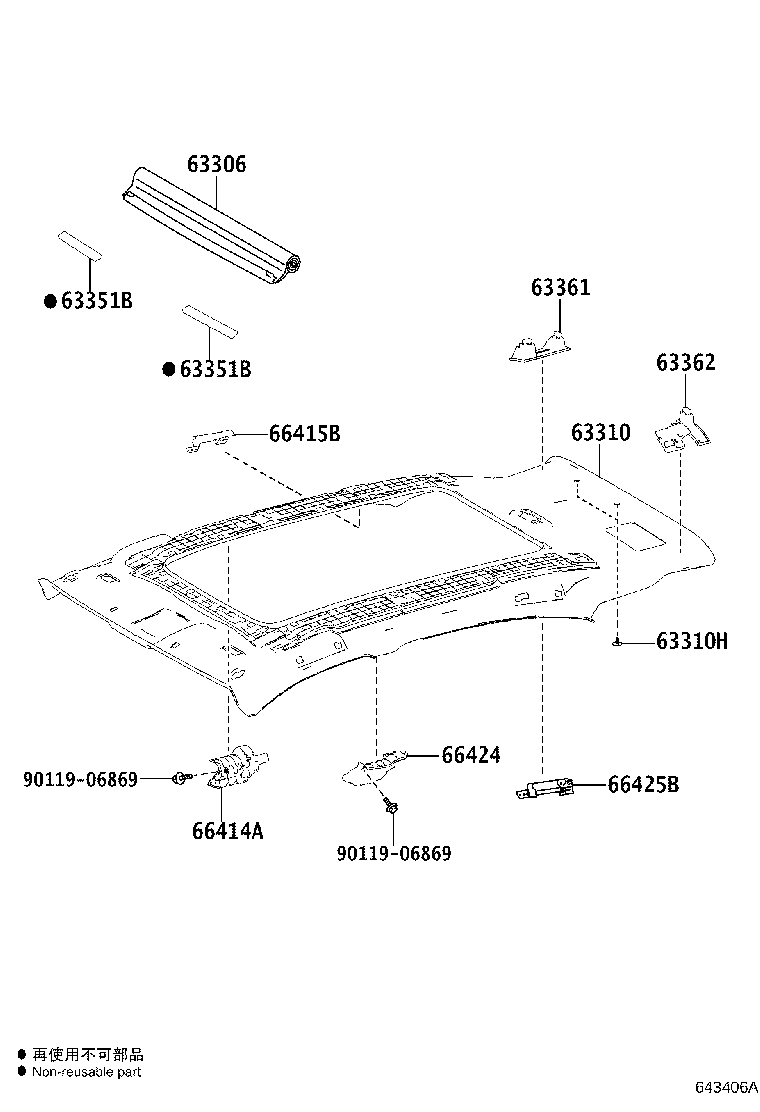

Click highlighted areas on diagram

ﾑｰﾝﾙｰﾌ

diagram 63306 63310 63310H 63351B 63351B 63361 63362 66414A 66415B 66424 66425B 9011906869 9011906869
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-48170C0

AVU65,ZSU6#..PREM

ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM0#,2#,4#

 1
63306-48170C0

AVU65,ZSU6#..PREM

ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM0#,1#,2#,4#

 1
63310 - HEADLINING ASSY, ROOF
63310-48521C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
63310-48540C0

AVU65,ZSU6#..PREM

ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM0#,1#,2#,4#

 1
63310-48520C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 1
63310-48541C0

AVU65,ZSU6#..PREM

ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM0#,1#,2#,4#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164C0

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
90467-05164C7

AVU65,ZSU6#..PREM

BLACK,TRIM0#,1#,2#,4#

 2
63351B - PAD, ROOF HEADLINING
63351-48080

AVU65,ZSU6#

 2
63351B - PAD, ROOF HEADLINING
63351-48080

AVU65,ZSU6#

 2
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-48080

AVU65,ZSU6#

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-48070

AVU65,ZSU6#

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-48100

AVU65,ZSU6#

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-48050

AVU65,ZSU6#

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-48100

AVU65,ZSU6#

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-48030

AVU65,ZSU6#

 1
Common parts
90119-06869
