ZSU60W-ANXGP (2017)
Toyota Harrier/Hybrid
Production
May 2017
-
May 2020
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1705- )
Click highlighted areas on diagram

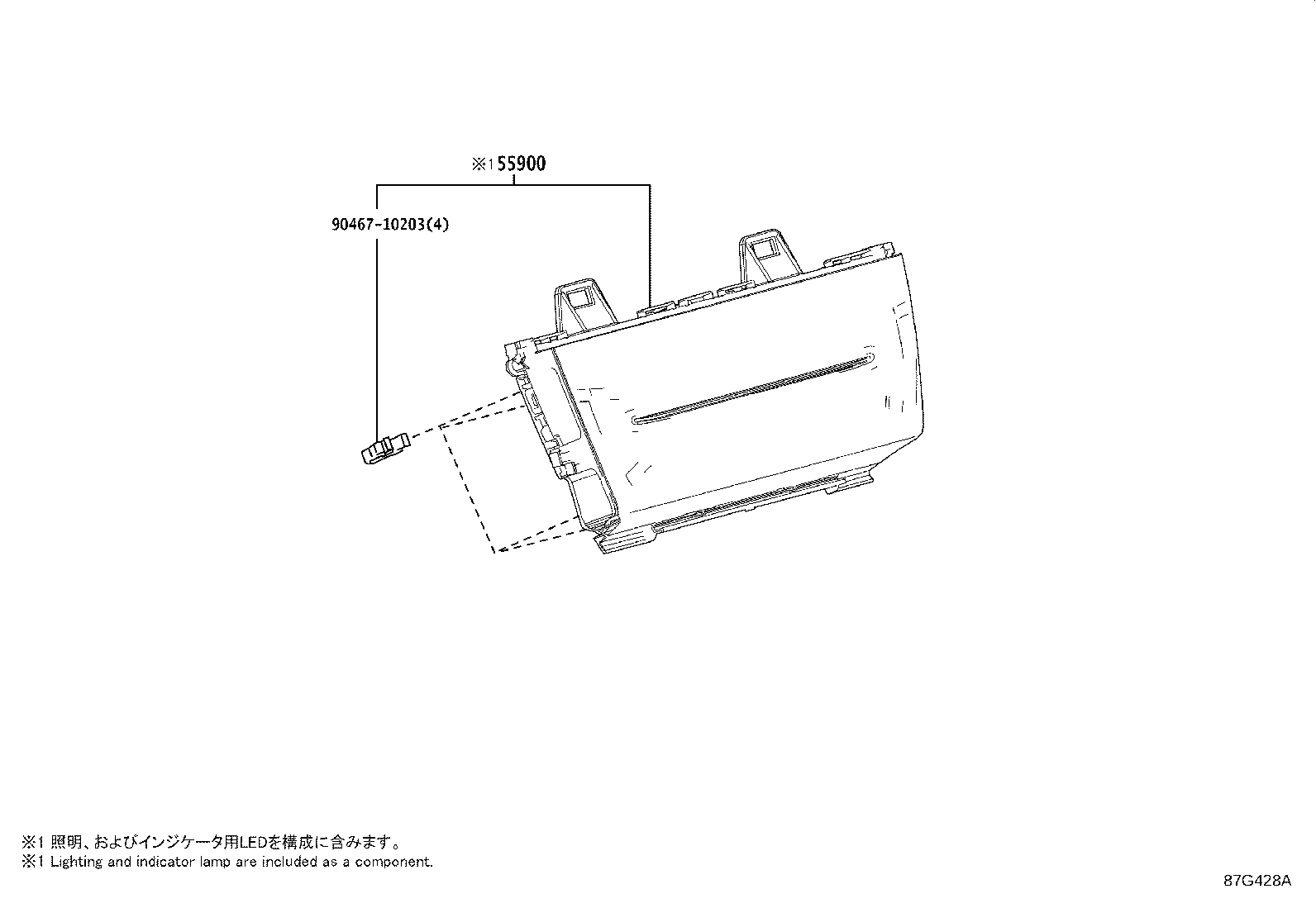

ｺﾝﾄﾛｰﾙ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-48610 |
ZSU6# |
1 | ||
| 55900-48600 |
ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 55900-48370 |
ZSU6#..PREM,PROGR “Metal and Leather Package”*(S) |
1 | ||
| 55900-48380 |
ZSU6# |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||
(1705- )
Click highlighted areas on diagram

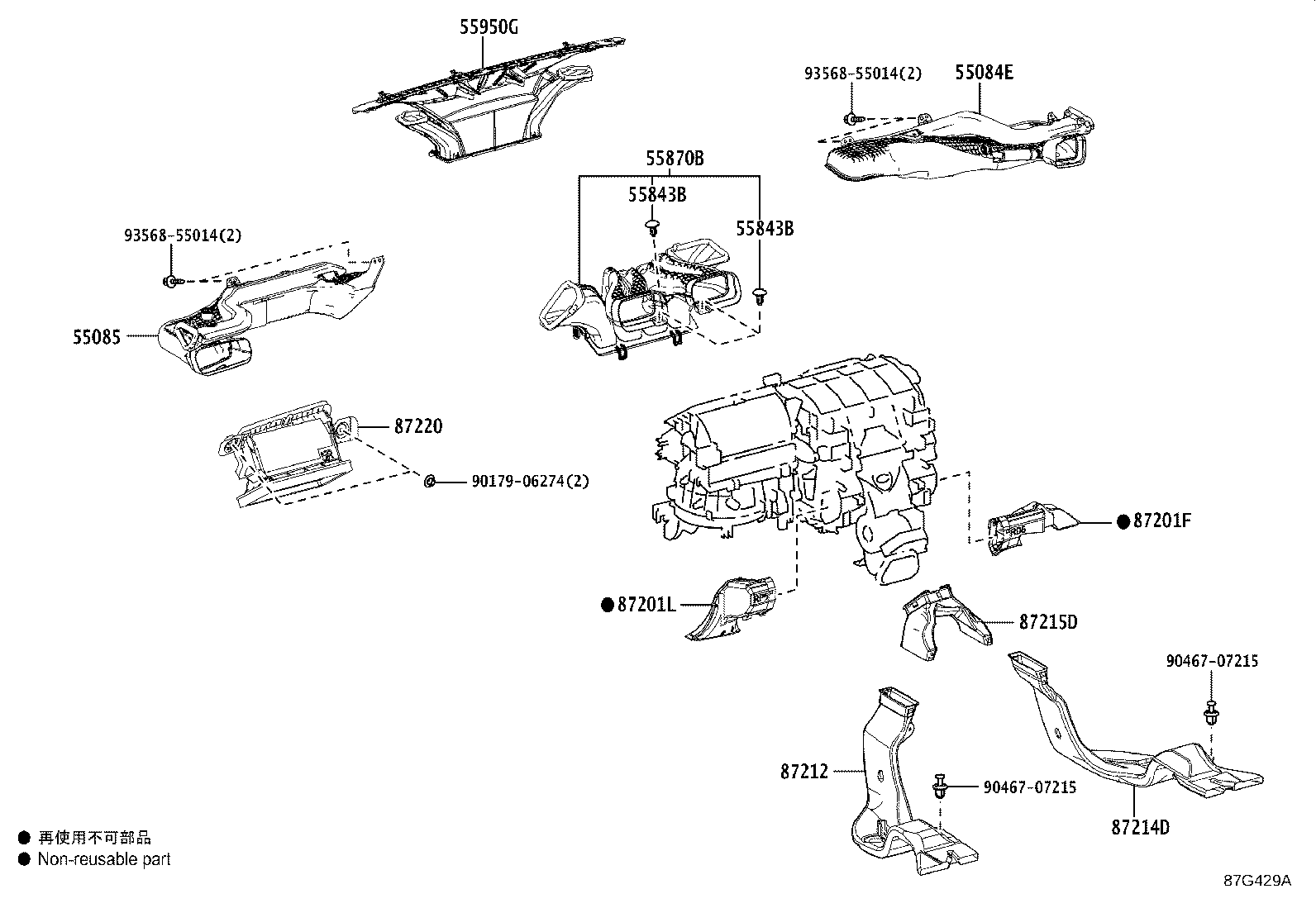

ﾌﾛﾝﾄ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-48020 |
ASU6#,AVU65,ZSU6#..PREM,PROGR |
1 | ||
| 55084-48020 |
AVU65,ZSU6#..PREM |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-48030 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 55085-48010 |
AVU65,ZSU6# |
1 | ||
| 55843B - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-05161C0 |
AVU65,ZSU6# BLACK |
3 | ||
| 90467-05161C0 |
ASU6#,AVU65,ZSU6# BLACK |
3 | ||
| 55843B - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-05161C0 |
AVU65,ZSU6# BLACK |
3 | ||
| 90467-05161C0 |
ASU6#,AVU65,ZSU6# BLACK |
3 | ||
| 55870B - DUCT ASSY, HEATER TO REGISTER | ||||
| 55870-48010 |
AVU65,ZSU6# |
1 | ||
| 55870-48010 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-48070 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 55950-48070 |
AVU65,ZSU6# |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87211-48250 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 87211-48250 |
AVU65,ZSU6# |
1 | ||
| 87201L - DUCT SUB-ASSY, AIR, NO.4 | ||||
| 87211-48260 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 87211-48260 |
AVU65,ZSU6# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87213-42060 |
AVU65,ZSU6# |
1 | ||
| 87213-48030 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87212-42070 |
AVU65,ZSU6# |
1 | ||
| 87212-48030 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 87215D - DUCT, AIR, REAR NO.4 | ||||
| 87215-48040 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 87215-48040 |
AVU65,ZSU6# |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-48040 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 87220-48010 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 87220-48010 |
AVU65,ZSU6# |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90467-07215 | ||||
| 93568-55014 | ||||
