ZSU60W-ANXGP (2017)
Toyota Harrier/Hybrid

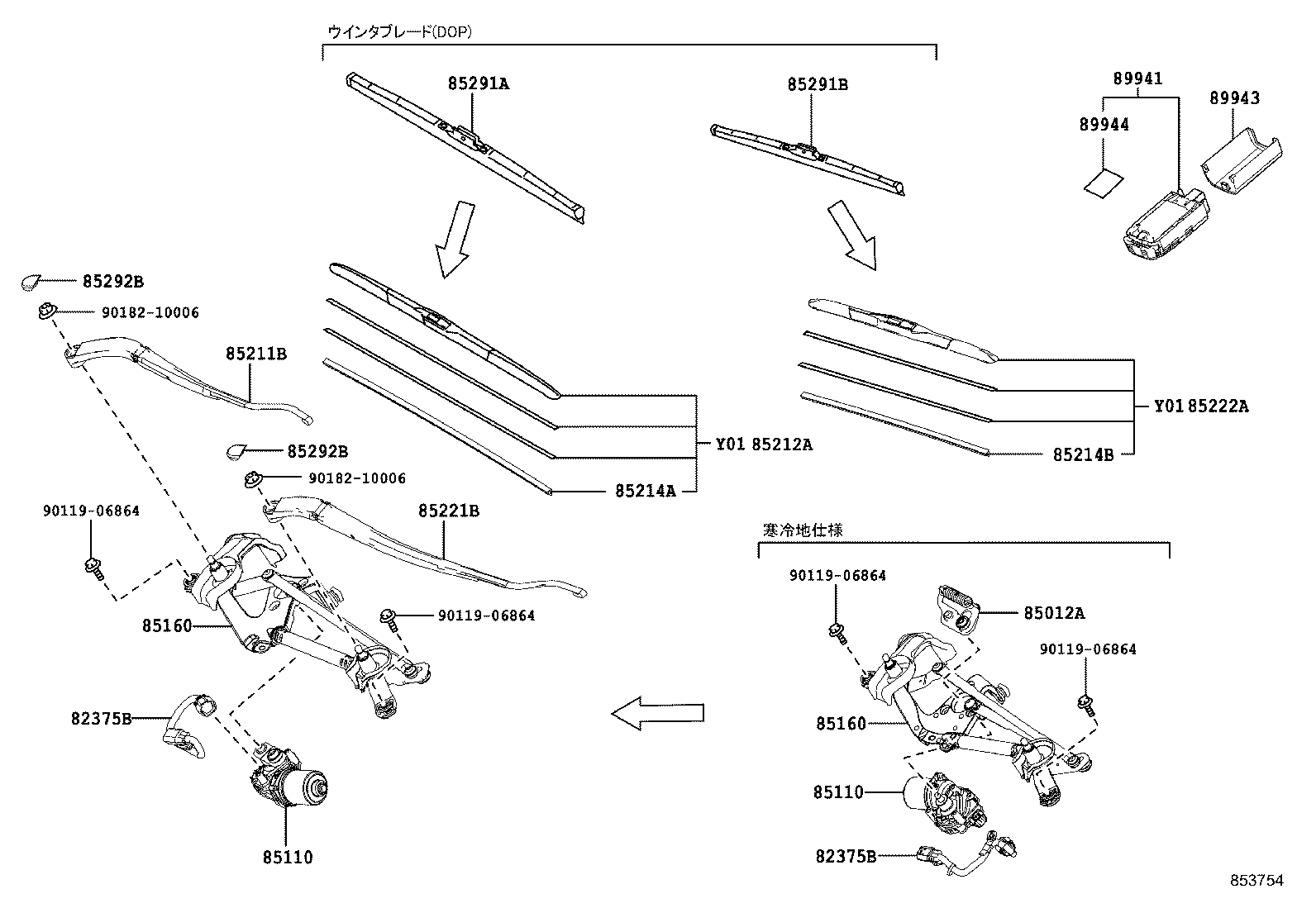

ILLUST NO. 2 OF 2(1705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82375B - WIRE, WIPER MOTOR | ||||
| 82375-48010 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 82375-48020 |
AVU65,ZSU6# |
1 | ||
| 82375-48010 |
ASU6#,AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 82375-48020 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 82375B - WIRE, WIPER MOTOR | ||||
| 82375-48010 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 82375-48020 |
AVU65,ZSU6# |
1 | ||
| 82375-48010 |
ASU6#,AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 82375-48020 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85012A - CRANK SUB-ASSY, FRONT WIPER | ||||
| 85012-58030 |
ASU6#,AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 85012-58030 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-42200 |
AVU65,ZSU6# |
1 | ||
| 85110-48230 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 85110-48230 |
ASU6#,AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 85110-42201 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-42200 |
AVU65,ZSU6# |
1 | ||
| 85110-48230 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 85110-48230 |
ASU6#,AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 85110-42201 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-48200 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 85150-48210 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85150-48200 |
ASU6#,AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 85150-48210 |
AVU65,ZSU6# |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-48200 |
AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 85150-48210 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85150-48200 |
ASU6#,AVU65,ZSU6# 寒冷地仕様 |
1 | ||
| 85150-48210 |
AVU65,ZSU6# |
1 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-48180 |
AVU65,ZSU6# |
1 | ||
| 85211-48180 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-52250 |
AVU65,ZSU6# |
1 | ||
| 85212-52250 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-52110 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85214-52110 |
AVU65,ZSU6# |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-28090 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85214-28090 |
AVU65,ZSU6# |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-48180 |
AVU65,ZSU6# |
1 | ||
| 85221-48181 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-42130 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 85222-42130 |
AVU65,ZSU6# |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-47040 |
AVU65,ZSU6# 寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291-47040 |
ASU6#,AVU65,ZSU6# 寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291B - BLADE, FRONT WIPER, WINTER, LH | ||||
| 85291-28150 |
ASU6#,AVU65,ZSU6# 寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291-28150 |
AVU65,ZSU6# 寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85292B - CAP, FRONT WIPER ARM HEAD | ||||
| 85292-13010 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 85292-13010 |
AVU65,ZSU6# |
2 | ||
| 85292B - CAP, FRONT WIPER ARM HEAD | ||||
| 85292-13010 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 85292-13010 |
AVU65,ZSU6# |
2 | ||
| 89941 - SENSOR, RAIN | ||||
| 89941-52010 |
AVU65,ZSU6#..PREM |
1 | ||
| 89941-48080 |
ASU6#,AVU65,ZSU6#..PREM,PROGR |
1 | ||
| 89943 - COVER, RAIN SENSOR | ||||
| 89943-48030 |
ASU6#,AVU65,ZSU6#..PREM,PROGR |
1 | ||
| 89944 - TAPE, RAIN SENSOR | ||||
| 89944-48010 |
ASU6#,AVU65,ZSU6#..PREM,PROGR |
1 | ||
| 89944-42010 |
AVU65,ZSU6#..PREM |
1 | ||
| Common parts | ||||
| 90119-06864 | ||||
| 90182-10006 | ||||
