ZSU60W-ANXGP (2017)
Toyota Harrier/Hybrid

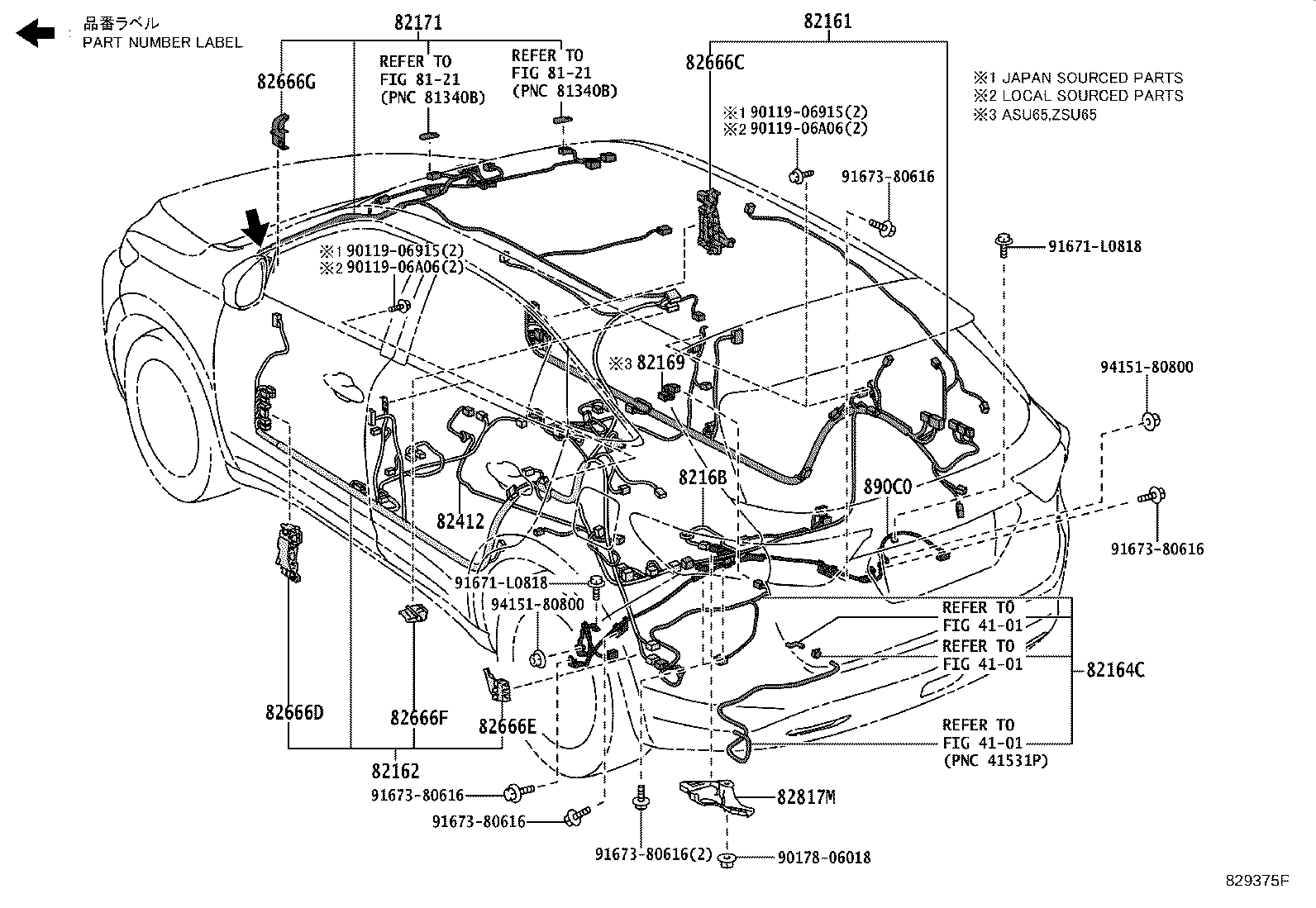

ILLUST NO. 5 OF11(1705- )ASU6#,ZSU6#
ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-4D620 |
ZSU6#..PREM “Advanced Package”*(A)&ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82161-4D870 |
ASU6#,ZSU6#..PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82161-4D590 |
ZSU6#..PREM |
1 | ||
| 82161-4D540 |
ASU6#,ZSU6#..PREM |
1 | ||
| 82161-4D610 |
ZSU6#..ELEGC,PREM ｵｰﾃﾞｨｵ−ﾅﾋﾞ&JBL |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-48N00 |
ZSU65;ZSU60..PREM |
1 | ||
| 82162-48N10 |
ZSU6#..ELEGC,PREM ｼｰﾄ表皮−本革 |
1 | ||
| 82162-48S20 |
ZSU65;ZSU60..PREM,PROGR |
1 | ||
| 82162-48S30 |
ZSU6#..PREM,PROGR “Metal and Leather Package”*(S) |
1 | ||
| 82164C - WIRE, FLOOR, NO.4 | ||||
| 82164-42060 |
ZSU60 |
1 | ||
| 82164-42060 |
ASU60,ZSU60 |
1 | ||
| 8216B - WIRE, FLOOR NO.8 | ||||
| 8216B-48010 |
ASU6#,ZSU6# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-48E70 |
AVU65,ZSU6#..PREM |
1 | ||
| 82171-48F10 |
AVU65,ZSU6#..PREM ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-48D50 |
ASU6#,AVU65,ZSU6#..PREM,PROGR |
1 | ||
| 82171-48D70 |
ASU6#,AVU65,ZSU6#..PREM,PROGR ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-48020 |
ZSU6# |
1 | ||
| 82412-48040 |
ZSU6# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-42380 |
AVU65,ZSU6# |
1 | ||
| 82666-42380 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-42390 |
AVU65,ZSU6# |
1 | ||
| 82666-42390 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-42420 |
AVU65,ZSU6# |
1 | ||
| 82666-42420 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-48350 |
AVU65,ZSU6# |
1 | ||
| 82666-48350 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-42410 |
AVU65,ZSU6# |
1 | ||
| 82666-42410 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-78010 |
ASU6#,ZSU6# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 90178-06018 | ||||
| 91671-L0818 | ||||
| 91673-80616 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4101 | ||||
| 8121 | ||||
