ZSU60W-ANXGP (2017)

Toyota Harrier/Hybrid

Production May 2017 - May 2020
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )

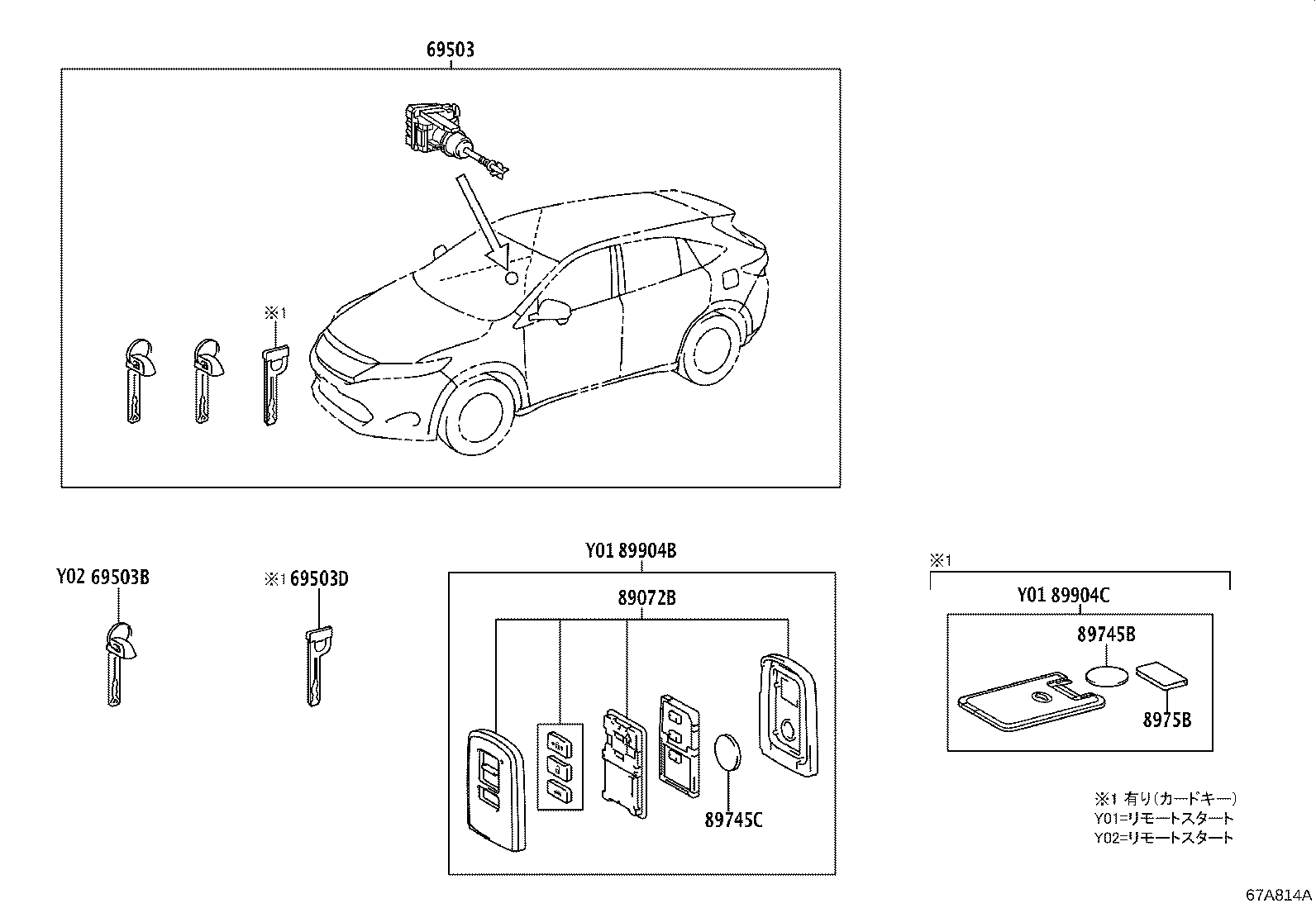

Click highlighted areas on diagram

diagram 69503 69503B 69503D 89072B 89745B 89745C 8975B 89904B 89904C
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-48590

ASU6#,AVU65,ZSU6#..PREM,PROGR

 1
69005-48510

AVU65,ZSU6#

 1
69503B - KEY, CUT
69515-33090

AVU65,ZSU6#

ﾏｽﾀｰｷｰ,W(*68)

 2
69515-33090

ASU6#,AVU65,ZSU6#

ﾏｽﾀｰｷｰ,W(*68)

 2
69503D - KEY, CUT(CARD KEY)
69515-30330

ASU6#,AVU65,ZSU6#..PREM,PROGR

ﾏｽﾀｰｷｰ

 1
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-48A60

AVU65,ZSU6#..PREM

 2
89072-48A60

ASU6#,AVU65,ZSU6#..PREM,PROGR

 2
89745B - BATTERY, TRANSMITTER(CARD KEY)
89745-50030

ASU6#,AVU65,ZSU6#..PREM,PROGR

CR2412

 1
89745C - BATTERY, TRANSMITTER
89745-45010

AVU65,ZSU6#

 1
89745-45010

ASU6#,AVU65,ZSU6#

CR2032

 1
8975B - COVER, TRANSMITTER BATTERY HOUSING
8975B-30030

ASU6#,AVU65,ZSU6#..PREM,PROGR

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-48F20

AVU65,ZSU6#..PREM

 2
89904-48F21

ASU6#,AVU65,ZSU6#..PREM,PROGR

 2
89904C - TRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
89904-48M10

ASU6#,AVU65,ZSU6#..PREM,PROGR

 1
