ZSU60W-ANXGP (2017)
Toyota Harrier/Hybrid

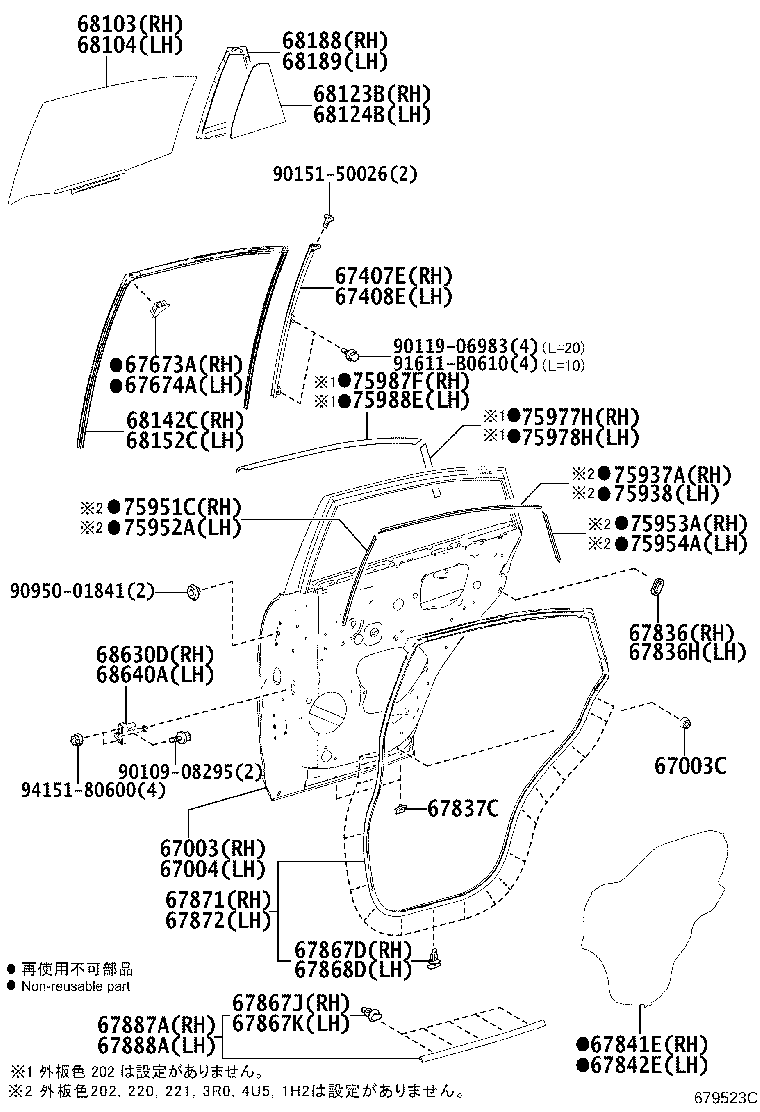

ILLUST NO. 1 OF 2(1705- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-48170 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 67003-48170 |
AVU65,ZSU6# |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09137 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 90541-09137 |
AVU65,ZSU6# |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-48170 |
AVU65,ZSU6# |
1 | ||
| 67004-48170 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-48060 |
AVU65,ZSU6# |
1 | ||
| 67407-48060 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-48060 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 67408-48060 |
AVU65,ZSU6# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-48010 |
AVU65,ZSU6# |
1 | ||
| 67673-48010 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-48010 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 67674-48010 |
AVU65,ZSU6# |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-33030 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 67836-14010 |
AVU65,ZSU6# |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-14010 |
AVU65,ZSU6# |
1 | ||
| 67836-33030 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-47060 |
ASU6#,AVU65,ZSU6# |
4 | ||
| 67837-48050 |
ASU6#,AVU65,ZSU6# |
4 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-48060 |
AVU65,ZSU6# |
1 | ||
| 67841-48060 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-48060 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 67841-48060 |
AVU65,ZSU6# |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ASU6#,AVU65,ZSU6# |
18 | ||
| 67867-12150 |
AVU65,ZSU6# |
18 | ||
| 67867J - CLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR) | ||||
| 67867-52040 |
AVU65,ZSU6# |
5 | ||
| 67867-52040 |
ASU6#,AVU65,ZSU6# |
5 | ||
| 67867K - CLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR) | ||||
| 67867-52010 |
AVU65,ZSU6# |
5 | ||
| 67867-52010 |
ASU6#,AVU65,ZSU6# |
5 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ASU6#,AVU65,ZSU6# |
18 | ||
| 67867-12150 |
AVU65,ZSU6# |
18 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-48070 |
AVU65,ZSU6# |
1 | ||
| 67871-48070 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-48070 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 67872-48070 |
AVU65,ZSU6# |
1 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-48040 |
AVU65,ZSU6# |
1 | ||
| 67887-48040 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-48040 |
AVU65,ZSU6# |
1 | ||
| 67888-48040 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-48170 |
AVU65,ZSU6# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68103-48280 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-48170 |
AVU65,ZSU6# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68104-48280 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-48150 |
AVU65,ZSU6# *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68123-48151 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-48151 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 68124-48150 |
AVU65,ZSU6# *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-48060 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 68142-48060 |
AVU65,ZSU6# |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-48060 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 68152-48060 |
AVU65,ZSU6# |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-48050 |
AVU65,ZSU6# |
1 | ||
| 68188-48050 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-48050 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 68189-48050 |
AVU65,ZSU6# |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-48070 |
AVU65,ZSU6# |
1 | ||
| 68630-48071 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 68630-48070 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-48071 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 68640-48070 |
AVU65,ZSU6# |
1 | ||
| 68640-48070 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 75937A - TAPE, BLACK OUT, INNER UPPER RH | ||||
| 75937-48020 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75937-48020 |
ASU6#,AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75938 - TAPE, BLACK OUT, INNER UPPER LH | ||||
| 75938-48020 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75938-48020 |
ASU6#,AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75951C - TAPE, BLACK OUT, INNER FRONT RH | ||||
| 75951-48020 |
ASU6#,AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75951-48020 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75952A - TAPE, BLACK OUT, INNER FRONT LH | ||||
| 75952-48020 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75952-48020 |
ASU6#,AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75953A - TAPE, BLACK OUT, INNER REAR RH | ||||
| 75953-48020 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75953-48020 |
ASU6#,AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75954A - TAPE, BLACK OUT, INNER REAR LH | ||||
| 75954-48020 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75954-48020 |
ASU6#,AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH | ||||
| 75977-48040 |
ASU6#,AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75977-48040 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH | ||||
| 75978-48040 |
ASU6#,AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75978-48040 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75987F - STRIPE, REAR DOOR, OUTSIDE, RH | ||||
| 75987-48060 |
ASU6#,AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75987-48060 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75988E - STRIPE, REAR DOOR, OUTSIDE LH | ||||
| 75988-48050 |
ASU6#,AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75988-48050 |
AVU65,ZSU6# 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90950-01841 | ||||
| 91611-B0610 | ||||
| 94151-80600 | ||||
