ZSU60W-ANXGP (2017)

Toyota Harrier/Hybrid

Production May 2017 - May 2020
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )

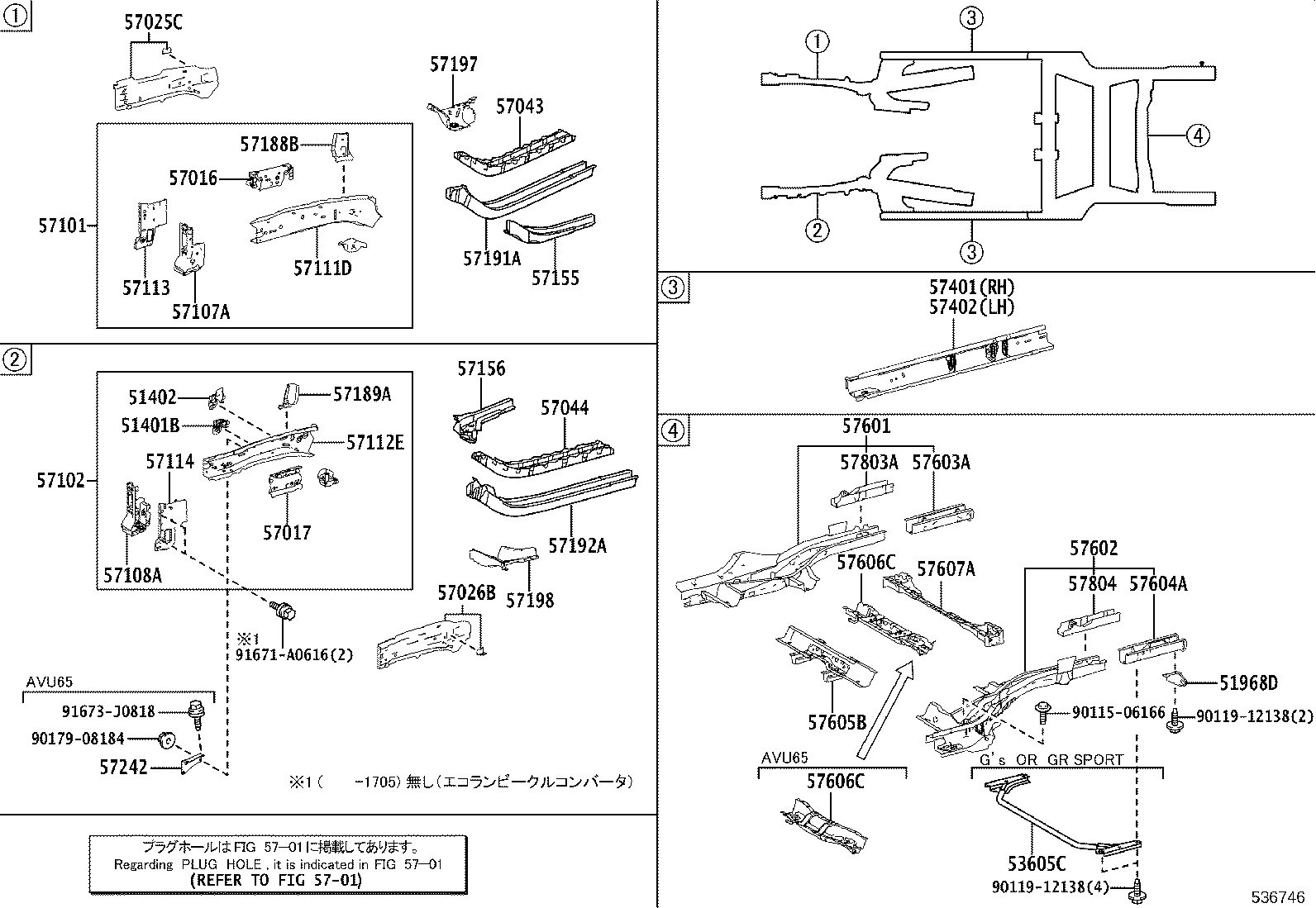

Click highlighted areas on diagram

diagram 51401B 51402 51968D 53605C 5701 57016 57017 57025C 57026B 57043 57044 57101 57102 57107A 57108A 57111D 57112E 57113 57114 57155 57156 57188B 57189A 57191A 57192A 57197 57198 57242 57401 57402 57601 57602 57603A 57604A 57605B 57606C 57606C 57607A 57803A 57804 9011506166 9011912138 9011912138 9017908184 91671A0616 91673J0818
Part # Description Qty Price
51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING
51401-42020

AVU65,ZSU6#

 1
51401-42020

ASU6#,AVU65,ZSU6#

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-42010

AVU65,ZSU6#

 1
51402-42010

ASU6#,AVU65,ZSU6#

 1
51968D - HOOK, TRANSPORT, REAR LH
51968-42010

AVU65,ZSU6#

 1
51968-42010

ASU6#,AVU65,ZSU6#

 1
57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57016-12110

AVU65,ZSU6#

 1
57016-12110

ASU6#,AVU65,ZSU6#

 1
57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57017-12070

ASU6#,AVU65,ZSU6#

 1
57017-12070

AVU65,ZSU6#

 1
57025C - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57025-12010

ASU6#,AVU65,ZSU6#

 1
57026B - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57026-12020

ASU6#,AVU65,ZSU6#

 1
57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57043-42010

ASU6#,AVU65,ZSU6#

 1
57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57044-42010

ASU6#,AVU65,ZSU6#

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-42110

ZSU6#

 1
57111-42900

ASU6#,AVU65,ZSU6#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-42090

ZSU6#

 1
57112-12906

ASU6#,AVU65,ZSU6#

 1
57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57107-42030

AVU65,ZSU6#

 1
57107-42030

ASU6#,AVU65,ZSU6#

 1
57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57108-42030

AVU65,ZSU6#

 1
57108-42031

ASU6#,AVU65,ZSU6#

 1
57111D - MEMBER, FRONT SIDE, INNER RH
57111-12230

ASU6#,AVU65,ZSU6#

 1
57111-12230

AVU65,ZSU6#

 1
57112E - MEMBER, FRONT SIDE, INNER LH
57112-12190

AVU65,ZSU6#

 1
57112-12190

ASU6#,AVU65,ZSU6#

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-42050

AVU65,ZSU6#

 1
57113-42050

ASU6#,AVU65,ZSU6#

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-42051

AVU65,ZSU6#

 1
57114-78010

ASU6#,AVU65,ZSU6#

 1
57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
57053-42011

ASU6#,AVU65,ZSU6#

 1
57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57054-42010

ASU6#,AVU65,ZSU6#

 1
57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH
57188-42030

ASU6#,AVU65,ZSU6#

 1
57188-42030

AVU65,ZSU6#

 1
57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH
57189-42020

AVU65,ZSU6#

 1
57189-42020

ASU6#,AVU65,ZSU6#

 1
57191A - MEMBER, FRONT SIDE, INNER REAR RH
57191-42060

ASU6#,AVU65,ZSU6#

 1
57192A - MEMBER, FRONT SIDE, INNER REAR LH
57192-42060

ASU6#,AVU65,ZSU6#

 1
57197 - BOX, TORQUE, FRONT RH
57197-42060

ASU6#,AVU65,ZSU6#

 1
57197-42060

AVU65,ZSU6#

 1
57198 - BOX, TORQUE, FRONT LH
57198-42060

ASU6#,AVU65,ZSU6#

 1
57198-42060

AVU65,ZSU6#

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-42150

ASU6#,AVU65,ZSU6#

 1
57401-42150

AVU65,ZSU6#

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-42150

AVU65,ZSU6#

 1
57402-42150

ASU6#,AVU65,ZSU6#

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-48920

ASU6#,ZSU6#

 1
57601-48918

ZSU6#

 1
57601-48918

ASU6#,ZSU6#

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-48917

ZSU6#

 1
57602-48919

ASU6#,ZSU6#

 1
57602-48917

ASU6#,ZSU6#

 1
57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57603-42021

AVU65,ZSU6#

 1
57603-42021

ASU6#,AVU65,ZSU6#

 1
57603-48110

ASU6#,AVU65,ZSU6#

 1
57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57604-42020

ASU6#,AVU65,ZSU6#

 1
57604-48010

ASU6#,AVU65,ZSU6#

 1
57604-42020

AVU65,ZSU6#

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-42010

ASU6#,ZSU6#

 1
57605-42010

ZSU6#

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-42100

ASU6#,ZSU6#

 1
57606-42100

ZSU6#

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-42100

ASU6#,ZSU6#

 1
57606-42100

ZSU6#

 1
57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-42070

ZSU6#

 1
57607-78010

ASU6#,ZSU6#

 1
57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH
57803-42010

AVU65,ZSU6#

 1
57803-42010

ASU6#,AVU65,ZSU6#

 1
57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH
57804-42010

AVU65,ZSU6#

 1
57804-42010

ASU6#,AVU65,ZSU6#

 1
Common parts
90115-06166
90119-12138
90179-08184
91671-A0616
91673-J0818
Linked diagrams
5701
