ZSU60W-ANXGP (2017)

Toyota Harrier/Hybrid

Production May 2017 - May 2020
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )

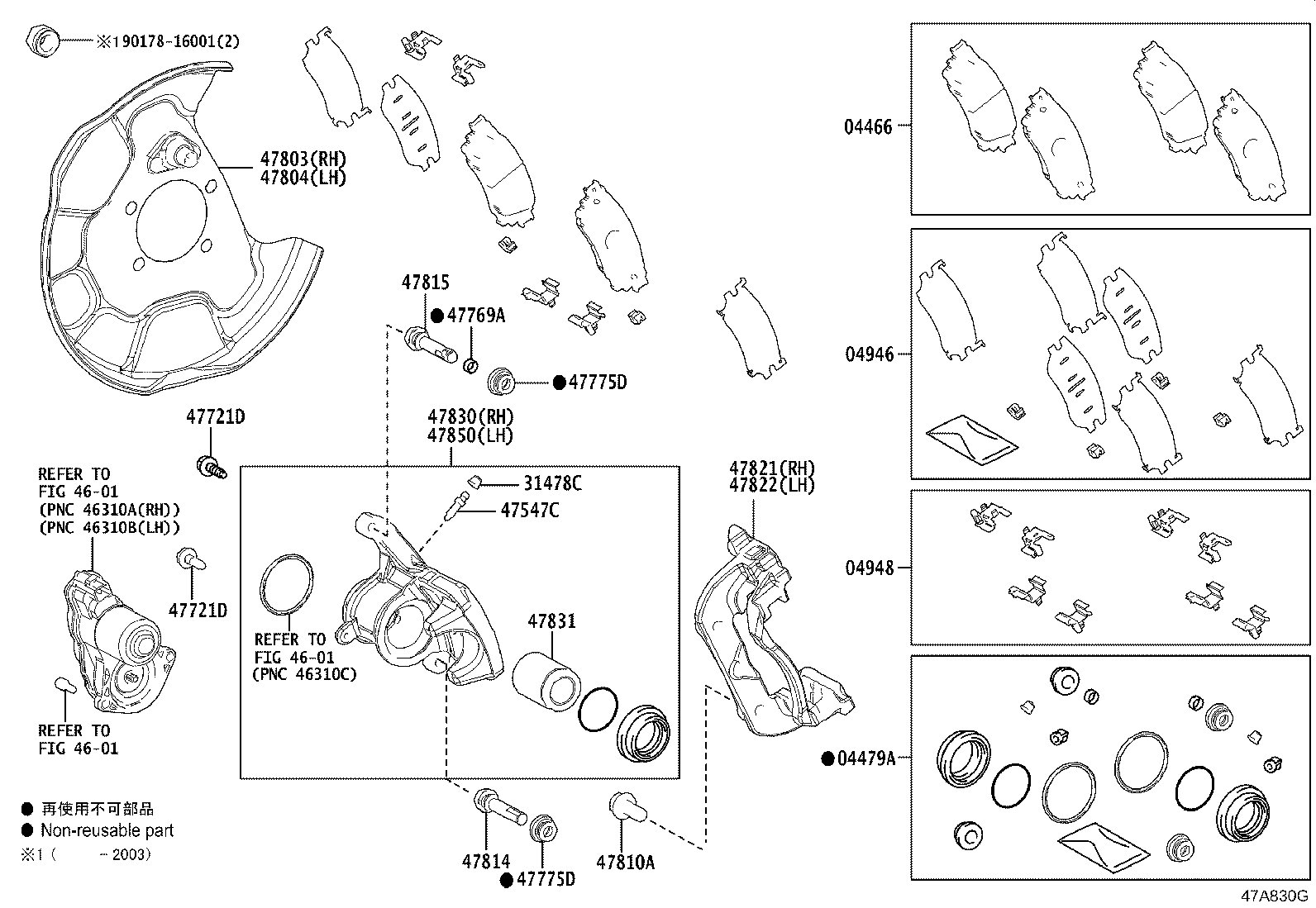

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 4601 4601 4601 47547C 47721D 47721D 47769A 47775D 47775D 47803 47804 47810A 47814 47815 47821 47822 47830 47831 47850 9017816001
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-78020

ASU6#,AVU65,ZSU6#

ﾏｰｸ AK NS554

 1
04466-42060

AVU65,ZSU6#

ﾏｰｸ ADVICS PS558

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-33350

AVU65,ZSU6#

 1
04479-78011

ASU6#,AVU65,ZSU6#

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-42050

AVU65,ZSU6#

 1
04946-78030

ASU6#,AVU65,ZSU6#

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-58010

ASU6#,AVU65,ZSU6#

 1
04948-42030

AVU65,ZSU6#

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-50020

AVU65,ZSU6#

 2
31478-30010

ASU6#,AVU65,ZSU6#

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010

ASU6#,AVU65,ZSU6#

 2
47547-20010

AVU65,ZSU6#

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-08164

AVU65,ZSU6#

*8−1.00PX23−15

 4
90015-AA603

ASU6#,AVU65,ZSU6#

*8−1.00PX23−12.5

 4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-08164

AVU65,ZSU6#

*8−1.00PX23−15

 4
90015-AA603

ASU6#,AVU65,ZSU6#

*8−1.00PX23−12.5

 4
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-50010

ASU6#,AVU65,ZSU6#

 2
47879-33240

AVU65,ZSU6#

 2
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-33270

ASU6#,AVU65,ZSU6#

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-33270

ASU6#,AVU65,ZSU6#

 4
47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47881-78010

ASU6#,AVU65,ZSU6#

 1
47881-78011

ASU6#,AVU65,ZSU6#

 1
47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47882-78010

ASU6#,AVU65,ZSU6#

 1
47882-78011

ASU6#,AVU65,ZSU6#

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-12314

AVU65,ZSU6#

 4
90105-12208

ASU6#,AVU65,ZSU6#

 4
47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47814-78010

ASU6#,AVU65,ZSU6#

 2
47814-33240

AVU65,ZSU6#

 2
47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47815-78010

ASU6#,AVU65,ZSU6#

 2
47815-33240

AVU65,ZSU6#

 2
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-10030

ASU6#,AVU65,ZSU6#

 1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-10030

ASU6#,AVU65,ZSU6#

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-78010

ASU6#,AVU65,ZSU6#

 1
47831 - PISTON, REAR DISC BRAKE
47831-78010

ASU6#,AVU65,ZSU6#

 2
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-78010

ASU6#,AVU65,ZSU6#

 1
Common parts
90178-16001
Linked diagrams
4601
