ZSU60W-ANXGP (2017)
Toyota Harrier/Hybrid
(1705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-48150 |
ASU6#,AVU65,ZSU6# ﾏｰｸ ADVICS PV565H |
1 | ||
| 04465-42180 |
AVU65,ZSU6# ﾏｰｸ ADVICS PV565H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-33100 |
AVU65,ZSU6# |
1 | ||
| 04478-48150 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-42060 |
AVU65,ZSU6# |
1 | ||
| 04945-48150 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-42050 |
AVU65,ZSU6# |
1 | ||
| 04947-48080 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
AVU65,ZSU6# |
2 | ||
| 31478-30010 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12130 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47547-20010 |
AVU65,ZSU6# |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 |
AVU65,ZSU6# *12−1.25PX29.5−23 |
4 | ||
| 90105-12208 |
ASU6#,AVU65,ZSU6# *12−1.25PX29.5−23 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-12A10 |
AVU65,ZSU6# |
2 | ||
| 47714-48150 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2 | ||||
| 47715-52190 |
AVU65,ZSU6# |
2 | ||
| 47715-48150 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-52191 |
AVU65,ZSU6# |
4 | ||
| 47716-48150 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47716-48150 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-52191 |
AVU65,ZSU6# |
4 | ||
| 47716-48150 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47716-48150 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-48150 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47717-52191 |
AVU65,ZSU6# |
4 | ||
| 47717-48150 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-48150 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47717-52191 |
AVU65,ZSU6# |
4 | ||
| 47717-48150 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47718-48150 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47718-48150 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47718-48150 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47718-48150 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47719-48150 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47719-48150 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47719-48150 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47719-48150 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-42091 |
AVU65,ZSU6# |
1 | ||
| 47721-48150 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90015-AA602 |
ASU6#,AVU65,ZSU6# *8−1.00PX23−15.5 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90015-AA602 |
ASU6#,AVU65,ZSU6# *8−1.00PX23−15.5 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-48140 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 47722-42091 |
AVU65,ZSU6# |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-48150 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 47730-42091 |
AVU65,ZSU6# |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-12A70 |
AVU65,ZSU6# |
2 | ||
| 47731-48150 |
ASU6#,AVU65,ZSU6# |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-12A70 |
AVU65,ZSU6# |
2 | ||
| 47731-48150 |
ASU6#,AVU65,ZSU6# |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-42091 |
AVU65,ZSU6# |
1 | ||
| 47750-48110 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-48150 |
ASU6#,AVU65,ZSU6# |
2 | ||
| 47769-50010 |
AVU65,ZSU6# |
1 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-52191 |
AVU65,ZSU6# |
4 | ||
| 47771-48150 |
ASU6#,AVU65,ZSU6# |
4 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-52191 |
AVU65,ZSU6# |
4 | ||
| 47771-48150 |
ASU6#,AVU65,ZSU6# |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-48150 |
ASU6#,AVU65,ZSU6# |
4 | ||
| 47775-52190 |
AVU65,ZSU6# |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-48150 |
ASU6#,AVU65,ZSU6# |
4 | ||
| 47775-52190 |
AVU65,ZSU6# |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-42040 |
AVU65,ZSU6# |
1 | ||
| 47781-42050 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-42050 |
ASU6#,AVU65,ZSU6# |
1 | ||
| 47782-42040 |
AVU65,ZSU6# |
1 | ||

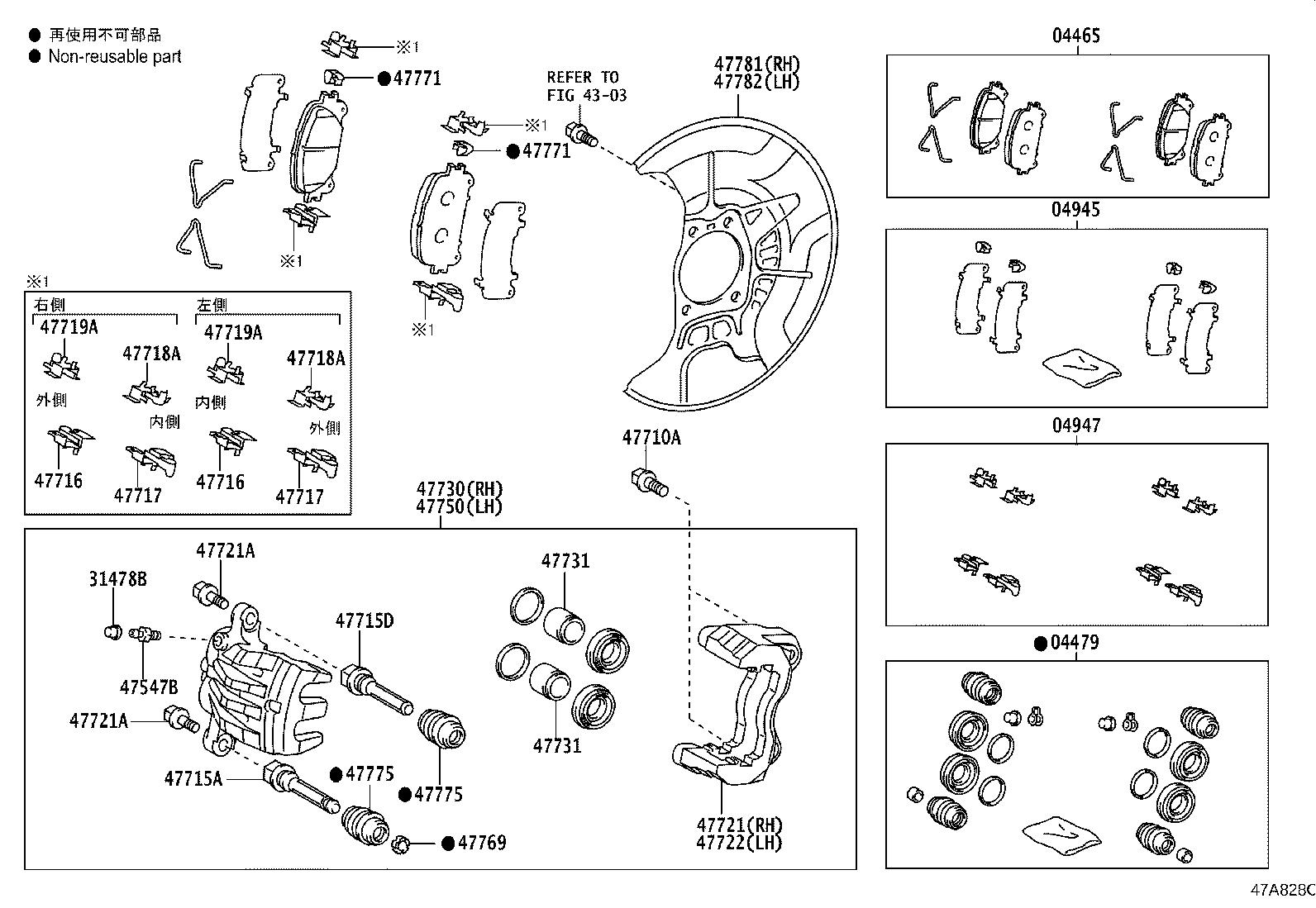

| Linked diagrams | ||||
| 4303 | ||||
