ZSU60W-ANXGP (2017)

Toyota Harrier/Hybrid

Production May 2017 - May 2020
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

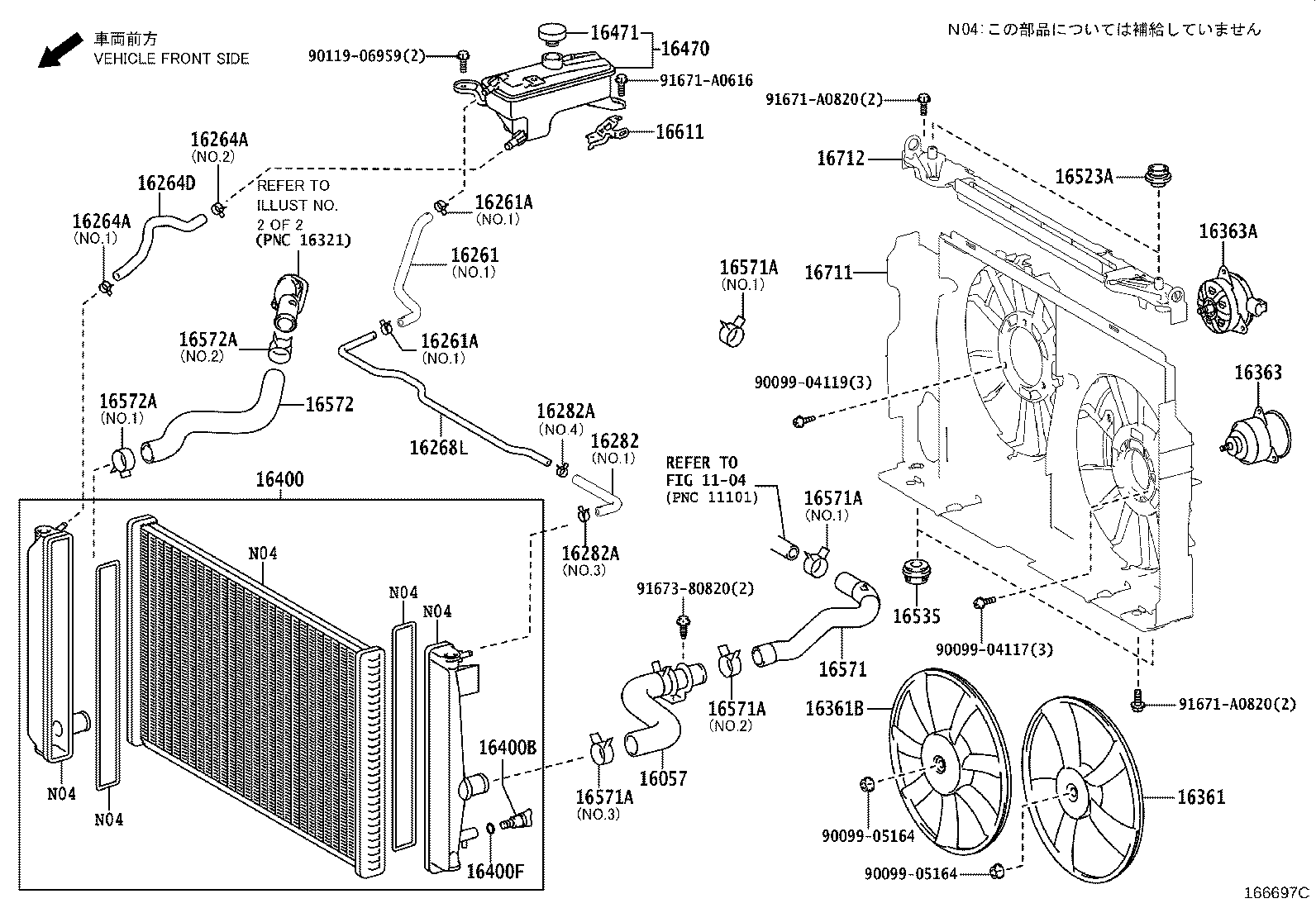

ILLUST NO. 1 OF 2(1705- )3ZRFAE

Click highlighted areas on diagram

diagram 1104 16057 16261 16261A 16261A 16264A 16264A 16264D 16268L 16282 16282A 16282A 16361 16361B 16363 16363A 16400 16400B 16400F 16470 16471 16523A 16535 16571 16571A 16571A 16571A 16571A 16572 16572A 16572A 16611 16711 16712 9009904117 9009904119 9009905164 9009905164 9011906959 91671A0616 91671A0820 91671A0820 9167380820
Part # Description Qty Price
16057 - HOSE SUB-ASSY, RADIATOR
16057-37050

3ZRFAE..ZSU6#

 1
16057-37021

3ZRFAE..ZSU6#

 1
16261 - HOSE, WATER BY-PASS
16261-36050

3ZRFAE..ZSU6#

NO.1

 1
16261-37022

3ZRFAE..ZSU6#

NO.2

 1
16261-36050

3ZRFAE..ZSU6#

NO.1

 1
16261-37022

3ZRFAE..ZSU6#

NO.2

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41501

3ZRFAE..ZSU6#

NO.2

 2
96137-41501

3ZRFAE..ZSU6#

NO.2

 2
90467-15022

3ZRFAE..ZSU6#

NO.1

 2
90467-15022

3ZRFAE..ZSU6#

NO.1 & NO.2

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41501

3ZRFAE..ZSU6#

NO.2

 2
96137-41501

3ZRFAE..ZSU6#

NO.2

 2
90467-15022

3ZRFAE..ZSU6#

NO.1

 2
90467-15022

3ZRFAE..ZSU6#

NO.1 & NO.2

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

3ZRFAE..ZSU6#

NO.1

 1
96137-41501

3ZRFAE..ZSU6#

NO.3

 2
96136-41901

3ZRFAE..ZSU6#

NO.1 & NO.2

 2
96136-41901

3ZRFAE..ZSU6#

NO.2

 1
96137-41501

3ZRFAE..ZSU6#

NO.3

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

3ZRFAE..ZSU6#

NO.1

 1
96137-41501

3ZRFAE..ZSU6#

NO.3

 2
96136-41901

3ZRFAE..ZSU6#

NO.1 & NO.2

 2
96136-41901

3ZRFAE..ZSU6#

NO.2

 1
96137-41501

3ZRFAE..ZSU6#

NO.3

 2
16264D - HOSE, WATER BY-PASS, NO.2
16264-36130

3ZRFAE..ZSU6#

 1
16264-36040

3ZRFAE..ZSU6#

 1
16268L - PIPE, WATER BY-PASS
16268-36070

3ZRFAE..ZSU6#

 1
16268-36120

3ZRFAE..ZSU6#

 1
16282 - HOSE, WATER BY-PASS, NO.5
16282-37080

3ZRFAE..ZSU6#

NO.2

 1
16282-37080

3ZRFAE..ZSU6#

NO.2

 1
16282-36060

3ZRFAE..ZSU6#

NO.1

 1
16282-36030

3ZRFAE..ZSU6#

NO.1

 1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
90467-15022

3ZRFAE..ZSU6#

NO.3

 2
96136-42101

3ZRFAE..ZSU6#

NO.1 & NO.2

 2
96136-42101

3ZRFAE..ZSU6#

NO.1 & NO.2

 2
96136-41901

3ZRFAE..ZSU6#

NO.3

 1
90467-15022

3ZRFAE..ZSU6#

NO.4

 1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
90467-15022

3ZRFAE..ZSU6#

NO.3

 2
96136-42101

3ZRFAE..ZSU6#

NO.1 & NO.2

 2
96136-42101

3ZRFAE..ZSU6#

NO.1 & NO.2

 2
96136-41901

3ZRFAE..ZSU6#

NO.3

 1
90467-15022

3ZRFAE..ZSU6#

NO.4

 1
16361 - FAN
16361-28200

3ZRFAE..ZSU6#

 1
16361-28200

3ZRFAE..ZSU6#

 1
16361B - FAN, NO.2
16361-28210

3ZRFAE..ZSU6#

 1
16361-28210

3ZRFAE..ZSU6#

 1
16363 - MOTOR, COOLING FAN
16363-28020

3ZRFAE..ZSU6#

 1
16363-28020

3ZRFAE..ZSU6#

 1
16363A - MOTOR, COOLING FAN, NO.2
16363-28240

3ZRFAE..ZSU6#

 1
16363-28240

3ZRFAE..ZSU6#

 1
16400 - RADIATOR ASSY
16400-36080

3ZRFAE..ZSU6#

 1
16400-28560

3ZRFAE..ZSU6#

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-21280

3ZRFAE..ZSU6#

 1
16417-21280

3ZRFAE..ZSU6#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

3ZRFAE..ZSU6#

 1
16492-21050

3ZRFAE..ZSU6#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-28111

3ZRFAE..ZSU6#

 1
16470-28113

3ZRFAE..ZSU6#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16475-28140

3ZRFAE..ZSU6#

 1
16475-37010

3ZRFAE..ZSU6#

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-21060

3ZRFAE..ZSU6#

 2
16523-21060

3ZRFAE..ZSU6#

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-20030

3ZRFAE..ZSU6#

 2
16535-20030

3ZRFAE..ZSU6#

 2
16571 - HOSE, RADIATOR, INLET
16571-37130

3ZRFAE..ZSU6#

 1
16571-37230

3ZRFAE..ZSU6#

 1
16571-37130

3ZRFAE..ZSU6#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96136-43901

3ZRFAE..ZSU6#

NO.1

 1
96136-44801

3ZRFAE..ZSU6#

NO.3

 1
96136-44301

3ZRFAE..ZSU6#

NO.2

 1
96136-43901

3ZRFAE..ZSU6#

NO.1

 1
96136-44801

3ZRFAE..ZSU6#

NO.3

 1
96136-44301

3ZRFAE..ZSU6#

NO.2

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96136-43901

3ZRFAE..ZSU6#

NO.1

 1
96136-44801

3ZRFAE..ZSU6#

NO.3

 1
96136-44301

3ZRFAE..ZSU6#

NO.2

 1
96136-43901

3ZRFAE..ZSU6#

NO.1

 1
96136-44801

3ZRFAE..ZSU6#

NO.3

 1
96136-44301

3ZRFAE..ZSU6#

NO.2

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96136-43901

3ZRFAE..ZSU6#

NO.1

 1
96136-44801

3ZRFAE..ZSU6#

NO.3

 1
96136-44301

3ZRFAE..ZSU6#

NO.2

 1
96136-43901

3ZRFAE..ZSU6#

NO.1

 1
96136-44801

3ZRFAE..ZSU6#

NO.3

 1
96136-44301

3ZRFAE..ZSU6#

NO.2

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96136-43901

3ZRFAE..ZSU6#

NO.1

 1
96136-44801

3ZRFAE..ZSU6#

NO.3

 1
96136-44301

3ZRFAE..ZSU6#

NO.2

 1
96136-43901

3ZRFAE..ZSU6#

NO.1

 1
96136-44801

3ZRFAE..ZSU6#

NO.3

 1
96136-44301

3ZRFAE..ZSU6#

NO.2

 1
16572 - HOSE, RADIATOR, OUTLET
16572-37160

3ZRFAE..ZSU6#

 1
16572-37160

3ZRFAE..ZSU6#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96136-44801

3ZRFAE..ZSU6#

NO.1

 1
96136-44301

3ZRFAE..ZSU6#

NO.2

 1
96136-44301

3ZRFAE..ZSU6#

NO.2

 1
96136-44801

3ZRFAE..ZSU6#

NO.1

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96136-44801

3ZRFAE..ZSU6#

NO.1

 1
96136-44301

3ZRFAE..ZSU6#

NO.2

 1
96136-44301

3ZRFAE..ZSU6#

NO.2

 1
96136-44801

3ZRFAE..ZSU6#

NO.1

 1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-28030

3ZRFAE..ZSU6#

 1
16611-36010

3ZRFAE..ZSU6#

 1
16711 - SHROUD, FAN
16711-37100

3ZRFAE..ZSU6#

 1
16711-37100

3ZRFAE..ZSU6#

 1
16712 - SHROUD, FAN, NO.2
16712-36030

3ZRFAE..ZSU6#

 1
16712-36030

3ZRFAE..ZSU6#

 1
