AVU65W-ANXXB (2014)

Toyota Harrier/Hybrid

Production Jan 2014 - May 2017
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

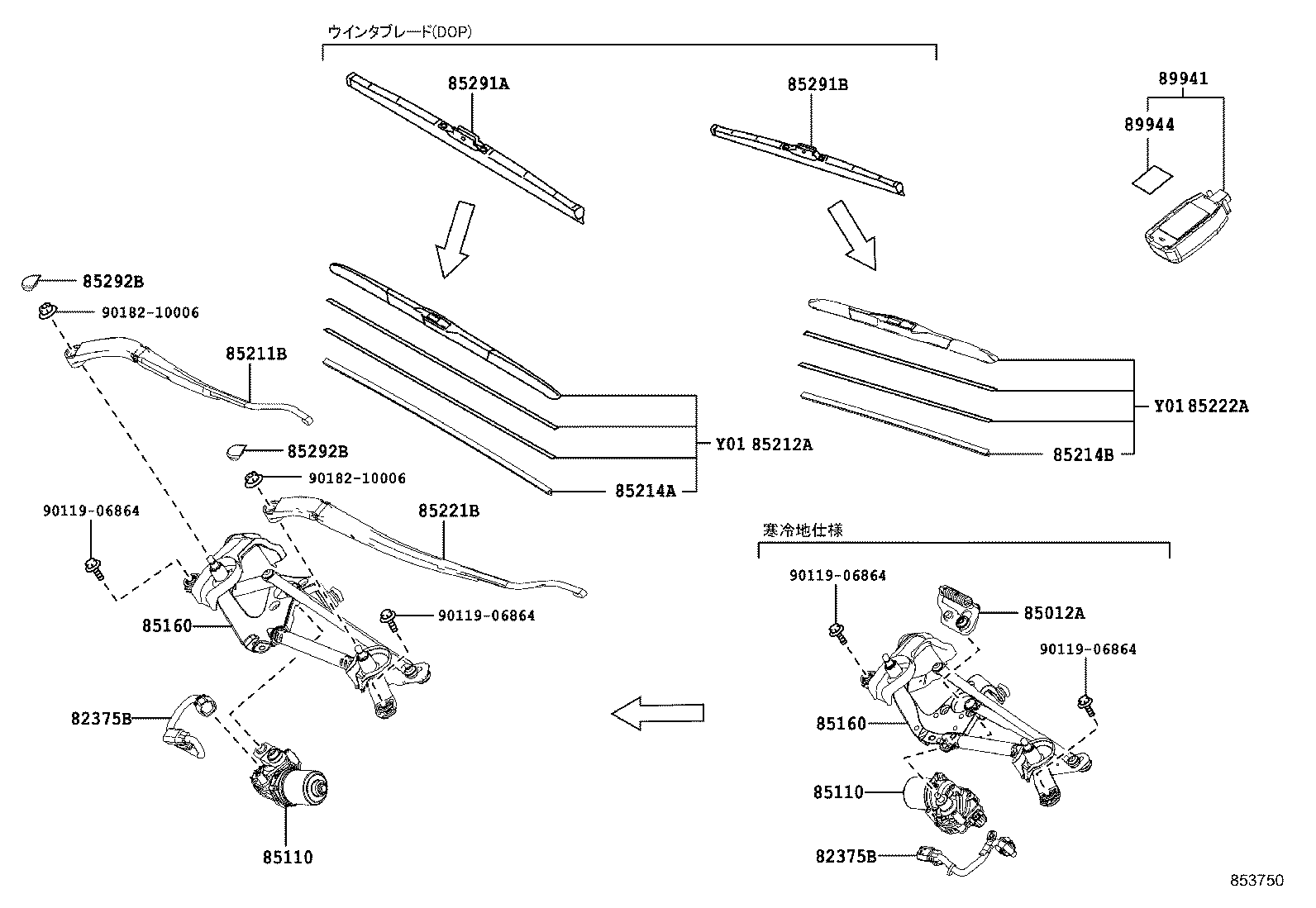

ILLUST NO. 2 OF 2(1312-1705)

Click highlighted areas on diagram

diagram 82375B 82375B 85012A 85110 85110 85160 85160 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291B 85292B 85292B 89941 89944 9011906864 9011906864 9011906864 9011906864 9018210006 9018210006
Part # Description Qty Price
82375B - WIRE, WIPER MOTOR
82375-48010

AVU65,ZSU6#

寒冷地仕様

 1
82375-48020

AVU65,ZSU6#

 1
82375B - WIRE, WIPER MOTOR
82375-48010

AVU65,ZSU6#

寒冷地仕様

 1
82375-48020

AVU65,ZSU6#

 1
85012A - CRANK SUB-ASSY, FRONT WIPER
85012-58030

AVU65,ZSU6#

寒冷地仕様

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-42200

AVU65,ZSU6#

 1
85110-48230

AVU65,ZSU6#

寒冷地仕様

 1
85110-42201

AVU65,ZSU6#

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-42200

AVU65,ZSU6#

 1
85110-48230

AVU65,ZSU6#

寒冷地仕様

 1
85110-42201

AVU65,ZSU6#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-48200

AVU65,ZSU6#

寒冷地仕様

 1
85150-48210

AVU65,ZSU6#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-48200

AVU65,ZSU6#

寒冷地仕様

 1
85150-48210

AVU65,ZSU6#

 1
85211B - ARM, FRONT WIPER, RH
85211-48180

AVU65,ZSU6#

 1
85212A - BLADE, FR WIPER, RH
85212-52250

AVU65,ZSU6#

 1
85214A - RUBBER, WIPER, RH
85214-52110

AVU65,ZSU6#

 1
85214B - RUBBER, WIPER, LH
85214-28090

AVU65,ZSU6#

 1
85221B - ARM, FRONT WIPER, LH
85221-48181

AVU65,ZSU6#

 1
85221-48180

AVU65,ZSU6#

 1
85222A - BLADE, FR WIPER, LH
85222-42130

AVU65,ZSU6#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-47040

AVU65,ZSU6#

寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-28150

AVU65,ZSU6#

寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

AVU65,ZSU6#

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

AVU65,ZSU6#

 2
Common parts
90119-06864
90182-10006
