AVU65W-ANXXB (2014)

Toyota Harrier/Hybrid

Production Jan 2014 - May 2017
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

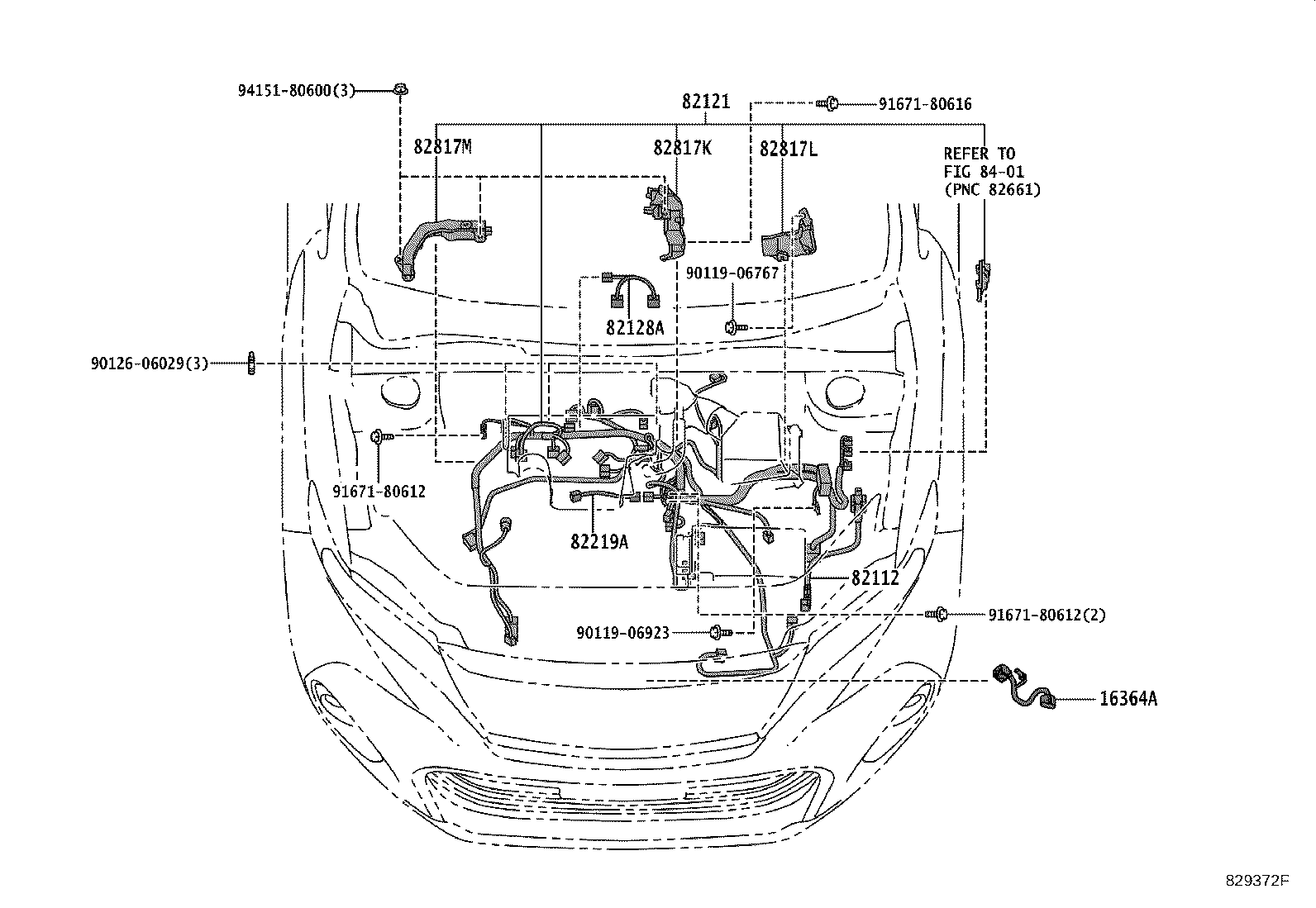

ILLUST NO. 2 OF11(1401- )AVU65

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

diagram 16364A 82112 82121 82128A 82219A 82817K 82817L 82817M 8401 9011906767 9011906923 9012606029 9167180612 9167180612 9167180616 9415180600
Part # Description Qty Price
16364A - WIRE, COOLING FAN
16364-36010

2ARFXE..AVU65

 1
82112 - WIRE, ENGINE ROOM, NO.2
82112-48060

AVU65

 1
82121 - WIRE, ENGINE
82121-48580

AVU65

 1
82128A - WIRE, ENGINE, NO.8
82128-33010

AVU65

 1
82219A - WIRE, SENSOR
82219-33060

AVU65

 1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-48L20

AVU65

 1
82817L - PROTECTOR, WIRING HARNESS, NO.11
82817-48L10

AVU65

 1
82817M - PROTECTOR, WIRING HARNESS, NO.12
82817-48L30

AVU65

 1
Common parts
90119-06767
90119-06923
90126-06029
91671-80612
91671-80616
94151-80600
Linked diagrams
8401

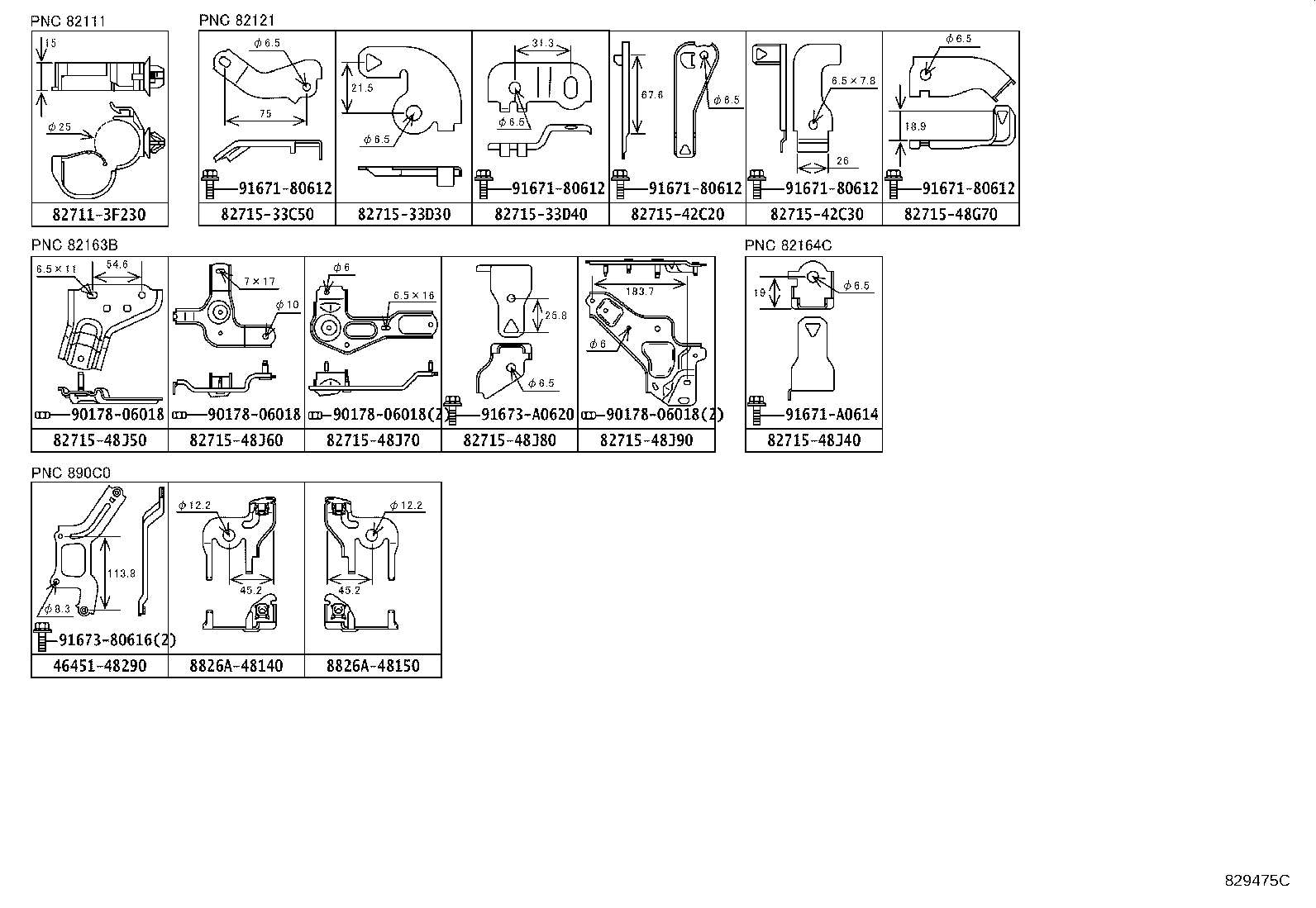

ILLUST NO. 8 OF11(1401- )AVU65

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ

diagram 4645148290 827113F230 8271533C50 8271533D30 8271533D40 8271542C20 8271542C30 8271548G70 8271548J40 8271548J50 8271548J60 8271548J70 8271548J80 8271548J90 8826A48140 8826A48150 9017806018 9017806018 9017806018 9017806018 9167180612 9167180612 9167180612 9167180612 9167180612 91671A0614 9167380616 91673A0620
Part # Description Qty Price
Common parts
46451-48290
82711-3F230
82715-33C50
82715-33D30
82715-33D40
82715-42C20
82715-42C30
82715-48G70
82715-48J40
82715-48J50
82715-48J60
82715-48J70
82715-48J80
82715-48J90
8826A-48140
8826A-48150
90178-06018
91671-80612
91671-A0614
91673-80616
91673-A0620

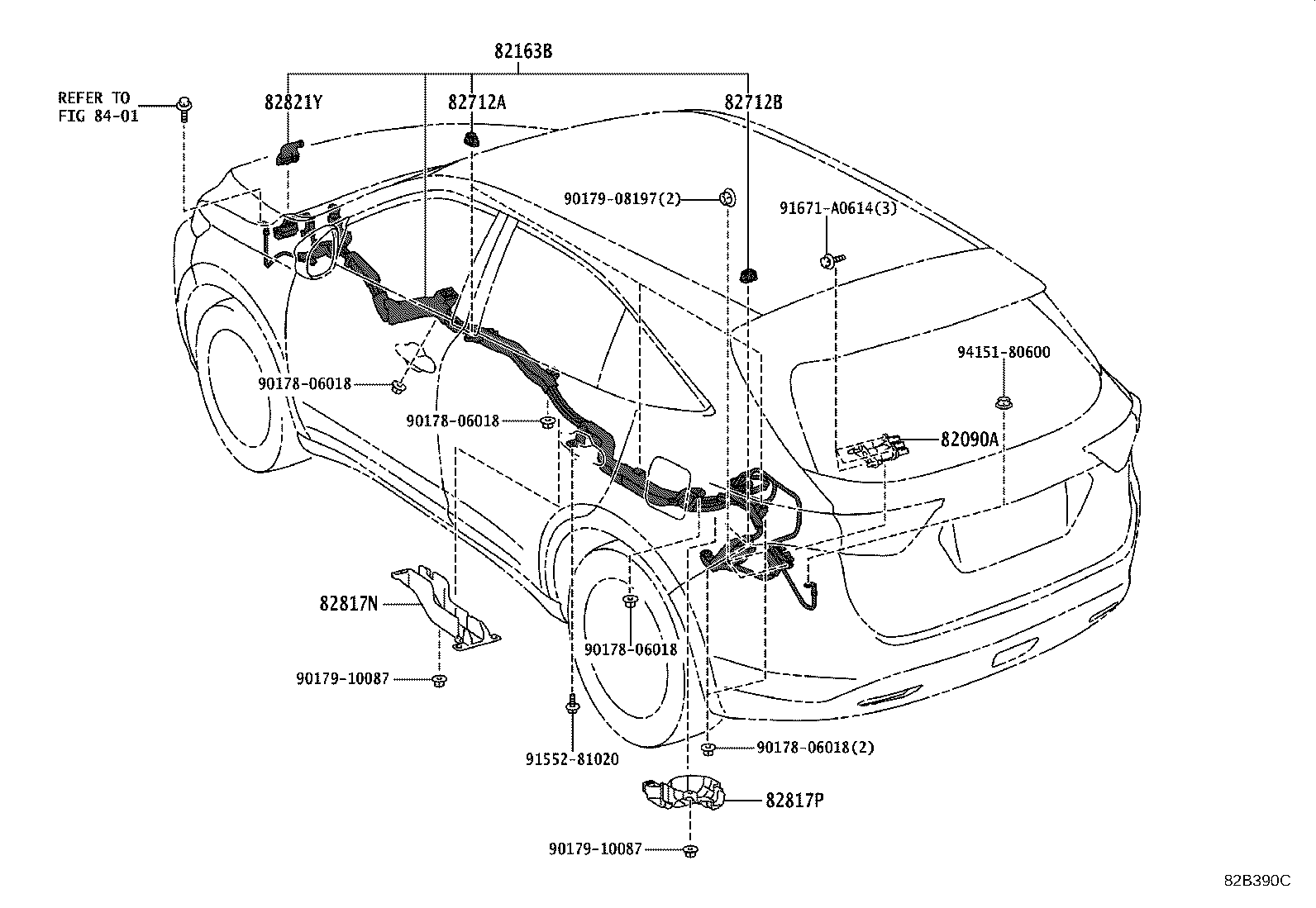

ILLUST NO. 6 OF11(1401- )AVU65,ZSU6#

Click highlighted areas on diagram

ｺｳｱﾂｹｰﾌﾞﾙ

diagram 82090A 82163B 82712A 82712B 82817N 82817P 82821Y 8401 9017806018 9017806018 9017806018 9017806018 9017908197 9017910087 9017910087 9155281020 91671A0614 9415180600
Part # Description Qty Price
82090A - WIRE ASSY, EXTENSION
82090-48020

AVU65

 1
82163B - WIRE, FLOOR NO.5
82165-48140

AVU65

 1
82712A - SUPPORT, WIRING HARNESS
82712-47270

AVU65

 3
82712B - SUPPORT, WIRING HARNESS
82712-30350

AVU65

 1
82817N - PROTECTOR, WIRING HARNESS, NO.13
82817-48M00

AVU65

 1
82817P - PROTECTOR, WIRING HARNESS, NO.14
82817-48M30

AVU65

 1
82821Y - COVER, CONNECTOR
82814-42030

AVU65

 1
Common parts
90178-06018
90179-08197
90179-10087
91552-81020
91671-A0614
94151-80600
Linked diagrams
8401

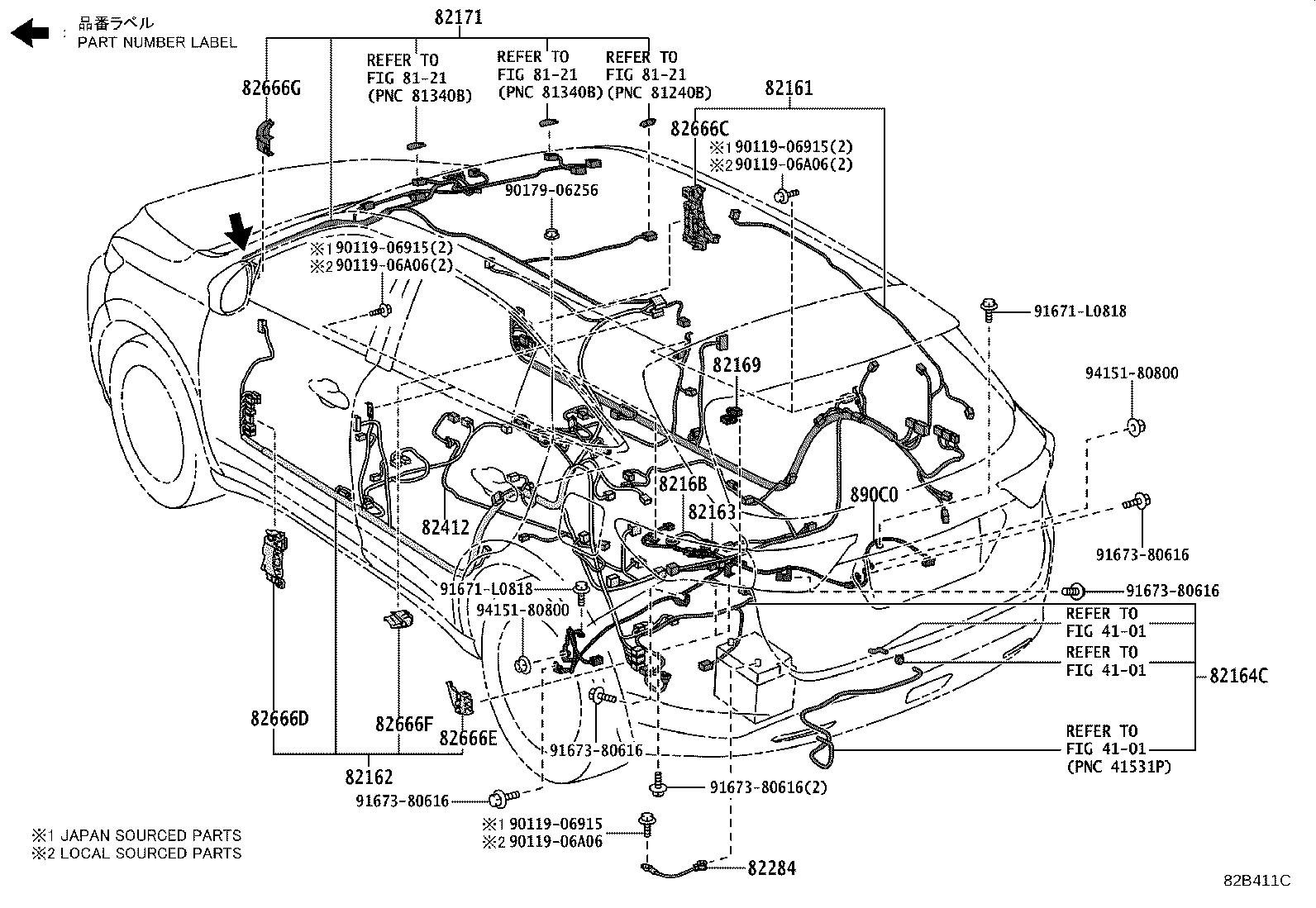

ILLUST NO. 5 OF11(1401- )AVU65

Click highlighted areas on diagram

ﾌﾛｱ & ﾙｰﾌ

diagram 4101 4101 4101 8121 8121 8121 82161 82162 82163 82164C 82169 8216B 82171 82284 82412 82666C 82666D 82666E 82666F 82666G 890C0 9011906915 9011906915 9011906915 9011906A06 9011906A06 9011906A06 9017906256 91671L0818 91671L0818 9167380616 9167380616 9167380616 9167380616 9167380616 9415180800 9415180800
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-4D630

AVU65..GRAND

 1
82162 - WIRE, FLOOR, NO.2
82162-48N20

AVU65

 1
82163 - WIRE, FLOOR, NO.3
82163-48130

AVU65

ｱｸｾｻﾘｺﾈｸﾀ(NO.2)−有り(1500W)

 1
82164C - WIRE, FLOOR, NO.4
82164-48250

AVU65

 1
82171 - WIRE, ROOF, NO.1
82171-48E60

AVU65,ZSU6#..ELEGC,GRAND

ｵｰﾃﾞｨｵ−ﾅﾋﾞ

 1
82171-48F00

AVU65,ZSU6#..ELEGC,GRAND

ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−ﾅﾋﾞ

 1
82171-48E50

AVU65,ZSU6#..ELEGC,GRAND

 1
82171-48F00

AVU65,ZSU6#..ELEGC,GRAND

ﾑｰﾝﾙｰﾌ−有り

 1
82284 - WIRE, EARTH
82284-48040

AVU65

 1
82412 - WIRE, FUEL GAGE
82412-48011

AVU65

 1
82666C - HOLDER, CONNECTOR NO.4
82666-42380

AVU65,ZSU6#

 1
82666D - HOLDER, CONNECTOR NO.5
82666-42390

AVU65,ZSU6#

 1
82666E - HOLDER, CONNECTOR NO.6
82666-42420

AVU65,ZSU6#

 1
82666F - HOLDER, CONNECTOR NO.7
82666-48350

AVU65,ZSU6#

 1
82666G - HOLDER, CONNECTOR NO.8
82666-42410

AVU65,ZSU6#

 1
Common parts
90119-06915
90119-06A06
90179-06256
91671-L0818
91673-80616
94151-80800
Linked diagrams
4101
8121
