AVU65W-ANXSB (2017)

Toyota Harrier/Hybrid

Production May 2017 - May 2020
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )

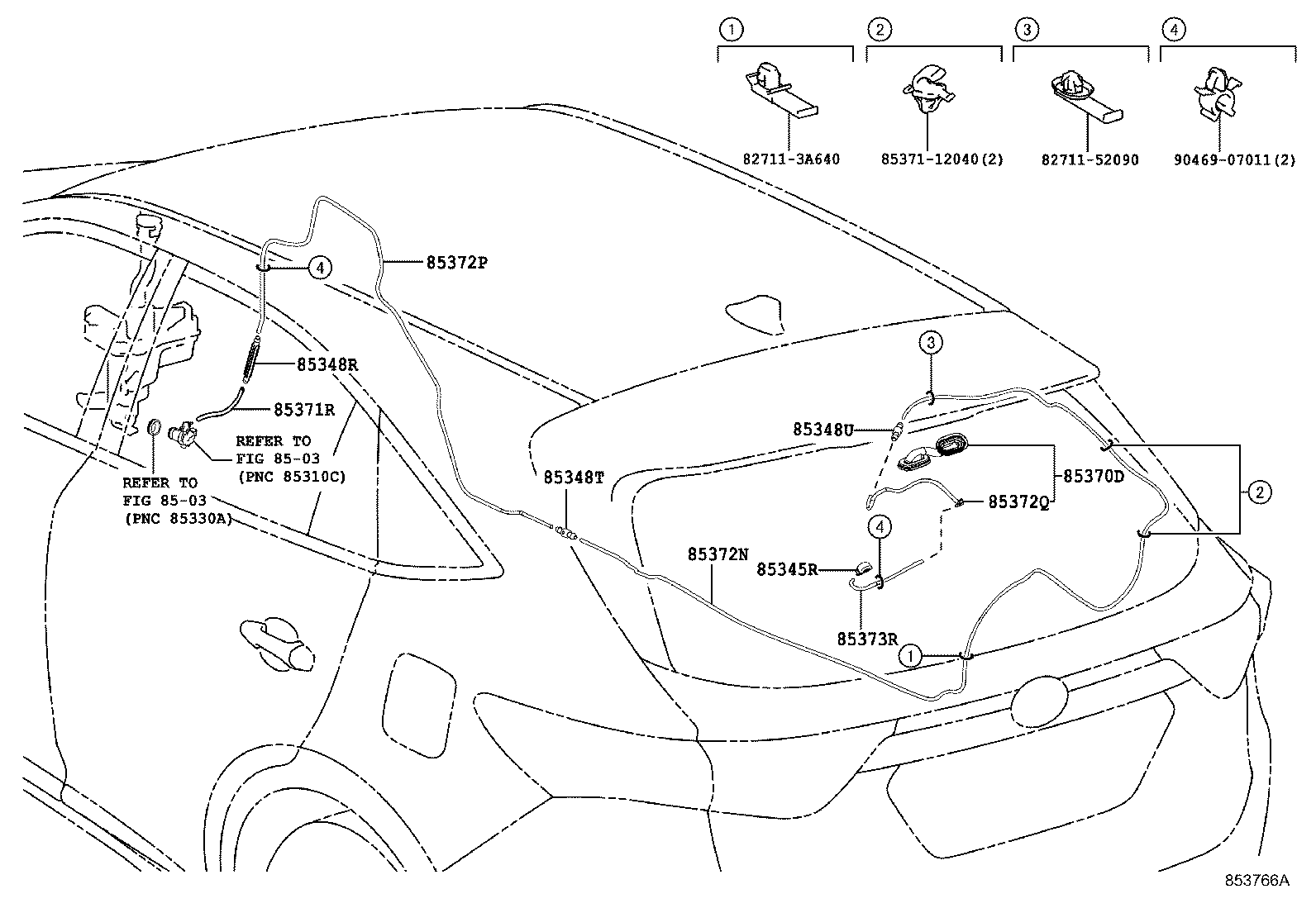

Click highlighted areas on diagram

diagram 827113A640 8271152090 8503 8503 85345R 85348R 85348T 85348U 85370D 8537112040 85371R 85372N 85372P 85372Q 85373R 9046907011
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85391-48060

ASU6#,AVU65,ZSU6#

 1
85391-48060

AVU65,ZSU6#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-32150

ASU6#,AVU65,ZSU6#

 1
85349-32150

AVU65,ZSU6#

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

AVU65,ZSU6#

 1
85349-89122

ASU6#,AVU65,ZSU6#

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

ASU6#,AVU65,ZSU6#

 1
85349-89122

AVU65,ZSU6#

 1
85370D - HOSE ASSY, REAR WASHER, NO.1
85370-48380

AVU65,ZSU6#

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

AVU65,ZSU6#

*H,L=200

 1
90099-33080

ASU6#,AVU65,ZSU6#

*H,L=200,寒冷地仕様

 1
90099-33080

AVU65,ZSU6#

*H,L=200,寒冷地仕様

 1
90099-33080

ASU6#,AVU65,ZSU6#

*H,L=200

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-62098

AVU65,ZSU6#

長さ=3374

 1
90099-62098

ASU6#,AVU65,ZSU6#

長さ=3374

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33382

ASU6#,AVU65,ZSU6#

*H,L=1790

 1
90099-33382

AVU65,ZSU6#

*H,L=1790

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85374-48010

AVU65,ZSU6#

 1
85374-48010

ASU6#,AVU65,ZSU6#

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

AVU65,ZSU6#

*H,L=220

 1
90099-33080

ASU6#,AVU65,ZSU6#

*H,L=220

 1
Common parts
82711-3A640
82711-52090
85371-12040
90469-07011
Linked diagrams
8503
