AVU65W-ANXMB (2017)
Toyota Harrier/Hybrid
Production
May 2017
-
May 2020
Engine
2ARFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1705- )AVU65

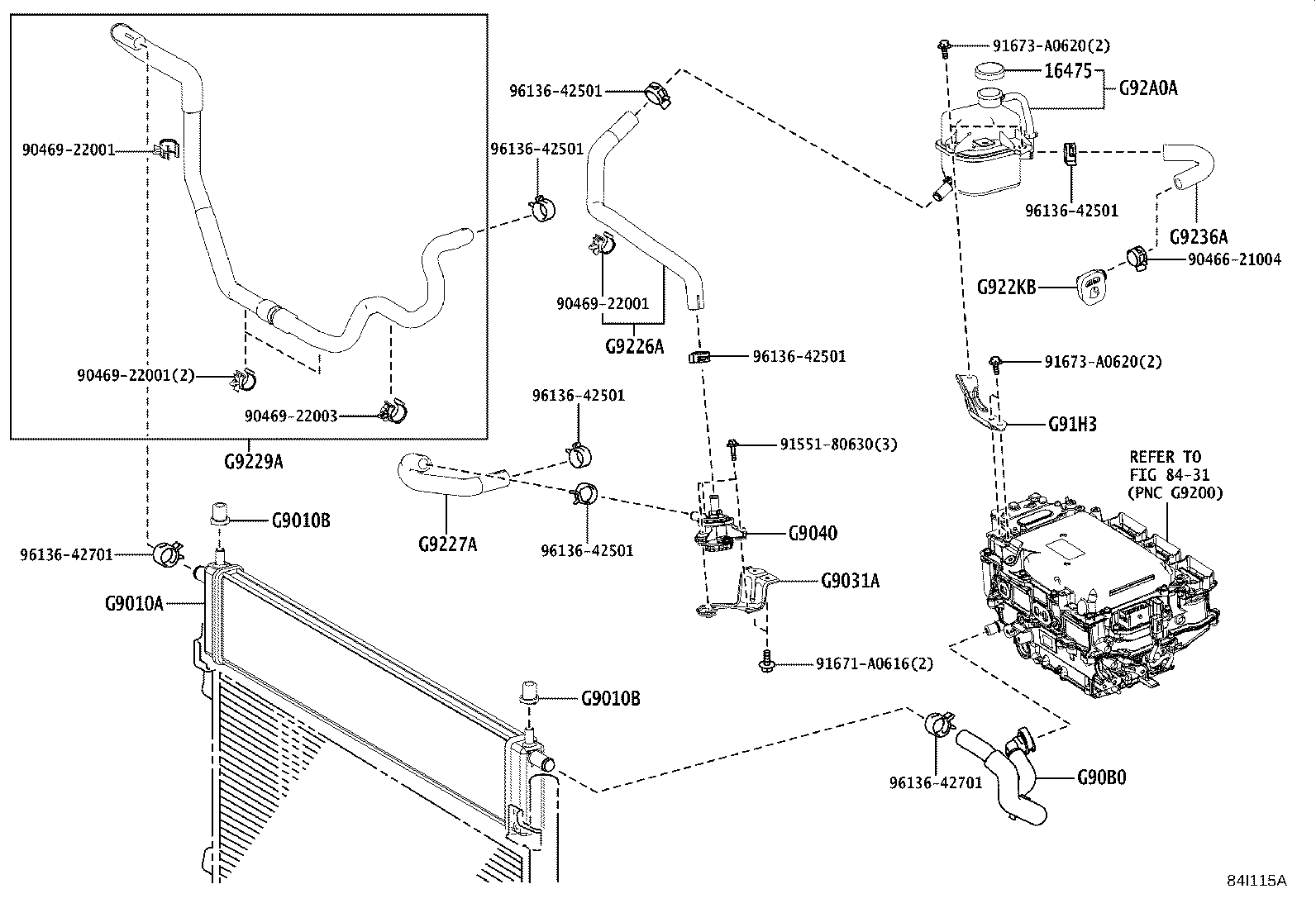

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16475 - CAP, RESERVE TANK | ||||
| 16475-28140 |
2ARFXE..AVU65 |
1 | ||
| G9010A - RADIATOR ASSY | ||||
| G9010-42020 |
AVU65 |
1 | ||
| G9010B - CUSHION, INVERTER RADIATOR | ||||
| 16716-37010 |
AVU65 |
2 | ||
| G9010B - CUSHION, INVERTER RADIATOR | ||||
| 16716-37010 |
AVU65 |
2 | ||
| G9031A - BRACKET SUB-ASSY, HV WATER PUMP | ||||
| G9141-48030 |
AVU65 |
1 | ||
| G9040 - INVERTER WATER PUMP ASSY(W/MOTOR) | ||||
| G9040-48010 |
AVU65 |
1 | ||
| G90B0 - HOSE ASSY, INVERTER COOLING, NO.2 | ||||
| G90B0-48050 |
AVU65 |
1 | ||
| G91H3 - BRACKET, INVERTER RESERVE TANK, NO.2 | ||||
| G91H3-48010 |
AVU65 |
1 | ||
| G9226A - HOSE, INVERTER COOLING, NO.2 | ||||
| G9226-48060 |
AVU65 |
1 | ||
| G9227A - HOSE, INVERTER COOLING, NO.3 | ||||
| G9227-48060 |
AVU65 |
1 | ||
| G9229A - HOSE, INVERTER COOLING, NO.5 | ||||
| G9229-48020 |
AVU65 |
1 | ||
| G922KB - CONNECTOR, HYBRID WATER HOSE, NO.2 | ||||
| G922K-33020 |
AVU65 |
1 | ||
| G9236A - HOSE, INVERTER COOLING, NO.6 | ||||
| G9236-48010 |
AVU65 |
1 | ||
| G9236-78010 |
AVU65 |
1 | ||
| G92A0A - TANK ASSY, INVERTER RESERVE | ||||
| G910F-48012 |
AVU65 |
1 | ||
| G910F-48013 |
AVU65 |
1 | ||
| Common parts | ||||
| 90466-21004 | ||||
| 90469-22001 | ||||
| 90469-22003 | ||||
| 91551-80630 | ||||
| 91671-A0616 | ||||
| 91673-A0620 | ||||
| 96136-42501 | ||||
| 96136-42701 | ||||
| Linked diagrams | ||||
| 8431 | ||||
