AVU65W-ANXMB (2014)
Toyota Harrier/Hybrid

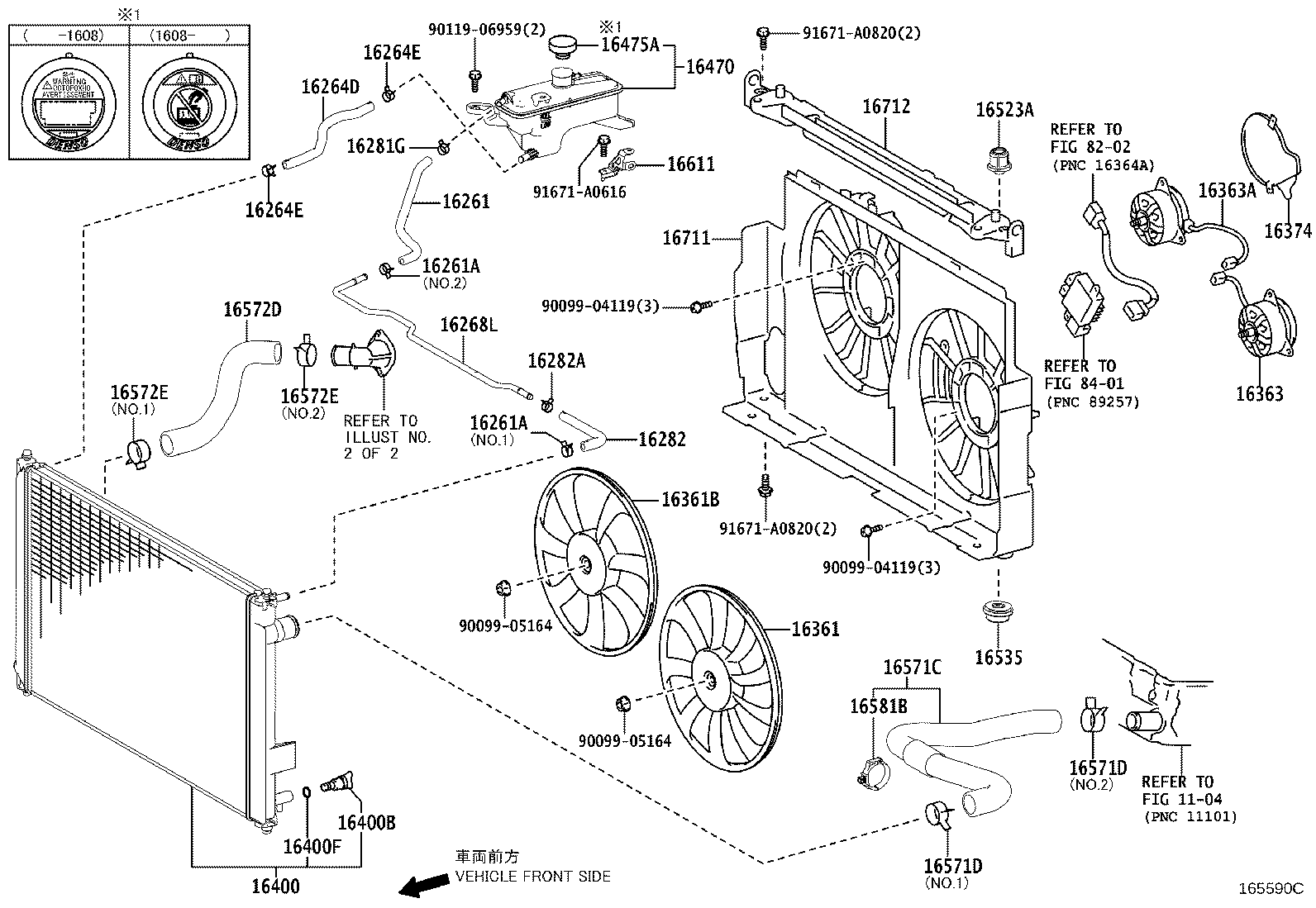

ILLUST NO. 1 OF 2(1401- )2ARFXE
ﾗｼﾞｴ-ﾀｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-36050 |
2ARFXE..AVU65 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2ARFXE..AVU65 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-41901 |
2ARFXE..AVU65 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2ARFXE..AVU65 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-41901 |
2ARFXE..AVU65 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-36130 |
2ARFXE..AVU65 |
1 | ||
| 16264-36060 |
2ARFXE..AVU65 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41901 |
2ARFXE..AVU65 |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41901 |
2ARFXE..AVU65 |
2 | ||
| 16268L - PIPE, WATER BY-PASS | ||||
| 16268-36120 |
2ARFXE..AVU65 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
2ARFXE..AVU65 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-36060 |
2ARFXE..AVU65 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
2ARFXE..AVU65 |
1 | ||
| 16361 - FAN | ||||
| 16361-36140 |
2ARFXE..AVU65 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-36150 |
2ARFXE..AVU65 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-36180 |
2ARFXE..AVU65 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-36190 |
2ARFXE..AVU65 |
1 | ||
| 16374 - INSULATOR, COOLING FAN MOTOR | ||||
| 16366-36150 |
2ARFXE..AVU65 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-36081 |
2ARFXE..AVU65 |
1 | ||
| 16400-36080 |
2ARFXE..AVU65 |
1 | ||
| 16400-36080 |
2ARFXE..AVU65 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2ARFXE..AVU65 |
1 | ||
| 16417-21280 |
2ARFXE..AVU65 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ARFXE..AVU65 |
1 | ||
| 16492-21050 |
2ARFXE..AVU65 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-28111 |
2ARFXE..AVU65 |
1 | ||
| 16470-28113 |
2ARFXE..AVU65 |
1 | ||
| 16470-28112 |
2ARFXE..AVU65 |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-37010 |
2ARFXE..AVU65 |
1 | ||
| 16475-37011 |
2ARFXE..AVU65 |
1 | ||
| 16475-28140 |
2ARFXE..AVU65 |
1 | ||
| 16475-28140 |
2ARFXE..AVU65 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21060 |
2ARFXE..AVU65 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-28060 |
2ARFXE..AVU65 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-36160 |
2ARFXE..AVU65 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-44301 |
2ARFXE..AVU65 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-44801 |
2ARFXE..AVU65 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-44301 |
2ARFXE..AVU65 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-44801 |
2ARFXE..AVU65 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-36160 |
2ARFXE..AVU65 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-44301 |
2ARFXE..AVU65 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-44801 |
2ARFXE..AVU65 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-44301 |
2ARFXE..AVU65 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-44801 |
2ARFXE..AVU65 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-26040 |
2ARFXE..AVU65 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-36010 |
2ARFXE..AVU65 |
1 | ||
| 16611-28030 |
2ARFXE..AVU65 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-36180 |
2ARFXE..AVU65 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-36040 |
2ARFXE..AVU65 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06959 | ||||
| 91671-A0616 | ||||
| 91671-A0820 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8202 | ||||
| 8401 | ||||

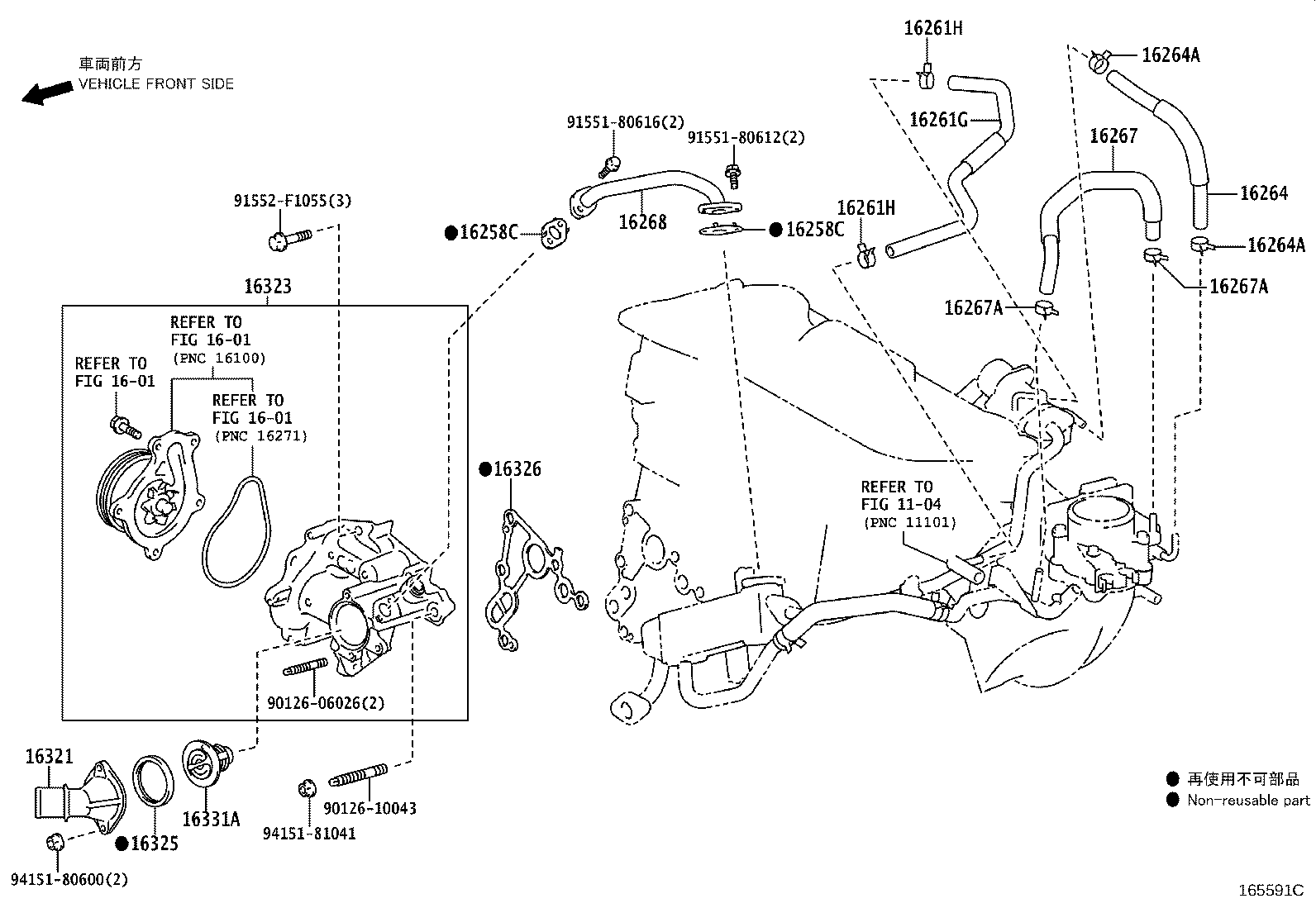

ILLUST NO. 2 OF 2(1401- )2ARFXE
ｴﾝｼﾞﾝｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-36100 |
2ARFXE..AVU65 |
2 | ||
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-36100 |
2ARFXE..AVU65 |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-36040 |
2ARFXE..AVU65 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-41501 |
2ARFXE..AVU65 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-41501 |
2ARFXE..AVU65 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-36080 |
2ARFXE..AVU65 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2ARFXE..AVU65 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2ARFXE..AVU65 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-36080 |
2ARFXE..AVU65 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
2ARFXE..AVU65 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
2ARFXE..AVU65 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-36190 |
2ARFXE..AVU65 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-36060 |
2ARFXE..AVU65 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-36030 |
2ARFXE..AVU65 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
2ARFXE..AVU65 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-36010 |
2ARFXE..AVU65 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03148 |
2ARFXE..AVU65 *WAX 80−93 |
1 | ||
| Common parts | ||||
| 90126-06026 | ||||
| 90126-10043 | ||||
| 91551-80612 | ||||
| 91551-80616 | ||||
| 91552-F1055 | ||||
| 94151-80600 | ||||
| 94151-81041 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1601 | ||||
